1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:50 AM

Page 12

© 2004 Mitchell Repair Information Company, LLC.

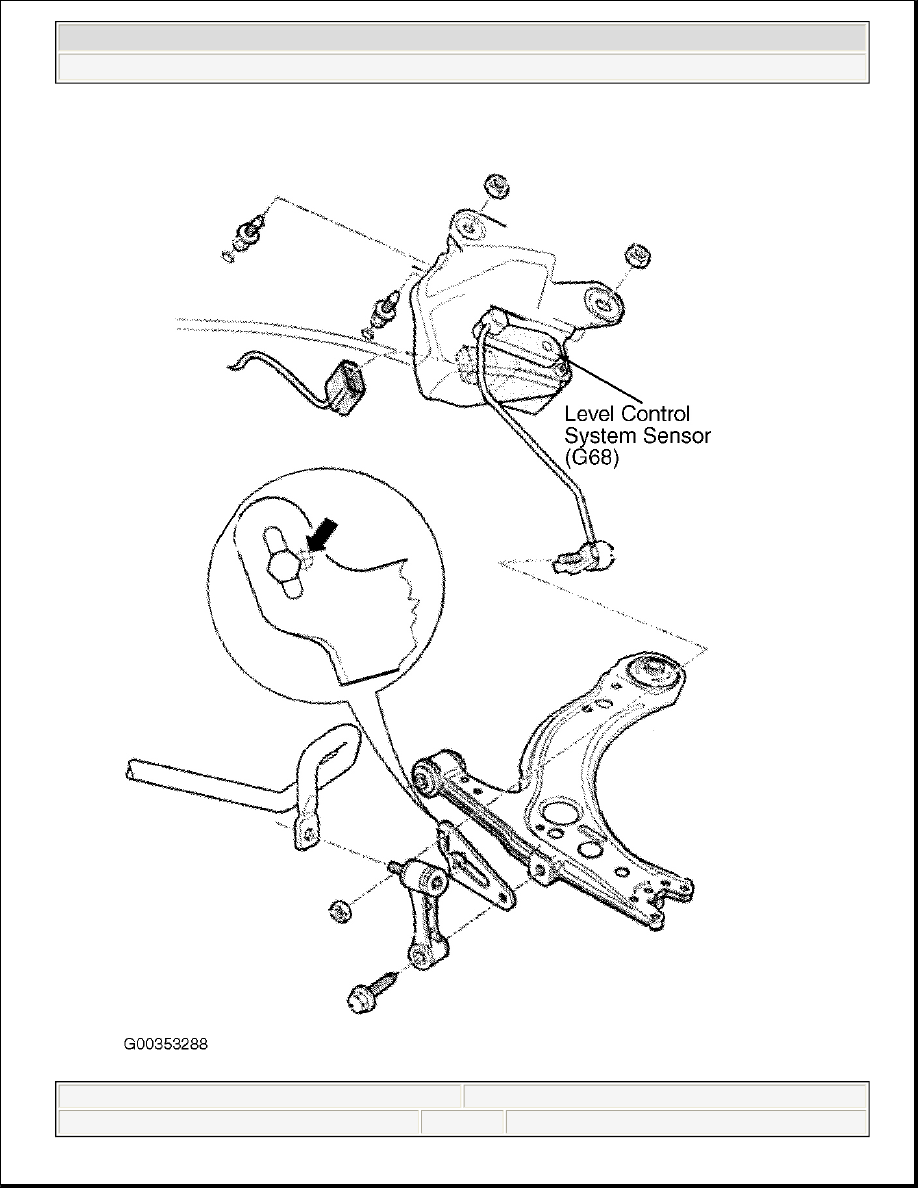

Fig. 7: Locating Level Control System Sensor (AWD)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. On models equipped with TDI or 1.8L engines, remove intake air duct between charge air cooler and

turbocharger. On all models, remove sound insulation panels. See Fig. 8 . Mark position of ball joint to
lower control arm. Remove 3 ball joint-to-lower control arm bolts.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:50 AM

Page 13

© 2004 Mitchell Repair Information Company, LLC.

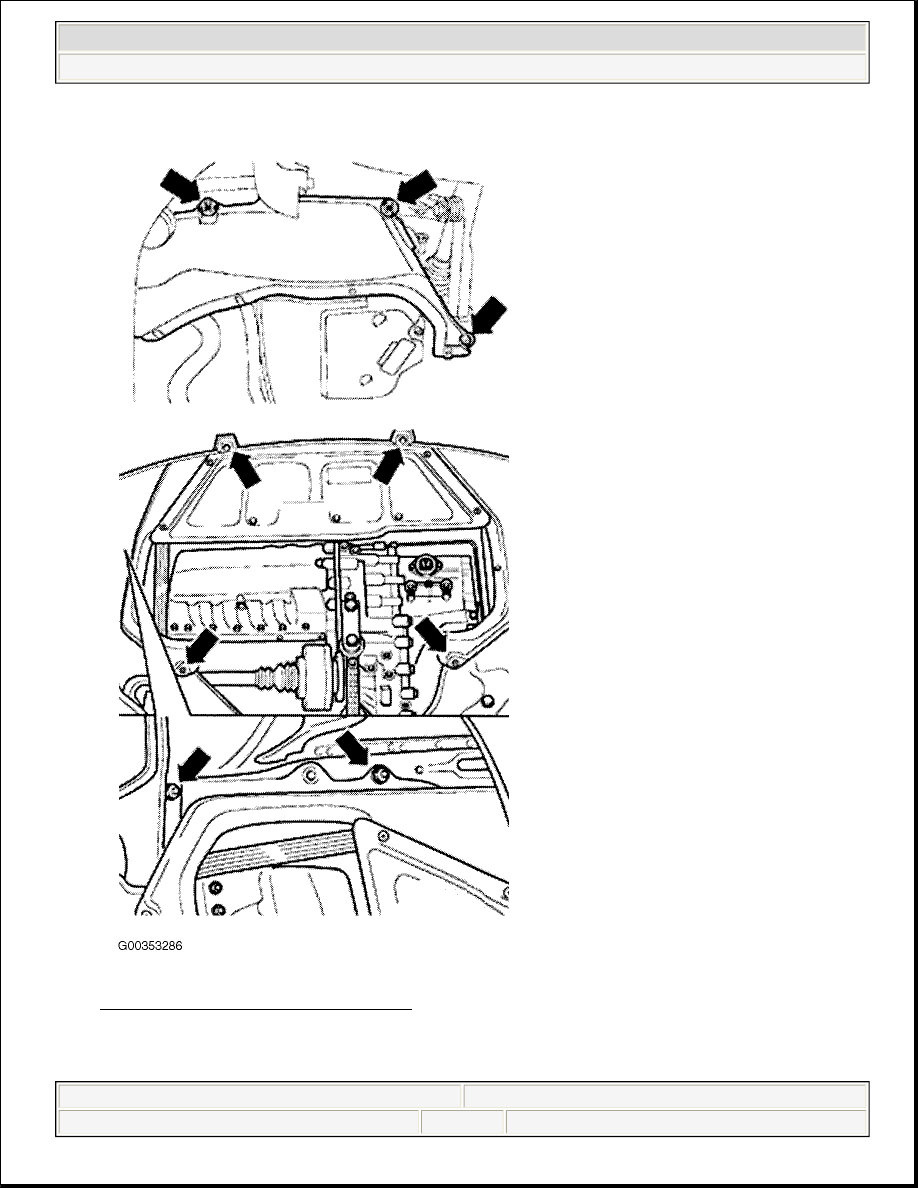

Fig. 8: Locating Sound Insulation Panels
Courtesy of VOLKSWAGEN UNITED STATES, INC.

4. On vehicles equipped with manual transmission, go to next step. On vehicles equipped with automatic



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:50 AM

Page 14

© 2004 Mitchell Repair Information Company, LLC.

transmission, remove pendulum support-to-subframe bolts. See Fig. 9 .

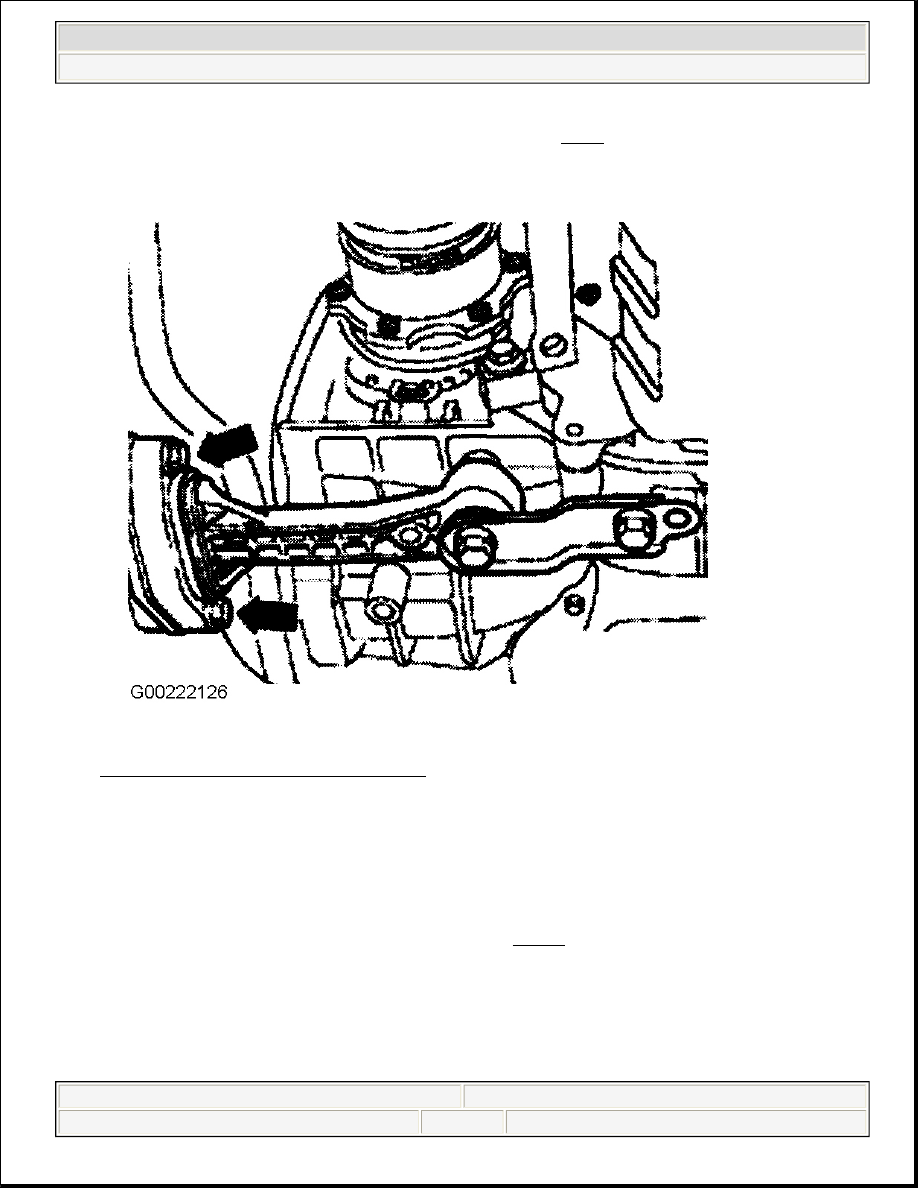

Fig. 9: Removing Pendulum Support Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5.

Remove axle shaft-to-drive flange bolts. Remove stabilizer bar link rod nut, washers, and bushings from
control arm. Remove control arm-to-subframe bolts. See Fig. 10 . Remove control arm.

NOTE:

On vehicles with automatic transmission, Push engine/transmission
assembly forward (i.e. using lever).
