Volkswagen New Beetle. Manual - part 2104





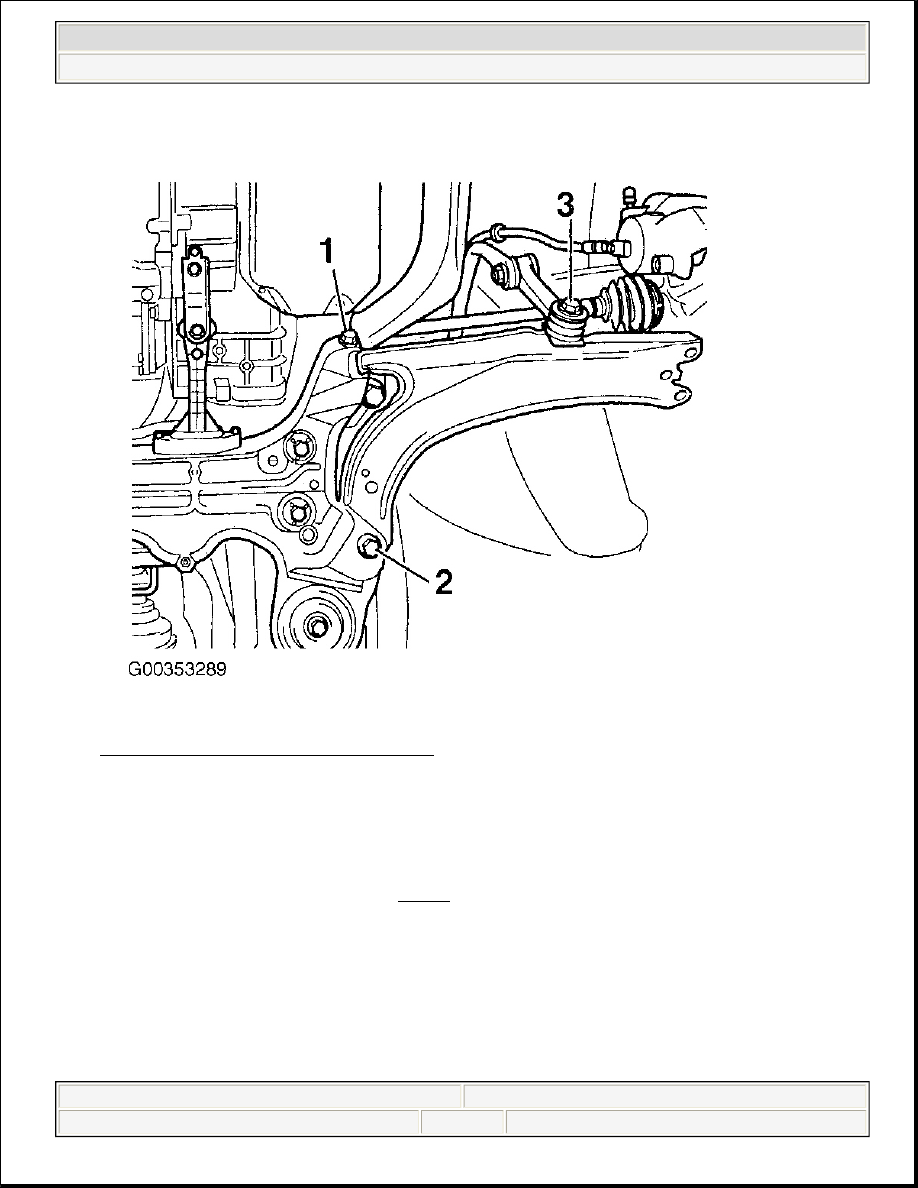

Fig. 10: Locating Lower Control Arm Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installation

1. Install control arm to subframe. Install ball joint into steering knuckle.

2. Install new self-locking nut, and counter-hold with T40 Torx bit (1), ring wrench insert or slotted ring

wrench insert (2) and VAG1331 (3). See Fig. 11 . Install axle shaft. Secure ball joint to control arm (bolts
on old marks) using NEW bolts.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:50 AM

Page 16

© 2004 Mitchell Repair Information Company, LLC.

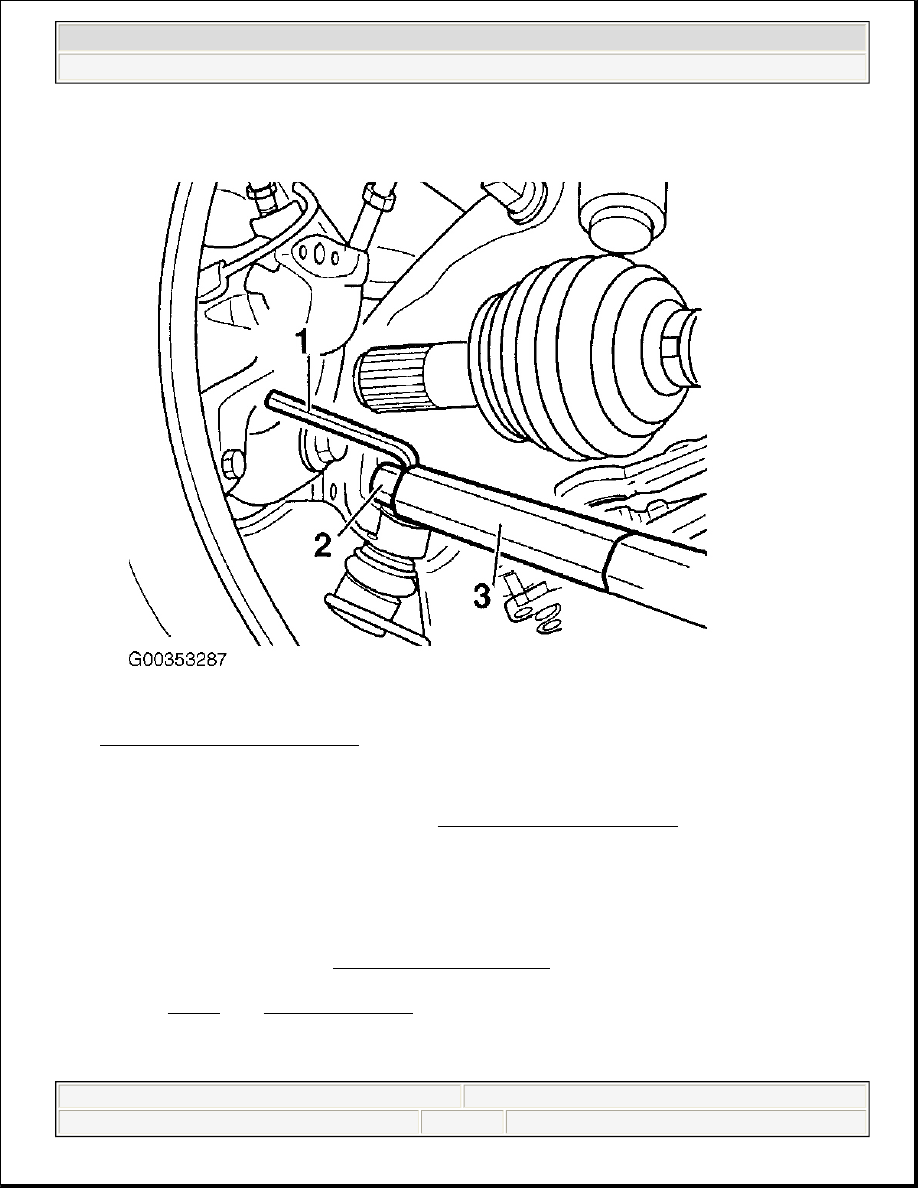

Fig. 11: Tightening Ball Joint Nut
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. To complete installation, reverse removal procedure. Tighten control arm bolts with vehicle on ground.

Tighten all bolts and nuts to specification. See TORQUE SPECIFICATIONS . Check wheel alignment.
See appropriate SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT.

LOWER CONTROL ARM BUSHINGS

Removal & Installation (Front Bushing)

1. Remove lower control arm. See LOWER CONTROL ARM .

2. Mount control arm in soft-jawed vise. Using appropriate bushing press tools, press bushing from control

arm. See Fig. 12 . See SPECIAL TOOLS .

3.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:50 AM

Page 17

© 2004 Mitchell Repair Information Company, LLC.

Using appropriate press tools and bushing lubricant (G 294 421 A1), press NEW bushing into control
arm. See Fig. 12 .

CAUTION: Never use grease as a lubricant for bushings.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:50 AM

Page 18

© 2004 Mitchell Repair Information Company, LLC.

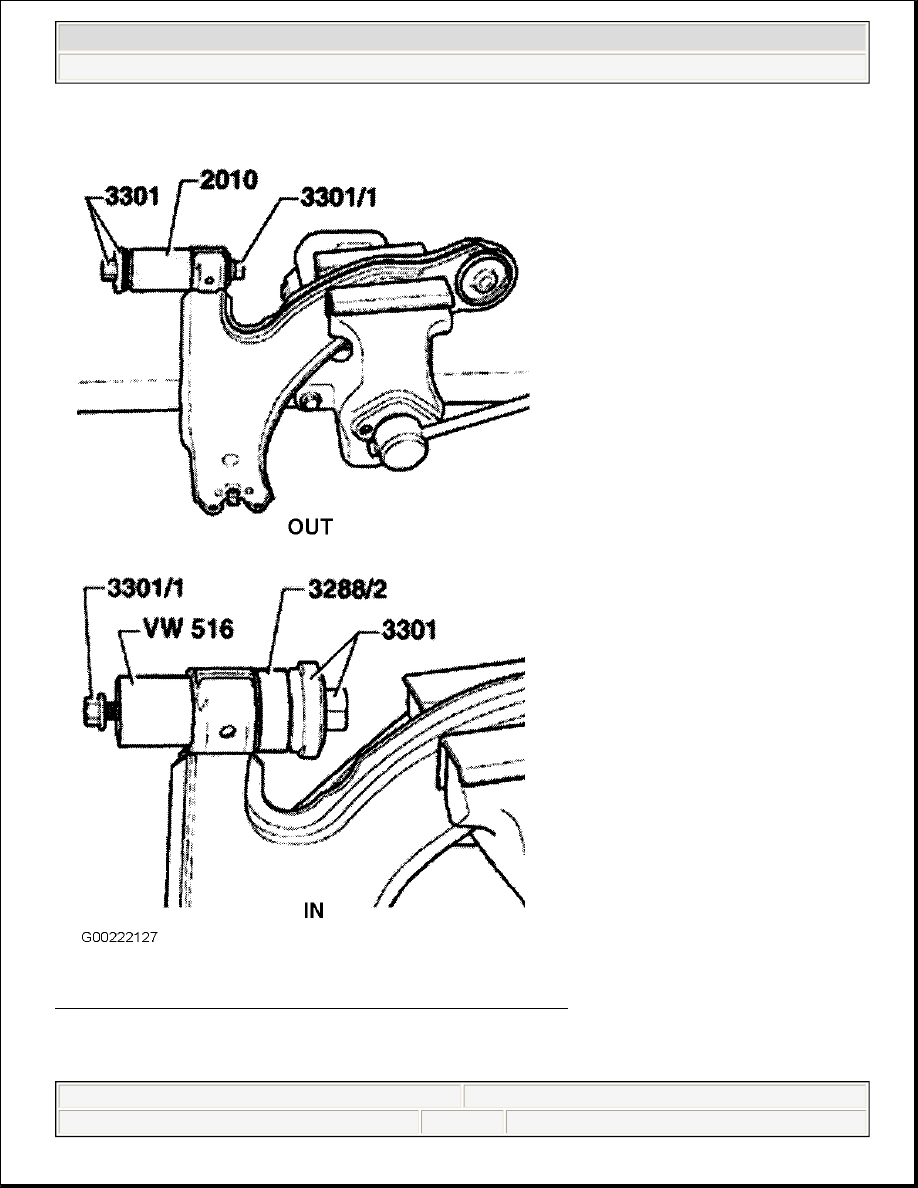

Fig. 12: Removing & Installing Front Lower Control Arm Bushing
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation (Rear Bushing)



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:50 AM

Page 19

© 2004 Mitchell Repair Information Company, LLC.
