Angle between wheel plane and a vertical to plane of road surface. It is positive when the top of the wheel leans
outward and negative when it leans inward.

AF

Abbreviation for across flats of wrench.

TRIPLE ROLLER JOINT

Widely used version of constant velocity joint with three rollers in the form of a star.



2003 Volkswagen New Beetle GLS

1998-2004 STEERING Steering - New Beetle



1999-04 SUSPENSION

Front - Golf, GTI, Jetta & New Beetle

APPLICATION

1999 MODEL YEAR

Information in this article applies to late production 1999 vehicles. For Golf and GTI, the 7th and 8th characters
of the VIN are 1Jfor the late 1999 production vehicles. For Jetta, 7th and 8th characters of the VIN are 9M for
the late 1999 production vehicles. For information on early production 1999 models, see SUSPENSION -
FRONT
 article.

DESCRIPTION

FWD suspension system is equipped with MacPherson struts. Steering knuckles are supported by lower control
arms and vertically mounted strut assemblies. See Fig. 1



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle





2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:49 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:54 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

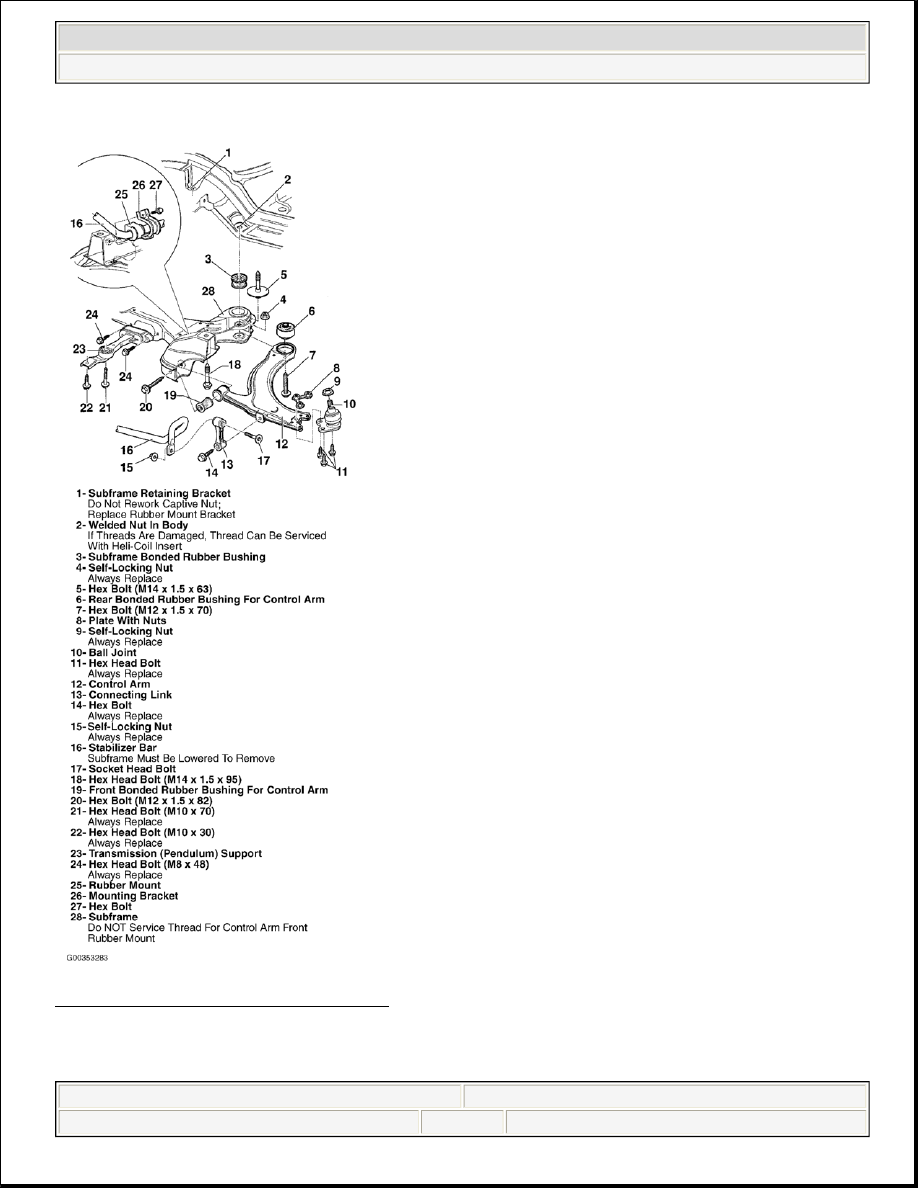

Fig. 1: Exploded View Of Front Suspension
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:49 AM

Page 2

© 2004 Mitchell Repair Information Company, LLC.

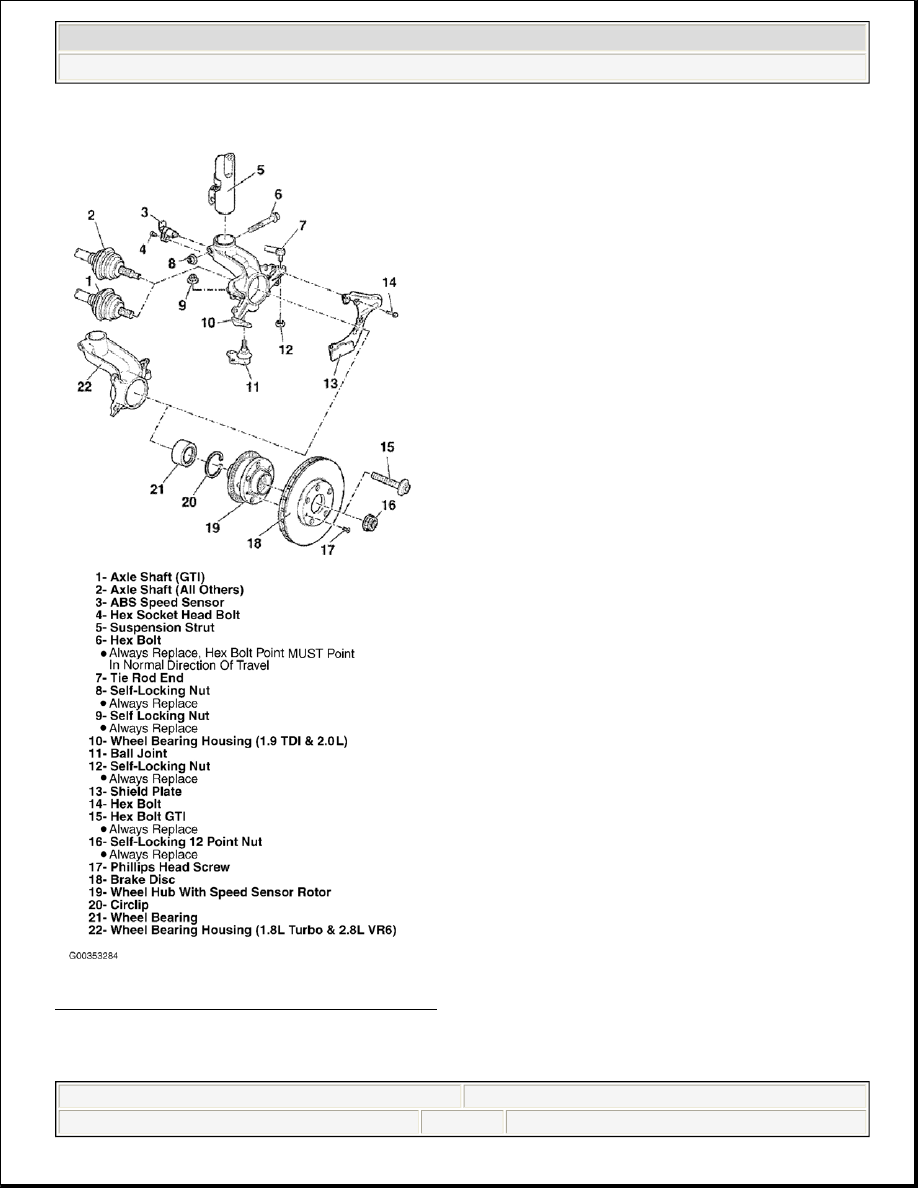

Fig. 2: Exploded View Of Wheel Bearing Housing
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Various springs options are installed depending on engine and equipment level. On Golf, GTI and Jetta, each



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:49 AM

Page 3

© 2004 Mitchell Repair Information Company, LLC.
