Volkswagen New Beetle. Manual - part 2043





SEAT BELT PRETENSIONERS

Removal & Installation

1. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Lift upper anchor

cover and remove upper anchor bolt bolt from upper belt anchor. See Fig. 9 . Pull door inner seal away
from lower section of B-pillar. Remove B-pillar trim panel.

2. If no seat belt pretensioner connector is present, loosen pretensioner deactivation bolt to render

mechanical seat belt pretensioner safe, otherwise, disconnect seat belt pretensioner connector. Remove
seat belt lower anchor rail bolts and anchor rail. Remove seat belt pretensioner bolt and pretensioner.

3. To install, reverse removal procedure. Tighten bolts and screws to specification. See TORQUE

SPECIFICATIONS . Activate air bag system. Perform SYSTEM OPERATION CHECK

WARNING:

After collision in which one or both front seat belt pretensioners have
been activated, both seat belts must be replaced. They will no longer
retract.



2003 Volkswagen New Beetle GLS

2003 ACCESSORIES/SAFETY EQUIPMENT Volkswagen - Air Bag Restraint Systems



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:15 AM

Page 12

© 2004 Mitchell Repair Information Company, LLC.

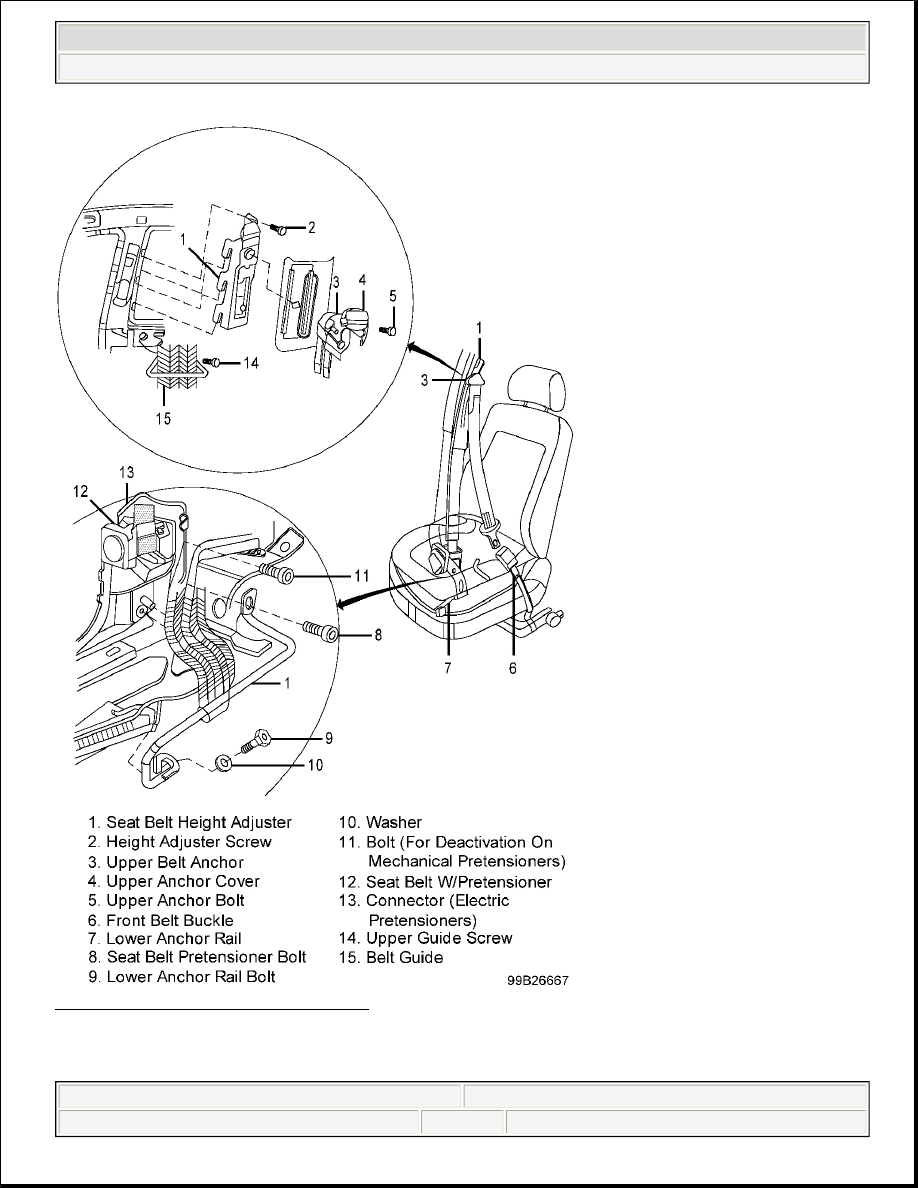

Fig. 9: Identifying Seat Belt Pretensioner
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DIAGNOSTICS



2003 Volkswagen New Beetle GLS

2003 ACCESSORIES/SAFETY EQUIPMENT Volkswagen - Air Bag Restraint Systems



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:15 AM

Page 13

© 2004 Mitchell Repair Information Company, LLC.

ON BOARD DIAGNOSTIC (OBD) SYSTEM

Connecting Scan Tool (Vag

Connect Scan Tool (VAG 1551) with Adapter (VAG 1551/3) or equivalent, to 16-pin Data Link Connector
(DLC) in lower left corner of instrument panel, to left of steering wheel. If there is no display, check voltage
supply to DLC.

Checking & Erasing DTC Memory

1. With Scan Tool (VAG 1551) or equivalent connected, turn ignition on. Press button "1" to select rapid

data transfer. Press buttons "1" and "5" to select air bag code 15. Confirm input with "Q" button. Use
right arrow to scroll forward through program. After approximately 5 seconds, RAPID DATA
TRANSFER and SELECT FUNCTION will appear on display. Press buttons "0" and "2" to select
"Check DTC Memory" function 02. Confirm input with "Q" button. Perform appropriate diagnostic test.
See DIAGNOSTICS .

2. Press buttons "0" and "5" to select "Erase DTC Memory" function 05. Confirm input with "Q" button.

Intermittent malfunctions are indicated by "/SP" on right side of scan tool display. Press "Print" button for
complete printout of scan tool operation. To conduct an automatic test sequence, enter "00" and confirm
input with "Q" button.

DIAGNOSTIC TROUBLE CODE (DTC) CHART

WARNING:

Accidental air bag deployment is possible. Personal injury may result.
Read and follow all WARNINGS and AIR BAG SAFETY PRECAUTIONS
before working on air bag system or related component

NOTE:

Use VAG 1551 Scan Tool (ST) with appropriate adapter cables when diagnosing
and erasing DTC's. Other optional diagnostic tools available are, VAG 1552,
VAS 5051 Tester and VAS 5056 Test Box, which may be used in place of VAG
1551.

Trouble
Code

Possible Cause

00532

Supply voltage too high/low

00588

Driver-side air bag resistance Too high/low, short to voltage or ground

00589

Passenger-side air bag resistance Too high/low, short to voltage or ground

00591

Left seat belt switch undefined switch condition, Short to ground or

open/short to voltage

00592

Right seat belt switch undefined switch condition, Short to ground or

open/short to voltage

00594

Air bag circuit short to voltage or ground

00595

Impact data stored

00654

Left electric seat belt pretensioner resistance Too high/low, short to voltage

or ground



2003 Volkswagen New Beetle GLS

2003 ACCESSORIES/SAFETY EQUIPMENT Volkswagen - Air Bag Restraint Systems



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:15 AM

Page 14

© 2004 Mitchell Repair Information Company, LLC.

Coding AIR Bag Control Module

1. With Scan Tool (VAG 1551) or equivalent connected, turn ignition on. Press button "1" to select rapid

data transfer. Press buttons "1" and "5" to select air bag code 15. Confirm input with "Q" button. Use
right arrow to scroll forward through program.

2. After approximately 5 seconds, RAPID DATA TRANSFER and SELECT FUNCTION will appear on

display. Press buttons "0" and "7" to select "Code Control Module" function 07. Confirm input with "Q"
button. Enter correct air bag control module code for vehicle configuration. See IDENTIFYING AIR
BAG CONTROL MODULE INPUT CODES
table.

3. Confirm input with "Q" button. Press buttons "0" and "6" to select "End Output" function 06. Confirm

input with "Q" button. Remove key from ignition. Repeat procedure to ensure correct coding. Check
system for proper operation. Go to SYSTEM OPERATION CHECK

IDENTIFYING AIR BAG CONTROL MODULE INPUT CODES

00655

Right electric seat belt pretensioner resistance Too high/low, short to voltage

or ground

01025

AIR BAG warning light activation faulty

01044

Air bag control module incorrectly coded

01214

Impact data stored seat belt pretensioner

01217

Left side air bag resistance Too high/low, short to voltage or ground

01218

Right side air bag resistance Too high /low, short to voltage or ground

01221

Left side air bag impact (crash) sensor resistance Too high/low, open/short to

voltage or ground, or faulty

01222

Right side air bag impact (crash) sensor resistance Too high/low, open/short

to voltage or ground, or faulty Not matched to control module, incorrect or

no adjustment

01224

Equipment incorrectly coded

01226

Impact data for left side air bag stored

01227

Impact data stored right side air bag

01299

Data-bus no communication Incorrect or no adjustment

01312

Data-bus faulty

01317

Instrument cluster control module No communication, incorrect or no setting

01578

Passenger side air bag off warning light Open to ground or open/short to

voltage

65535

Air bag control module malfunction

Module Part Number
& (Index Number)

Components Equipped on Vehicle

Air Bag Control

Module Input Code

6Q0 909 605 A (05)

Driver/passenger-side, side air bags, & belt

pretensioner

12341

6Q0 909 605 A (03)

Driver/passenger-side air bags with knee-

bar, side air bags, & belt pretensioner

12342



2003 Volkswagen New Beetle GLS

2003 ACCESSORIES/SAFETY EQUIPMENT Volkswagen - Air Bag Restraint Systems



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:15 AM

Page 15

© 2004 Mitchell Repair Information Company, LLC.
