Volkswagen New Beetle. Manual - part 2025





Fig. 30: Installing & Adjusting Footwell/Defrost Flap Cable
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Prerequisite:

z

Heating and ventilation controls are installed.

z

Turn air distribution rotary knob to left onto stop.

z

Attach end of cable -1- to the temperature flap lever -3-, arrow -A-. See Fig. 30 .

z

Press footwell/defrost flap lever onto stop arrow -C- and attach outer cable -1- with clip -2-, arrow -B-.

z

Turn air distribution rotary control knob to left and right onto stops.

When turning the rotary control knob both end stops must be reached.

Installing & Adjusting Central Flap Cable

Fig. 31: Installing & Adjusting Central Flap Cable
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 HVAC Heating, Ventilation - New Beetle



Cable sleeve marking: Yellow

Prerequisites:

z

Central flap lever correctly adjusted see , Fig. 22 .

z

Heating and ventilation controls are installed.

z

Connecting duct removed, See Connecting duct, removing .

z

Turn air distribution rotary control knob to left onto stop.

z

Attach center wire of cable -2- to the central flap lever -1-. See Fig. 31 .

z

Press footwell/defrost flap lever onto stop arrow -A- and attach outer cable -2- with clip -3-.

z

Turn air distribution rotary control knob to left and right onto stops.

When turning the rotary control knob both end stops must be reached.



2003 Volkswagen New Beetle GLS

1998-2004 HVAC Heating, Ventilation - New Beetle



1998-2004 CABIN AIR FILTERS

Dust & Pollen Filter - New Beetle

REMOVAL & INSTALLATION

CABIN AIR FILTER

Removal

1. Push center cover forward and lift up to remove. See Fig. 1 .

2. Remove the right plenum panel cover screws. See Fig. 2 .

3. Lift right plenum panel cover and remove the clips at front and rear edge. See Fig. 2 . Pull cover (1)

toward center of vehicle and out of retainer in A-pillar to remove.

4. Remove right closeout screws and remove panel (1). See Fig. 3 .

5. Remove rubber grommet. Press tabs of filter housing. See Fig. 4 .

6. Remove filter element with frame in upward direction. Remove filter from frame. See Fig. 5 .

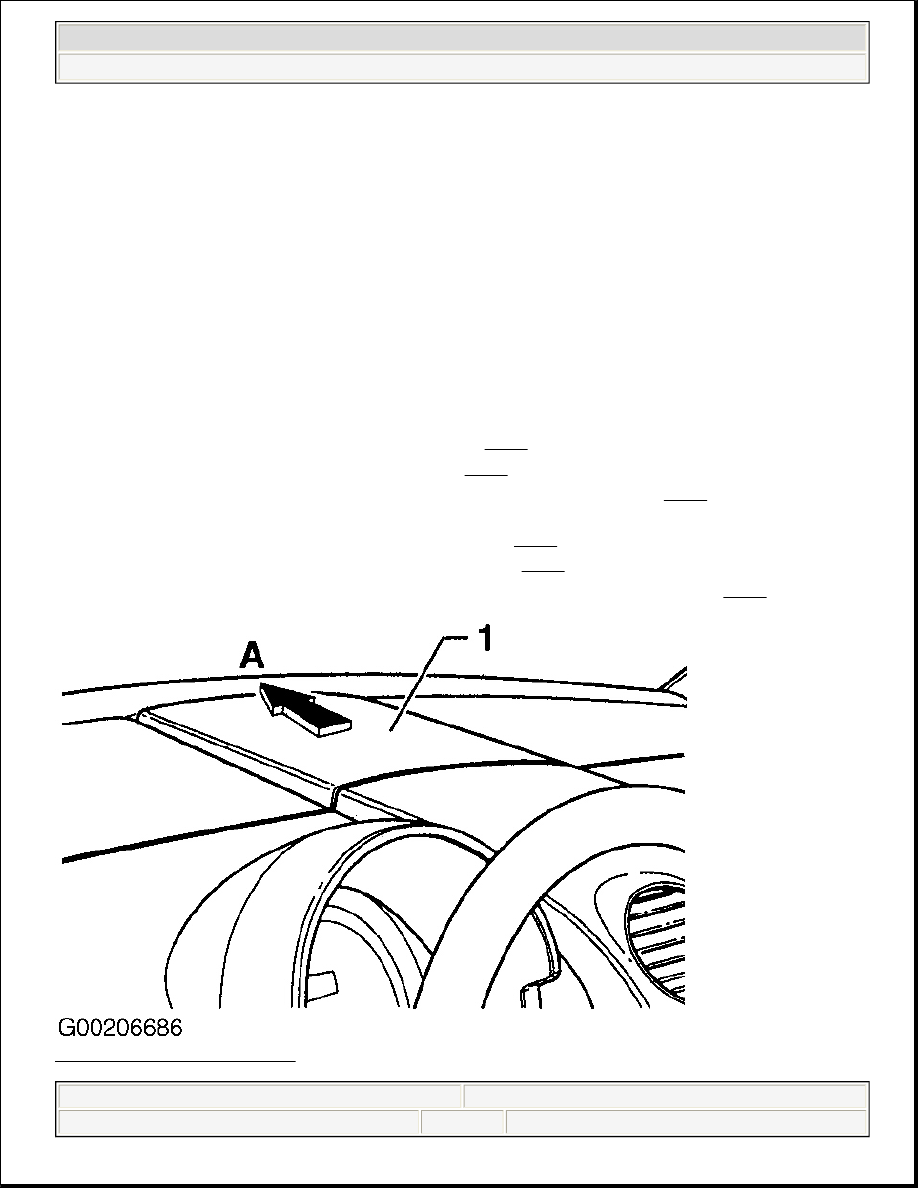

Fig. 1: Removing Center Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

Manufacturer's terminology for this filter is dust and pollen filter.

NOTE:

The filter is located in the right rear of the instrument panel under a cover.



2003 Volkswagen New Beetle GLS

1998-2004 CABIN AIR FILTERS Dust & Pollen Filter - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 CABIN AIR FILTERS Dust & Pollen Filter - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:13 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:16 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

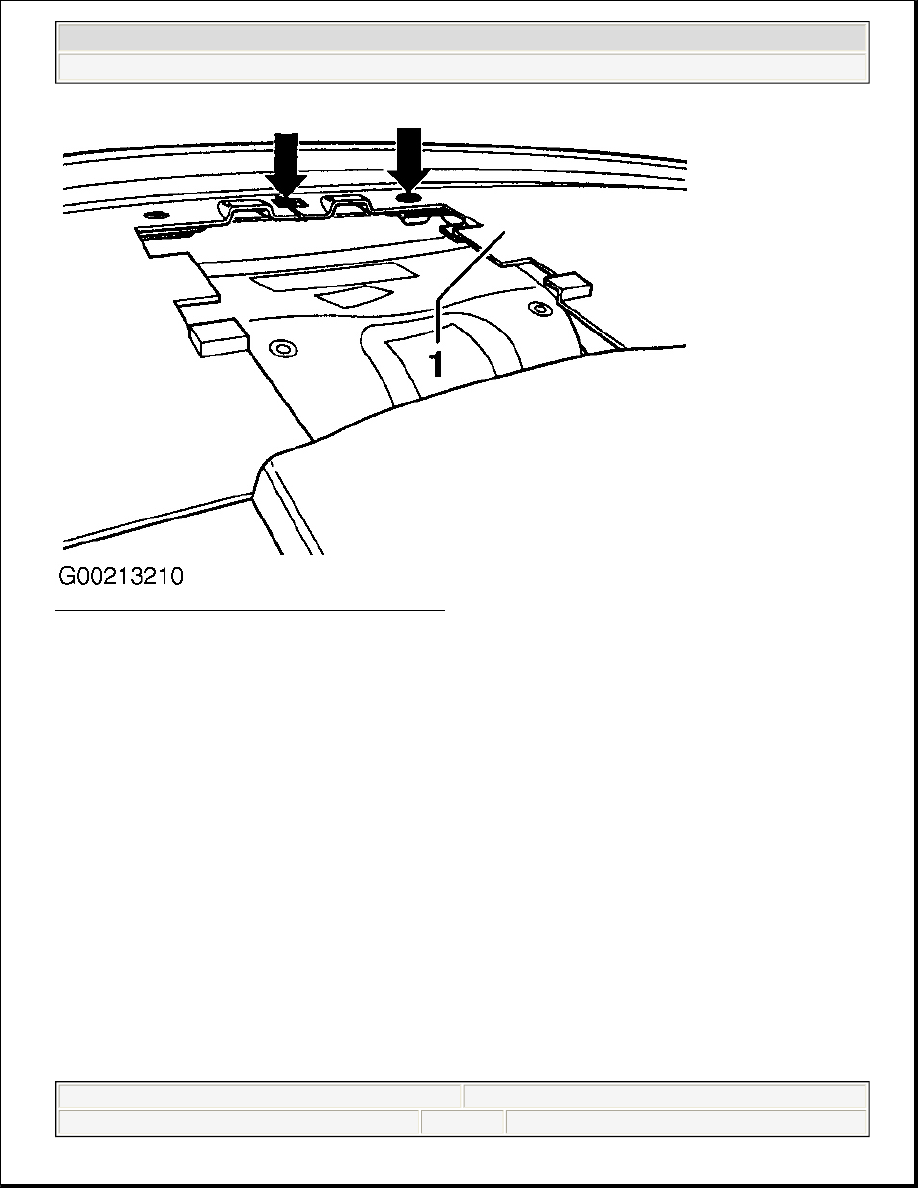

Fig. 2: Locating Right Plenum Panel Cover Screws
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 CABIN AIR FILTERS Dust & Pollen Filter - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:13 AM

Page 2

© 2004 Mitchell Repair Information Company, LLC.
