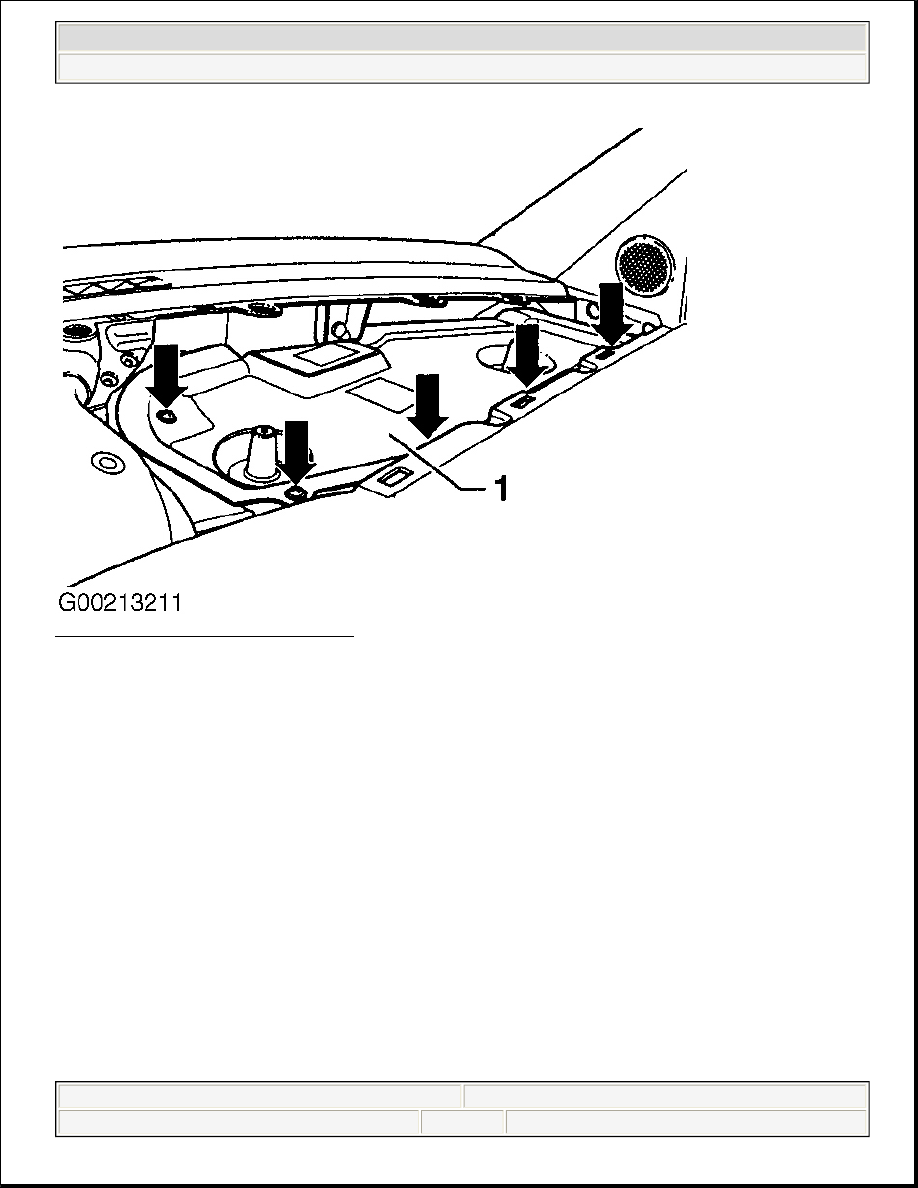

Fig. 3: Locating Closeout Panel Screws
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 CABIN AIR FILTERS Dust & Pollen Filter - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:13 AM

Page 3

© 2004 Mitchell Repair Information Company, LLC.

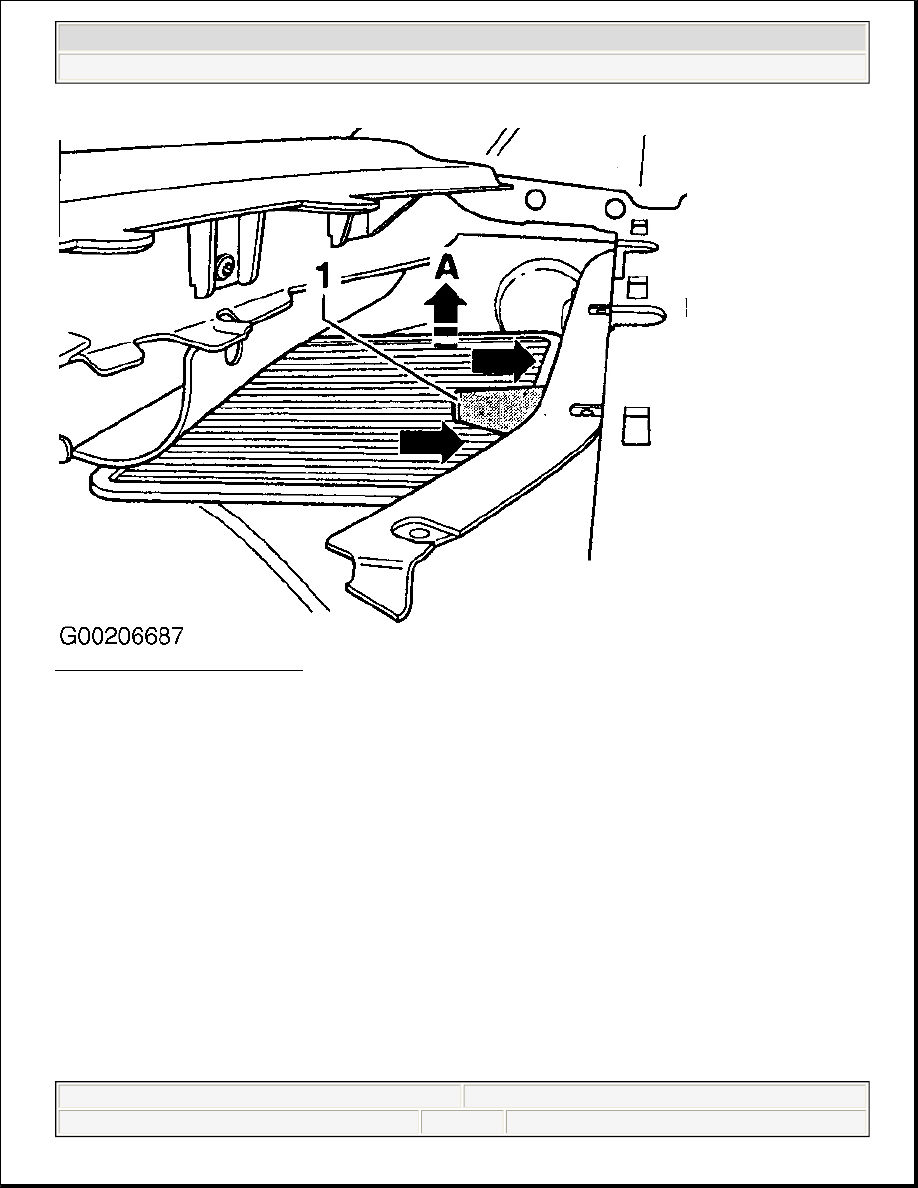

Fig. 4: Removing Filter Housing
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 CABIN AIR FILTERS Dust & Pollen Filter - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:14 AM

Page 4

© 2004 Mitchell Repair Information Company, LLC.

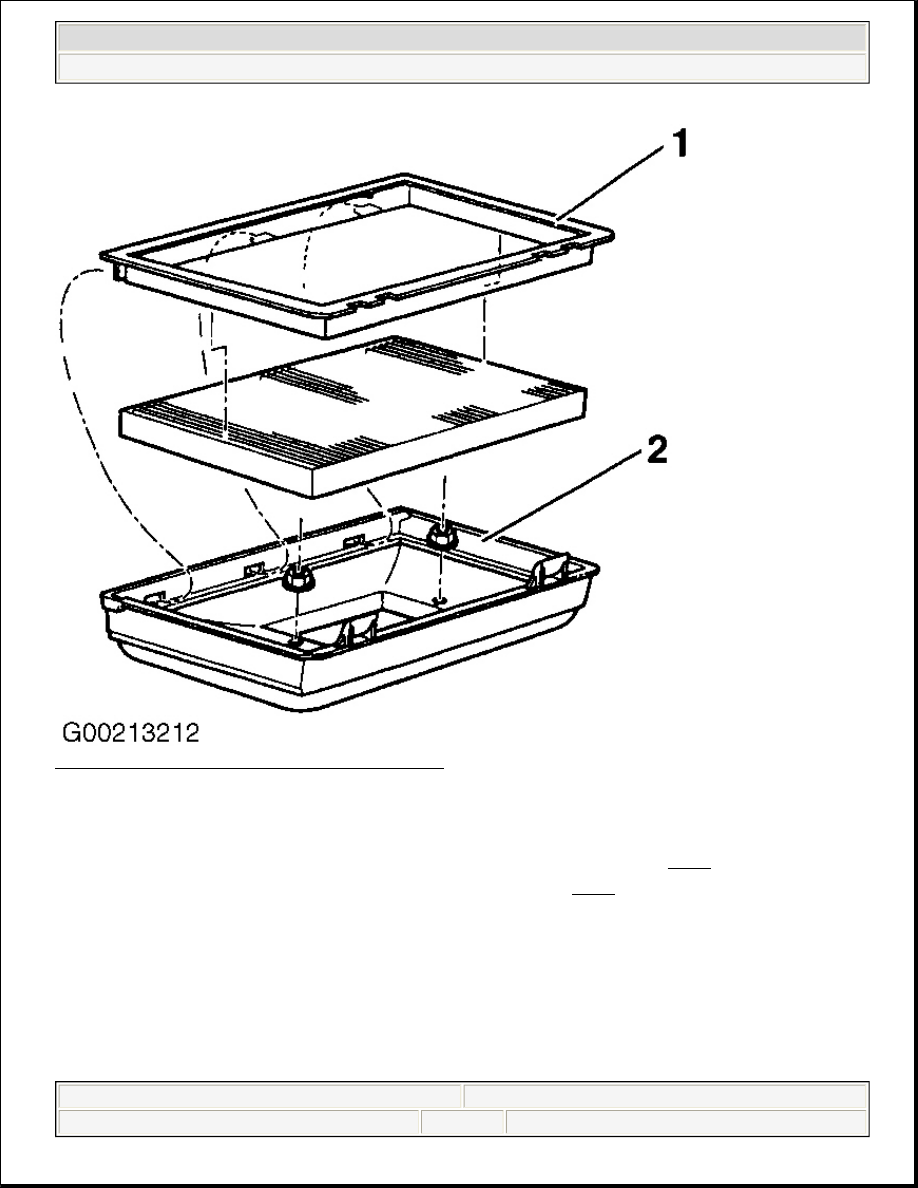

Fig. 5: Removing & Installing Dust & Pollen Filter
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installation

1. Guide frame (1) into first slot on left and right sides of new filter element. See Fig. 5 .

2. Press frame with filter into housing (2) and engage retainers. See Fig. 5



2003 Volkswagen New Beetle GLS

1998-2004 CABIN AIR FILTERS Dust & Pollen Filter - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:14 AM

Page 5

© 2004 Mitchell Repair Information Company, LLC.

2000-03 ENGINE PERFORMANCE

Service & Adjustment Specifications

INTRODUCTION

Use this article to quickly find specifications related to servicing and on-vehicle adjustments. This is a quick-
reference article to use when you are familiar with an adjustment procedure and only need a specification.

CAPACITIES

BEETLE FLUID CAPACITIES

CAUTION: Use only VW recommended fluids. DO NOT use any other fluids.

Components may not function properly and components may be damaged
when using a fluid not specified by VW. VW does not recommend
changing fluids on some components, these are footnoted in CAPACITIES
tables.

CAUTION: Some transaxles require differential to be filled separately. See

appropriate FLUID CAPACITIES table.

Application

(1)(2)

Quantity

Automatic Transaxle

01M (VW ATF G 052 162A)

(3)

Drain & Refill

3.2 Qts. (3.0L)

Dry Fill

5.6 Qts. (5.3L)

Tiptronic 09A (VW ATF G 052 990A)

(3)(4)

Drain & Refill

2.6 Qts. (2.5L)

Dry Fill

7.4 Qts. (7.0L)

Cooling System (Includes Heater)

(5)

1.8L Turbo

5.3 Qts. (5.0L)

1.9L Turbo Diesel

6.3 Qts. (6.0L)

2.0L

5.3 Qts. (5.0L)

Crankcase (Includes Filter)

(6)

1.8L Turbo

(7)

4.6Qts. (4.35L)

1.9L Turbo Diesel

(8)

4.8 Qts. (4.5L)

2.0L

(7)

4.4Qts. (4.2L)

Differential

With 01M Transaxle (SAE 75W-90 G 052 145 S Synthetic
Oil)

(3)

.80 Qt. (.75L)



2003 Volkswagen New Beetle GLS

2000-03 ENGINE PERFORMANCE Service & Adjustment Specifications





2003 Volkswagen New Beetle GLS

2000-03 ENGINE PERFORMANCE Service & Adjustment Specifications



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:43 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:47 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.
