DTC P0010/16394, DTC P0011/16395 & DTC P0012/16396

Code Definition

z

DTC P0010/16394: Intake Camshaft Advance Adjustment - Malfunction

z

DTC P0011/16395: Intake Camshaft Retard Adjustment - Specification Not Reached

z

DTC P0012/16396: Intake Camshaft Advance Adjustment - Specification Not Reached

Circuit/Component Description

Camshaft adjustment occurs depending on engine load and RPM. Camshaft adjustment valve is opened by
ECM, directing oil pressure to camshaft adjuster, which moves camshaft. Camshaft adjuster may fail either
electrically or mechanically. After verifying or repairing electrical portion of system, camshaft adjuster may still
be faulty. Repair camshaft adjuster mechanical failure as necessary. See step 6 under TESTING PROCEDURE.

Test Requirements

Ensure all fuses are okay, battery voltage is at least 11.5 volts and fuel pump relay is okay. Ensure all electrical
accessories are off and A/C is off. Ensure engine is mechanically sound. Ensure no intake or exhaust system
leaks exist. Ensure engine coolant temperature is at least 176°F (80°C).

Testing Procedure

1.

NOTE:

Before replacing any component, verify battery voltage is a minimum of 11.5
volts and all fuses are okay. Ensure all wiring is okay and connectors at
component and ECM are clean and tight. When codes have been cleared or
voltage supply to ECM has been interrupted, ECM loses all "learned" and
"basic" values. Serious driveability problems may occur depending on vehicle
mileage. After reconnecting ECM, it is necessary to perform relearn procedure.
See TEST DRIVE RELEARN PROCEDURE .

NOTE:

If a test ends with ECM replacement. Before replacing ECM be certain that, all
wiring, power and ground supplies are okay. See ENGINE PERFORMANCE in
SYSTEM WIRING DIAGRAMS article in ELECTRICAL and ECM GROUND &
VOLTAGE SUPPLY .

NOTE:

Output Diagnostic Test Mode is used when using Scan Tools VAG 1551/1552 or
VAS 5051/5052, always continue with output diagnostic test mode until last
component in output diagnostic test mode test sequence has been checked. If
you are not using Scan Tools VAG 1551/1552 or VAS 5051/5052 follow scan tool
manufacturer's instructions.

NOTE:

When using scan tool to activate camshaft adjustment valve, it is barely



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:32 AM

Page 50

© 2004 Mitchell Repair Information Company, LLC.

Electrical Circuit Test - Connect Scan Tool. See RETRIEVING DIAGNOSTIC TROUBLE
CODES
. Turn ignition on, engine off. Using scan tool, activate camshaft adjustment valve. See
OUTPUT DIAGNOSTIC TEST MODE . Camshaft adjustment valve should audibly click. If valve
clicks, go to step 6 . If valve does not click, go to next step.

2. Using DVOM, check resistance of camshaft adjustment valve. See Fig. 16 . Resistance should be 10-18

ohms. If resistance is okay, go to next step. If resistance is not okay, replace faulty camshaft adjustment
valve. After repairs, erase DTC memory. Verify repair. Test is complete. Perform ECM relearn
procedure. See TEST DRIVE RELEARN PROCEDURE .

3. Disconnect camshaft adjustment valve harness connector. See Fig. 15 . Using adapter cables from Test

Kit (VAG 1594), connect Voltage Tester (VAG 1527) to camshaft adjustment valve harness connector.
Observe voltage tester LED. Voltage tester LED should blink (light to dark). If voltage tester LED did not
blink, go to next step. If voltage tester LED blinks, using scan tool, stop actuation of camshaft adjustment
valve. Turn ignition off. Replace faulty camshaft adjustment valve. After repairs, erase DTC memory.
Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN
PROCEDURE
.

4. Turn ignition off. Disconnect ECM harness connector, leave ECM disconnected from test box. Connect

Test Box (VAG 1598/31) to ECM harness connector. See RETRIEVING DIAGNOSTIC TROUBLE
CODES
. Using DVOM, measure resistance between camshaft adjustment valve connector terminal No.
2 and test box socket No. 115. See Fig. 17 . Record resistance reading. Resistance should be a maximum
of 1.5 ohms. Check camshaft adjustment valve harness connector terminal No. 2 for short circuit to
battery positive and ground. If readings are okay, go to next step. If readings are not okay, repair as
necessary. After repairs, erase DTC memory. Verify repair. Test is complete. Perform ECM relearn
procedure. See TEST DRIVE RELEARN PROCEDURE .

5. Using DVOM, check resistance between camshaft adjustment valve connector terminal No. 1 and fuel

pump relay. See appropriate WIRING DIAGRAM under ENGINE PERFORMANCE in SYSTEM
WIRING DIAGRAMS. Resistance should be a maximum of 1.5 ohms. If resistance is not okay, repair as
necessary. After repairs, erase DTC memory. Verify repair. Test is complete. Perform ECM relearn
procedure. See TEST DRIVE RELEARN PROCEDURE . If resistance is okay and all wiring is okay,
replace faulty ECM. See ENGINE CONTROL MODULE REMOVAL & INSTALLATION . Erase
DTC memory. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE
RELEARN PROCEDURE
.

6.

Mechanical Test - Connect Scan Tool. See RETRIEVING DIAGNOSTIC TROUBLE CODES . Start
engine and bring to operating temperature. On Beetle, GTI and Jetta with engine code (AWP), go to next
step. On Beetle, GTI and Jetta with engine code (AWV & AWW), go to step 8 . Passat, go to step 9 .

7. Place transmission in neutral (M/T) or Park (A/T). Set parking brake. Depress and hold brake pedal.

Accelerate to Wide Open Throttle (WOT). Engine speed will increase (by ECM) to approximately 2300
RPM. Continue to hold brake pedal and maintain engine speed. Observe camshaft adjuster on scan tool.
Scan tool will operate camshaft adjuster from off to on. Continue to hold brake pedal and maintain engine

audible. Use mechanics stethoscope if necessary.

NOTE:

An aftermarket scan tool may not be able to perform mechanical test
procedure properly. Manufacturer recommends using VAG 1551/1552 or
VAS 5051/5052.



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:32 AM

Page 51

© 2004 Mitchell Repair Information Company, LLC.

speed until scan tool indicates system is okay. If scan tool indicates system is okay, mechanical test is
okay. After repairs, erase DTC memory. Verify repair. Test is complete. Perform ECM relearn procedure.
See TEST DRIVE RELEARN PROCEDURE . If scan tool does not indicate system is okay, read DTC
memory. If DTC P1519/17927 appears, it may be because camshaft adjustment valve correctly switches
oil pressure to mechanical camshaft adjuster, but camshaft adjuster cannot reach its end position, (e.g.
tight/partially seized). Repair or replace faulty camshaft adjuster as necessary. After repairs, erase DTC
memory. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE
RELEARN PROCEDURE
.

8.

Place transmission in neutral (M/T) or Park (A/T). Set parking brake. Using accelerator pedal prop,
manually set engine speed to 1800-2200 RPM. Observe camshaft adjuster on scan tool. Scan tool will
operate camshaft adjuster from off to on. Continue to maintain engine speed until scan tool indicates
system is okay. If scan tool indicates system is okay, mechanical test is okay, erase DTC memory. Test is
complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE . If scan tool
does not indicate system is okay, read DTC memory. If DTC P1519 (VAG will display DTC 17927)
appears, it may be because camshaft adjustment valve correctly switches oil pressure to mechanical
camshaft adjuster, but camshaft adjuster cannot reach its end position, (e.g. tight/partially seized). Repair
or replace faulty camshaft adjuster as necessary. After repairs, erase DTC memory. Verify repair. Test is
complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

9. Connect Scan Tool. See RETRIEVING DIAGNOSTIC TROUBLE CODES . Start engine and bring to

operating temperature. Using scan tool. Check camshaft adjustment at idle. Specification with engine
code (AWM) is CAM-ADJ.ON. Check camshaft adjustment under load. With a helper to operate tester
from rear seat. Observe scan tool readings. From a stop, accelerate to Wide Open Throttle (WOT) in 1st
gear (M/T), 2nd (A/T) to over 3200 RPM. If scan tool indicates system is okay, mechanical test is okay,
erase DTC memory. Test is complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN
PROCEDURE
. If scan tool does not indicate system is okay. It may be because camshaft adjustment
valve correctly switches oil pressure to mechanical camshaft adjuster, but camshaft adjuster cannot reach
its end position, (e.g. tight/partially seized). Repair or replace faulty camshaft adjuster as necessary. After
repairs, erase DTC memory. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST
DRIVE RELEARN PROCEDURE

NOTE:

An aftermarket scan tool may not be able to perform mechanical test
procedure properly. Manufacturer recommends using VAG 1551/1552.



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:32 AM

Page 52

© 2004 Mitchell Repair Information Company, LLC.

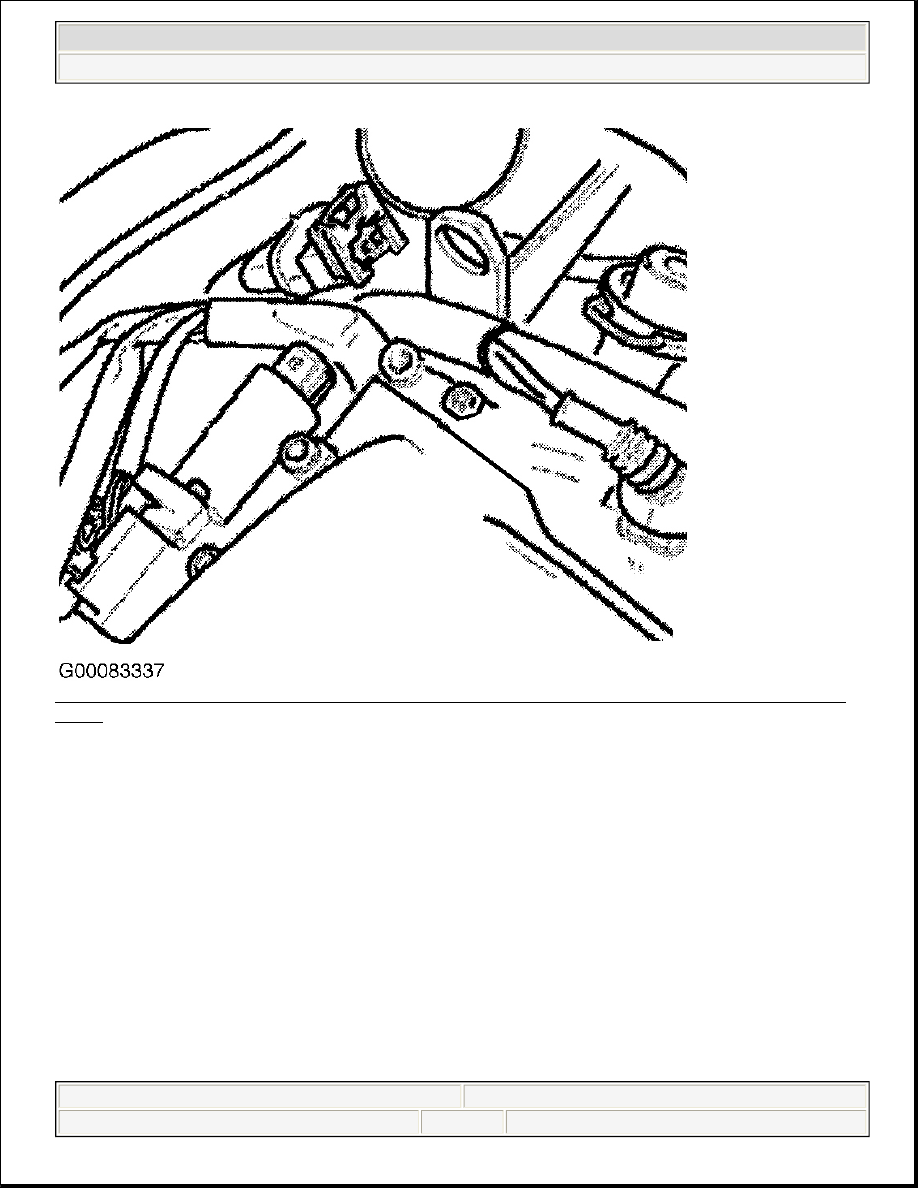

Fig. 15: Disconnecting Camshaft Adjustment valve (Beetle, GTI & Jetta - Engine Code AWV, AWW &
