Volkswagen New Beetle. Manual - part 1855





P1579

(2)

17987

(2)

Throttle Valve Control Module - Adaption Not Started

P1602

18010

Voltage Supply Terminal 30 (B+) - Voltage Supply Too Low

P1603

18011

ECM (J220) - Malfunction

P1604

(2)

18012

(2)

ECM (J220) - Malfunction

P1606

18014

Poor Road Information From ABS Control Module (J104) -

Electrical Circuit Malfunction

P1609

18017

Crash Signal From Airbag Control Module

P1610

(2)

18018

(2)

ECM (J220) - Malfunction

P1612

18020

ECM (J220) - Incorrectly Coded

P1615

18023

Oil Level Sensor (G266) - Implausible Signal

P1620

18028

ECT Sensor - Open Circuit/Short To B+

P1621

18029

ECT Sensor - Short To Ground

P1622

18030

ECT Sensor - Implausible Signal

P1624

18032

Request For Warning Lamp On Active

P1626

18034

Drivetrain Data Bus - No Signal From Transmission Control

Module (J217)

P1628

18036  Drivetrain Data Bus - No Signal From Steering Angle Sensor (G85)

P1630

(2)

18038

(2)

Accelerator Pedal Position Sensor 1 (G79) - Signal Too Low

P1631

(2)

18039

(2)

Accelerator Pedal Position Sensor 1 (G79) - Signal Too High

P1633

(2)

18041

(2)

Accelerator Pedal Position Sensor 2 (G185) - Signal Too Low

P1634

(2)

18042

(2)

Accelerator Pedal Position Sensor 2 (G185) - Signal Too High

P1635

18043

Drivetrain Data Bus - No Signal From A/C Control Module (J255)

P1636

18044

Drivetrain Data Bus - No Signal From Airbag Control Module

(J234)

P1639

(2)

18047

(2)

Accelerator Pedal Position Sensor 1 (G79) Accelerator Pedal

Position Sensor 2 (G185) - Implausible Signal

P1640

18048

ECM (J220) - Malfunction

P1648

18056

Drivetrain Data Bus Malfunction

P1649

18057

Drivetrain Data Bus - No Signal From ABS Control Module (J104)

P1650

18058

Drivetrain Data Bus - No Signal From Instrument Cluster Control

Module (J285)

P1654

18062

Check Instrument Cluster DTC Memory

P1676

(2)

18084

(2)

EPC Warning Light (K132) - Circuit Malfunction

P1677

(2)

18085

(2)

EPC Warning Light (K132) - Short To B+

P1678

(2)

18086

(2)

EPC Warning Light (K132) - Short To Ground

P1679

(2)

18087

(2)

EPC Warning Light (K132) - Open Circuit

P1681

18089

ECM (J220) - Programing Not Finished

P1682

18090

Drivetrain Data Bus - Implausible Signal From ABS Control



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:31 AM

Page 42

© 2004 Mitchell Repair Information Company, LLC.

COMPONENT LOCATIONS

COMPONENT LOCATIONS

In diagnostic information, manufacturer identifies all system components with an alpha-numeric identification
(e.g., J 220 is for ECM). See MANUFACTURER'S COMPONENT ALPHA-NUMERIC
IDENTIFICATION
table. Component location and pin test points are referenced in the individual DTC test
procedures. Component locations are also referenced in component locating illustrations

Module (J104)

P1683

18091

Drivetrain Data Bus - Implausible Signal From Airbag Control

Module (J234)

P1687

18095

Drivetrain Data Bus - Implausible Signal From Climate Control

Module (J255)

P1690

18098

MIL (K83) - Circuit Malfunction

P1691

18099

MIL (K83) - Open Circuit

P1692

18100

MIL (K83) - Short To Ground

P1693

18101

MIL (K83) - Short To B+

P1696

18104

Data Bus - Implausible Signal From Steering Column Electronics

P1699

18107

Data Bus - No Signal From Steering Column Electronics

P1853

18261

Drivetrain Data Bus - Implausible Signal From ABS Control

Module (J104)

P1912

18320

Brake Servo Pressure Sensor (G294) - Short To B+/Open Circuit

P1913

18321

Brake Servo Pressure Sensor (G294) - Short To Ground

P2101

18533

Throttle Valve Control Module (J338) - Malfunction

P2122

(2)

18554

(2)

Accelerator Pedal Position Sensor 1 (G79) - Signal Too Low

P2127

(2)

18559

(2)

Accelerator Pedal Position Sensor 2 (G185) - Signal Too Low

P2128

(2)

18560

(2)

Accelerator Pedal Position Sensor 2 (G185) - Signal Too High

P2138

(2)

18570

(2)

Accelerator Pedal Position Sensor 1 (G79), Accelerator Pedal

Position Sensor 2 (G185) - Implausible Signal

(1)

No Fault Code, Displays "No DTC recognized" (On VAG and VAS Scan Tools).

(2)

When this DTC is stored, Malfunction Indicator Light (MIL) and Electronic Power
Control (EPC) light (in instrument cluster), are both turned on.



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:31 AM

Page 43

© 2004 Mitchell Repair Information Company, LLC.

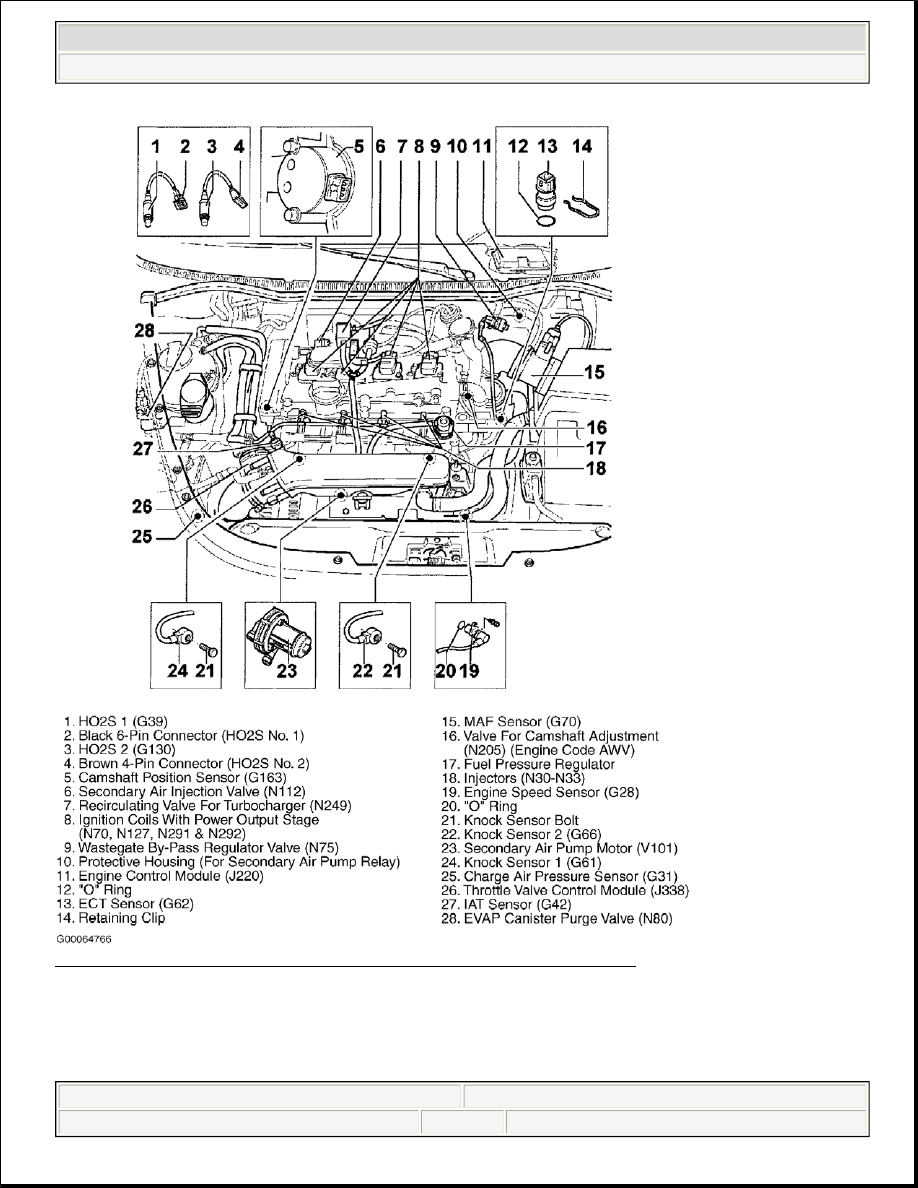

Fig. 12: Locating Engine Control System Components (Beetle - 1.8L Turbo)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:31 AM

Page 44

© 2004 Mitchell Repair Information Company, LLC.

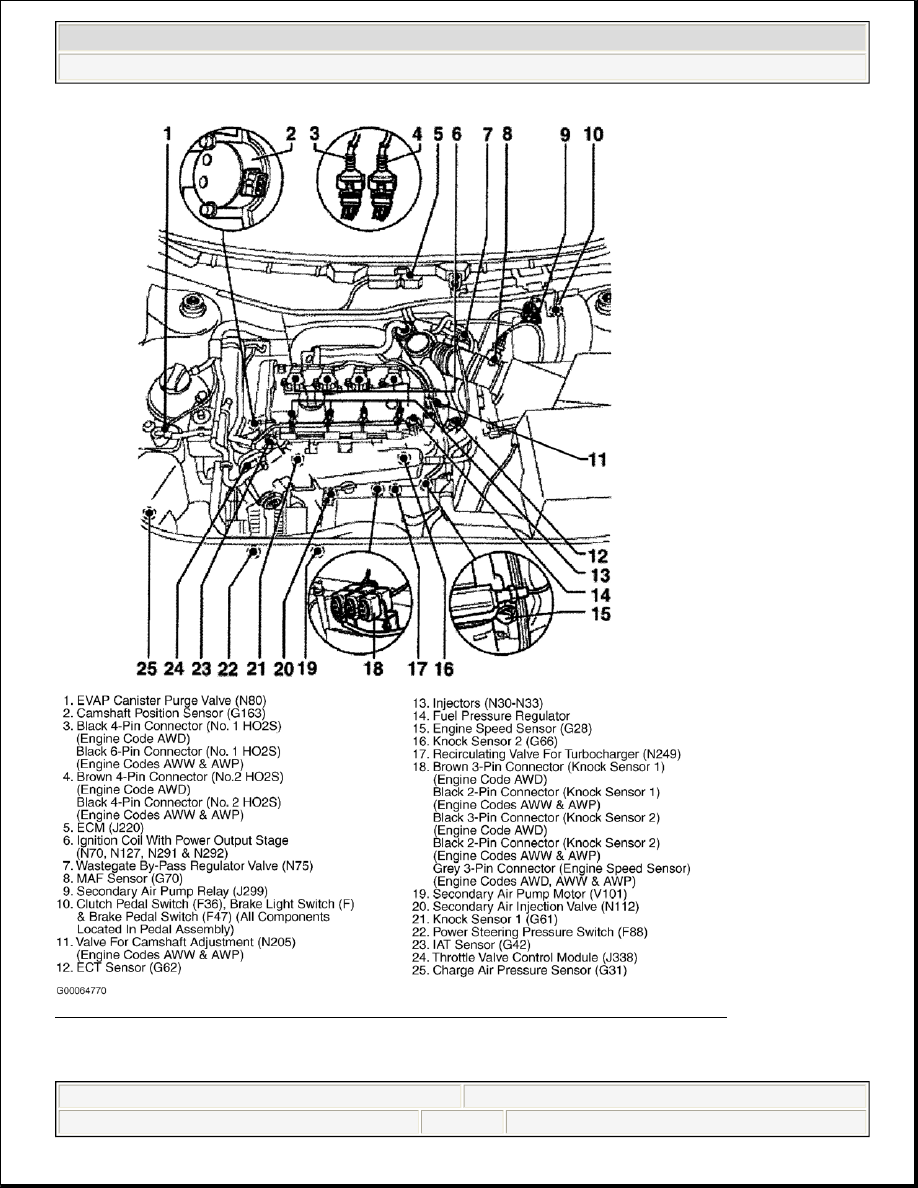

Fig. 13: Locating Engine Control System Components (Golf, GTI & Jetta - 1.8L Turbo)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:31 AM

Page 45

© 2004 Mitchell Repair Information Company, LLC.
