Volkswagen New Beetle. Manual - part 1856

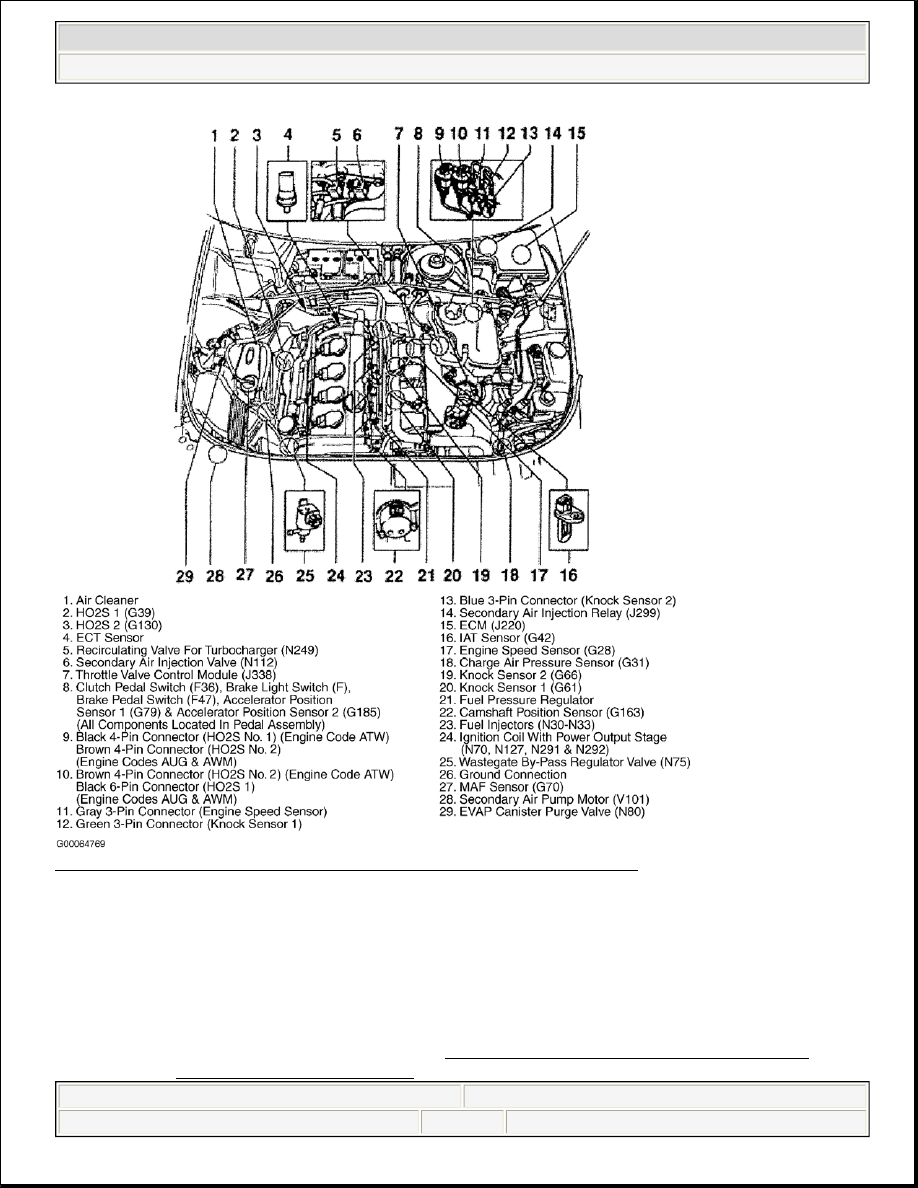

Fig. 14: Locating Engine Control System Components (Passat - 1.8L Turbo)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CONNECTOR IDENTIFICATION

Connector location and pin test points are referenced in the individual DTC test procedures. Connector locations
are also referenced in component locating illustrations. See appropriate SYSTEM & COMPONENT TESTING
article.

NOTE:

Alpha-numeric identification in MANUFACTURER'S COMPONENT ALPHA-
NUMERIC IDENTIFICATION table is only a partial list. These are the components



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:32 AM

Page 46

© 2004 Mitchell Repair Information Company, LLC.

MANUFACTURER'S COMPONENT ALPHA-NUMERIC IDENTIFICATION

pertaining to engine performance.

Component

Alpha-Numeric

Identification

ABS Control Module

J104

ABS Warning Light

K47

Accelerator Position Sensor 1

G79

Accelerator Position Sensor 2

G185

Air Bag Control Module

J234

Air Bag Warning Light

K75

AC Control Module

J255

Angle Sensor 1 For Throttle Valve Drive

G187

Angle Sensor 2 For Throttle Valve Drive

G188

Barometric Pressure Sensor (Inside ECM)

G96

Brake Booster Sensor

G294

Brake Light Switch

Brake Pedal Switch

F47

Brake Vacuum Pump Motor

V192

CAN Data Bus Interface (Gateway)

J533

Camshaft Position Sensor

G163

Charge Air Pressure Sensor

G31

Clutch Pedal Switch

F36

Comfort Systems Central Control Module

J393

ECM

J220

ECM Power Supply Relay

J271

ECT Sensor

G62

Engine Coolant Level Sensor

G32

Engine Speed (RPM) Sensor

G28

EPC Warning Light

K132

EVAP Canister Purge Valve

N80

EVAP Leak Detection Pump

V144

Fuel Pump

G6

Fuel Pump Relay

J17

HO2S Upstream TWC

G39

HO2S Downstream TWC

G130

IAT Sensor

G42

Ignition Coil With Power Output Stage

N70, N127, N129 & N292

Immobilizer Induction Coil

D2



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:32 AM

Page 47

© 2004 Mitchell Repair Information Company, LLC.

DIAGNOSTIC TESTS

TESTING PRECAUTIONS

Immobilizer Warning Light

K117

Injectors

N30-N33

Instrument Cluster Control Module (Also Used By
Immobilizer)

J285

Knock Sensor 1

G61

Knock Sensor 2

G66

MAF Sensor

G70

Malfunction Indicator Light

K83

Oil Level Sensor

G266

Oil Pressure Switch

F1

Oil Pressure Warning Light

K3

Power Steering Switch

F88

Recirculating Valve For Turbocharger

N249

Secondary Air Injection Valve

N112

Secondary Air Pump Motor

V101

Secondary Air Pump Relay

J299

Steering Control Module

J453

Steering Sensor

G85

Throttle Valve Control Module

J338

Throttle Valve Drive

G186

Transmission Control Module (Automatic Transmission)

J217

Valve For Camshaft Adjustment

N205

Vehicle Speed Sensor (Speedometer)

G22

Wastegate By-Pass Regulator Valve

N75

WARNING:

For safety during road test, it is advisable to have a helper operate tester
from rear seat. If test and measuring instruments are operated from front
passenger's seat and vehicle is involved in an accident, there is a
possibility the person sitting in this seat may receive serious injuries
when air bag is deployed.

WARNING:

Always use jack stands or hoist safeties when working on a raised
vehicle.

WARNING:

On some models fuel pump is activated by door contact switch. Always
remove fuel pump fuse before opening fuel system. See appropriate



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:32 AM

Page 48

© 2004 Mitchell Repair Information Company, LLC.

WIRING DIAGRAM under ENGINE PERFORMANCE in SYSTEM WIRING
DIAGRAMS.

WARNING:

Turbocharger and related components operate at a very high
temperature. Always allow system to cool or use proper protective
clothing to prevent severe burns.

CAUTION: Perform all resistance and voltage tests with a Digital Volt-ohmmeter

(DVOM) with minimum 10-megohm impedance, unless stated otherwise in
test procedures. Ensure ignition switch is in OFF position when
performing resistance tests.

NOTE:

Read and record DTCs before starting diagnostic work, (some testing
procedures will set DTCs).

NOTE:

Before replacing any component, verify battery voltage is a minimum of 11.5
volts and all fuses are okay. Ensure all wiring is okay and connectors at
component and ECM are clean and tight. When codes have been cleared or
voltage supply to ECM has been interrupted, ECM loses all "learned" and
"basic" values. Serious driveability problems may occur depending on vehicle
mileage. After reconnecting ECM, it is necessary to perform relearn procedure.
See TEST DRIVE RELEARN PROCEDURE .

NOTE:

If a test ends with ECM replacement. Before replacing ECM be certain that, all
wiring, power and ground supplies are okay. See ENGINE PERFORMANCE in
SYSTEM WIRING DIAGRAMS article in ELECTRICAL and ECM GROUND &
VOLTAGE SUPPLY .

NOTE:

When using Scan Tool VAG 1551/1552 or VAS 5051/5052, malfunctions which
only occur sporadically (intermittently) will have the addendum sporadic
(intermittent) malfunction on the print out and will be indicated on the display
by the addendum /SP. Cause of sporadic malfunctions can be e.g. loose
harness connector or an intermittently open circuit. If a sporadic malfunction
does not occur again within 40 warm-up phases, sporadic DTC(s) will be erased
from ECM memory. A warm-up phase is, engine started with coolant
temperature below 122°F (50°C) - switched off at above 162°F (72°C).

NOTE:

To properly diagnose vehicle, vehicle manufacturer recommends use of Scan
Tool (VAG 1551/1552 or VAS 5051/5052) and Test Box (VAG 1598). Following
test procedures are using Scan Tool (VAG 1551 or 1552) and Test Box (VAG
1598). Test box terminal numbers and ECM terminal numbers are identical. To
identify connector terminal wire colors, see appropriate WIRING DIAGRAM
under ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS.



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:32 AM

Page 49

© 2004 Mitchell Repair Information Company, LLC.
