Volkswagen New Beetle. Manual - part 1810





COMPONENT LOCATIONS

COMPONENT LOCATING & IDENTIFYING

In diagnostic information, manufacturer identifies all system components with an alpha-numeric identification
(e.g., J 220 is for ECM). See MANUFACTURER'S COMPONENT ALPHA-NUMERIC
IDENTIFICATION
table. Component location and pin test points are referenced in the individual DTC test
procedures.

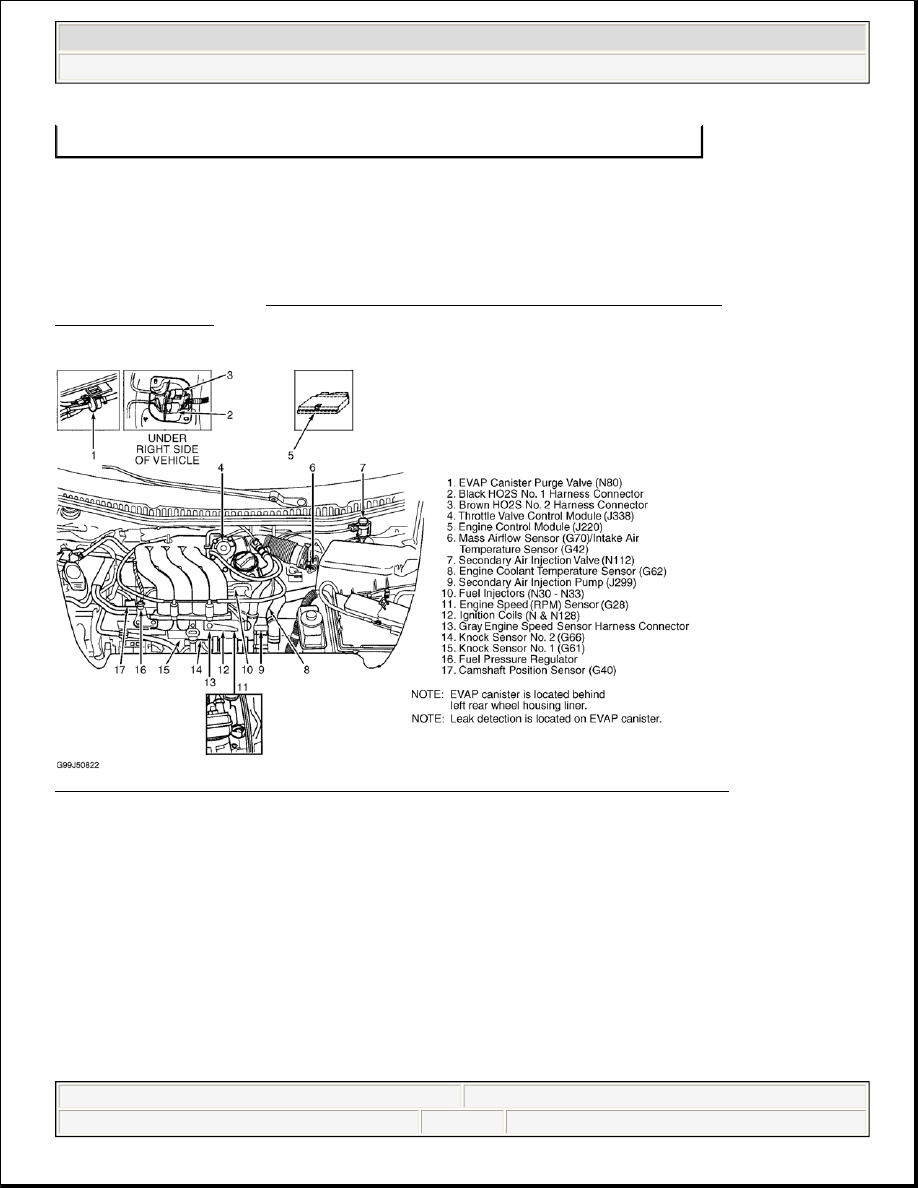

Fig. 12: Locating Engine Control System Components (Beetle - 2.0L Engine Code AEG)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Control (EPC) light (in instrument cluster), are both illuminated.



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:54 AM

Page 40

© 2004 Mitchell Repair Information Company, LLC.

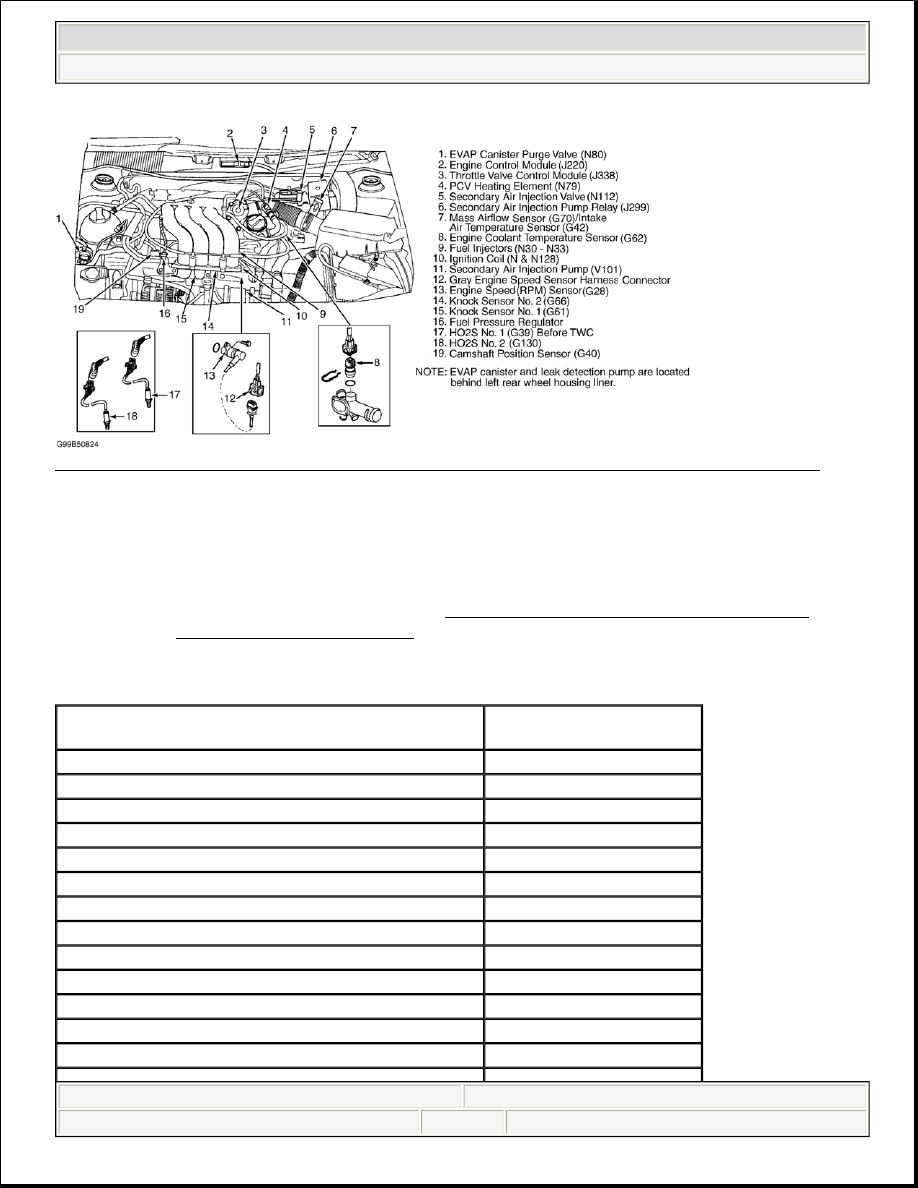

Fig. 13: Locating Engine Control System Components (Golf, GTI & Jetta - 2.0L Engine Code AEG)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CONNECTOR IDENTIFICATION

Connector location and pin test points are referenced in the individual DTC test procedures.

MANUFACTURER'S COMPONENT ALPHA-NUMERIC IDENTIFICATION

NOTE:

Alpha-numeric identification in MANUFACTURER'S COMPONENT ALPHA-
NUMERIC IDENTIFICATION table is only a partial list. These are the components
pertaining to engine performance.

Component

Alpha-Numeric

Identification

ABS Control Module

J104

ABS Warning Light

K47

Accelerator Position Sensor 1

G79

Accelerator Position Sensor 2

G185

Air Bag Control Module

J234

Air Bag Warning Light

K75

AC Control Module

J255

Angle Sensor 1 For Throttle Valve Drive

G187

Angle Sensor 2 For Throttle Valve Drive

G188

Barometric Pressure Sensor (Inside ECM)

G96

Brake Booster Sensor

G294

Brake Light Switch

Brake Pedal Switch

F47



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:54 AM

Page 41

© 2004 Mitchell Repair Information Company, LLC.

Brake Vacuum Pump Motor

V192

CAN Data Bus Interface (Gateway)

J533

Camshaft Position Sensor

G163

Charge Air Pressure Sensor

G31

Clutch Pedal Switch

F36

Comfort Systems Central Control Module

J393

ECM

J220

ECM Power Supply Relay

J271

ECT Sensor

G62

Engine Coolant Level Sensor

G32

Engine Speed (RPM) Sensor

G28

EPC Warning Light

K132

EVAP Canister Purge Valve

N80

EVAP Leak Detection Pump

V144

Fuel Pump

G6

Fuel Pump Relay

J17

HO2S Upstream TWC

G39

HO2S Downstream TWC

G130

IAT Sensor

G42

Ignition Coil With Power Output Stage

N70, N127, N129 & N292

Immobilizer Induction Coil

D2

Immobilizer Warning Light

K117

Injectors

N30-N33

Instrument Cluster Control Module (Also Used By
Immobilizer)

J285

Knock Sensor 1

G61

Knock Sensor 2

G66

MAF Sensor

G70

Malfunction Indicator Light

K83

Oil Level Sensor

G266

Oil Pressure Switch

F1

Oil Pressure Warning Light

K3

Power Steering Switch

F88

Recirculating Valve For Turbocharger

N249

Secondary Air Injection Valve

N112

Secondary Air Pump Motor

V101

Secondary Air Pump Relay

J299

Steering Control Module

J453

Steering Sensor

G85



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:54 AM

Page 42

© 2004 Mitchell Repair Information Company, LLC.

DIAGNOSTIC TESTS

Throttle Valve Control Module

J338

Throttle Valve Drive

G186

Transmission Control Module (Automatic Transmission)

J217

Valve For Camshaft Adjustment

N205

Vehicle Speed Sensor (Speedometer)

G22

Wastegate By-Pass Regulator Valve

N75

CAUTION: Perform all resistance and voltage tests with a Digital Volt-ohmmeter

(DVOM) with minimum 10-megohm impedance, unless stated otherwise in
test procedures. Ensure ignition switch is in OFF position when
performing resistance tests.

NOTE:

Read and record DTCs before starting diagnostic work. Some testing
procedures will set DTCs.

NOTE:

If a test ends with ECM replacement, before replacing ECM be certain that, all
wiring, power and ground supplies are okay. See ENGINE PERFORMANCE in
SYSTEM WIRING DIAGRAMS article in ELECTRICAL and ECM GROUND &
VOLTAGE SUPPLY .

NOTE:

When using Scan Tool VAG 1551/1552 or VAS 5051/5052, malfunctions which
only occur sporadically (intermittently) will have the addendum sporadic
(intermittent) malfunction on the print out and will be indicated on the display
by the addendum /SP. Cause of sporadic malfunctions can be e.g. loose contact
or a brief open circuit. If a sporadic malfunction does not occur again within 40
warm-up phases, sporadic DTC(s) will be erased from ECM memory. A warm-up
phase is, engine started with coolant temperature below 122°F (50°C) - switched
off at above 162°F (72°C).

NOTE:

To properly diagnose vehicle, vehicle manufacturer recommends use of Scan
Tool (VAG 1551/1552 or VAS 5051/5052) and Test Box (VAG 1598). Following
test procedures are using Scan Tool (VAG 1551 or 1552) and Test Box (VAG
1598). Test box terminal numbers and ECM terminal numbers are identical. To
identify connector terminal wire colors, see ENGINE PERFORMANCE in
SYSTEM WIRING DIAGRAMS article in ELECTRICAL.

NOTE:

Before replacing any component, verify battery voltage is a minimum of 11.5
volts and all fuses are okay. Ensure all wiring is okay and connectors at
component and ECM are clean and tight. When codes have been cleared or
voltage supply to ECM has been interrupted, ECM loses all "learned" and
"basic" values. Serious driveability problems may occur depending on vehicle



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:54 AM

Page 43

© 2004 Mitchell Repair Information Company, LLC.
