Volkswagen New Beetle. Manual - part 1808





protective coating on new key and read secret code number of new key. Key in secret code number
preceded by a "0"into scan tool, e.g. "0", "1", "9", "1" and "5" if secret code number is 1915 and enter by
pressing "Q" key. If "Rapid Data Transfer Select Function XX HELP" displays on scan tool, secret code
number has been accepted, leave key in on position and go to next step. If "Test Sends Address Word 17"
displays on scan tool. Repeat adaptation procedure and re-enter secret code number.

2. Press keys "1" and "0" for "Adaptation" function 10 and enter by pressing "Q" key. Press keys "2" and

"1" for "Channel 21" and enter by pressing "Q" key. If "Channel 21 Adapting 2 <-1 3->" displays on scan
tool, press right arrow key. Go to next step. If "Function Is Unknown Or Can Not Be Carried Out At The
Moment" displays on scan tool. Repeat adaptation procedure and re-enter secret code number.

3.

If "Channel 21 Adapting 2 Enter Adaptation Value XXXXX" displays on scan tool. Press "0" key 4 times
and than enter total number of keys to be adapted, including key in ignition For example, 1 new key, 1
key in ignition and 3 additional keys would be "00005", (a total of 8 keys is maximum). Enter by pressing
"Q" key.

4. "Channel 21 Adapting 5 <-1 3->" should display if 5 keys are to be adapted and enter by pressing "Q"

key. "Channel 21 Adapting 5 Store Changed Value ?" should display if 5 keys are to be adapted. Press
"Q" key to enter. "Channel 21 Adapting 5 Store Changed Value Is Stored" should display if 5 keys are to
be adapted. In VDO instrument clusters, warning light for immobilizer should go out. Key in ignition is
now adapted.

5. Press right arrow key. Switch ignition off and remove key. Go to next step.

6. Insert next key to be adapted in ignition lock and turn ignition on. Warning light for anti-theft

immobilizer lights up for approximately 2 seconds and then goes out. When warning light for anti-theft
immobilizer goes out, turn ignition off and remove key. Repeat this procedure until all keys are adapted.
Warning light for anti-theft immobilizer flashes briefly after last key is adapted. Press keys "0" and "2"
for "Check DTC Memory" function "2". If no DTC(s) are stored adapting of all keys was successful.

OXYGEN SENSOR ADAPTATION

Checking Oxygen Sensor Adaptation is part of Readiness Code procedures. See READINESS CODE
Oxygen sensors are self adapting.

SUMMARY

If no Diagnostic Trouble Codes (DTCs) are present and a no-start condition exists, proceed to appropriate
BASIC DIAGNOSTIC PROCEDURES article.

NOTE:

If warning light flashes continuously, key adapting procedure is faulty and
must be performed again. Only 30 seconds of ignition on time is given to
adapt all keys, 30 seconds start from the time immobilizer warning light
goes out when first key is adapted. Warning light flashes quickly and a
DTC is stored if 30 seconds are exceeded when adapting all ignition keys.
During time period that ignition is turned off, time does not register.

NOTE:

Identity of ECM is read into the immobilizer control module next time
ignition is switched on.



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:54 AM

Page 32

© 2004 Mitchell Repair Information Company, LLC.

CONNECTING VAG TEST BOX

BEETLE

Turn ignition off. Move center dash panel forward and up. See Fig. 5 . Remove center dash panel. Remove
screw for left front dash cover. Lift cover at right side and pull to right to remove. Connect test equipment. See
Fig. 10 .

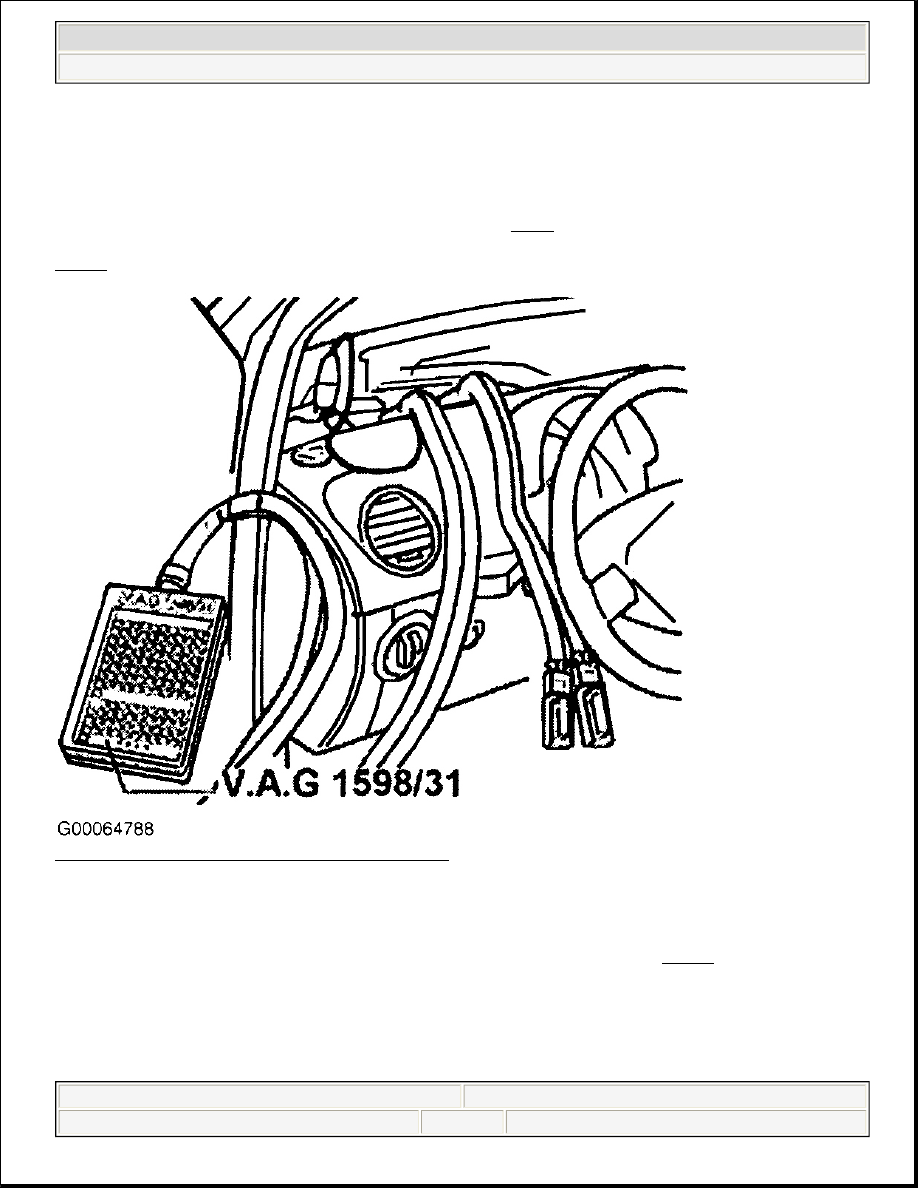

Fig. 10: Connecting VAG Test Box 1598/31 (Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

GOLF & JETTA

Turn ignition off. Remove wiper arms and cowl panel. Connect test equipment. See Fig. 11 .



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:54 AM

Page 33

© 2004 Mitchell Repair Information Company, LLC.

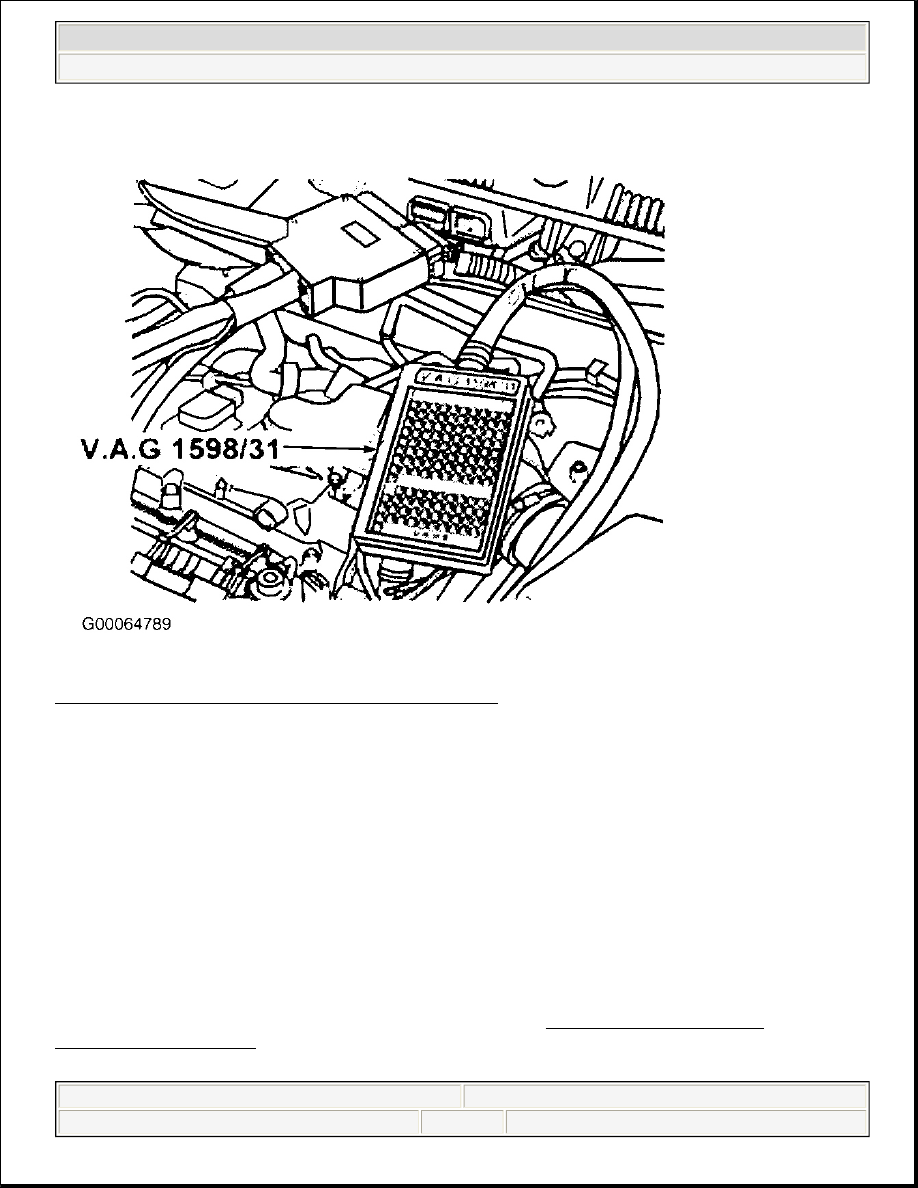

Fig. 11: Connecting VAG Test Box 1598/31 (Golf & Jetta)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DIAGNOSTIC TROUBLE CODE IDENTIFICATION

Diagnostic information is identified by model and engine code. See ENGINE CODES (2001-03) table. Use
DTC IDENTIFICATION table to identify possible cause. To further understand DTC diagnosis and/or
diagnose intermittent failures, see DTC DESCRIPTION under appropriate DTC.

NOTE:

Read and record DTCs before starting diagnostic work, (some testing
procedures will set DTCs).

NOTE:

Manufacturer recommends use of Scan Tool VAG 1551/1552 or VAS 5051/5052.
Generic scan tool may not be able to perform all test functions. If engine does
not start (this test requires using Scan Tool VAG 1551/1552 or VAS 5051/5052).
Connect scan tool. Operate starter for approximately 6 seconds, do not switch
ignition off. Turn on scan tool printer. Operate scan tool, according to scan tool
display information. Check for DTCs.



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:54 AM

Page 34

© 2004 Mitchell Repair Information Company, LLC.

DTC IDENTIFICATION

DTC
SAE

DTC

VAG

Possible Cause

No Fault
Code

No Fault

Code

(1)

P0036

16420

HO2 Sensor (G130) Downstream TWC - Heating Open Circuit

P0037

16421

HO2 Sensor (G130) Downstream TWC - Heating Short To

Ground

P0038

16422

HO2 Sensor (G130) Downstream TWC - Heating Short To B+

P0101

16485

MAF Sensor (G70) - Implausible Signal

P0102

16486

MAF Sensor (G70) - Voltage Signal Too Low

P0103

16487

MAF Sensor (G70) - Voltage Signal Too High

P0112

16496

IAT Sensor (G42) - Signal Too Low

P0113

16497

IAT Sensor (G42) - Signal Too High

P0121

16505

Angle Sensor 2 (G188) For Throttle Valve Drive - Implausible

Signal

P0122

16506

Angle Sensor 2 (G188) For Throttle Valve Drive - Signal Too

Low

P0123

16507

Angle Sensor 2 (G188) For Throttle Valve Drive - Signal Too

High

P0130

16514

HO2 Sensor (G39) Upstream TWC - Heating Circuit Malfunction

P0133

16517

HO2 Sensor (G39) Upstream TWC - Signal Too Slow

P0134

16518

HO2 Sensor (G39) Upstream TWC - No Activity

P0135

16519

HO2 Sensor (G39) Upstream TWC - Heating Element Circuit

Malfunction

P0136

16520

HO2 Sensor (G130) Downstream TWC - Circuit Malfunction

P0137

16521

HO2 Sensor (G130) Downstream TWC - Voltage Too Low

P0138

16522

HO2 Sensor (G130) Downstream TWC - Voltage Too High

P0139

16523

HO2 Sensor (G130) Downstream TWC - Signal Too Slow

P0139

16524

HO2 Sensor (G130) Downstream TWC - No Activity

P0141

16525

HO2 Sensor (G130) Heating Downstream TWC - Heating

Element Circuit Malfunction

P0170

16554

Fuel Trim - Malfunction

P0171

16555

Fuel Trim - Too Lean

P0172

16556

Fuel Trim - Too Rich

P0201

16585

Injector Cylinder 1 (N30) - Electrical Circuit Malfunction

P0202

16586

Injector Cylinder 2 (N31) - Electrical Circuit Malfunction

P0203

16587

Injector Cylinder 3 (N32) - Electrical Circuit Malfunction

P0204

16588

Injector Cylinder 4 (N33) - Electrical Circuit Malfunction

P0221

16605

Angle Sensor 2 (G188) For Throttle Valve Drive - Implausible

Signal



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:54 AM

Page 35

© 2004 Mitchell Repair Information Company, LLC.
