Volkswagen New Beetle. Manual - part 1806





11. HO2 Sensor, Bank 1, Sensor 2 (Behind TWC)

Ensure that parking brake is set and transmission is in park (A/T) or neutral (M/T). Allow engine to run at
idle. Press keys "2", "1" and "9" for display group 219 and enter by pressing "Q" key. Observe display
field 3, TWC temperature should be between 392°F (200°C) and 1112°F (600°C). Observe display field
4. Depress brake pedal, keep brake pedal depressed and accelerate engine to wide open throttle, ECM will
increase RPM to approximately 2300 RPM. Continue to run engine at 2300 RPM (approximately 50
seconds) until "X X X X X 1 0 0" appears in display field 4. If "X X X X X 1 0 0" is displayed, press "C"
key and check next component. If "X X X X X 1 0 0" does not appear in display field 4, press right arrow
key, check for DTC(s). See DIAGNOSTIC TROUBLE CODE IDENTIFICATION . Repair as
necessary.

12. HO2 Sensor, Bank 1, Sensor 2 (Downstream TWC)

Ensure that parking brake is set and transmission is in park (A/T) or neutral (M/T). Allow engine to run at
idle. Press keys "2", "2" and "1" for display group 221 and enter by pressing "Q" key. Observe display
field 3, TWC temperature should be between 392°F (200°C) and 1112°F (600°C). Observe display field
4. Depress brake pedal, keep brake pedal depressed and accelerate engine to wide open throttle, ECM will
increase RPM to approximately 2300 RPM. Continue to run engine at 2300 RPM (approximately 30
seconds) until "0 0 0 X X 1 0 0" appears in display field 4. If "0 0 0 X X 1 0 0" is displayed, press "C"
key and check next component. If "0 0 0 X X 1 0 0" does not appear in display field 4, press right arrow
key, check for DTC(s). See DIAGNOSTIC TROUBLE CODE IDENTIFICATION . Repair as
necessary.

13. HO2 Sensor Switching, Bank 1, Sensor 2 (Downstream TWC)

Ensure that parking brake is set and transmission is in park (A/T) or neutral (M/T). Allow engine to run at
idle. Press keys "2", "2" and "4" for display group 224 and enter by pressing "Q" key. Observe display
field 4. Depress brake pedal, keep brake pedal depressed and accelerate engine to wide open throttle,
ECM will increase RPM to approximately 2300 RPM. Continue to run engine at 2300 RPM
(approximately 15 seconds) until "X X X X X 1 0 0" appears in display field 4. If "X X X X X 1 0 0" is
displayed, press "C" key and check next component. If "X X X X X 1 0 0" does not appear in display
field 4, press right arrow key, check for DTC(s). See DIAGNOSTIC TROUBLE CODE
IDENTIFICATION
. Repair as necessary.

14. HO2 Sensor Aging (Sensor Dynamics), Bank 1, Sensor 2 (Downstream TWC)

Ensure that parking brake is set and transmission is in park (A/T) or neutral (M/T). Allow engine to run at
idle. Press keys "2", "2" and "6" for display group 226 and enter by pressing "Q" key. Observe display
field 3, TWC temperature should be between 842°F (450°C) and 1364°F (740°C). Observe display field
4. Depress brake pedal, keep brake pedal depressed and accelerate engine to wide open throttle, ECM will
increase RPM to approximately 2300 RPM. Continue to run engine at 2300 RPM until "X X X X X 1 0
0" appears in display field 4. If "X X X X X 1 0 0" is displayed, press "C" key and check next component.
If "X X X X X 1 0 0" does not appear in display field 4, press right arrow key, check for DTC(s). See
DIAGNOSTIC TROUBLE CODE IDENTIFICATION . Repair as necessary.

15. Fuel Trim Diagnostic (Idle)



Ensure that parking brake is set and transmission is in park (A/T) or neutral (M/T). Allow engine to run at

NOTE:

Work Steps 15 through 18 are performed at idle speed.



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:53 AM

Page 24

© 2004 Mitchell Repair Information Company, LLC.

idle. Press keys "2", "1" and "6" for display group 216 and enter by pressing "Q" key. Observe display
field 4. Continue to run engine at idle (approximately 30 seconds) until "X X X X 1 1 0 0" appears in
display field 4. If "X X X X 1 1 0 0" is displayed, press "C" key and check next component. If "X X X X
1 1 0 0" does not appear in display field 4, press right arrow key, check for DTC(s). See DIAGNOSTIC
TROUBLE CODE IDENTIFICATION
. Repair as necessary.

16. EVAP (Tank Ventilation)

Ensure that parking brake is set and transmission is in park (A/T) or neutral (M/T). Allow engine to run at
idle. Press keys "2", "2" and "8" for display group 228 and enter by pressing "Q" key. Observe display
field 4. Continue to run engine at idle (approximately 30 seconds) until "X X X X X 1 0 0" appears in
display field 4. If "X X X X X 1 0 0" is displayed, press "C" key and check next component. If "X X X X
X 1 0 0" does not appear in display field 4, press right arrow key, check for DTC(s). See DIAGNOSTIC
TROUBLE CODE IDENTIFICATION
. Repair as necessary.

17. Secondary Air Injection Diagnostic

Ensure that parking brake is set and transmission is in park (A/T) or neutral (M/T). Allow engine to run at
idle. Press keys "2", "2" and "9" for display group 229 and enter by pressing "Q" key. Observe display
field 4. Continue to run engine at idle (approximately 30 seconds) until "X X X X X 1 0 0" appears in
display field 4. If "X X X X X 1 0 0" is displayed, press "C" key and check next component. If "X X X X
X 1 0 0" does not appear in display field 4, press right arrow key, check for DTC(s). See DIAGNOSTIC
TROUBLE CODE IDENTIFICATION
. Repair as necessary.

18. Fuel Trim Diagnostic (Idle)

Ensure that parking brake is set and transmission is in park (A/T) or neutral (M/T). Allow engine to run at
idle. Press keys "2", "3" and "1" for display group 231 and enter by pressing "Q" key. Observe display
field 4. Continue to run engine at idle (approximately 30 seconds) until "X X X X X 1 0 0" appears in
display field 4. If "X X X X X 1 0 0" is displayed, press "C" key, Fuel Trim Diagnostic (Idle) is complete.
Press keys "0", and "6" for function "End Output" and enter by pressing "Q" key and turn ignition off. If
"X X X X X 1 0 0" does not appear in display field 4, press right arrow key, check for DTC(s). See
DIAGNOSTIC TROUBLE CODE IDENTIFICATION . Repair as necessary. Press "C" key. Press
keys "0", and "6" for function "End Output" and enter by pressing "Q" key. Turn ignition off.

19. Read Readiness Code

See READING READINESS CODE - SCAN TOOL VAG 1551/1552 Or VAS 5051/5052



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:53 AM

Page 25

© 2004 Mitchell Repair Information Company, LLC.

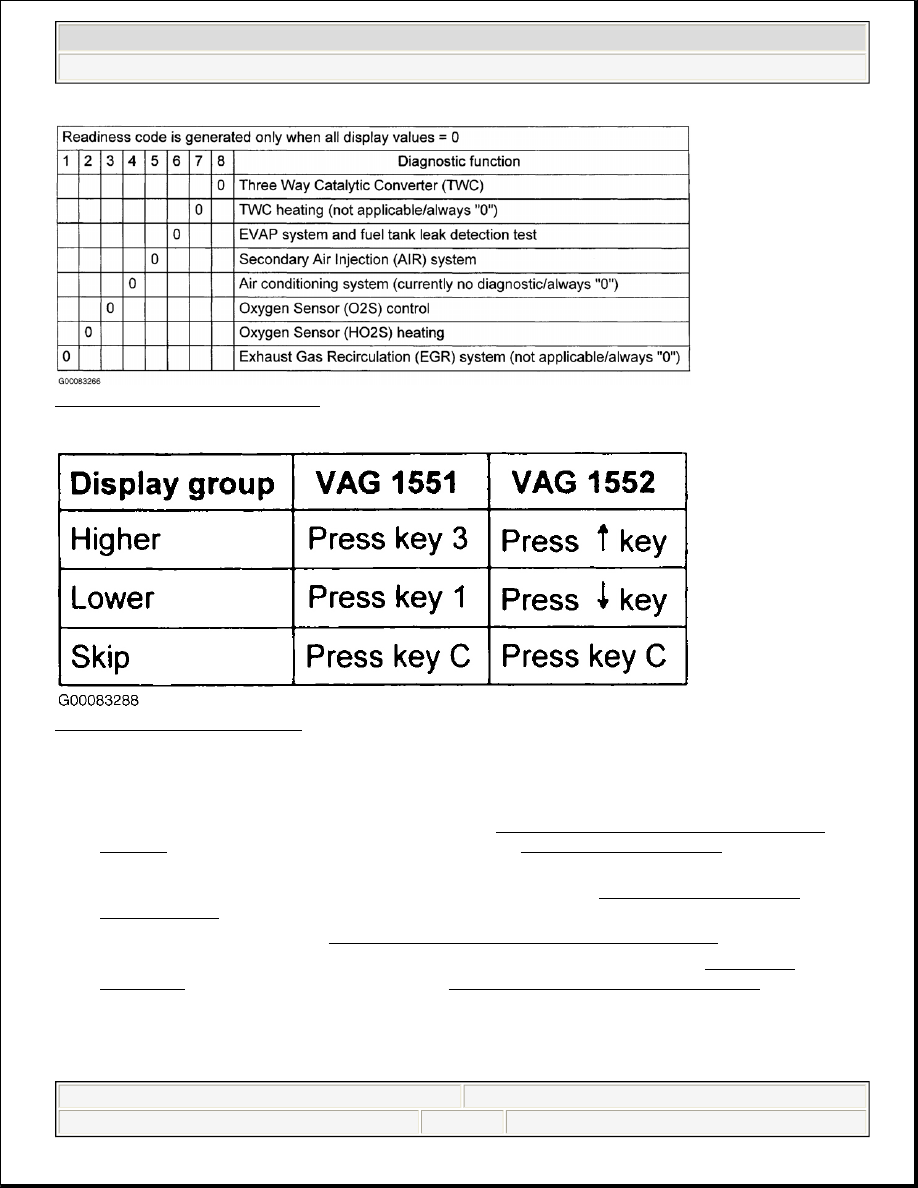

Fig. 6: Identifying Readiness Code
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig. 7: Changing Display Group
Courtesy of VOLKSWAGEN UNITED STATES, INC.

ENGINE CONTROL MODULE (J220) CODING (FUNCTION 07)

1. Connect scan tool to Data Link Connector (DLC). See RETRIEVING DIAGNOSTIC TROUBLE

CODES . If DTCs are present and repairs are needed, see DTC IDENTIFICATION table.

2. Erase ECM memory. Manufacturer does not provide ECM coding information for engine codes AVH and

AZG. Manufacturer recommends Test Drive Relearn Procedure. See TEST DRIVE RELEARN
PROCEDURE
.

3. Adapt engine immobilizer. See IMMOBILIZER ADAPTATION TO ECM (J220) .

4. On vehicles equipped with A/T, perform adaptation of A/T to its Basic Setting. See A/T BASIC

SETTING . Adapt A/T kickdown position. See ADAPTING KICKDOWN FUNCTION .

CAN DATA BUS OBD INTERFACE (J533) CODING

Engine control module communicates with all control modules capable of transferring data via a CAN



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:53 AM

Page 26

© 2004 Mitchell Repair Information Company, LLC.

(Controller Area Network) data bus. Data bus-compatible control modules are connected together via two data
bus wires twisted together (CAN high and CAN low) and exchange information (messages). If information is
not available in the CAN data bus from any one of the control modules in the CAN data bus system it will be
recognized as a malfunction by the engine control module as well as other CAN data bus control modules. The
CAN data bus requires a matching resistor to function fault-free. Centralized matching resistor is an integral of
ECM.

Engine Codes AVH/AZG - 2001

Connect scan tool. For location of Data Link Connector (DLC), see Fig. 1 . Turn ignition on. Press keys "1" and
"9" for address word "19" (Gateway) and enter by pressing "Q" key. Press keys "0" and "7" for "Code Control
Module" function "7" and enter by pressing "Q" key. Enter code into CAN data bus Interface (J533). For coding
options, see Fig. 8 . Codes from each individual control module are added together to create CAN data bus
interface code. Enter (e.g.) 00007 if equipped with A/T, ABS and Airbag, (A/T activated 00001 + ABS
activated 00002 + Airbag activated 00004 = 00007).

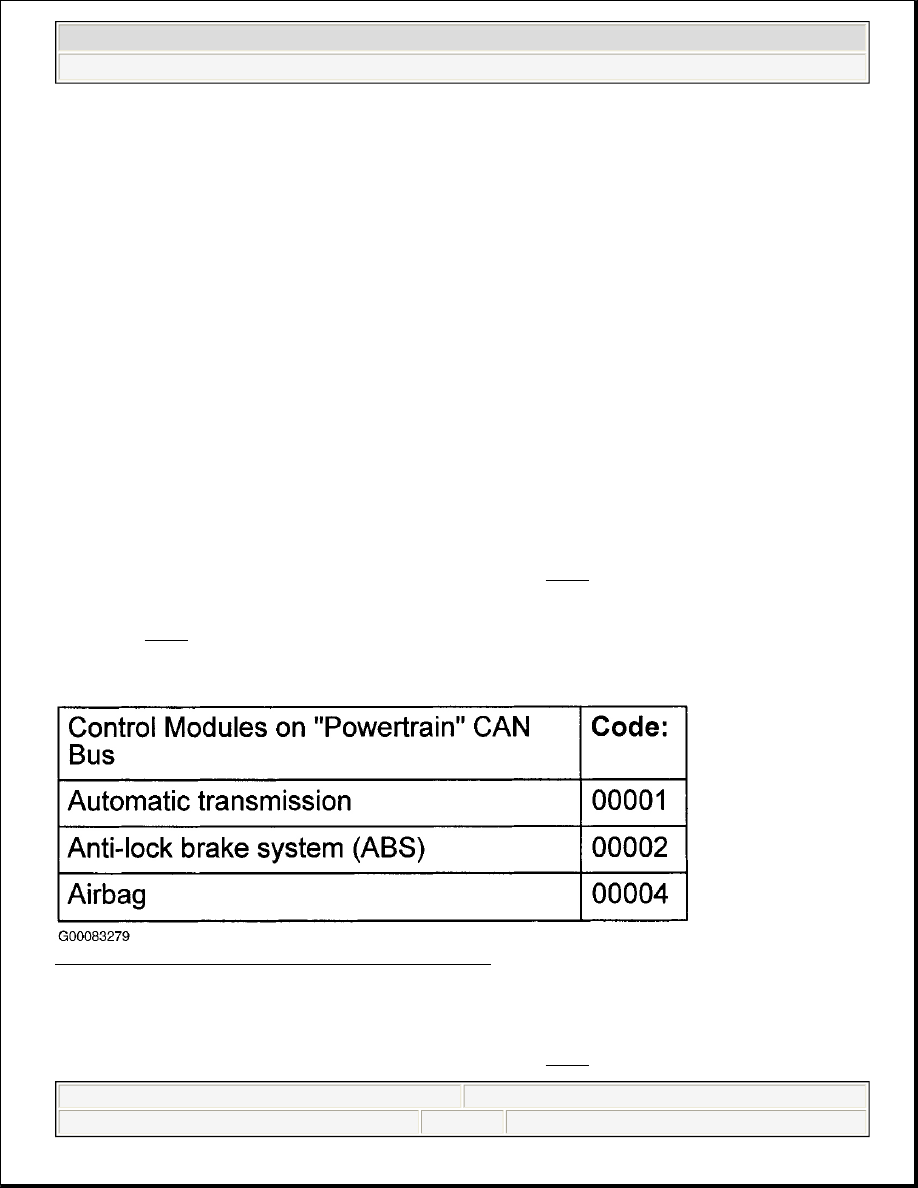

Fig. 8: Identifying CAN Data Bus Coding Options (2001)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Engine Codes AVH/AZG - 2002 and 2003

Connect scan tool. For location of Data Link Connector (DLC), see Fig. 1 . Turn ignition on. Press keys "1" and

NOTE:

Manufacturer recommends using Scan Tool (VAG 1551/1552 or VAS 5051/5052).
Can Data Bus OBD Interface (J533) is also referred to as "Gateway" by
Volkswagen. Can Data Bus OBD Interface (J533) is an integral part of
instrument cluster. Can Data Bus OBD Interface (J533) must be coded
independently of Instrument Cluster Control Module (J285).

NOTE:

From model year 2002, it is not necessary to enter coding for Transmission
Control Module (J217), when coding Can Data Bus OBD Interface (J533). From
model year 2002, Comfort System Central Control Module (J393) is integrated
into Can Data Bus and it is not necessary to enter coding for Comfort System
Central Control Module (J393).



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:54 AM

Page 27

© 2004 Mitchell Repair Information Company, LLC.
