3. Check wiring for Drive Train CAN-Bus. See appropriate WIRING DIAGRAM under ENGINE

PERFORMANCE and COMPUTER DATA LINES in SYSTEM WIRING DIAGRAMS. Also see Fig.
40
 -Fig. 42 .

4. If wiring is okay, go to next step. If wiring is not okay, repair as necessary. After repairs, erase DTC

memory. See CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF
DIAGNOSTIC SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST
DRIVE RELEARN PROCEDURE
.

DTC P1642/18050: DRIVE TRAIN CAN-BUS - MALFUNCTION IN AIRBAG SYSTEM

Test Procedures

Check Airbag Control Module (J234) for DTCs . See AUTOMATIC TEST SEQUENCE (FUNCTION 00)
Repair or replace as necessary. After repairs, erase DTC memory. See CLEARING DIAGNOSTIC
TROUBLE CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is complete.
Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

DTC P1653/18061: DRIVE TRAIN CAN-BUS - MALFUNCTION IN ABS SYSTEM

Test Procedures

Check ABS Control Module (J234) for DTCs. See AUTOMATIC TEST SEQUENCE (FUNCTION 00)
Repair or replace as necessary. After repairs, erase DTC memory. See CLEARING DIAGNOSTIC
TROUBLE CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is complete.
Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

NOTE:

For connector terminal wire colors, see appropriate WIRING DIAGRAM under
ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS. For component
locations, see COMPONENT LOCATIONS .

NOTE:

Before replacing any component, ensure all connectors at component and ECM
are clean and tight. After making any repairs, disconnect ECM harness
connector for 10 seconds, connect ECM harness connector and retest system.
It is necessary to generate an ECM readiness code if ECM memory is cleared,
battery voltage is disconnected or ECM is disconnected.

NOTE:

For connector terminal wire colors, see appropriate WIRING DIAGRAM under
ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS. For component
locations, see COMPONENT LOCATIONS .

NOTE:

Before replacing any component, ensure all connectors at component and ECM
are clean and tight. After making any repairs, disconnect ECM harness
connector for 10 seconds, connect ECM harness connector and retest system.
It is necessary to generate an ECM readiness code if ECM memory is cleared,
battery voltage is disconnected or ECM is disconnected.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:24 AM

Page 104

© 2004 Mitchell Repair Information Company, LLC.

DTC P1654/18062: DRIVE TRAIN CAN-BUS - MALFUNCTION IN COMBI-INSTRUMENT
CLUSTER - OIL LEVEL/TEMPERATURE SENDER DEFECTIVE

Test Procedures

Check Combi-Instrument Cluster for DTCs . See AUTOMATIC TEST SEQUENCE (FUNCTION 00)
Repair or replace as necessary. After repairs, erase DTC memory. See CLEARING DIAGNOSTIC
TROUBLE CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is complete.
Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

P1657/18065: AIR CONDITIONER INPUT/OUTPUT - SHORT TO B +

1. Check A/C Compressor Interruption using Output Diagnostic Test Mode. See OUTPUT DIAGNOSTIC

TEST MODE . When running engine at idle, Output Diagnostic Test Mode activation should cycle A/C
clutch at approximately 5 second intervals. If A/C clutch does NOT cycle at approximately 5 second
intervals, go to next step. If A/C clutch cycles at approximately 5 second intervals, erase DTC memory.
See CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF DIAGNOSTIC
SYSTEM. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE . If no DTC
resets, test is complete.

2. Check and repair wiring as necessary. See appropriate WIRING DIAGRAM under ENGINE

PERFORMANCE in SYSTEM WIRING DIAGRAMS. After repairs, erase DTC memory. See
CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF DIAGNOSTIC
SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE
RELEARN PROCEDURE
.

DTC P3003/19459 & VAG DTC 01193

Code Definition

DTC P3003/19459
Pre-Heating Coolant/Low Heat Output Relay (J359) - Short To B+

VAG DTC 01193


NOTE:

For connector terminal wire colors, see appropriate WIRING DIAGRAM under
ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS. For component
locations, see COMPONENT LOCATIONS .

NOTE:

Before replacing any component, ensure all connectors at component and ECM
are clean and tight. After making any repairs, disconnect ECM harness
connector for 10 seconds, connect ECM harness connector and retest system.
It is necessary to generate an ECM readiness code if ECM memory is cleared,
battery voltage is disconnected or ECM is disconnected.

NOTE:

DTC 01193is displayed in VW factory scan tool format only.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:24 AM

Page 105

© 2004 Mitchell Repair Information Company, LLC.

Pre-Heating Coolant/Low Heat Output Relay (J359) - Short To B+

Possible Effects

Possible effects are engine coolant pre heat inoperative.

Test Procedures

1. Check pre-heating coolant/heat output relay using Output Diagnostic Test Mode. See OUTPUT

DIAGNOSTIC TEST MODE and Fig. 43 .

2. Relay should click. If relay does not click, go to next step. If relay clicks, turn ignition off. Check relay

connection at relay socket. Repair as necessary. After repairs, erase DTC memory. See CLEARING
DIAGNOSTIC TROUBLE CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify
repair. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE . Test is
complete, if no DTCs reset.

3. Check wiring according to wiring diagram. See ENGINE PERFORMANCE in SYSTEM WIRING

DIAGRAMS article in ELECTRICAL. Repair as necessary. After repairs, erase DTC memory. See
CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF DIAGNOSTIC
SYSTEM. Verify repair. Perform ECM relearn procedure. See TEST DRIVE RELEARN
PROCEDURE
.

NOTE:

For connector terminal wire colors, see appropriate WIRING DIAGRAM under
ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS. For component
locations, see COMPONENT LOCATIONS .

NOTE:

Before replacing any component, ensure all connectors at component and ECM
are clean and tight. After making any repairs, disconnect ECM harness
connector for 10 seconds, connect ECM harness connector and retest system.
It is necessary to generate an ECM readiness code if ECM memory is cleared,
battery voltage is disconnected or ECM is disconnected.

NOTE:

If a test ends with ECM replacement. Before replacing ECM be certain that, all
wiring, power and ground supplies are okay. See ENGINE PERFORMANCE in
SYSTEM WIRING DIAGRAMS article in ELECTRICAL and ECM GROUND &
VOLTAGE SUPPLY .

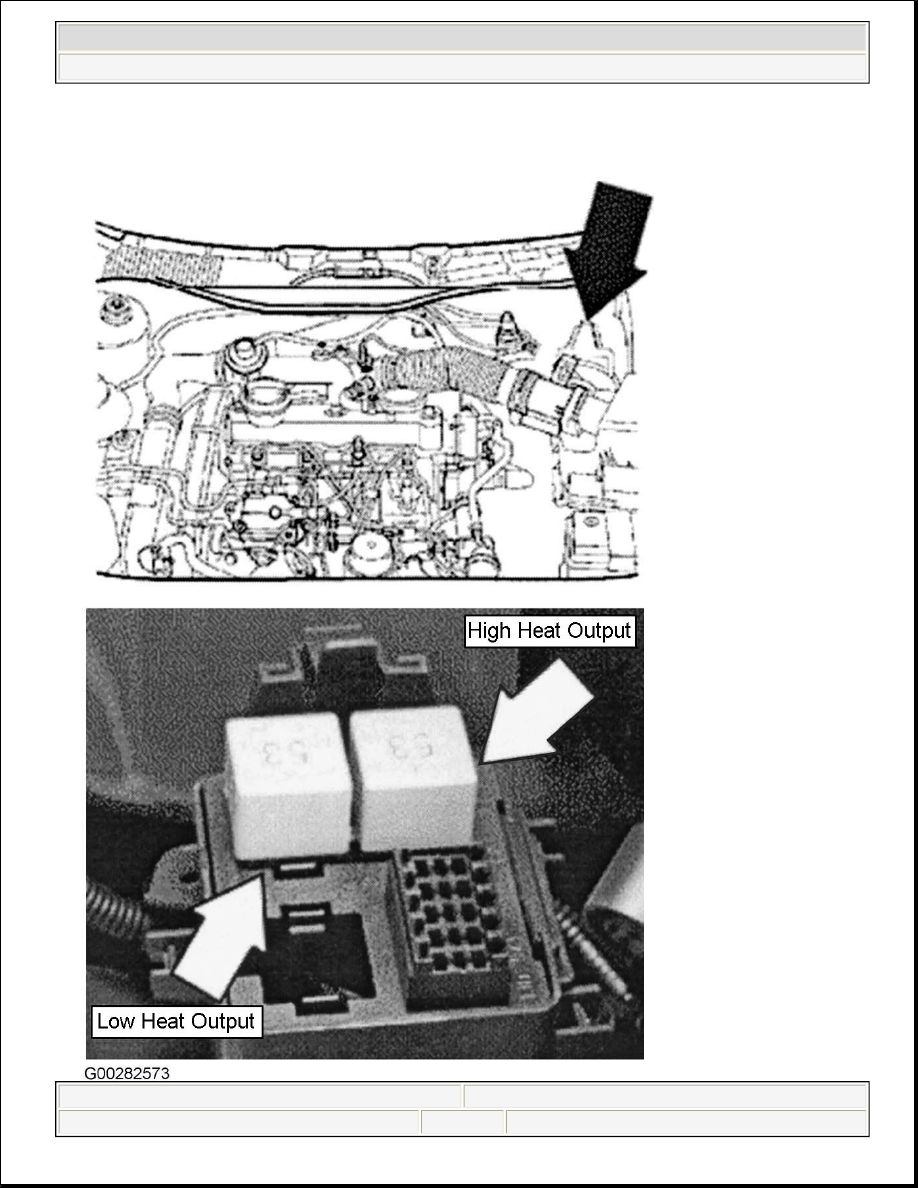

NOTE:

Production control number for both high and low heat relays are 53.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:24 AM

Page 106

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:24 AM

Page 107

© 2004 Mitchell Repair Information Company, LLC.
