Volkswagen New Beetle. Manual - part 1777





P1550 17958

Charge Pressure - Control Difference

P1556 17964

Boost Pressure Regulation - Limit Not Reached

P1557 17965

Boost Pressure Regulation - Control Limit Exceeded

P1561 17969

Injection Pump Quality Adjuster (N146) - Control Difference

P1562 17970

Injection Pump Quality Adjuster (N146) - Upper Stop Value

P1563 17971

Injection Pump Quality Adjuster (N146) - Lower Stop Value

P1569 17977

Cruise Control Switch (E45) - Implausible Signal

P1570 17978

ECM (J248) - Blocked

P1600 18008

ECM Voltage Supply Terminal 15 - Voltage To Low

P1601 18009

Power Supply Relay Terminal 30 (B+) - Relay Sticking (Intermittent)

P1609 18017

Crash Switch - Airbag

P1612 18020

ECM (J248) - Incorrectly Coded

P1616 18024

Glow Plug Indicator Lamp (K29) - Short To B+

P1617 18025

Glow Plug Indicator Lamp (K29) - Open Circuit/Short To Ground

P1618 18026

Glow Plug Relay (J52) - Short To B+

P1619 18027

Glow Plug Relay (J52) - Open Circuit/Short To Ground

P1626 18034

Drive Train CAN-Bus - Implausible Signal From Transmission Control

Module (J217)

P1631 18039

Throttle Position Sensor (G79) - Signal Too High

P1632 18040

Throttle Position Sensor (G79) - Supply Voltage Too High/Too Low Or

Open Circuit

P1636 18044

Drive Train CAN-Bus - No Signal From Airbag Control Module (J234)

P1639 18047

Throttle Position Sensor (G79) - Implausible Signal

P1640 18048

ECM (J248) - Inoperative

P1648 18056

Drive Train CAN-Bus - System Component Inoperative

P1649 18057

Drive Train CAN-Bus - Implausible Signal From ABS Control Module

(J104)

P1650 18058

Drive Train CAN-Bus - No Message From Instrument Cluster

P1642 18050

Drive Train CAN-Bus - Malfunction In Airbag System

P1653 18061

Drive Train CAN-Bus - Malfunction In ABS System

P1654 18062

Drive Train CAN-Bus - Malfunction In Combi-Instrument Cluster - Oil

Level/Temperature Sender Defective

P1657 18065

Air Conditioner Input/Output - Short To B +

P1682 18090

Drive Train CAN-Bus - Implausible Signal From ABS Control Module

(J104)

P1851 18259

Drive Train CAN-Bus - Implausible Signal From ABS Control Module

(J104)

P1854 18262

Drive Train CAN-Bus - Inoperative

P3000 19456 Drive Train CAN-Bus - No Signal From CAN Bus Interface (J533) - Glow

Plug Warning Lamp (K29)



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:20 AM

Page 20

© 2004 Mitchell Repair Information Company, LLC.

COMPONENT LOCATIONS

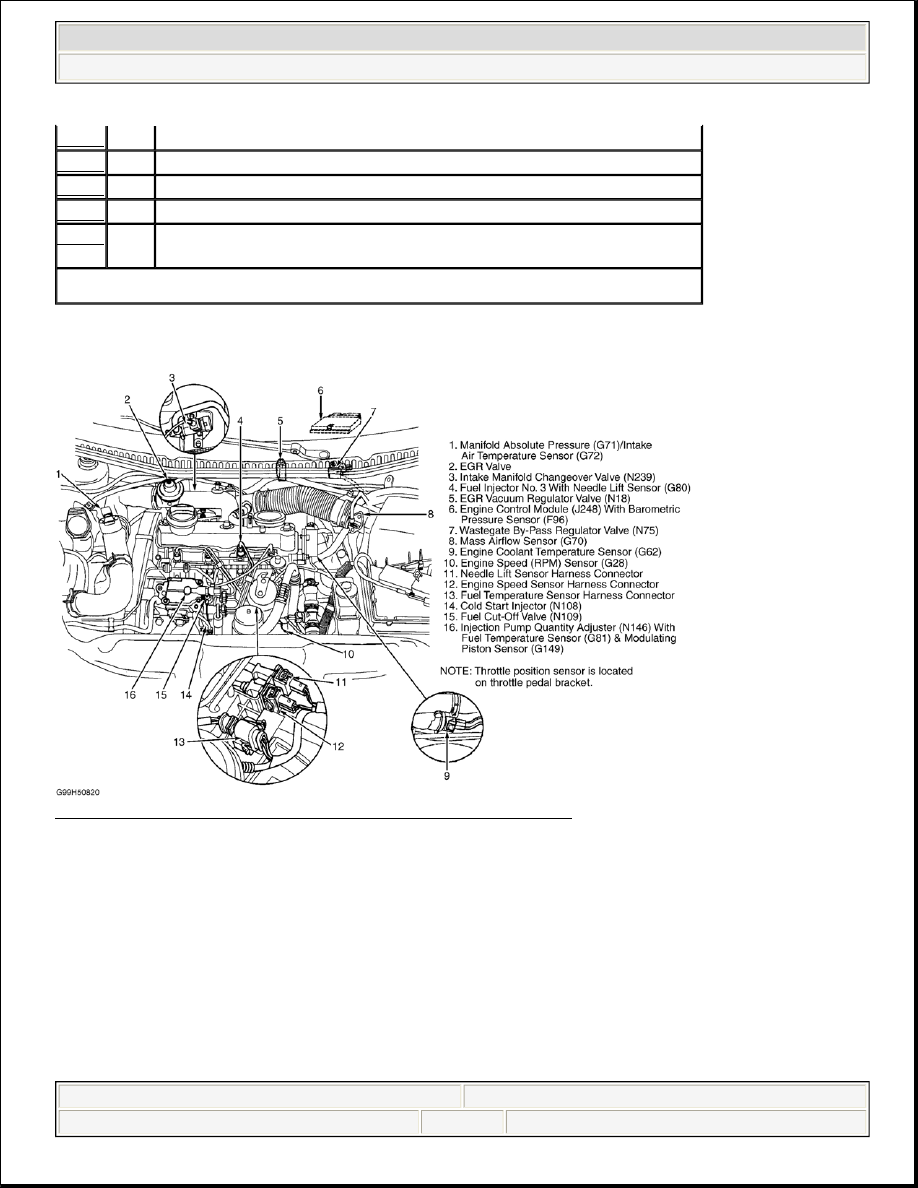

Fig. 7: Locating Engine Control System Components (Early Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

P3002 19458

Kick Down Switch (F8) - Implausible Signal

P3003 19459

Pre-Heating Coolant/Low Heat Output Relay (J359) - Short To B+

P3005 19461

Pre-Heating Coolant/High Heat Output Relay (J360) - Short To B+

P3104 19560

Change-Over Valve For Intake Manifold Flap (N239) - Short To B+

P3105 19561  Change-Over Valve For Intake Manifold Flap (N239) - Open Circuit/Short

Circuit To Ground

(1)

No equivalent P code for this VW code.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:20 AM

Page 21

© 2004 Mitchell Repair Information Company, LLC.

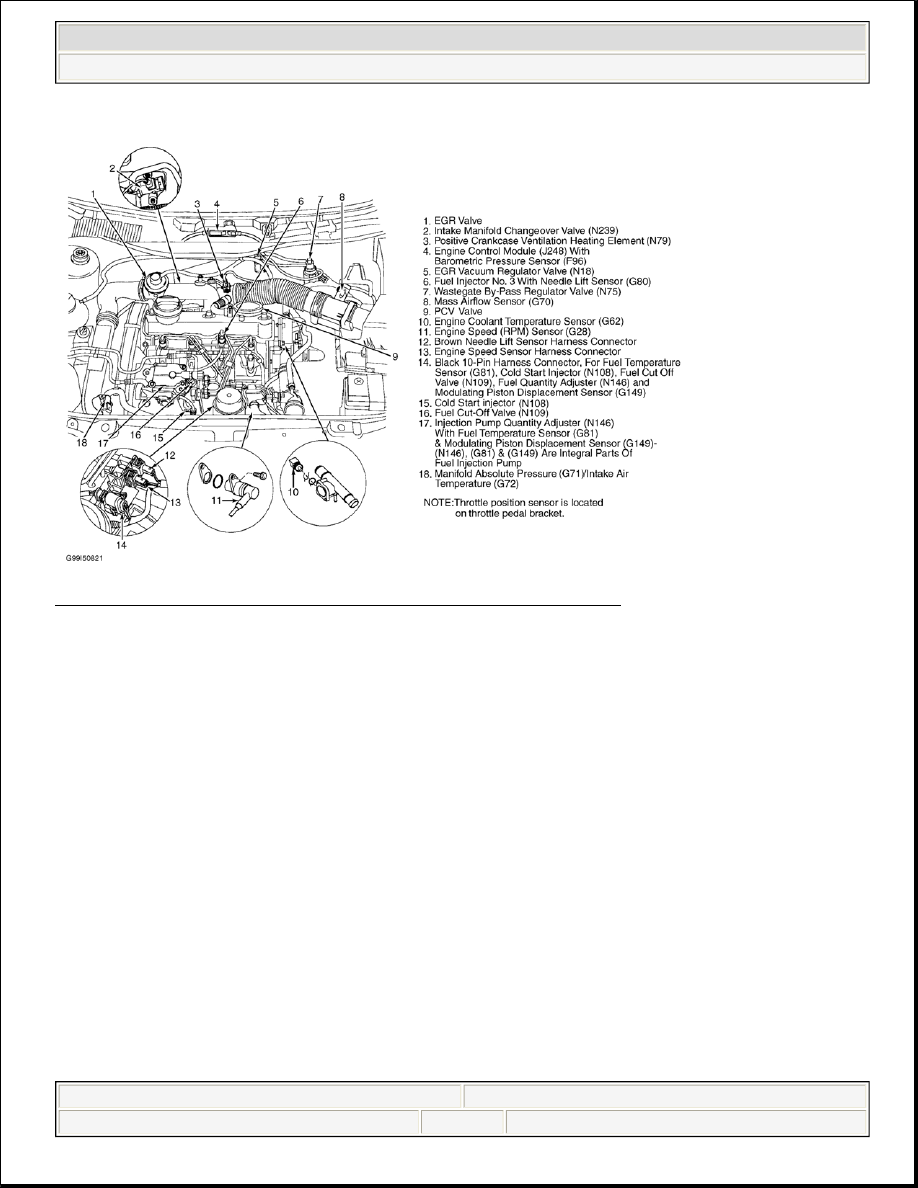

Fig. 8: Locating Engine Control System Components (Early Golf & Jetta)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:20 AM

Page 22

© 2004 Mitchell Repair Information Company, LLC.

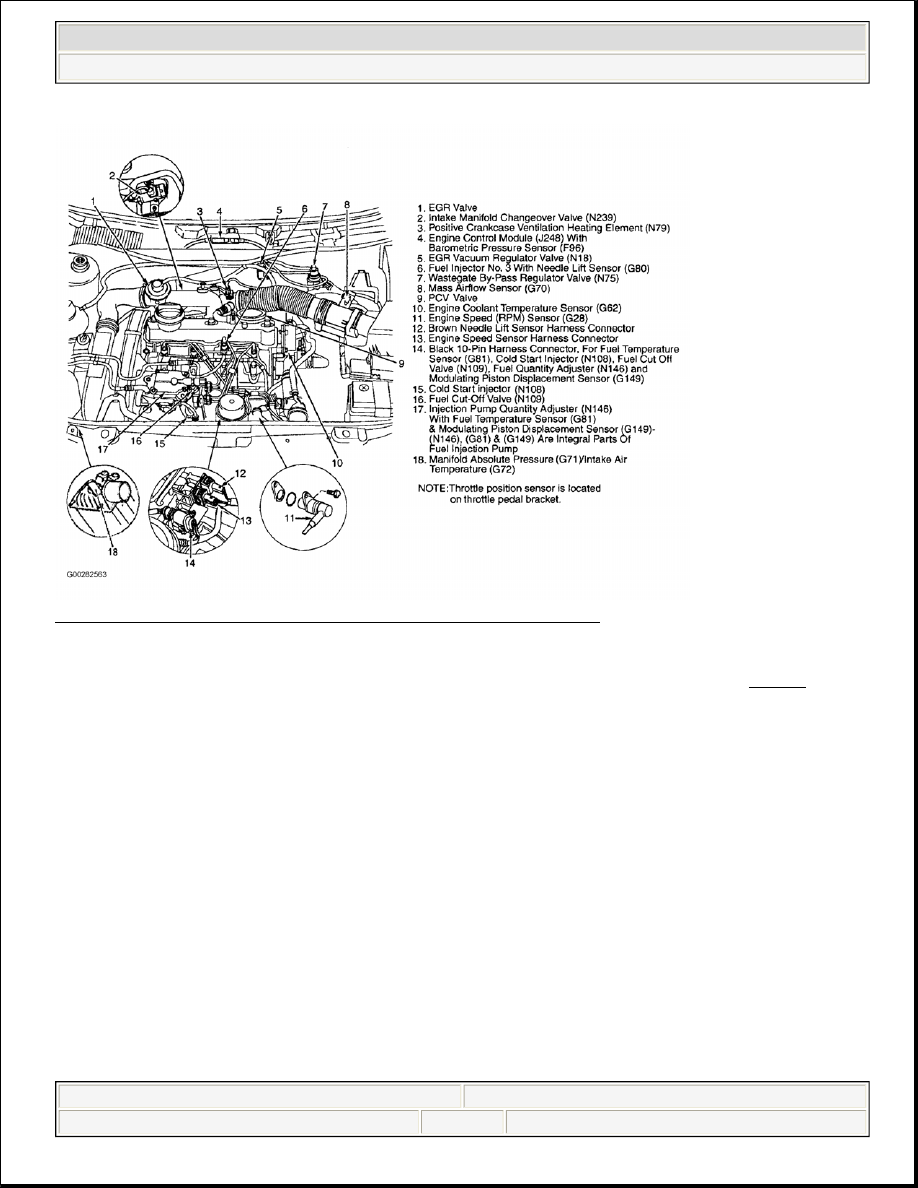

Fig. 9: Locating Engine Control System Components (Late All Models)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CAUTION: There are two types of bolts for injection pump sprocket. See Fig. 10 .



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:20 AM

Page 23

© 2004 Mitchell Repair Information Company, LLC.
