Volkswagen New Beetle. Manual - part 1775





4. After installing ECM perform following procedures:

z

Code ECM, see ENGINE CONTROL MODULE (J248) CODING .

z

Use scan tool to check DTC memory, erase if necessary. See CLEARING DIAGNOSTIC
TROUBLE CODES (FUNCTION 05)
.

z

Adapt ECM to Ignition key immobilize.

z

Generate ECM readiness code. See READINESS CODE .

ENGINE CONTROL MODULE (J248) CODING

If ECM is replaced or incorrect ECM coding is displayed on scan tool, ECM needs to be coded. If new ECM is
not properly coded, the following problems may occur:

z

Driveability problems (e.g., harsh shifting).

z

False malfunctions stored in ECM memory.

z

Increased fuel consumption.

z

Increased exhaust emissions.

z

Reduction in transmission life.

z

All ECM functions are not carried out (e.g. EVAP system operation).

z

On front wheel drive vehicles with anti-slip regulation (ASR), ASR warning lamp comes on.

Generic Scan Tool

Turn ignition on, engine off. Follow scan tool manufacturer's instructions to code Engine Control Module
(ECM). For coding options, see ECM CODING OPTIONS table.

Scan Tool VAG 1551/1552 Or VAS 5051/5052

1. Connect scan tool to DLC. See Fig. 1 . Press "1" key, selecting Rapid data transfer. Press keys "0" and

"1" for "Engine electronics" and enter by pressing "Q" key. Print or record code coding information from
Engine Control Module (ECM - J248) that is to be replaced.

2. Leave scan tool in mode "0" and "1" for address word "Engine Electronics", press keys "0" and "7" for

function "Code Control Module" and enter by pressing "Q" key. Enter appropriate code number for this
vehicle. See ECM CODING OPTIONS table. Enter by pressing Q key.

3. ECM identification and coding should display on scan tool. Verify that correct code number has been

entered. Press right arrow key. Press keys "0" and "6" for function "End Output" and enter by pressing Q
key. Turn ignition off to permanently store code number, turn ignition on. If "Function is unknown or

NOTE:

Before disconnecting Engine Control Module (ECM) record code and
identification number from ECM that is to be replaced.

NOTE:

After coding ECM and starting engine for first time, allow engine to idle for
several minutes so ECM can go through its learn function. Idle speed may be
erratic while ECM is learning.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:20 AM

Page 12

© 2004 Mitchell Repair Information Company, LLC.

cannot be carried out at the moment" displays, a non-authorized code number has been entered, verify
code number and enter correct code number.

4. After coding ECM and starting engine for first time, allow engine to idle for several minutes so ECM can

go through learn function. Idle speed may be erratic while ECM is learning. Road test vehicle. See TEST
DRIVE RELEARN PROCEDURE
. Read Readiness Code and generate Readiness Code if necessary.
See READINESS CODE .

ECM (248) CODING OPTIONS

ACTIVATING/DEACTIVATING CRUISE CONTROL

Generic Scan Tool

Connect scan tool to DLC. DLC is located at left side of steering column. See Fig. 1 . Turn ignition on, engine
off. Follow scan tool manufacturer's instructions to Activating/Deactivating Cruise Control.

Scan Tool VAG 1551/1552 Or VAS 5051/5052

Activating Cruise Control
Connect scan tool to DLC. DLC is located at left side of steering column. See Fig. 1 . Turn ignition on,
engine off. Press keys "0" and "1" for address word "Engine Electronics". Press "1" key 2 times for
"Login Procedure" function 11 and enter by pressing "Q" key. Press keys "1", "1", "4", "6" and "3" for
Code Number 11463 and enter by pressing "Q" key. Turn ignition off. Activation is complete.

Deactivating Cruise Control
Connect scan tool to DLC. DLC is located at left side of steering column. See Fig. 1 . Turn ignition on,
with engine off. Press keys "0" and "1" for address word "Engine Electronics". Press "1" key 2 times for
"Login Procedure" function 11 and enter by pressing "Q" key. Press keys "1", "6", "1", "6" and "7" for
Code Number 16167 and enter by pressing "Q" key. Turn ignition off. Deactivation is complete.

ECM Part Number Application &
Coding

Application

ECM Part No. Application 038 906 012 FD & 038 906 012 BD Coding

00001

4-Speed Automatic Transmission, ABS &

Airbag

00002

5-Speed Manual Transmission, ABS &

Airbag

00004

4-Speed Automatic Transmission & Airbag

ECM Part No. Application 038 906 012 FR & 038 906 012 BC & Coding

00002

5-Speed Manual Transmission & Airbag

00005

5-Speed Manual Transmission

ECM Part No. Application 038 906 012 FE & 038 906 012 BR & Coding

00001

4-Speed Automatic Transmission & ABS

00002

5-Speed Manual Transmission & ABS

00004

4-Speed Automatic Transmission



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:20 AM

Page 13

© 2004 Mitchell Repair Information Company, LLC.

DRIVE CYCLES

For Test Drive Relearn Procedure and Readiness Code, see TEST DRIVE RELEARN PROCEDURE and
READINESS CODE . If emission related repairs have been performed or vehicle is to be smog checked, it is
recommended that readiness code be read and readiness code be generated if necessary. See READINESS
CODE
.

Warm-Up Phase: Engine started with coolant temperature below 122°F (50°C), then switched off at
above 162°F (72°C).

Road Test: Coolant temperature needs to be greater than 176°F (80°C). Idle, partial throttle, full throttle
and overdrive must all be attained several times. During test drive, apply full throttle until engine speed
exceeds 3500 RPM.

CONNECTING VAG TEST BOX

BEETLE

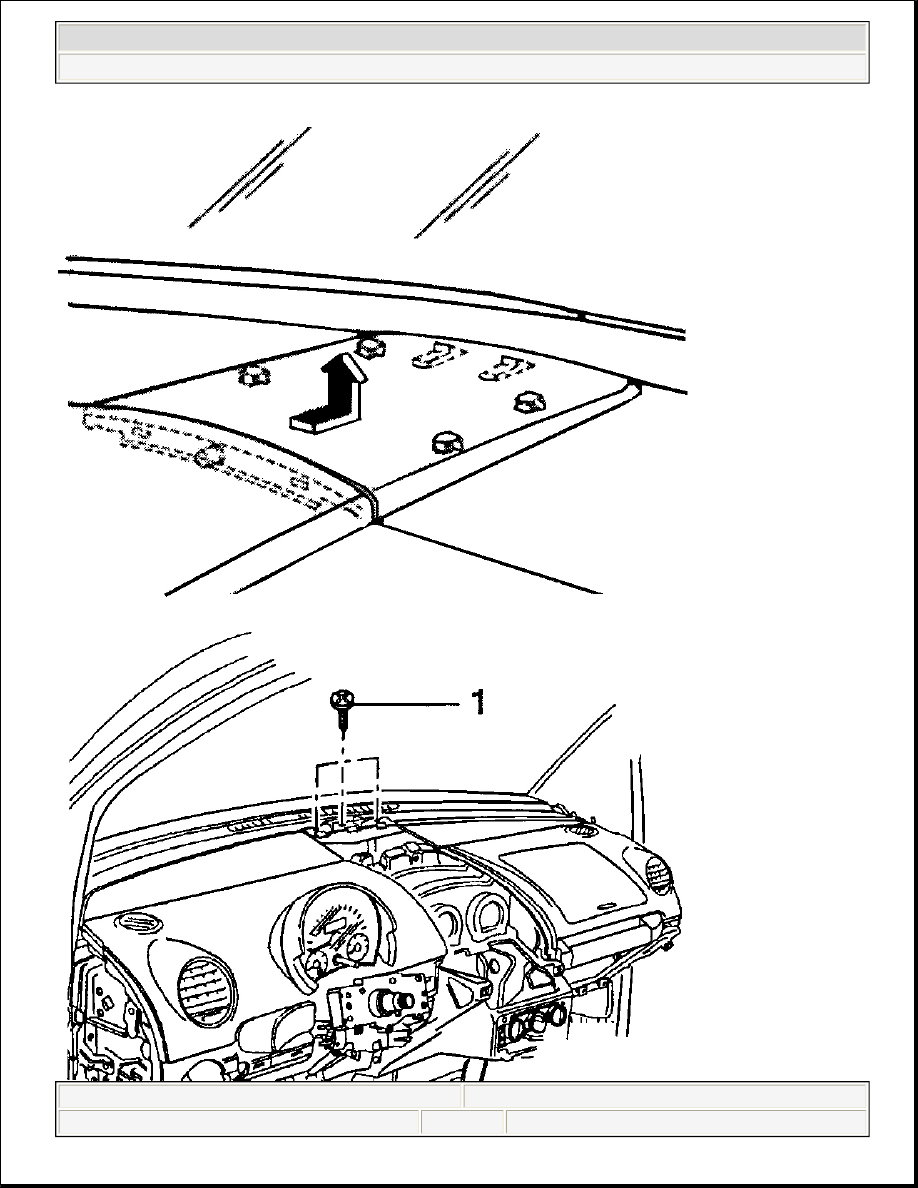

Turn ignition off. Move center dash panel forward and up. Remove center dash panel. Remove screw for left
front dash cover. See Fig. 4 . Lift cover at right side and pull to right to remove. Connect test equipment. See
Fig. 5 .

CAUTION: When battery is disconnected, radio will go into anti-theft protection

mode. Obtain radio anti-theft protection code from owner prior to
servicing vehicle.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:20 AM

Page 14

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:20 AM

Page 15

© 2004 Mitchell Repair Information Company, LLC.
