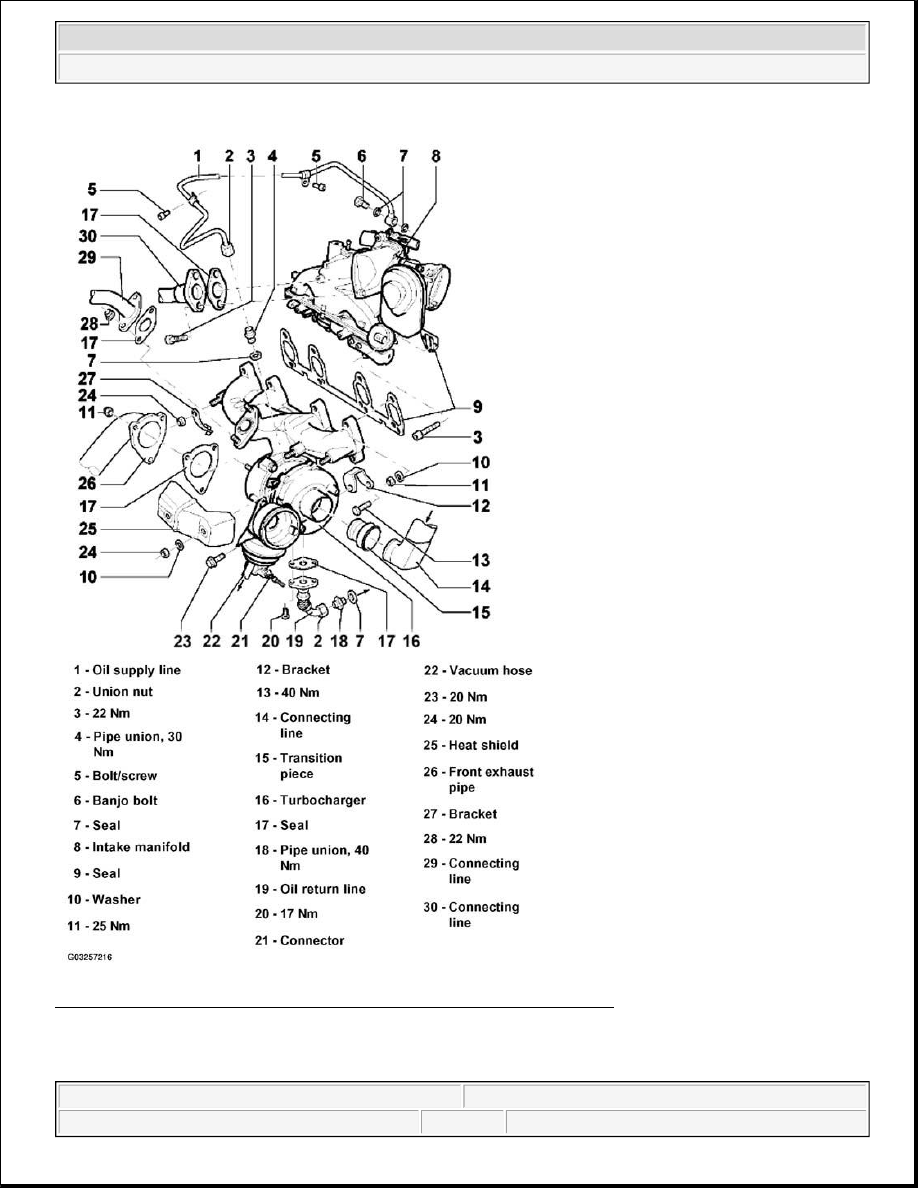

Fig. 3: Exploded View Of Turbocharger & Intake Manifold Components
Courtesy of VOLKSWAGEN OF AMERICA, INC.

CHARGE AIR COOLING COMPONENTS, REMOVING AND INSTALLING



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Turbocharger, G-Charger - New Beetle, 1.9L 4-Cyl. - BEW



Observe safety precautions, See CHARGE AIR SYSTEM WITH TURBOCHARGER .

Observe rules for cleanliness, See RULES FOR CLEANLINESS .

z

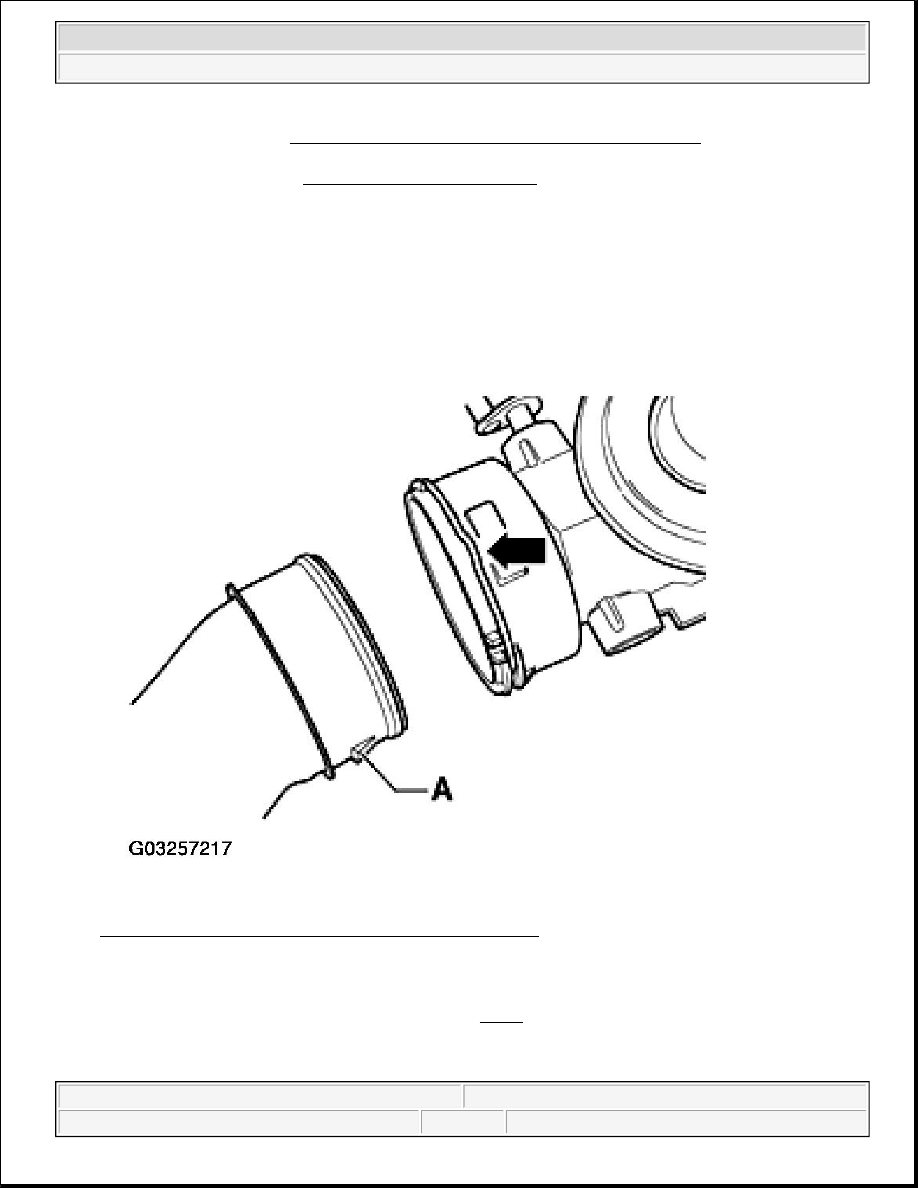

Unlock connection by pulling securing clamp (arrow).

Fig. 4: Unlocking Connection By Pulling Securing Clamp
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove hose/tube without assistance of tools.

z

When installing check for secure fit of tabs -A-. See Fig. 4 .

z

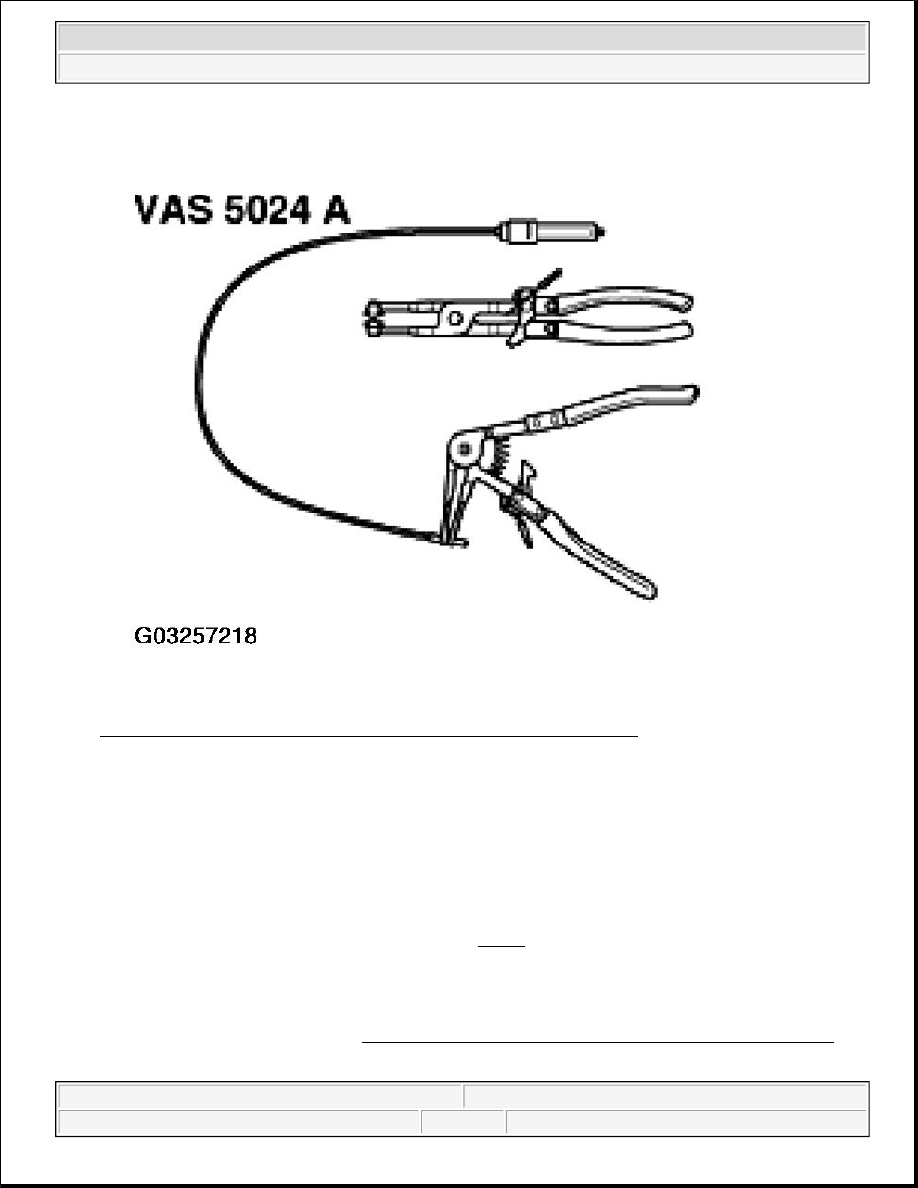

Use assembly tool VAS 5024 A to install spring-type clips.

NOTE:

All hoses of the charge air system are secured with hose clips or with quick
release couplings. When using quick release couplings the following points
must be observed:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Turbocharger, G-Charger - New Beetle, 1.9L 4-Cyl. - BEW



Fig. 5: Installing Spring-Type Clips Using VAS 5024 A Assembly Tool
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1. Air duct

2. Charge air cooler

z

Removing and installing, See CHARGE AIR COOLER, REMOVING AND INSTALLING

3. 5 N.m

NOTE:

z

Charge air hoses and lines connections must be free of oil and
grease before reinstalling.

z

Do not install hoses with lubricants, moisten hose only with water, if
necessary.

z

Charge air system must be free of leaks.

NOTE:

The following list refers to items in Fig. 6 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Turbocharger, G-Charger - New Beetle, 1.9L 4-Cyl. - BEW



4. Manifold Absolute Pressure (MAP) sensor -G71- with Intake Air Temperature (IAT) sensor -G72-

5. O-ring

z

Replace if damaged.

6. 10 N.m

7. Tube connection piece

8. Upper charge air pipe

9. Connecting hose

z

Upper charge air pipe/intake manifold flap

10. To intake manifold flap

11. From air cleaner

12. From crankcase ventilation/ cylinder head cover

13. Rear charge air line

z

With Positive Crankcase Ventilation (PCV) heating element -N79-

14. Connecting hose

z

Rear charge air pipe/exhaust turbocharger

15. Bracket

16. Connecting hose

z

Exhaust turbocharger/lower charge air line

17. Turbocharger

18. Lower charge air pipe
