Volkswagen New Beetle. Manual - part 1743

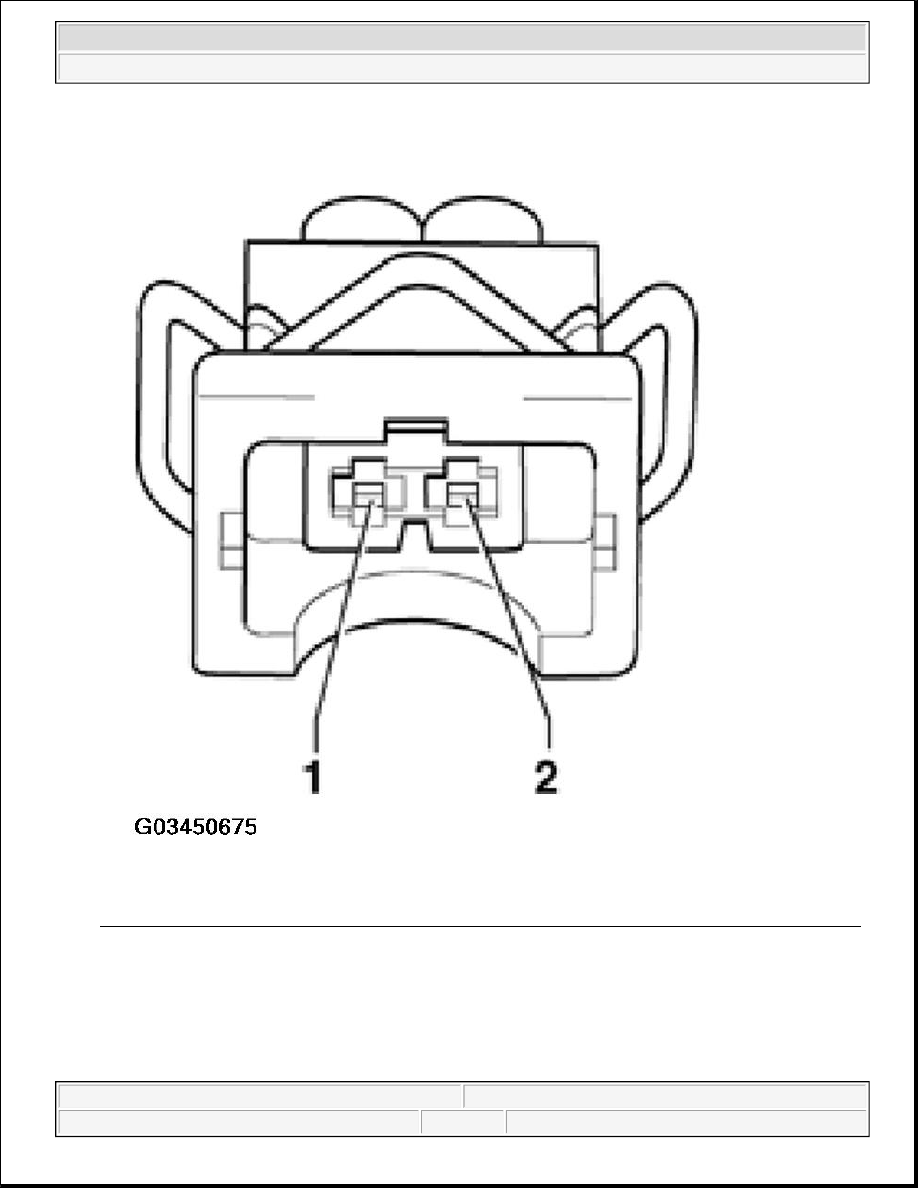

Fig. 9: Identifying Wastegate Bypass Regulator Valve Harness Connector Terminals (80-Pin ECM)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


Vehicles with 121-pin control module

z

Check for open circuits in wires between test box and connector according to wiring diagram.

Terminal 2 + socket 62



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Turbocharger, G-Charger - New Beetle



Wire resistance: max. 1.5 ohm

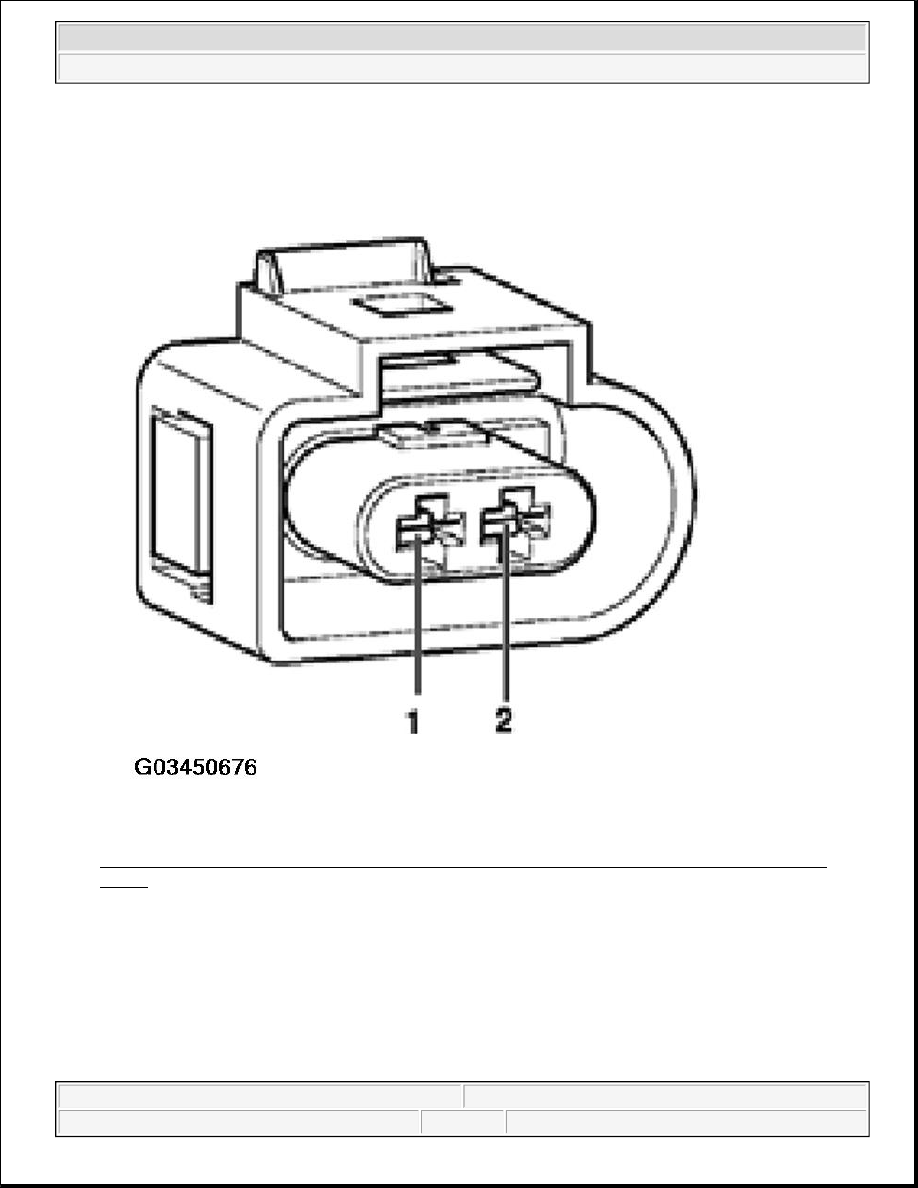

Fig. 10: Identifying Wastegate Bypass Regulator Valve Harness Connector Terminals (121-Pin
ECM)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check the wire to terminal 1 according to wiring diagram.

See appropriate System Wiring Diagram article.

Continuation for all vehicles

z

Also check wires for short circuit to each other, to vehicle Ground (GND) and to B+.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Turbocharger, G-Charger - New Beetle



Specified value: INFINITY ohm

If no malfunctions are found in wires:

z

Replace Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM) -J248-. See CONTROL
MODULE FOR DIESEL-DIRECT FUEL INJECTION SYSTEM, REPLACING .

z

Erase DTC memory of control module for Diesel-Direct fuel injection system. See DIAGNOSTIC
MODE 4: RESET/ERASE DIAGNOSTIC DATA
 .

z

Generate readiness code. See READINESS CODE, GENERATING



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Turbocharger, G-Charger - New Beetle



1998-2004 ENGINE

Turbocharger, G-Charger - New Beetle, 1.9L 4-Cyl. - BEW

CHARGE AIR SYSTEM WITH TURBOCHARGER

SAFETY PRECAUTIONS

Observe following if test and measuring instruments are required during a road test:

z

Test and measuring instruments must be secured to rear seat and operated by an assistant from this
location.

If test and measuring instruments are operated from front passenger's seat and the vehicle is involved in an
accident, there is a possibility that the person sitting in this seat may receive serious injuries when the airbag is
triggered.

RULES FOR CLEANLINESS

When working on exhaust gas turbocharger, pay careful attention to the following rules:

z

Thoroughly clean all unions and adjacent areas before disconnecting.

z

Place parts that have been removed on a clean surface and cover. Do not use fluffy cloths!

z

Carefully cover opened components or seal if repairs cannot be performed immediately.

z

Only install clean components:

Only unpack replacement parts immediately prior to installation. Do not use parts that have been stored
loose (e.g. in tool boxes etc.).

z

Only unpack and remove protective caps immediately prior to installation.

z

Clean oil from connection pieces and hose ends when repairing.

z

When the system is open:

Do not work with compressed air if this can be avoided. Do not move vehicle unless absolutely
necessary.

CAUTION: When performing repair work, especially due to the confined conditions in

the engine compartment, pay attention to the following:

z

Route all types of hoses/lines (e.g. for fuel, hydraulics, EVAP system,
coolant, refrigerant, brake fluid and vacuum) as well as electrical
wiring so that the original positions are restored.

z

Ensure sufficient clearance to all moving or hot components.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Turbocharger, G-Charger - New Beetle, 1.9L 4-Cyl. - BEW





2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Turbocharger, G-Charger - New Beetle, 1.9L 4-Cyl. - BEW
