TURBOCHARGER SYSTEM COMPONENTS, REMOVING AND INSTALLING

Observe safety precautions, See CHARGE AIR SYSTEM WITH TURBOCHARGER .

Observe rules for cleanliness, See RULES FOR CLEANLINESS .

z

Hoses are secured by clamps or retaining clips.

z

For installing the spring-type clips, assembly tool VAS 5024 A is recommended.

z

Charge air hoses and lines connections must be free of oil and grease before reinstalling.

z

Do not install hoses with lubricants, moisten hose only with water, if necessary.

z

Charge air system must be free of leaks.

z

Fill turbocharger with engine oil through oil connection before connecting the oil supply line

z

Allow the engine run for approx. 1 minute at idling speed after having installed the turbocharger and do
not do not rev up immediately. This ensures the lubrication of the turbocharger.

z

Replace self-locking nuts.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Turbocharger, G-Charger - New Beetle, 1.9L 4-Cyl. - BEW

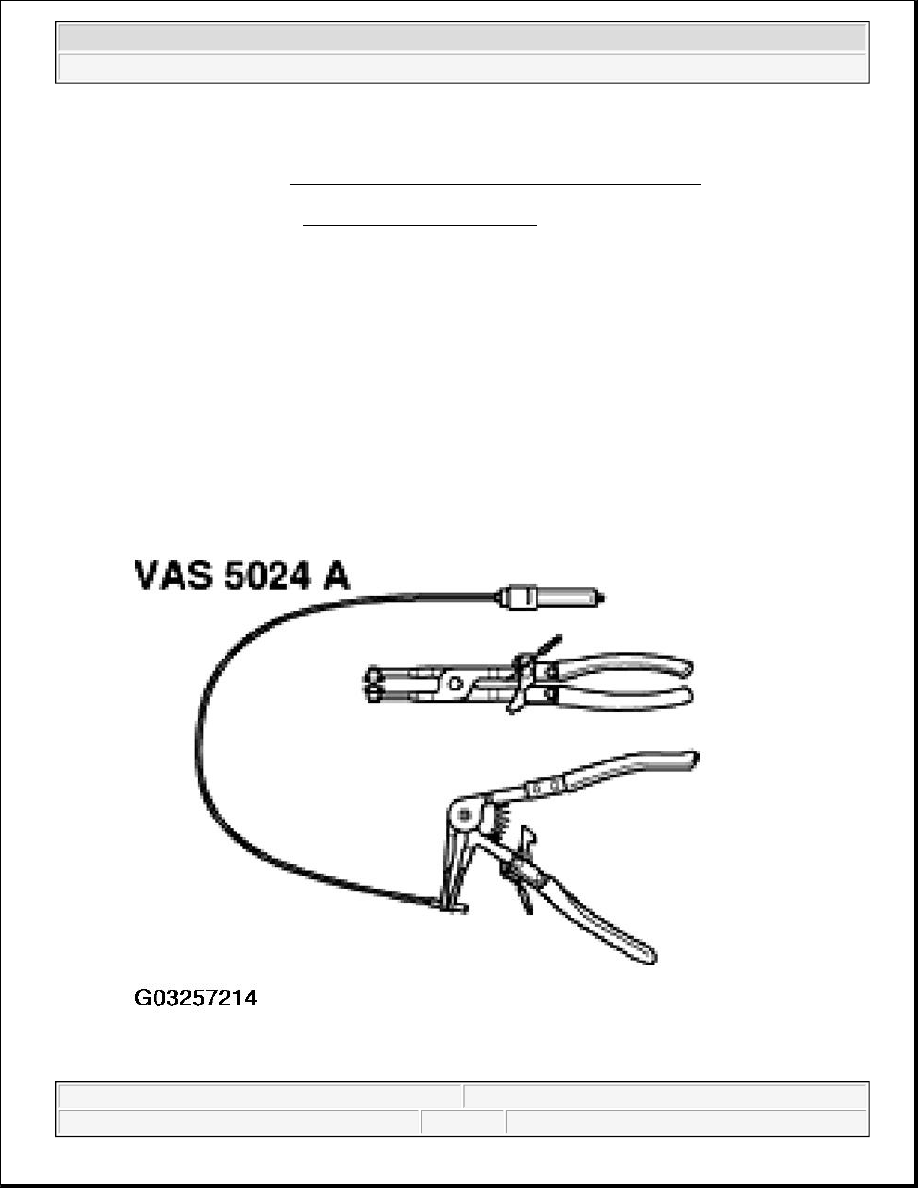

Fig. 1: Identifying VAS 5024 A Assembly Tool
Courtesy of VOLKSWAGEN OF AMERICA, INC.


Hoses with quick release coupling

z

Unlock quick release coupling by pulling securing clamp (arrow). Separate hose/tube without assistance
of tools.

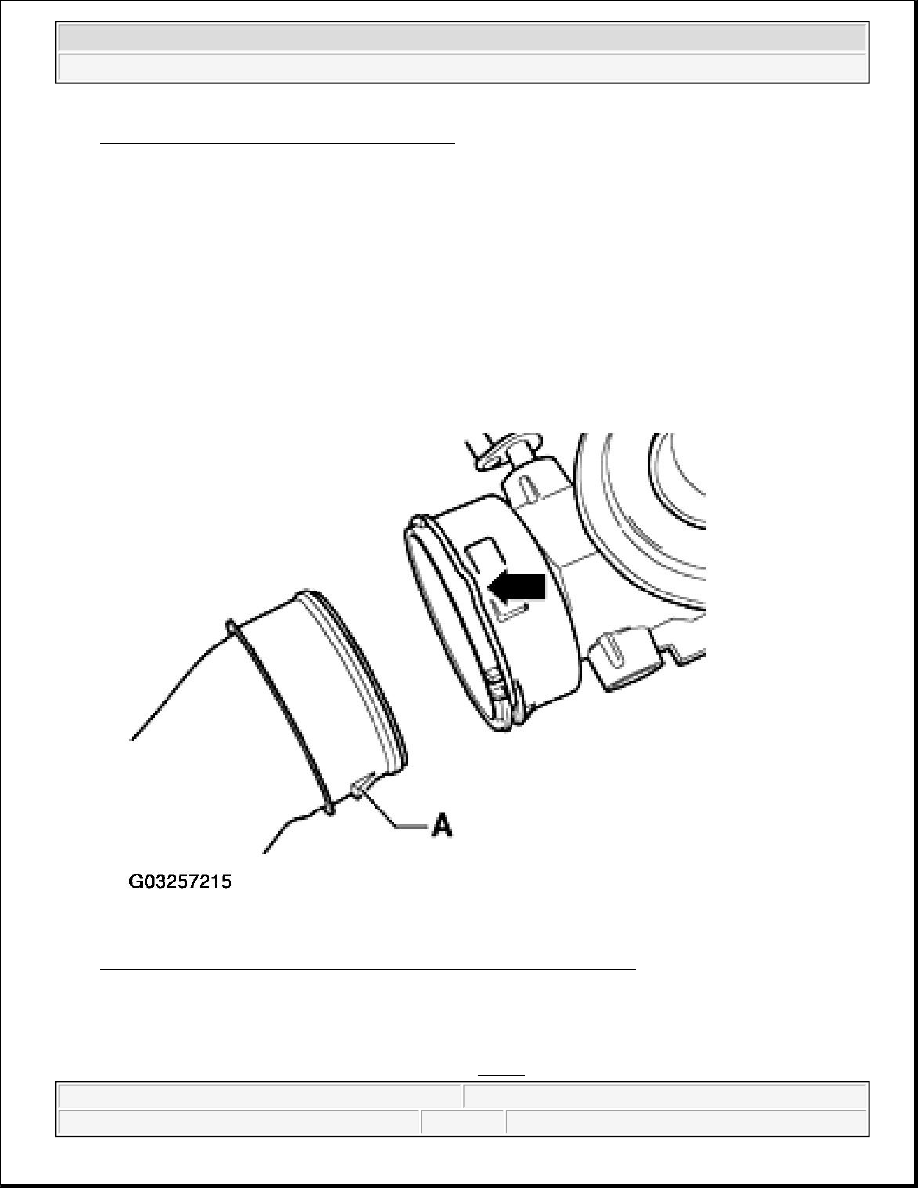

Fig. 2: Unlocking Quick Release Coupling By Pulling Securing Clamp
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

When installing check for secure fit of tabs -A-.

NOTE:

All hoses of the charge air system are secured with hose clips or with quick
release couplings. When using quick release couplings the following points
must be observed:

NOTE:

The following list refers to items in Fig. 3 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Turbocharger, G-Charger - New Beetle, 1.9L 4-Cyl. - BEW



1. Oil supply line

z

From oil filter bracket. See PART 2: DISASSEMBLING OIL FILTER BRACKET .

z

Fill with engine oil through oil connection before connecting oil supply line.

z

Removing and installing, See PART 3: REMOVING AND INSTALLING OIL RETURN
LINE
 .

2. Union nut

z

Prescribed torque, see PART 3: REMOVING AND INSTALLING OIL RETURN LINE .

3. 22 N.m

4. Pipe union, 30 N.m

z

Always replace

z

Oil threads and contact surfaces with G 052 112 A3.

z

Fill with engine oil through oil connection before connecting the oil supply line.

5. Bolt/screw

z

Prescribed torque, See PART 3: REMOVING AND INSTALLING OIL RETURN LINE .

6. Banjo bolt

z

Prescribed torque, See PART 3: REMOVING AND INSTALLING OIL RETURN LINE .

7. Seal

z

Always replace

8. Intake manifold

9. Seal

z

Always replace

z

Note installed position.

10. Washer

11. 25 N.m

z

Always replace

12. Bracket

z

Between turbocharger and cylinder block

13. 40 N.m

z

Hand-tighten all bolts first

14. Connecting line

z

Air filter/turbocharger

15. Transition piece

16. Turbocharger

z

Only replace as assembly

z

Removing: remove right axle shaft at transmission:

See FRONT AXLE SHAFT .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Turbocharger, G-Charger - New Beetle, 1.9L 4-Cyl. - BEW



z

Allow engine to run for approx.1 minute at idling speed after installing turbocharger; to ensure oil
supply is guaranteed, do not rev up immediately

17. Seal

z

Always replace

18. Pipe union, 40 N.m

19. Oil return line

z

To cylinder block

20. 17 N.m

21. Connector

z

For Turbocharger (TC) Vane Position Sensor -G500-

22. Vacuum hose

z

to Wastegate Bypass Regulator Valve -N75-

z

Vacuum hoses for connection diagram, See VACUUM HOSE CONNECTION DIAGRAM .

23. 20 N.m

z

Hand-tighten all bolts first

24. 20 N.m

z

Always replace

25. Heat shield

26. Front exhaust pipe

27. Bracket

z

For oil return line item 1

28. 22 N.m

z

Always replace

29. Connecting line

z

To bypass flap for exhaust gas recirculation, see EXHAUST GAS RECIRCULATION SYSTEM
COMPONENTS, REMOVING AND INSTALLING
 .

30. Connecting line

z

From bypass flap for exhaust gas recirculation, see EXHAUST GAS RECIRCULATION
SYSTEM COMPONENTS, REMOVING AND INSTALLING



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Turbocharger, G-Charger - New Beetle, 1.9L 4-Cyl. - BEW
