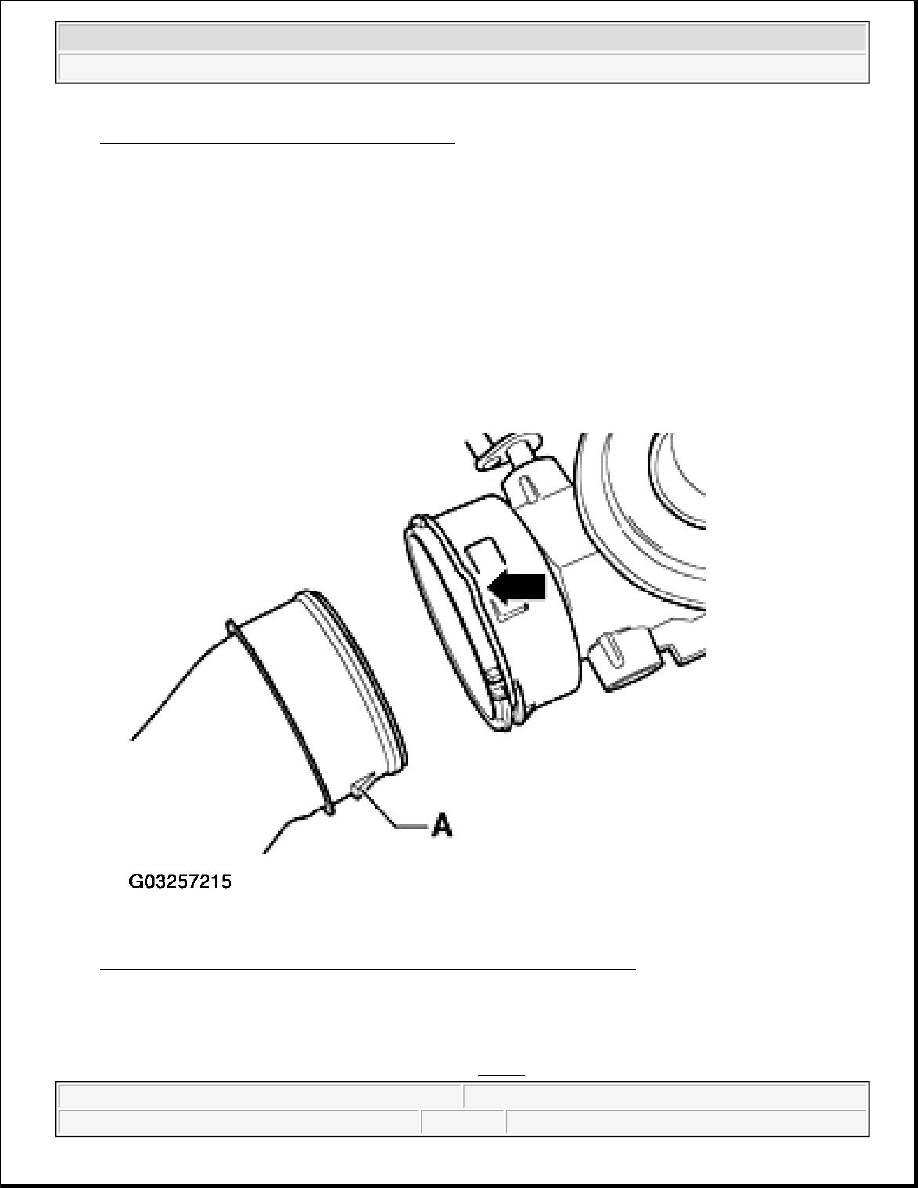

Fig. 1: Identifying VAS 5024 A Assembly Tool Hoses with quick release coupling z Unlock quick release coupling by pulling securing clamp (arrow). Separate hose/tube without assistance Fig. 2: Unlocking Quick Release Coupling By Pulling Securing Clamp z When installing check for secure fit of tabs -A-. NOTE: All hoses of the charge air system are secured with hose clips or with quick NOTE: The following list refers to items in Fig. 3 .
2003 Volkswagen New Beetle GLS 1998-2004 ENGINE Turbocharger, G-Charger - New Beetle, 1.9L 4-Cyl. - BEW
|
