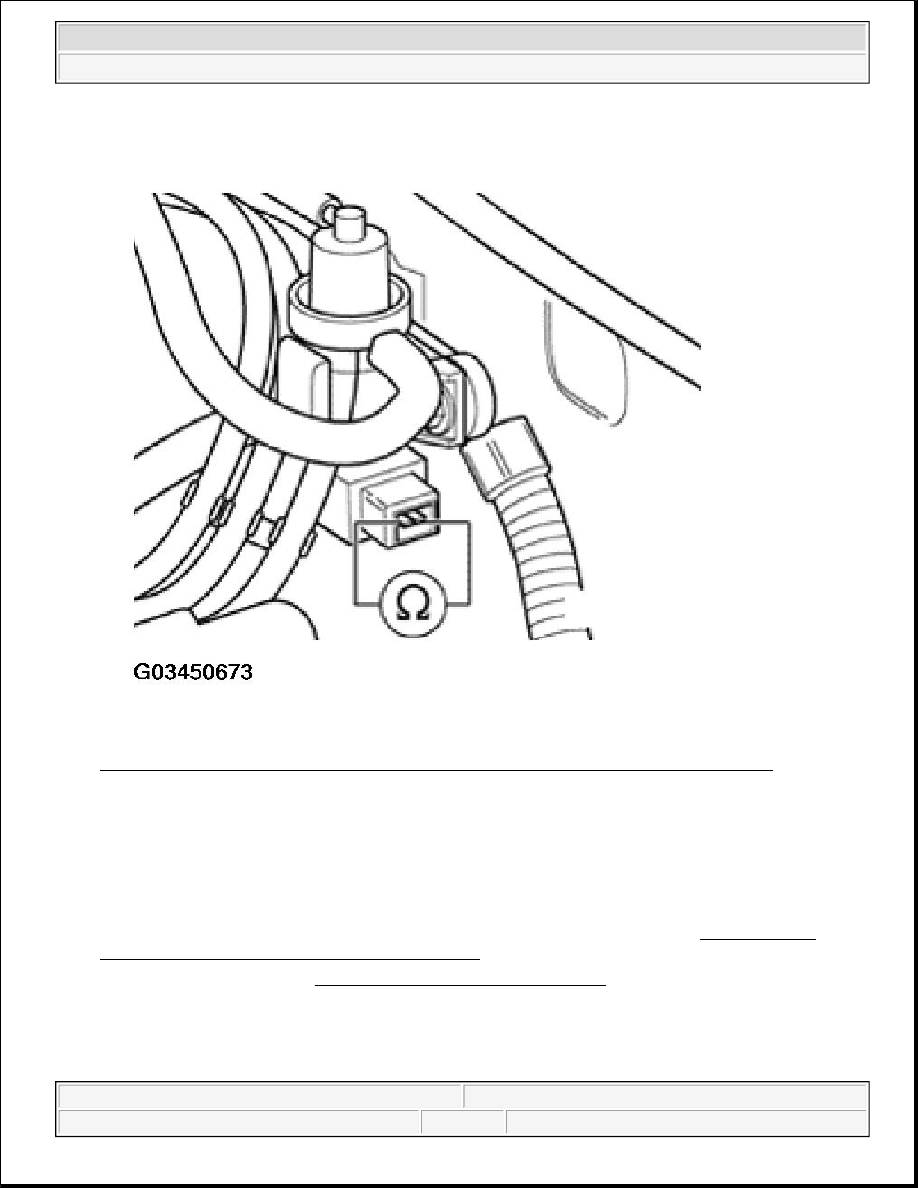

Fig. 7: Measuring Resistance Between Terminals Of Wastegate Bypass Regulator Valve
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Specified value: 14...20 ohm

If specified value is not obtained:

z

Replace Wastegate Bypass Regulator Valve -N75-.

z

Erase DTC memory of control module for Diesel-Direct fuel injection system. See DIAGNOSTIC
MODE 4: RESET/ERASE DIAGNOSTIC DATA
 .

z

Generate readiness code. See READINESS CODE, GENERATING .

If specified value is obtained:

z

Switch ignition on.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Turbocharger, G-Charger - New Beetle



z

Measure voltage supply of valve at connector terminal 1 and at engine Ground (GND).

Specified value: approx. battery voltage

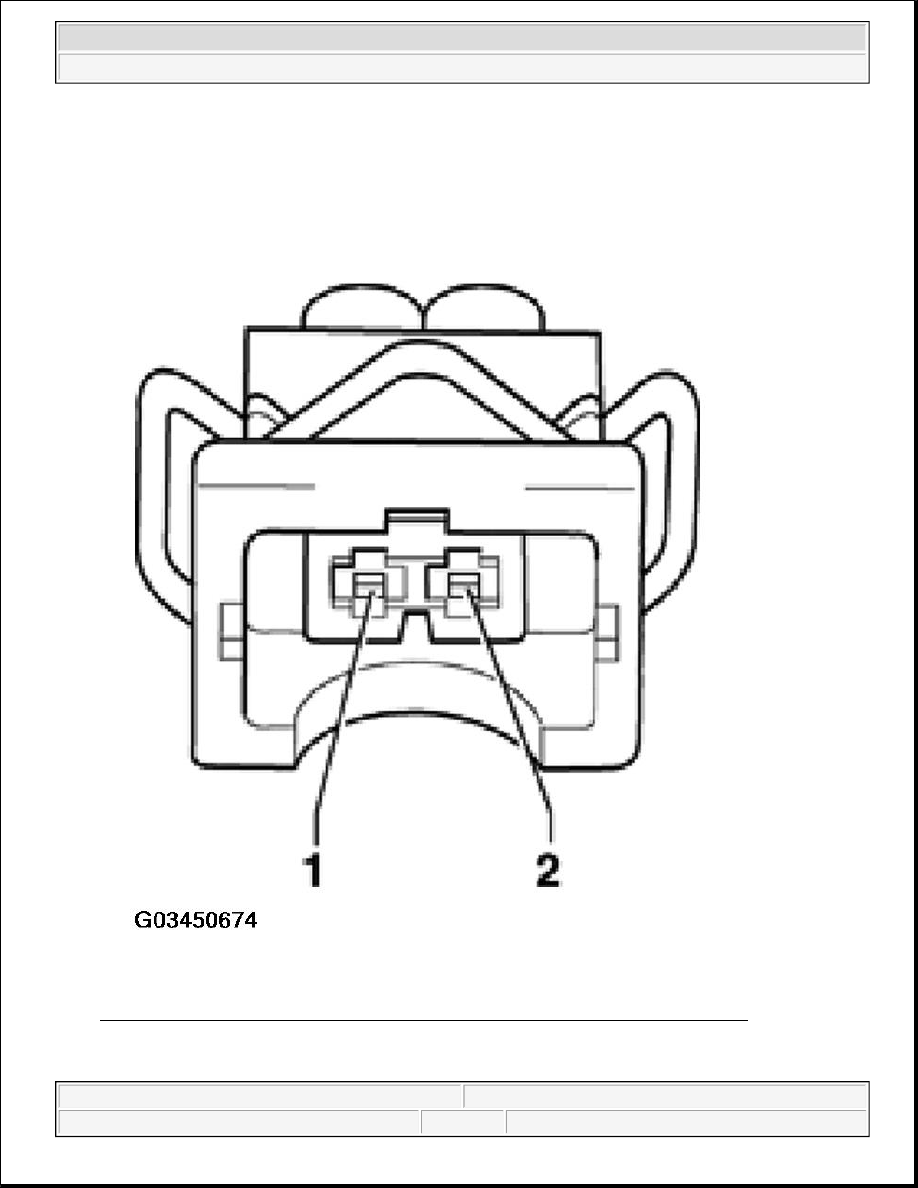

Fig. 8: Identifying Wastegate Bypass Regulator Valve Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch ignition off.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Turbocharger, G-Charger - New Beetle



If specified value is not obtained:

z

Connect test box to control module wiring harness. See TEST BOX, CONNECTING FOR WIRING
TEST
 .

Vehicles with 80-pin control module

z

Check for open circuits in wires between test box and connector according to wiring diagram.

Terminal 1 + socket 2 and 28

Terminal 2 + socket 15

Wire resistance: max. 1.5 ohm



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Turbocharger, G-Charger - New Beetle

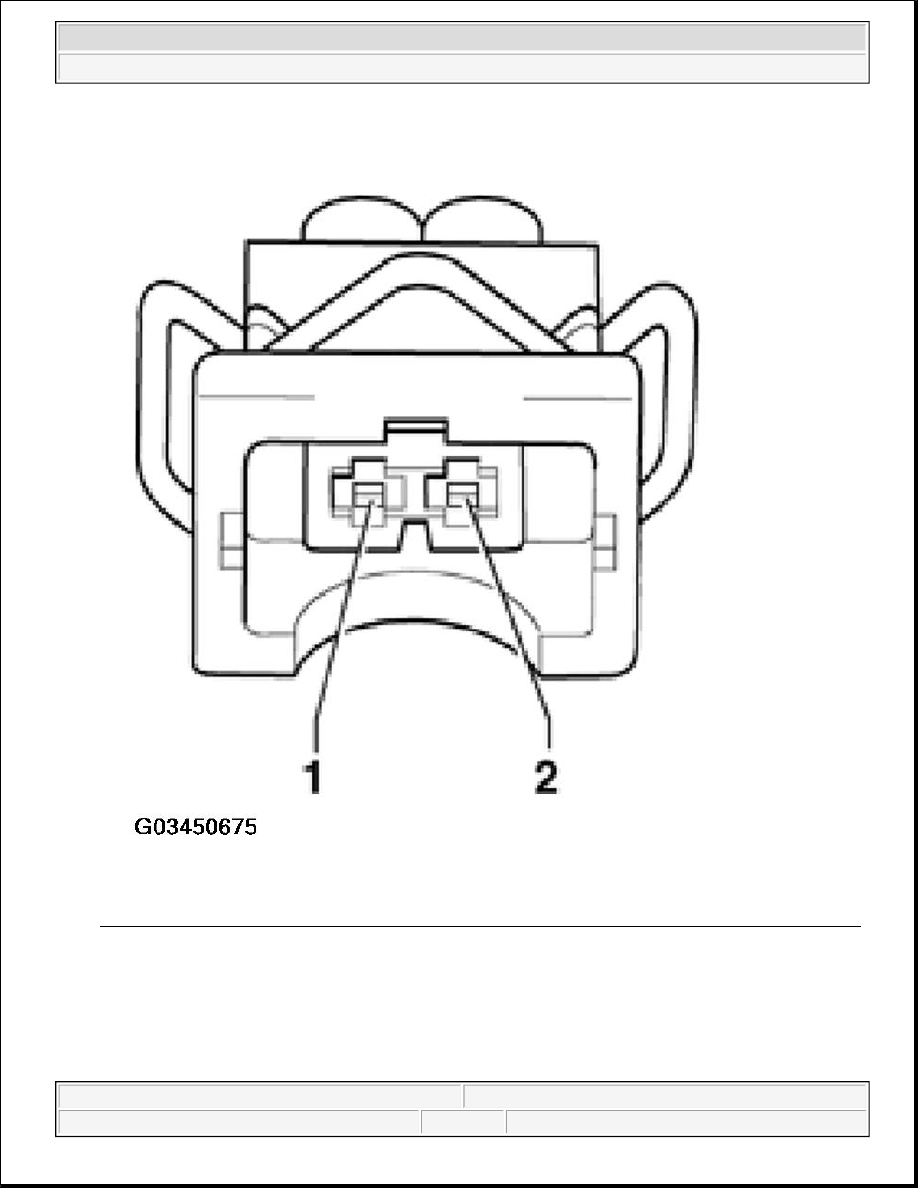

Fig. 9: Identifying Wastegate Bypass Regulator Valve Harness Connector Terminals (80-Pin ECM)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


Vehicles with 121-pin control module

z

Check for open circuits in wires between test box and connector according to wiring diagram.

Terminal 2 + socket 62



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Turbocharger, G-Charger - New Beetle
