Volkswagen New Beetle. Manual - part 1709

MODULE (ECM) - J220-, REPLACING .

Driving range signal, checking

Vehicles with automatic transmission only

Motronic Engine Control Module (ECM) -J220- receives the following information from transmission control
module:

z

Driving range selected (selector lever in 1/2/3/R/D) or

z

No driving range selected (selector lever in P or N)

Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool (or VAG 1552 mobile scan tool) with VAG 1551/3B cable

z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1594 adapter set

z

Electrical Wiring Diagram

Test conditions

z

Selector lever of the automatic transmission must be in "P" or "N" position

z

Air conditioning must be turned off

z

All electrical accessories, e.g. lights and rear window defroster must be switched off

Test sequence

z

Connect VAG 1551 scan tool (or VAG 1552). Switch ignition on and select Motronic Engine Control
Module (ECM) -J220- with "Address word" 01. Connecting scan tool and selecting Motronic Engine
Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND SELECTING MOTRONIC
ENGINE CONTROL MODULE (ECM) -J220- .

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

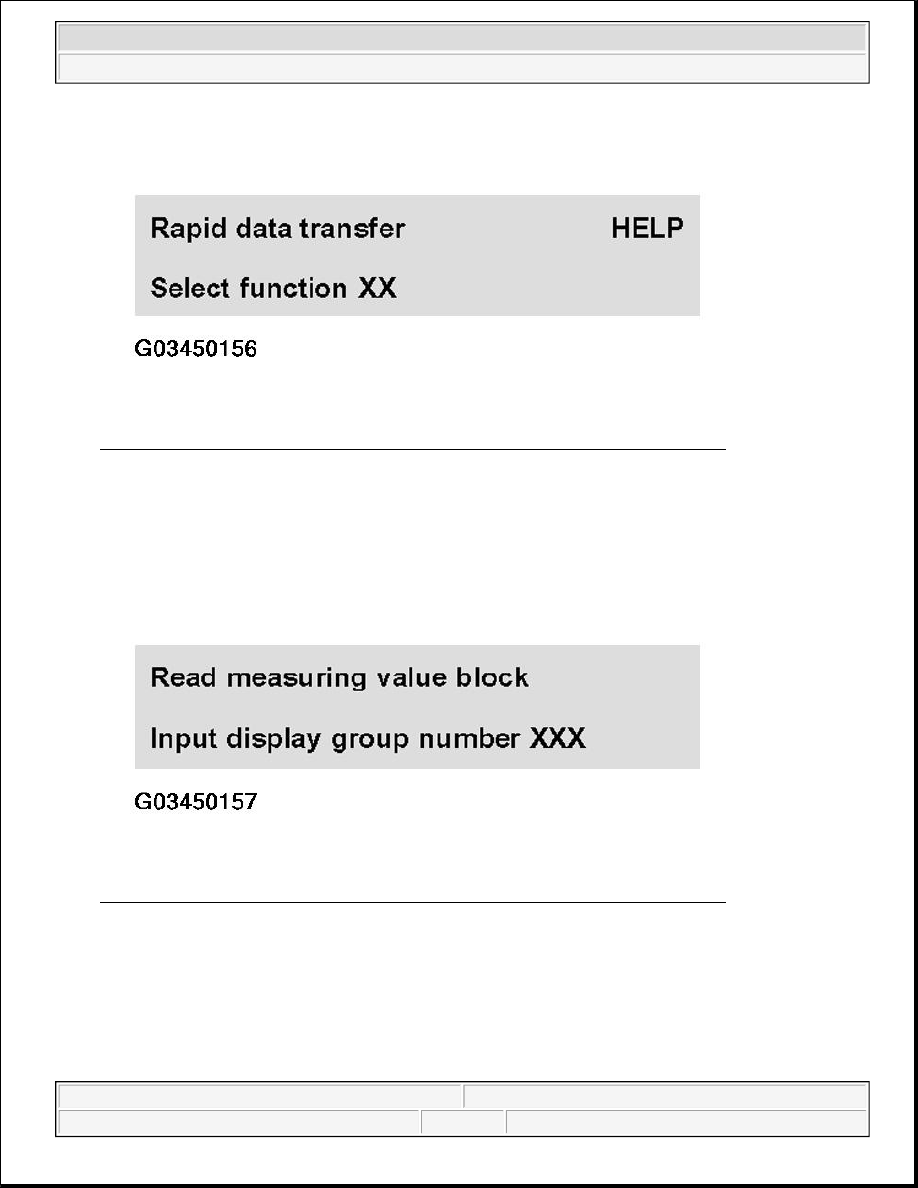

Fig. 181: Identifying Scan Tool Display - Driving Range Signal, Checking (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- for function "Read measuring value block" and confirm entry with -Q- button.

Indicated on display

Fig. 182: Identifying Scan Tool Display - Driving Range Signal, Checking (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -5- and -1- for "Display group number 51" and confirm entry with -Q- button.

Indicated on display (1 to 4 - Display zones)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



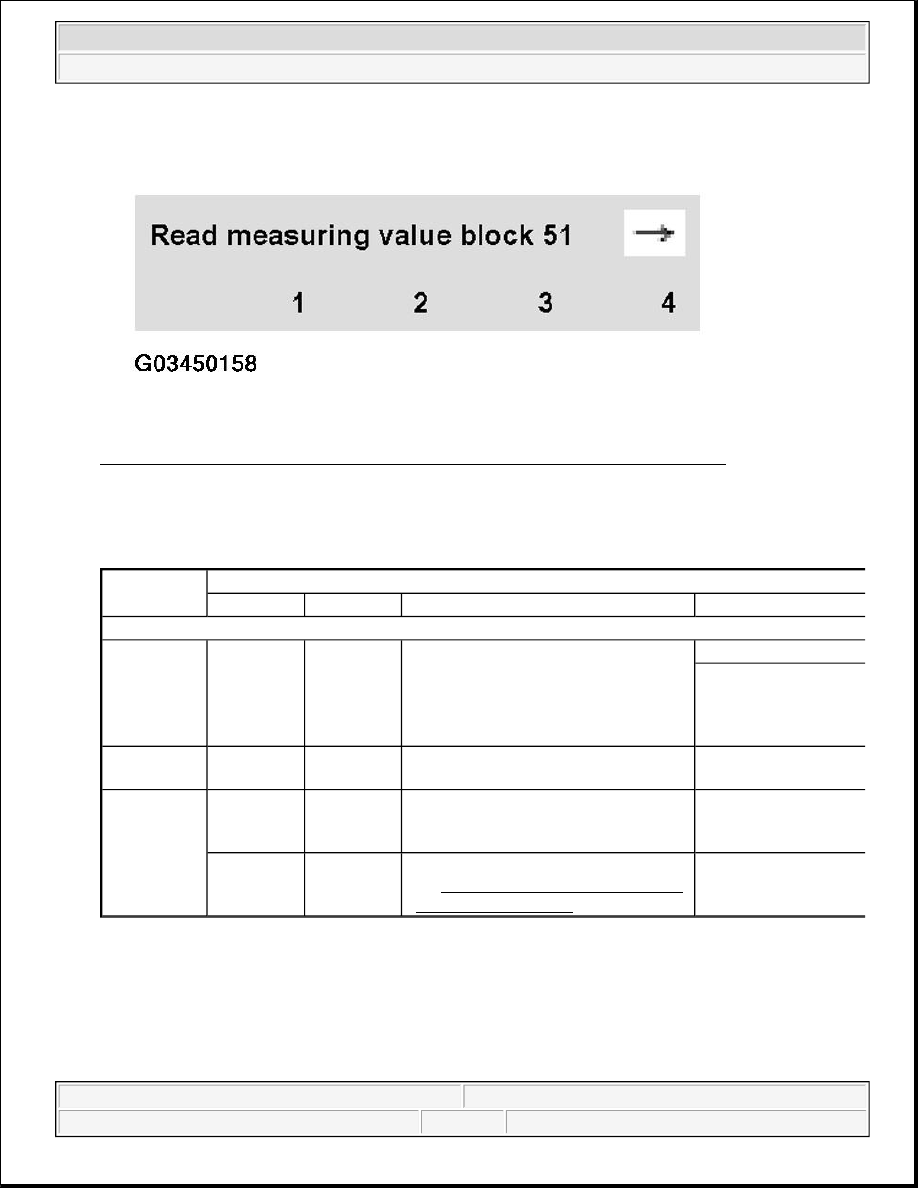

Fig. 183: Identifying Scan Tool Display - Driving Range Signal, Checking (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check specifications in display zone 3:

DISPLAY GROUP 51: DRIVING RANGE SIGNAL

If the specifications are obtained:

z

Press --> button.

z

Press buttons -0- and -6- for "End output" function and confirm input with -Q- button.

z

Switch off ignition.



Display zones

1

2

3

4

Display group 51: Driving range signal
Display
Indicated

xxxx RPM

Engine

Speed (in

steps of 10)

xxxx RPM

Engine

speed (in

steps of 10)

x

Driving range signal

xx.xxx V

Motronic Engine

Control Module

(ECM) -J220- supply

voltage

Working
range

0 to 6800

RPM

-

-

0.000 to 16.500 V

Specification

0 RPM

840 RPM

Selector lever in position P or N: 0

Selector lever in position 1/2/3 or D: 1

Selector lever in position R: 7

12.000 to 15.000 V

-

-

If the specifications are not achieved,
see CRUISE CONTROL SYSTEM

(CCS), CHECKING , Continuation

-



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Continuation

If the specifications are not obtained:

z

Press --> button.

z

Press buttons -0- and -6- for "End output" function and confirm input with -Q- button.

z

Switch off ignition.

z

Check CAN-bus, see CAN-BUS, CHECKING .

Cruise Control System (CCS), checking

Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1594 adapter set

z

Electrical Wiring Diagram

Test conditions

z

All fuses must be OK



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
