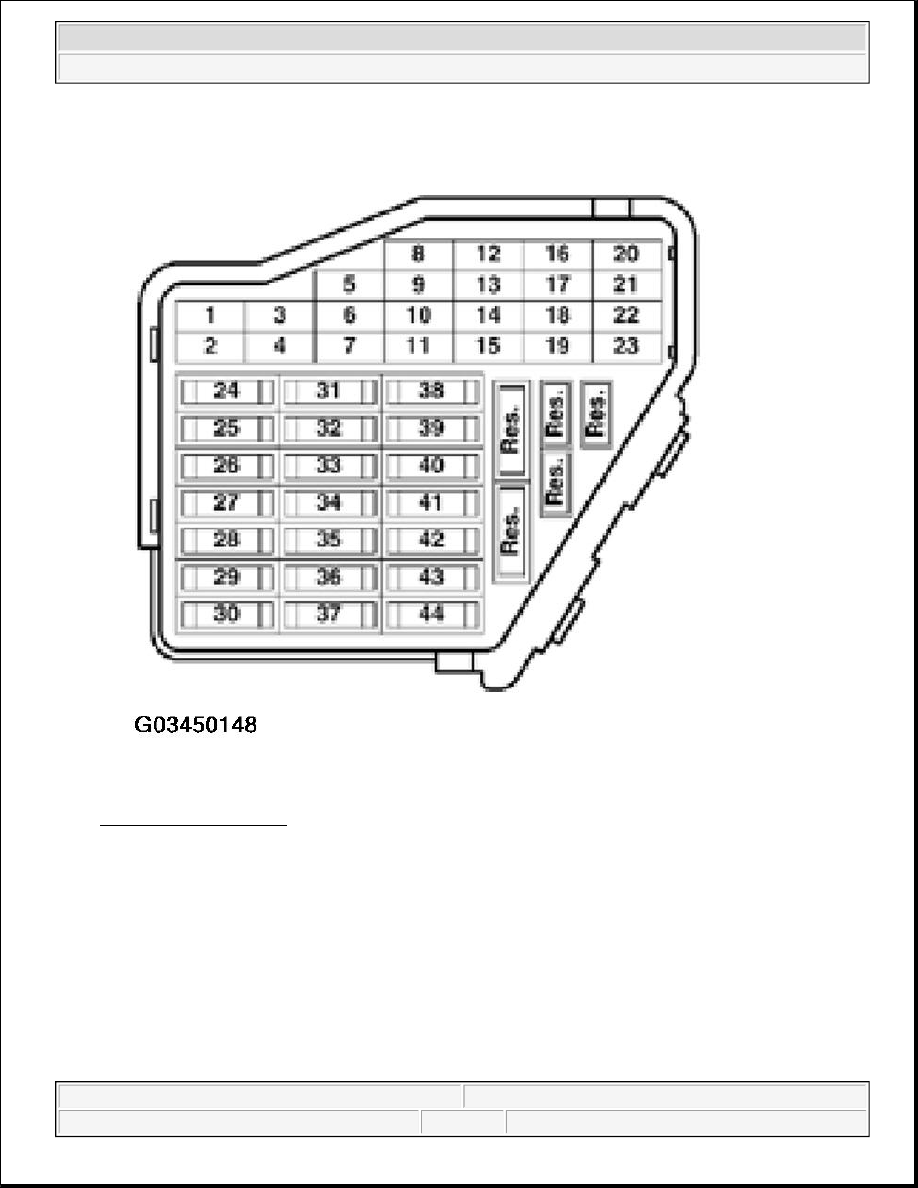

Fig. 173: Locating Fuses
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Battery voltage must be at least 11.5 V

z

Brake lights functioning OK

z

All electrical accessories, e.g. lights and rear window defroster must be switched off

z

Selector lever must be in position "P" or "N" on vehicles with an automatic transmission

Test sequence

z

Connect VAG 1551 scan tool ((VAG 1552). Switch ignition on and select Motronic Engine Control
Module (ECM) -J220- with "Address word" 01. Connecting scan tool and selecting Motronic Engine
Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND SELECTING MOTRONIC



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



ENGINE CONTROL MODULE (ECM) -J220-

Indicated on display

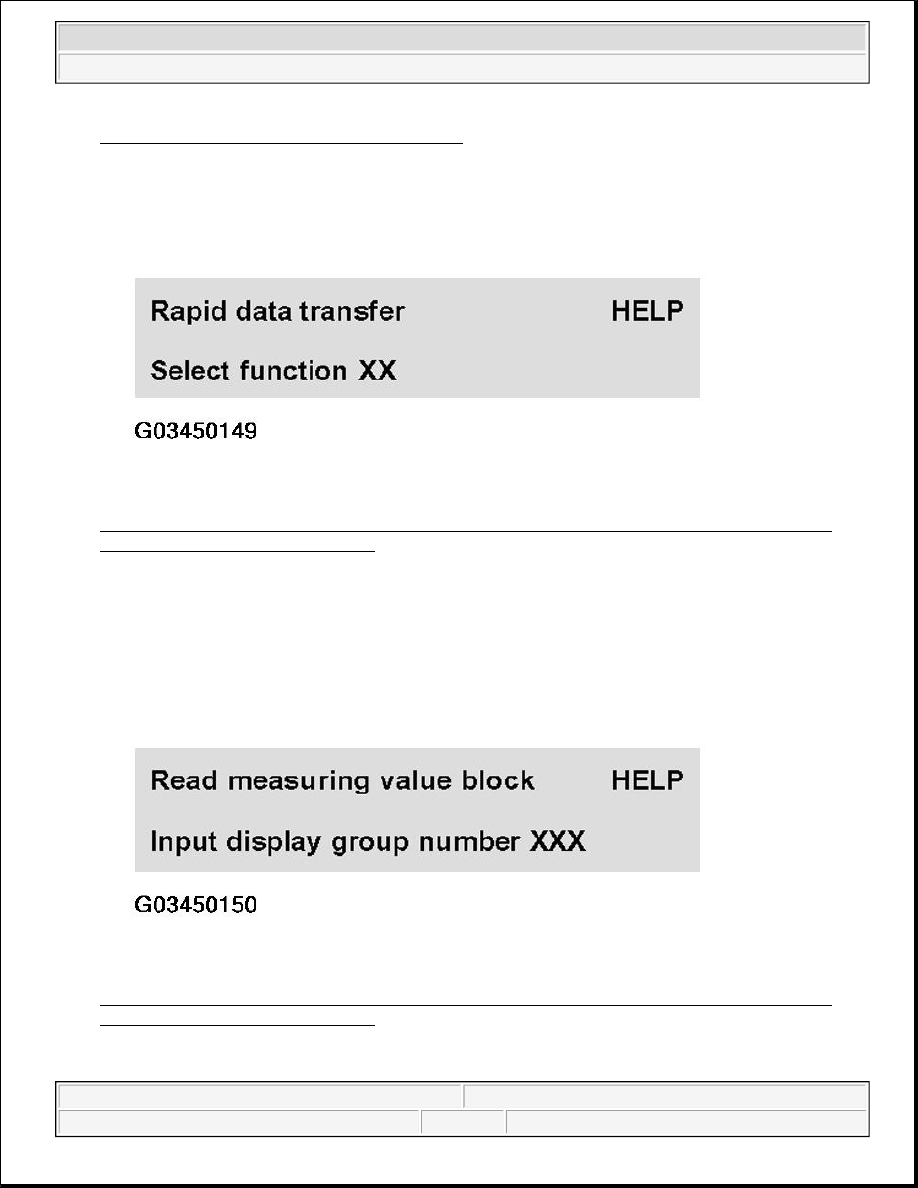

Fig. 174: Identifying Scan Tool Display - Checking Signal From Brake Light Switch And Brake
Vacuum Vent Valve Switch (1 Of 3)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- for function "Read measuring value block" and confirm entry with -Q- button.

Indicated on display

Fig. 175: Identifying Scan Tool Display - Checking Signal From Brake Light Switch And Brake
Vacuum Vent Valve Switch (2 Of 3)

Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Press buttons -0-, -6- and -6- for "display group 66" and confirm with -Q- button.

Indicated on display (1 to 4 - Display zones)

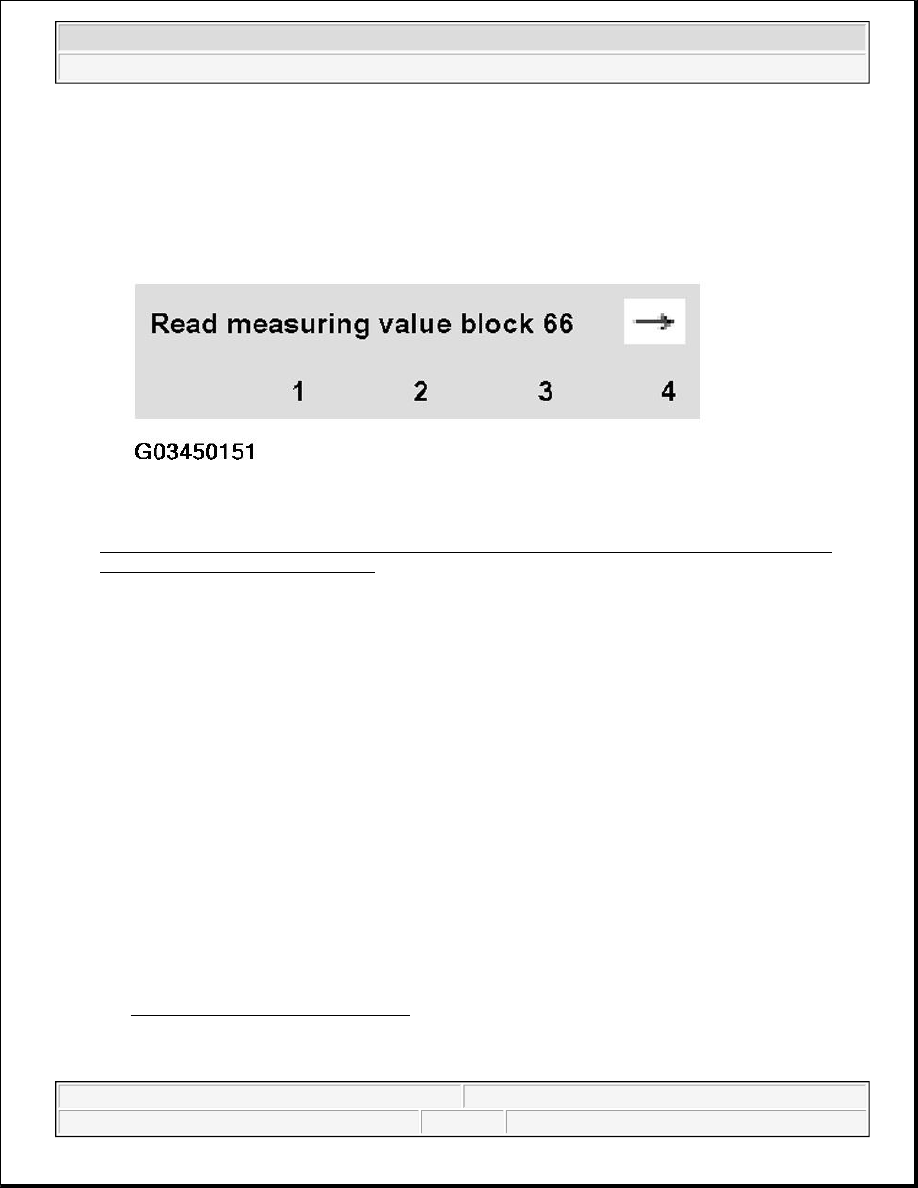

Fig. 176: Identifying Scan Tool Display - Checking Signal From Brake Light Switch And Brake
Vacuum Vent Valve Switch (3 Of 3)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Observe display in display zone 2: (1st and 2nd positions from right)

Brake pedal not depressed:

Specification: x x x x x x 0 0

z

Depress brake pedal fully and observe display in display zone 2.

Specification: x x x x x x 1 1

z

Press --> button.

z

Press buttons -0- and -6- for "End output" function and confirm input with -Q- button.

z

Switch off ignition.

If the display does not change:

z

Remove driver's side footwell cover:

See STORAGE, COVERS AND TRIMS

z

Disconnect 4-pin connector from Brake Light Switch -F- and Brake Vacuum Vent Valve Switch -F47-.

z

Measure resistance between terminals 1 + 4 of switch.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Specification:

z

Brake pedal not depressed: (no continuity)

z

Brake pedal depressed: Max. 1.5

z

Measure resistance between terminals 2 + 3 of the switch.

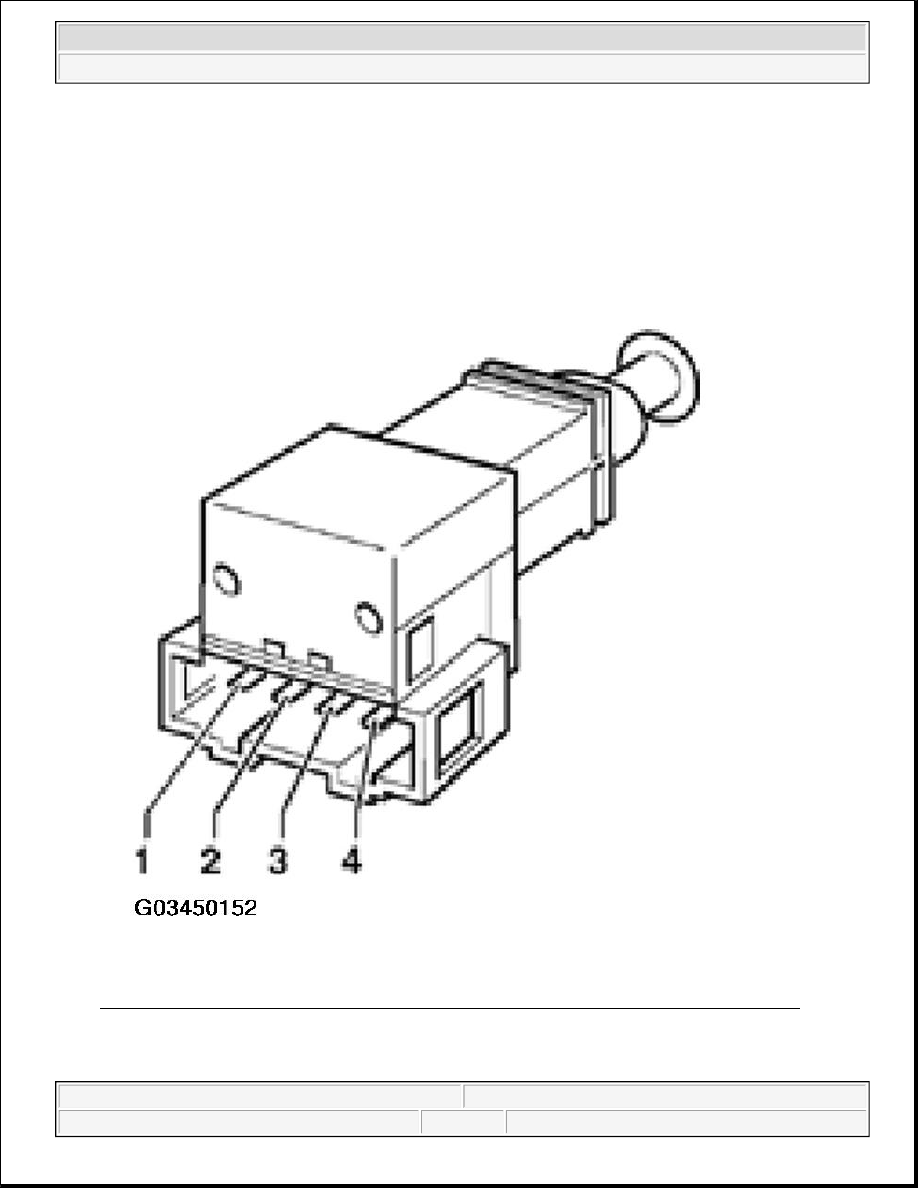

Fig. 177: Identifying Brake Light Switch And Brake Vacuum Vent Valve Switch Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Specification: 0 ohm



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
