Volkswagen New Beetle. Manual - part 1705





z

Battery voltage must be at least 11.5 V

z

All electrical accessories, e.g. lights and rear window defroster must be switched off

Test sequence

z

Connect VAG 1551 scan tool ((VAG 1552). Switch ignition on and select Motronic Engine Control
Module (ECM) -J220- with "Address word" 01. Connecting scan tool and selecting Motronic Engine
Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND SELECTING MOTRONIC
ENGINE CONTROL MODULE (ECM) -J220-
 .

Indicated on display

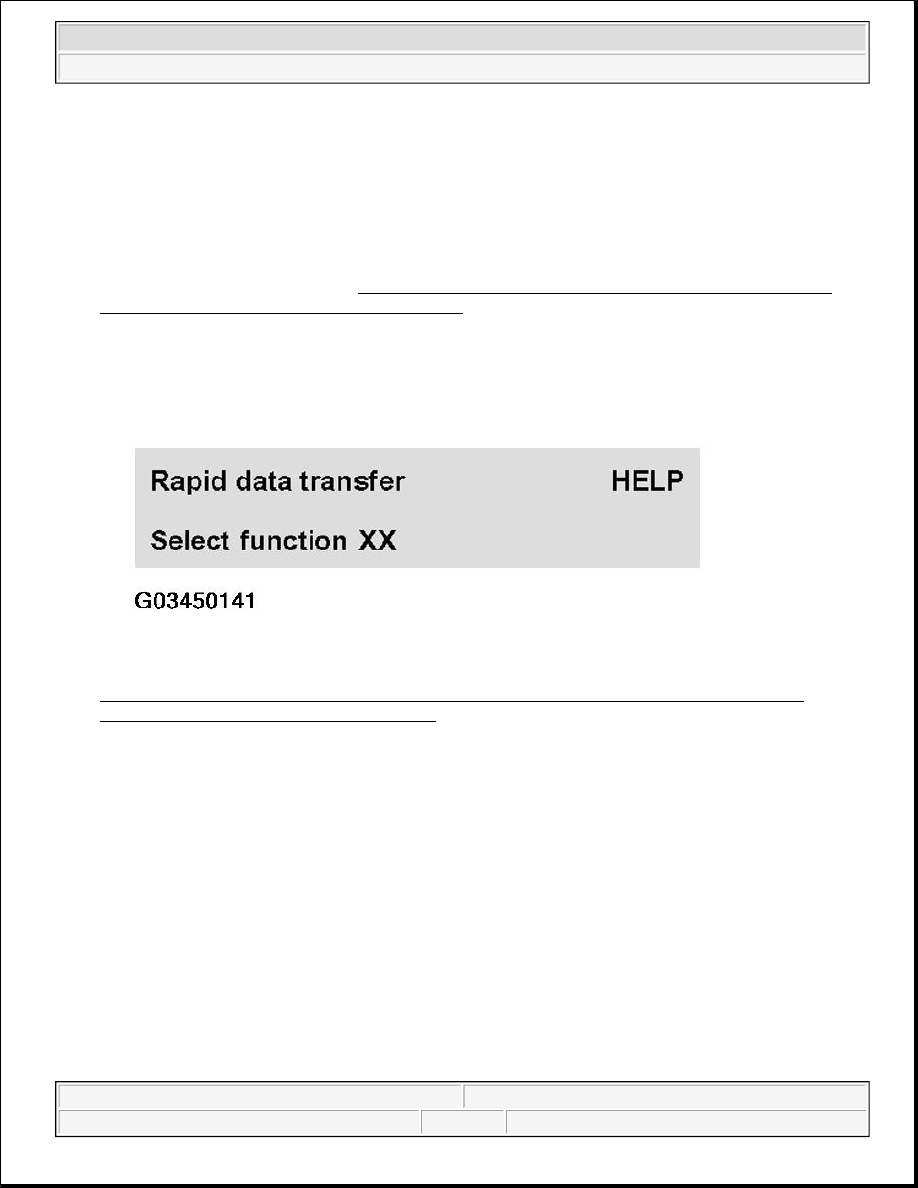

Fig. 166: Identifying Scan Tool Display - Checking Signal From Clutch Vacuum Vent Valve
Switch, Vehicles Through MY 2000 (1 Of 3)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- for function "Read measuring value block" and confirm entry with -Q- button.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



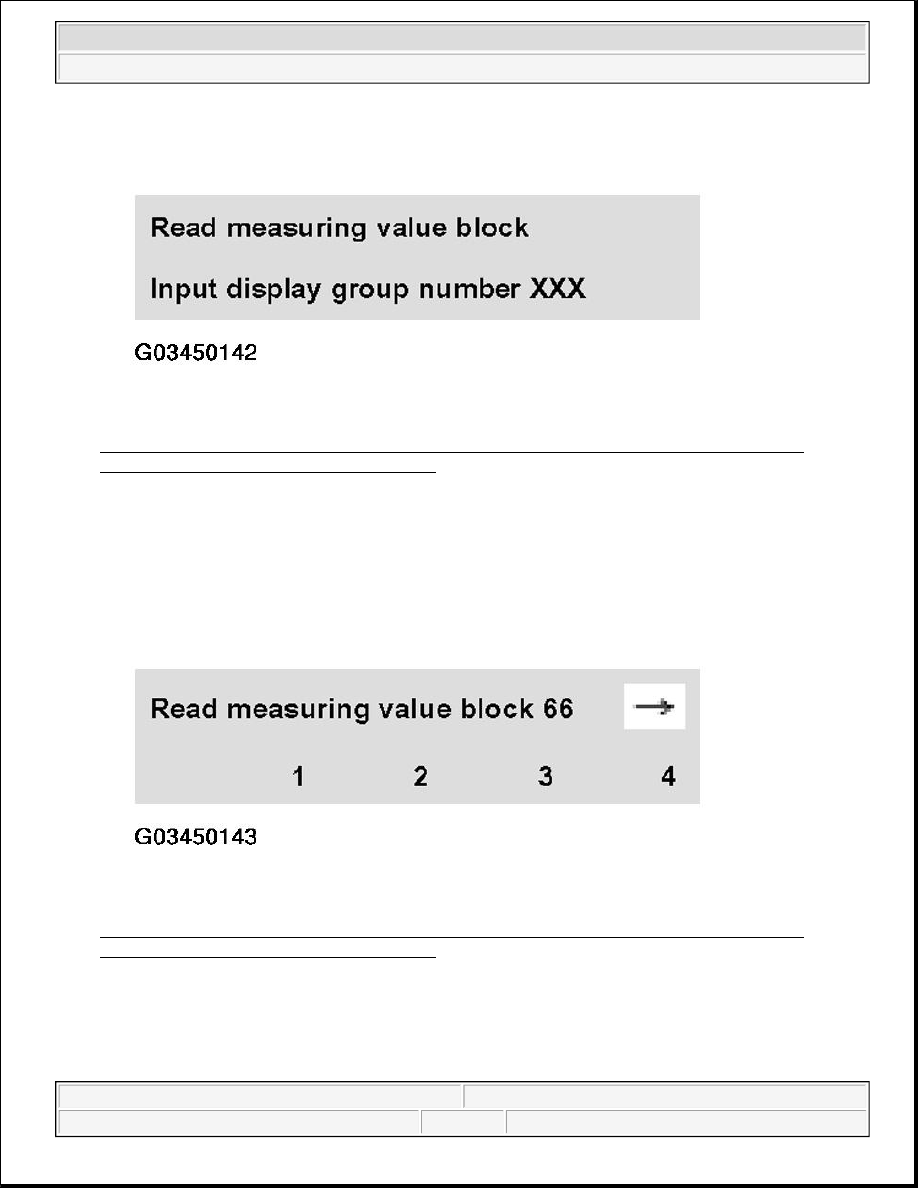

Fig. 167: Identifying Scan Tool Display - Checking Signal From Clutch Vacuum Vent Valve
Switch, Vehicles Through MY 2000 (2 Of 3)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -6- and -6- for "display group 66" and confirm with -Q- button.

Indicated on display (1 to 4 - Display zones)

Fig. 168: Identifying Scan Tool Display - Checking Signal From Clutch Vacuum Vent Valve
Switch, Vehicles Through MY 2000 (3 Of 3)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Observe values displayed in display zone 2 (2nd digit from left).

Clutch pedal not depressed.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Specification: x 0 x x

z

Depress clutch pedal fully and observe display in display zone 2.

Specification: x 1 x x

z

Press --> button.

z

Press buttons -0- and -6- for "End output" function and confirm input with -Q- button.

z

Switch off ignition.

If the display does not change:

z

Remove driver's side footwell cover.

See STORAGE, COVERS AND TRIMS

z

Disconnect 2-pin connector from Clutch Vacuum Vent Valve Switch -F36-.

z

Measure resistance between switch terminals 1 and 2.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



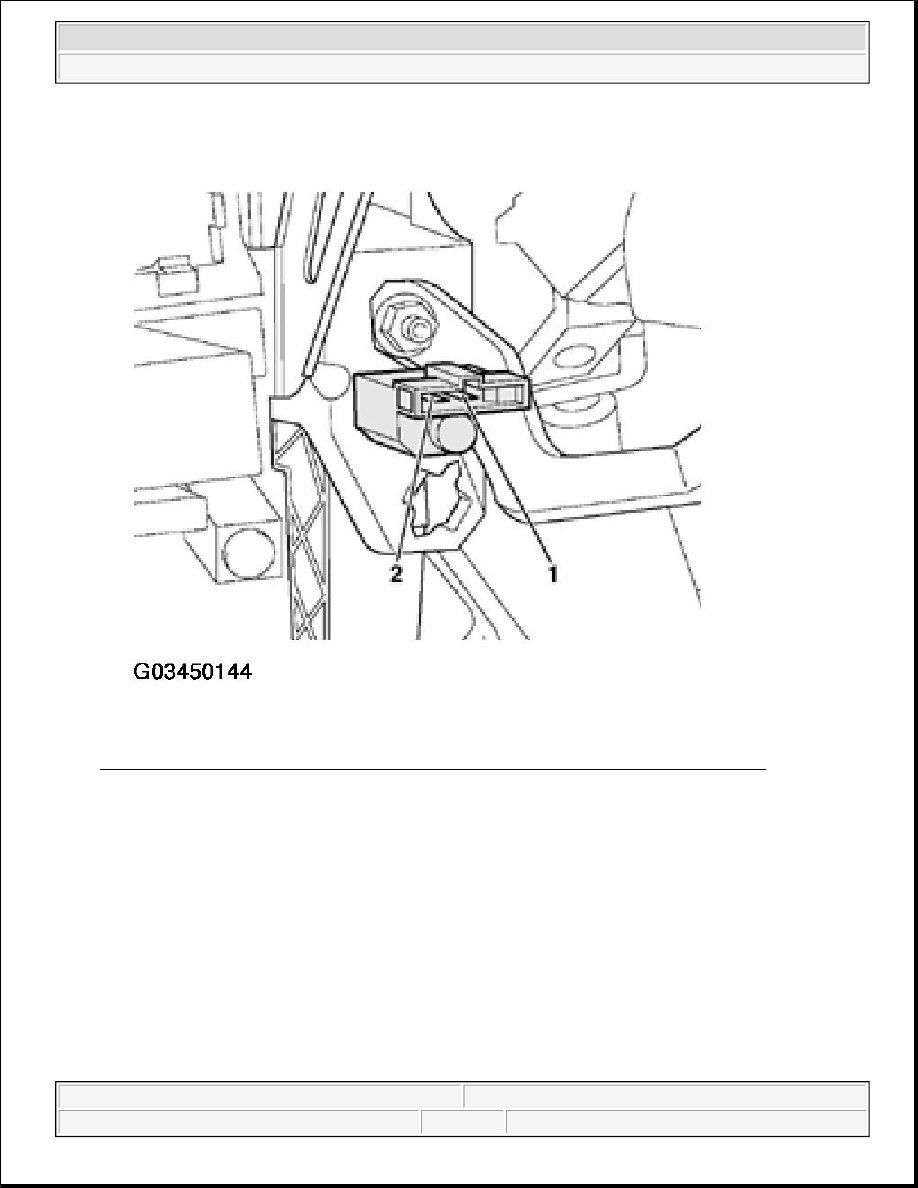

Fig. 169: Measuring Resistance Between Clutch Vacuum Vent Valve Switch Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Specification:

z

Clutch not depressed: max. 1.5

z

Clutch depressed: (no continuity)

If the specifications are not obtained:

z

Replace Clutch Vacuum Vent Valve Switch -F36-.

NOTE:

Observe installation position of Clutch Vacuum Vent Valve Switch - F36- in
bearing bracket upper assembly hole.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
