Volkswagen New Beetle. Manual - part 1710

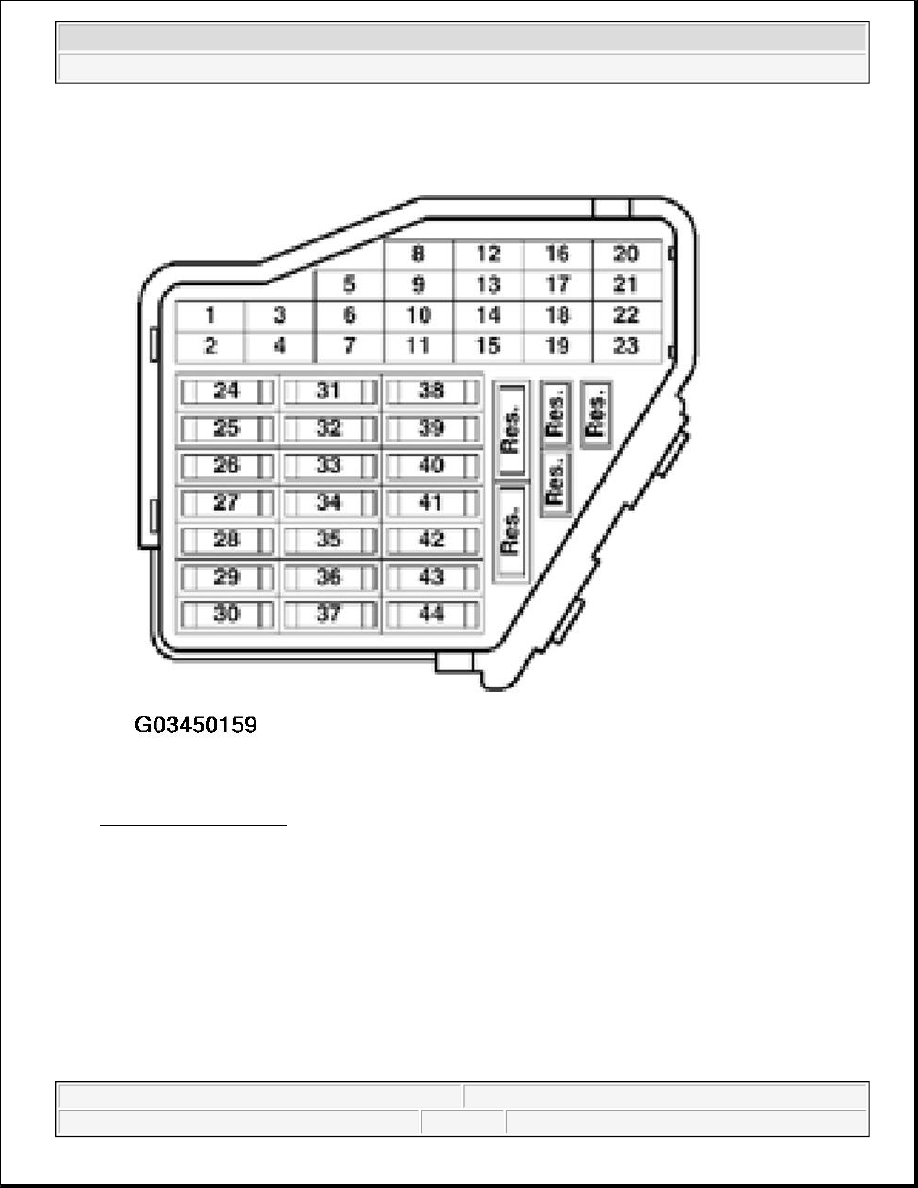

Fig. 184: Locating Fuses
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Battery voltage must be at least 11.5 V

z

All electrical accessories, e.g. lights and rear window defroster must be switched off

z

Air conditioning must be turned off

z

Selector lever of the automatic transmission must be in "P" or "N" position

Test sequence

z

Connect VAG 1551 scan tool ((VAG 1552). Switch ignition on and select Motronic Engine Control
Module (ECM) -J220- with "Address word" 01. Connecting scan tool and selecting Motronic Engine
Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND SELECTING MOTRONIC



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



ENGINE CONTROL MODULE (ECM) -J220-

Indicated on display

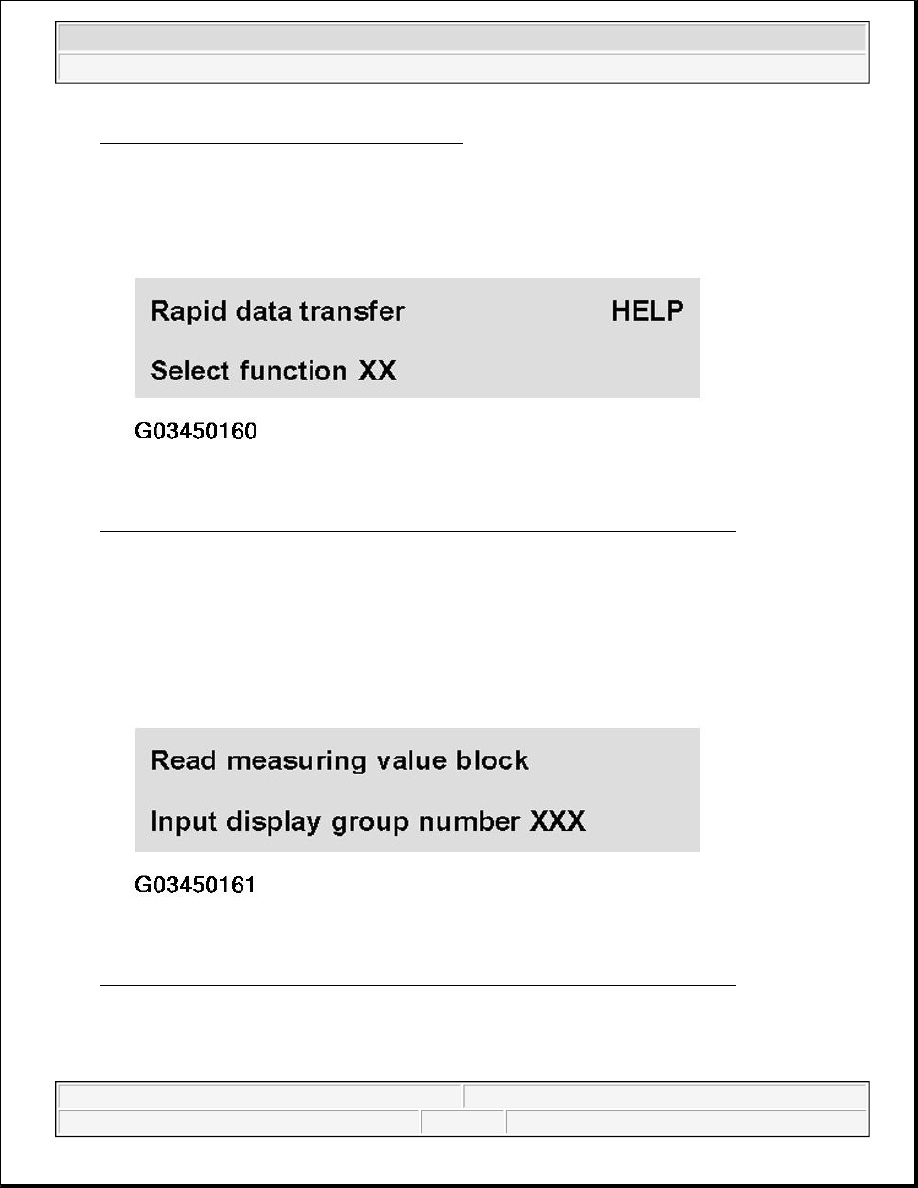

Fig. 185: Identifying Scan Tool Display - Cruise Control System, Checking (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- for function "Read measuring value block" and confirm entry with -Q- button.

Indicated on display

Fig. 186: Identifying Scan Tool Display - Cruise Control System, Checking (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -6- and -6- for "display group 66" and confirm with -Q- button.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Indicated on display (1 to 4 - Display zones)

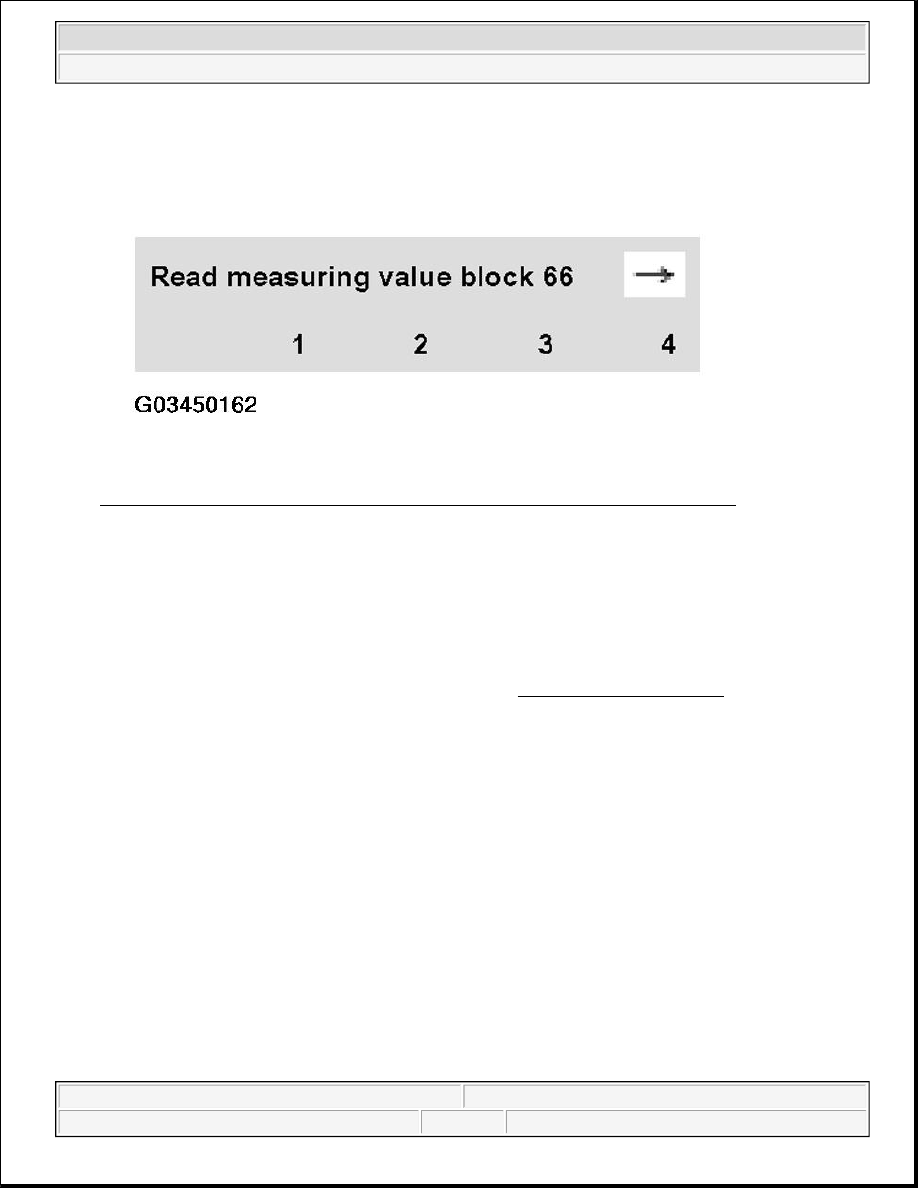

Fig. 187: Identifying Scan Tool Display - Cruise Control System, Checking (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Observe the valid safety measures during a test drive, see SAFETY PRECAUTIONS .

z

Engage parking brake.

z

Check in display zone 2 if the CCS is activated:

Specification: x x x x 1x x x

If the specification is not obtained:

z

Press --> button.

z

Press buttons -0- and -6- for "End output" function and confirm input with -Q- button.

z

Activate Cruise Control System.

NOTE:

Vehicles with automatic transmission only:

z

Perform a test drive and exceed a speed of 30 km/h (approx. 19 MPH)
once. Afterward switch off engine and leave selector lever in position
2, 3 or D.

NOTE:

On vehicles with an automatic transmission, the CCS switch will not be
supplied with voltage until the vehicle speed exceeds 30 km/h and the
selector lever is in position 2, 3 or D. Once the switch has been supplied
with voltage it will also remain live at idle speed provided a driving range
(except 1 or R) is selected.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



See CRUISE CONTROL

If the specification is obtained:

z

Check specification for switch position from CCS operating switch in display zone 4 (last 4-digit
numbers).

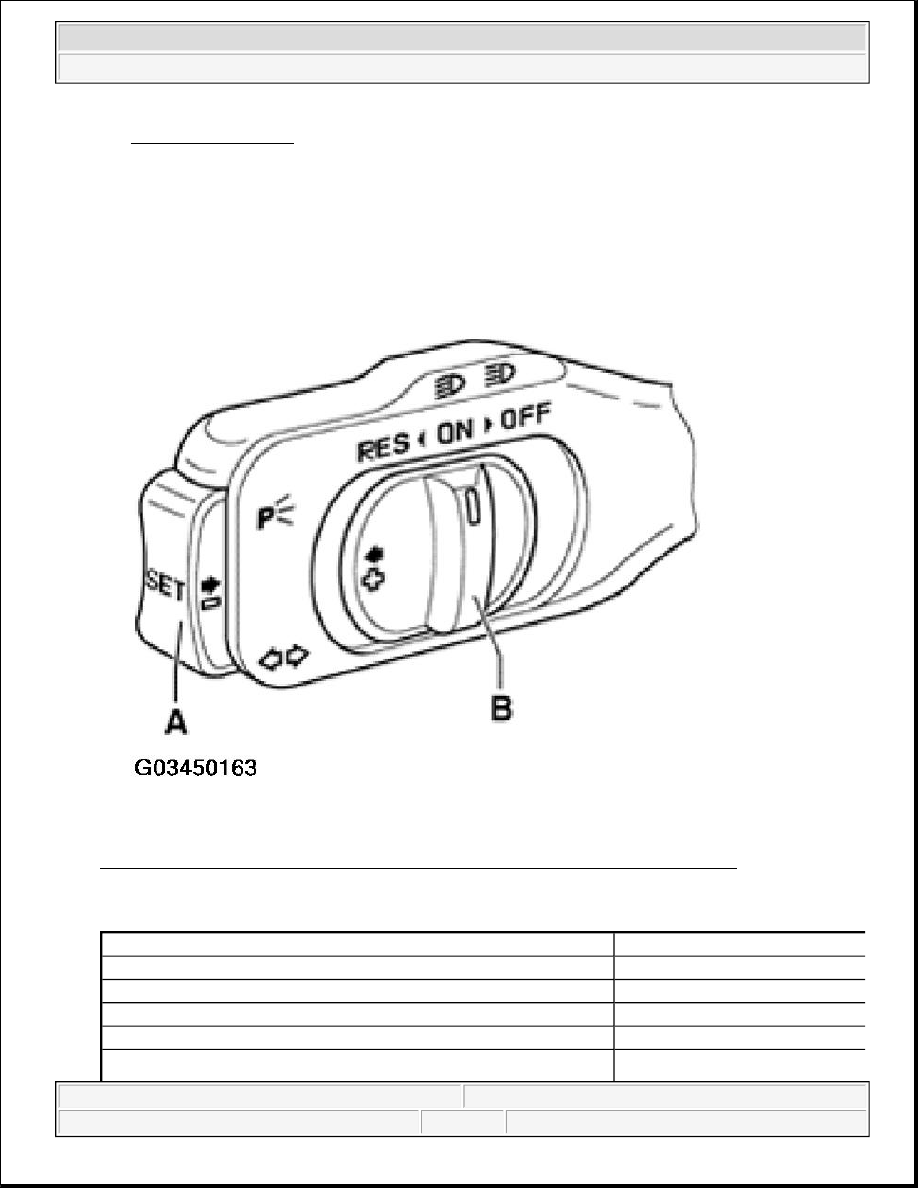

Fig. 188: Checking Switch Position From CCS Operating Switch In Display Zone 4
Courtesy of VOLKSWAGEN OF AMERICA, INC.

SWITCH IN DISPLAY ZONE 4 SPECIFICATION

Check prerequisites

Display zone 4

Switch B in detent at "OFF"

0001

Switch B not in detent at "OFF"

0000

Switch B at "ON"

0011

Switch B at "RES"

1011

Switch A pressed

0111
