the Throttle Valve Control Module -J338-. The values from both angle sensors in the emergency running
position are stored by the ECM.

Thereafter the throttle valve is opened a predetermined value. If this value is achieved, the throttle valve
is again switched so that it is not supplied with voltage. Now the mechanical spring must pull the throttle
valve to the previously learned emergency running position within a predetermined time (spring test).

Then the throttle valve is closed by the throttle valve positioner and the values, which are supplied by the
angle sensors in the Throttle Valve Control Module -J338- are stored by the Motronic Engine Control
Module (ECM) -J220-.

If the Motronic Engine Control Module (ECM) - J220- switches the throttle valve positioner so that it is
without voltage during normal operation, this is indicated by the increased and hunting idle speed. The
engine reacts slowly to accelerator changes.

{

Check specifications (display zones 1 to 4):

DISPLAY GROUP 60: ADAPTING THROTTLE VALVE CONTROL MODULE -J338-

z

Terminate engine basic setting at earliest after 30 seconds by pressing button.

Adapting has been performed successfully.

To store the values:

z

Switch off ignition.



Display zones

1

2

3

4

Display group 60: Adapting Throttle Valve Control Module -J338-
Display

xxx %

xxx %

x

ADP. runs

ADP. OK.

ERROR

Indicated

Throttle

valve angle

sensor 1 -

G187-

Throttle

valve angle

sensor 2 -

G188-

Learn step counter

Adaptation condition

Working range 0 to 100%

0 to 100%

0 to 8

-

Specification

10 to 88%

89 to 11%

Counter counts up to 8

during adaptation

ADP. runs

-

-

8

ADP. OK. (ERROR Appears

after unsuccessful adaptation)

If the specification is not obtained, see DTC MEMORY OF MOTRONIC ENGINE CONTROL
MODULE (ECM) -J220-, CHECKING AND ERASING
 or, see THROTTLE VALVE CONTROL
MODULE -J338-, CHECKING
 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



After an interruption a DTC is stored in DTC memory. When next switching on ignition the basic setting
is automatically performed again.

z

End engine basic setting by pressing button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

Kick-down position, learning

Following replacement of the Motronic Engine Control Module (ECM) -J220- or the accelerator pedal, vehicles
with automatic transmission must relearn the kick -down point.

Test conditions

z

Ignition on, engine not running

Test sequence

z

Connect scan tool VAG 1551 ((VAG 1552). Switch ignition on and select Motronic Engine Control
Module (ECM) -J220- with "Address word" 01. (Connecting scan tool and selecting Motronic Engine
Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND SELECTING MOTRONIC
ENGINE CONTROL MODULE (ECM) -J220-
 ).

Indicated on display:

NOTE:

If the basic setting of the control module is interrupted, the cause could be
one of the following:

z

The test conditions were not fulfilled.

z

Throttle valve cannot reach the mechanical idle speed stop because
of contamination e.g. oil deposits.

z

Throttle Valve Control Module is malfunctioning or there is a
malfunction in the wiring, checking, see THROTTLE VALVE
CONTROL MODULE -J338-, CHECKING .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

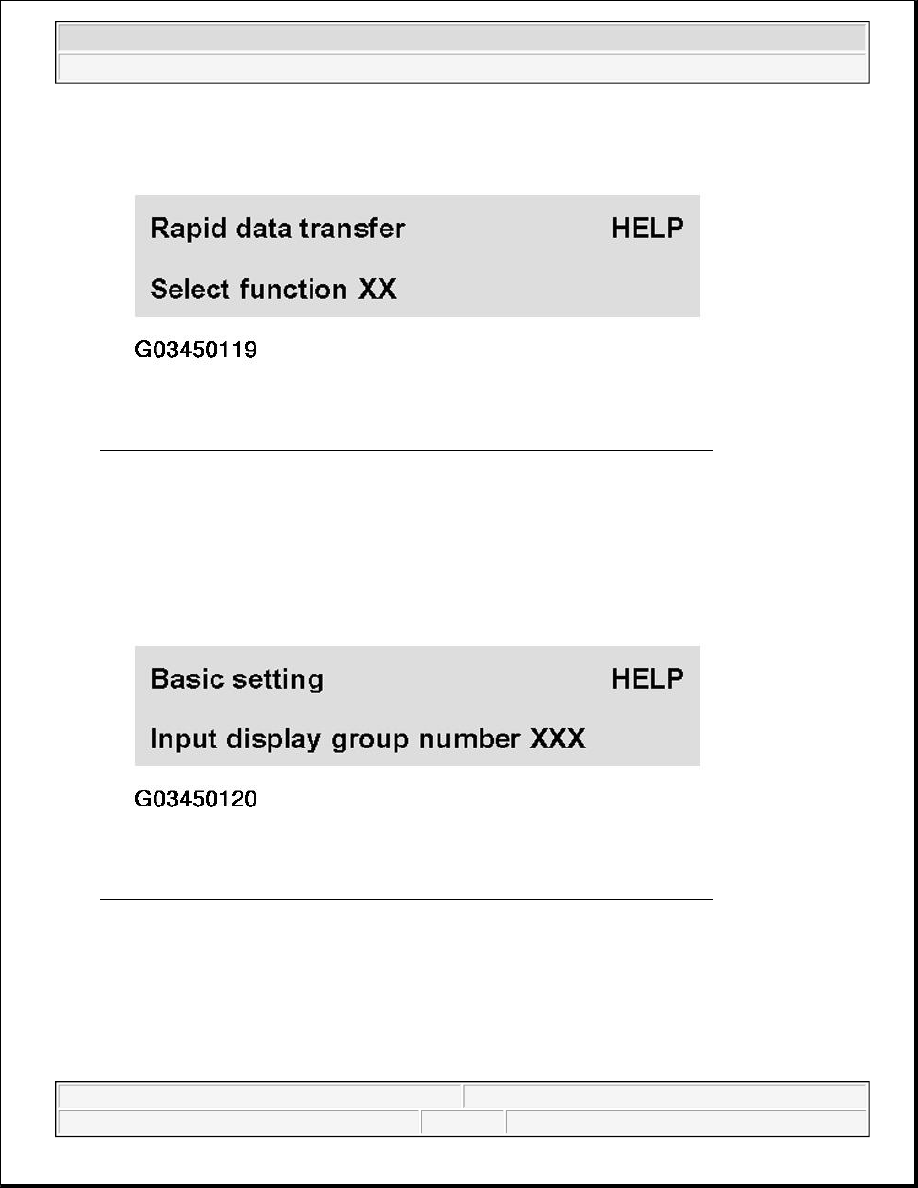

Fig. 144: Identifying Scan Tool Display - Kick-Down Position, Learning (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -4- for function "Introduction of basic setting" and confirm entry with -Q- button.

Indicated on display:

Fig. 145: Identifying Scan Tool Display - Kick-Down Position, Learning (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -6- and -3- for "Display group number 63" and confirm with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

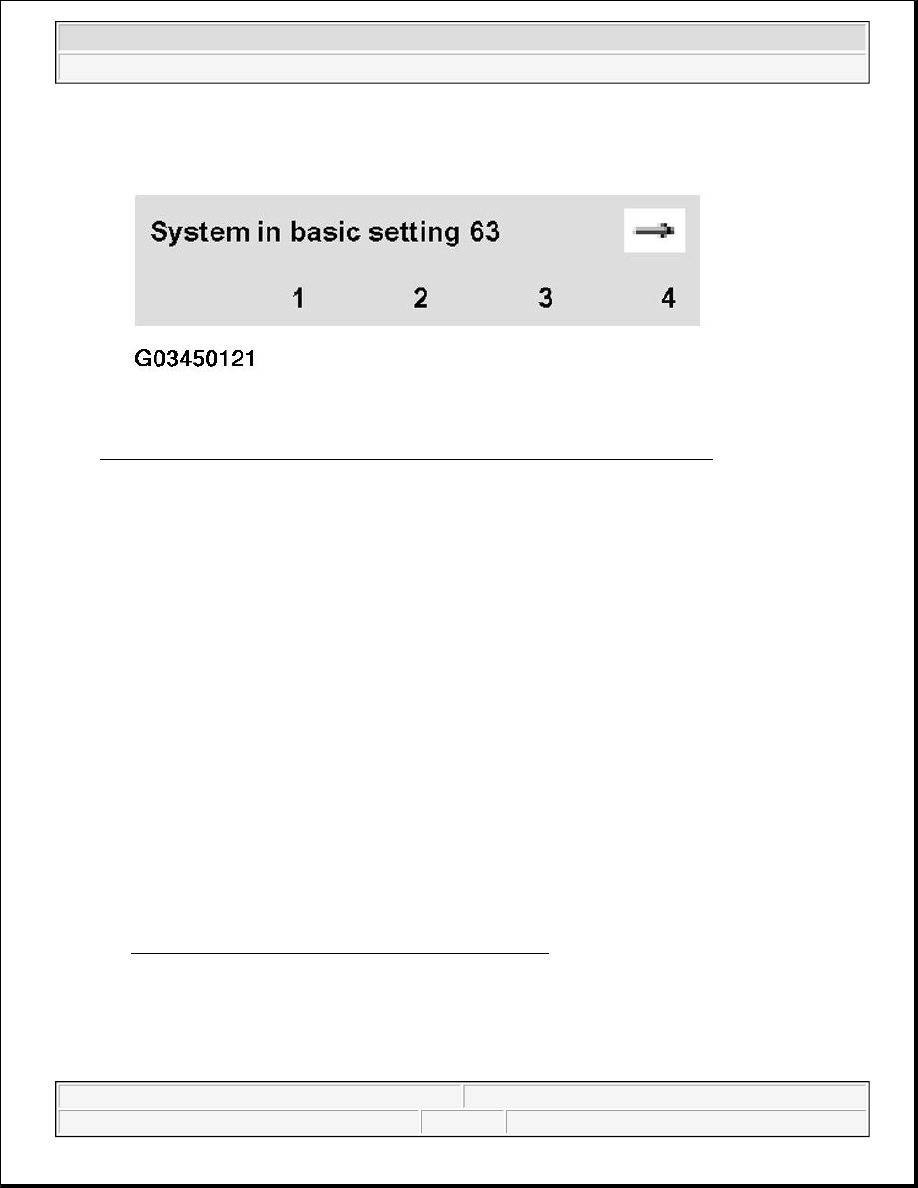

Fig. 146: Identifying Scan Tool Display - Kick-Down Position, Learning (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Observe display in display zones 3 and 4:

Display: Operate kick down

z

Press accelerator pedal beyond kick -down pressure point to floor.

z

Hold pedal at this point for at least 2 seconds.

z

Observe display in display zones 3 and 4:

Specification: Kick Down ADP. runs then

Specification: Kick Down ADP. OK

z

Observe display in display zones 3 and 4:

Display: Kick Down ERROR

z

End engine basic setting by pressing the button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Check Throttle Position (TP) sensor:

See THROTTLE POSITION (TP) SENSOR, CHECKING

ADDITIONAL SIGNALS, CHECKING

Engine speed signal (RPM), checking

Special tools, test equipment and auxiliary items



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
