Volkswagen New Beetle. Manual - part 1698





z

Press retaining tab -arrow- to left and pull control module out.

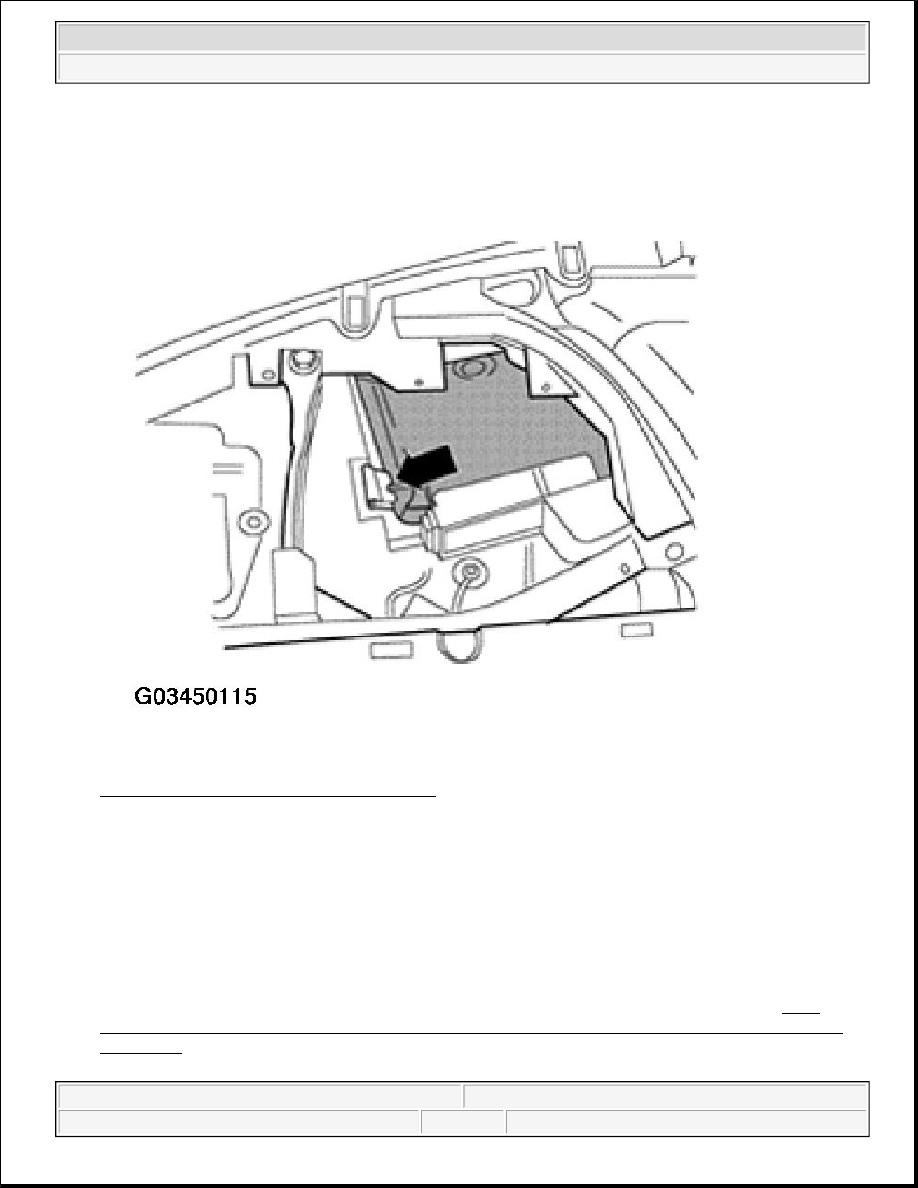

Fig. 140: Removing Engine Control Module
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Release connector from control module and disconnect it.

z

Remove control module.

Installing

z

Install control module connector and lock.

z

Place new control module into retaining frame.

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Adapt new control module to immobilizer Repair Manual, Electrical Equipment On Board Diagnostic



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



(OBD), Repair Group 01.

z

Adapt new control module to Throttle Valve Control Module - J338-, see MOTRONIC ENGINE
CONTROL MODULE (ECM) - J220- TO THROTTLE VALVE CONTROL MODULE - J338-,
ADAPTING
 .

z

On vehicles with cruise control system: Check whether this function has been enabled (activated), see
VAG 1551, CONNECTING AND SELECTING MOTRONIC ENGINE CONTROL MODULE
(ECM) -J220-
 . If "G" is not evident in control module identification, activate cruise control system.

Vehicles with automatic transmissions:

z

Learning kick-down point, see KICK-DOWN POSITION, LEARNING

z

Adapt control module for automatic transmission:

See DIAGNOSIS - 01M

Continued for all vehicles

z

Perform idle check, see FUNCTIONS, CHECKING .

z

Generate readiness code, see READINESS CODE, GENERATING

Motronic Engine Control Module (ECM) - J220- to Throttle Valve Control Module - J338-, adapting

The adaptation teaches the Motronic Engine Control Module (ECM) -J220- the various positions of the throttle
unit when the ignition is switched on and the engine is not running. These positions are stored in the control
module. The feedback of the throttle valve position is via both angle sensors for throttle valve drive.

Adapting sequence must be performed if:

z

Voltage supply is interrupted

z

Throttle Valve Control Module -J338- is removed and installed

z

Throttle Valve Control Module -J338- is replaced

z

If when installing another engine another Throttle Valve Control Module -J338- is installed

z

Motronic Engine Control Module (ECM) -J220- is replaced.

See DIAGNOSIS - 01M

Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool (or VAG 1552 mobile scan tool) with VAG 1551/3B cable

Test conditions

NOTE:

On vehicles with an automatic transmission, the transmission control module
must also be adapted:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

No DTCs must be stored in DTC memory, see DTC MEMORY OF MOTRONIC ENGINE
CONTROL MODULE (ECM) -J220-, CHECKING AND ERASING


z

Battery voltage must be at least 11.5 V

z

All electrical accessories, e.g. lights and rear window defroster, must be switched off

z

The throttle valve must be at idling speed position (The accelerator must not be operated during the test).

z

Throttle valve must not be dirty (carbonization).

z

Engine Coolant Temperature (ECT) must be 5 to 95 °C display group 04, display zone 3.

z

The cruise control system must be functioning correctly if installed.

Work sequence

z

Connect VAG 1551 scan tool ((VAG 1552). Switch ignition on and select Motronic Engine Control
Module (ECM) -J220- with "Address word" 01. Connecting scan tool and selecting Motronic Engine
Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND SELECTING MOTRONIC
ENGINE CONTROL MODULE (ECM) -J220-
 .

Indicated on display

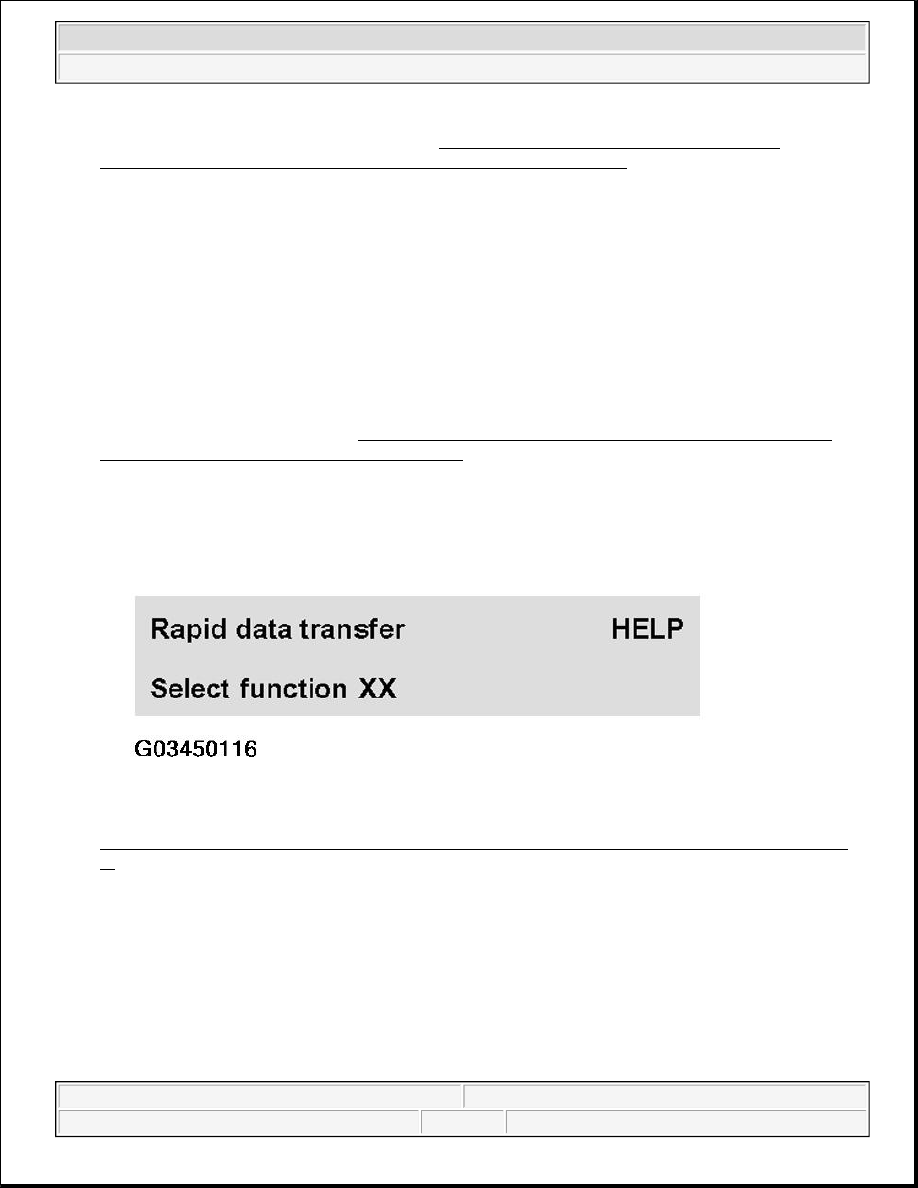

Fig. 141: Identifying Scan Tool Display - Adapting ECM To Throttle Valve Control Module (1 Of
3)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -4- for function "Basic Setting" and confirm entry with -Q- button.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

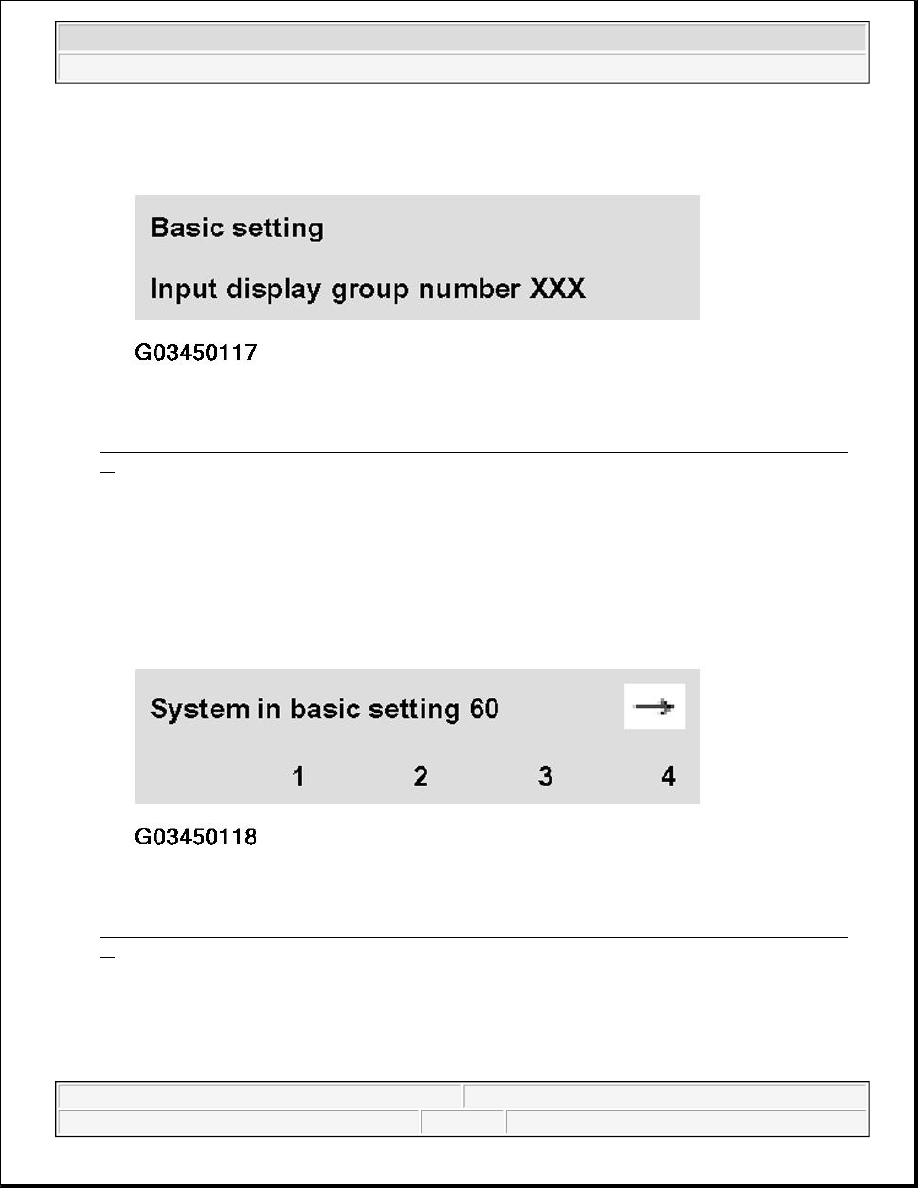

Fig. 142: Identifying Scan Tool Display - Adapting ECM To Throttle Valve Control Module (2 Of
3)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -6- and -0- for "Display group number 60" and confirm entry with -Q- button.

Indicated on display (1 to 4 - Display zones)

Fig. 143: Identifying Scan Tool Display - Adapting ECM To Throttle Valve Control Module (3 Of
3)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

After pressing the -Q- button the throttle valve positioner is switched so that it is not supplied with
voltage at start of test.

In this condition the throttle valve is pulled into an emergency running position by a mechanical spring in



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
