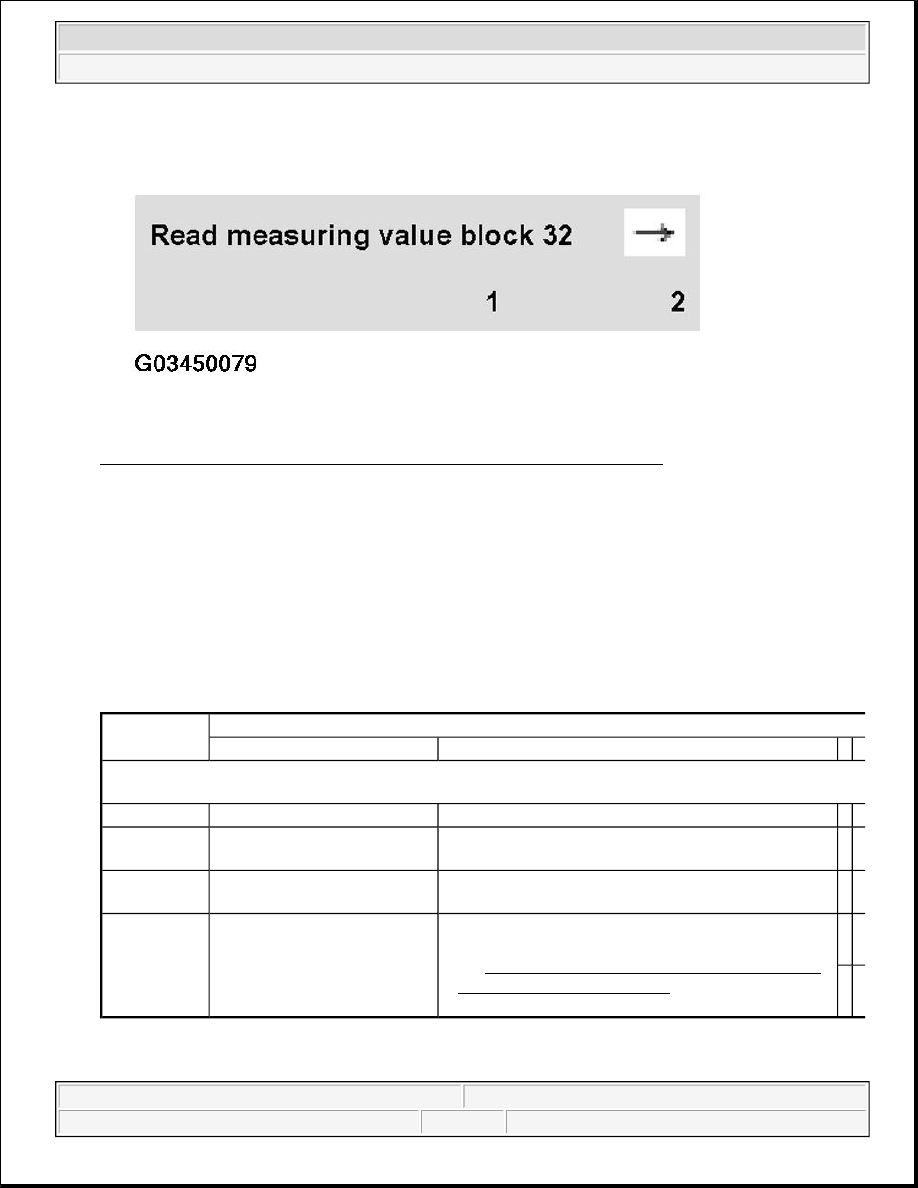

Fig. 104: Identifying Scan Tool Display - Read Measuring Value Block 32
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check oxygen sensor control learned values at idling speed (additive) in display zone 1.

Specification: -3.0...3.0%

z

Check oxygen sensor control learned values at part load (multiplicative) in display zone 2.

Specification: -10.0...10.0%

DISPLAY GROUP 32: OXYGEN SENSOR CONTROL LEARNED VALUES BEFORE THREE
WAY CATALYTIC CONVERTER (TWC)



Display zones

1

2

3 4

Display group 32: oxygen sensor control learned values before Three Way Catalytic Converter
(TWC)
Display

xx.x %

xx.x %

- -

Indicated

Oxygen sensor control learned

value at idling (additive)

Oxygen sensor control learned value at part load

(multiplicative)

- -

Working
range

-25.0 to 25.0%

-25.0 to 25.0%

- -

Specification

-3.0 to 3.0%

can fluctuate slightly

If the specifications are not

achieved

-10.0 to 10.0%

can fluctuate slightly

See CHECKING OXYGEN SENSOR WIRING

FOR OXYGEN SENSOR 1 , Evaluating display

group 32

- -

- -

NOTE:

In display zones 1 and 2:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



If the specification is obtained:

z

Change to display group 33 as follows:

VAG 1551: Press button -3-

VAG 1552: Press button

Indicated on display (1 to 2 Display zones)

z

Oxygen Sensor control learned values are fuel dependent!

z

Low values indicate that the engine is running too rich and therefore
the oxygen sensor control is leaning the mixture.

z

High values indicate that the engine is running too lean and therefore
the oxygen sensor control enriches the mixture.

z

If there is no voltage supply to the control module all the values
learned will be cancelled.

z

add = additive - The effects of the malfunction (e.g. unmetered air)
will reduce as the engine speed increases. The injection period will
be modified by a fixed amount for additive learned values. This
amount is not dependent upon the basic injection period.

z

mul = multiplicative - The effects of the malfunction (e.g.
malfunctioning fuel injector) will increase as the engine speed
increases. A multiplicative learned value is a proportional change to
the injection period. This change is dependent on the basic injection
period.

Initiating learning process: Control module in mode 04, Basic
settings

z

Learning prerequisites for idle speed: idle speed, Engine Coolant
Temperature (ECT) min. 75 C, intake air temperature max. 90 °C.

z

Learning prerequisites for part load: Engine Coolant Temperature
(ECT) min. 75 °C, intake air temperature max. 90 °C

z

EVAP canister purge regulator valve must be closed and the A/C
compressor must be off.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



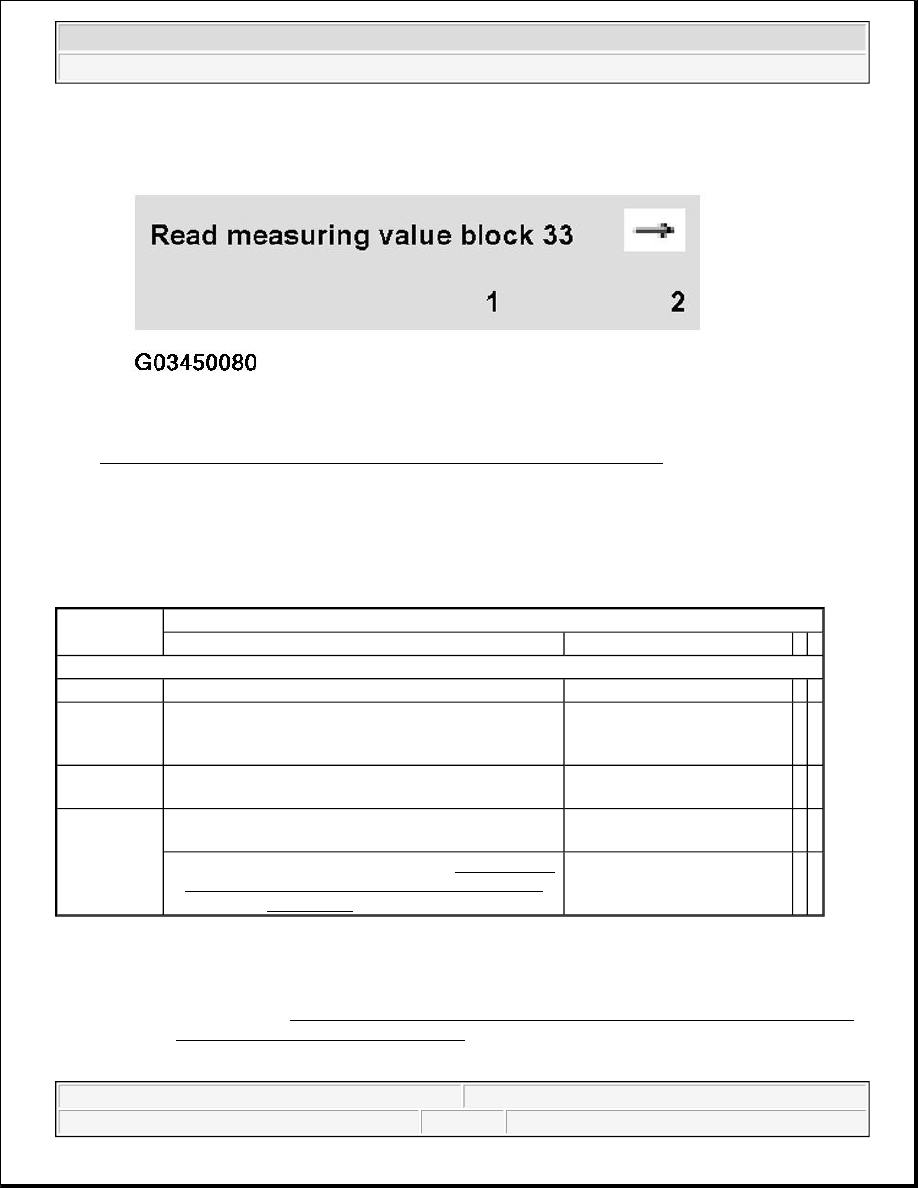

Fig. 105: Identifying Scan Tool Display - Read Measuring Value Block 33
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Observe oxygen sensor control in display zone 1. Display must fluctuate at least 2% in the range -10.0 to
10.0%

DISPLAY GROUP 33: OXYGEN SENSOR CONTROL BEFORE THREE WAY CATALYTIC
CONVERTER (TWC)



Display zones

1

2

3 4

Display group 33: oxygen sensor control before Three Way Catalytic Converter (TWC)
Display

xx.x %

x.xxx V

- -

Indicated

Oxygen sensor control before Three Way Catalytic

Converter (TWC)

Oxygen sensor voltage before

Three Way Catalytic

Converter (TWC)

- -

Working
range

-25.0 to 25.0%

-

- -

Specification The value must fluctuate at least 2% in -10.0 to 10.0%

range

-

- -

If the specification is not obtained, see CHECKING

OXYGEN SENSOR WIRING FOR OXYGEN

SENSOR 1 , Continuation

-

- -

NOTE:

In display zone 1: the display must fluctuate around 0.0%. If 0.0% is displayed
constantly, the oxygen sensor control has switched from regulation to control,
because there is a malfunction in the oxygen sensor control. Check DTC
Memory, see DTC MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM)
-J220-, CHECKING AND ERASING .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



If the specification is obtained:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

Continuation

If the oxygen sensor control in display zone 1 does not fluctuate as stated:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Test drive vehicle to remove possible residue on oxygen sensor and repeat check.

Observe the valid safety precautions when carrying out a road test, see SAFETY PRECAUTIONS .

If the specifications in display zone 1 are not obtained even after a test drive, or the value does not
fluctuate by at least 2%:

z

Check oxygen sensor before Three Way Catalytic Converter (TWC) for aging, see OXYGEN SENSOR
AGING, OXYGEN SENSOR BEFORE THREE WAY CATALYTIC CONVERTER (TWC),
CHECKING .

Evaluating display zone 33, display zones 1 - oxygen sensor control learned values before Three Way
Catalytic Converter (TWC)

EVALUATING DISPLAY ZONE 33, DISPLAY ZONES 1 - OXYGEN SENSOR CONTROL LEARNED
VALUES BEFORE THREE WAY CATALYTIC CONVERTER (TWC) - 1 OF 2

Appears on
display

Possible cause

Corrective action

Low oxygen
sensor control
learned values

z

Low learned values at idling but

with normal learned values at part

throttle: possible oil dilution (high

level of fuel in oil)

z

Fuel injector leaking

z

Fuel pressure too high

z

EVAP solenoid valve 1

permanently open

z

Mass Air Flow (MAF) sensor

malfunctioning

z

Heated Oxygen Sensor (HO2S)

malfunctioning or oxygen sensor

soiled

z

Check if it disappears after highway

drive or oil change

z

Check fuel injector, see FUEL

INJECTORS, CHECKING

z

Check fuel pressure regulator and

holding pressure, see FUEL

PRESSURE REGULATOR AND

HOLDING PRESSURE, CHECKING

z

Check EVAP solenoid valve 1, see

OUTPUT DIAGNOSTIC TEST

MODE (DTM)

z

Check Mass Air Flow (MAF) sensor,

see MASS AIR FLOW (MAF)

SENSOR, CHECKING
