Volkswagen New Beetle. Manual - part 1625





Significance of 8 digit number block

SIGNIFICANCE OF 8 DIGIT NUMBER BLOCK SPECIFICATION

If the specification is obtained:

z

Briefly increase engine speed (RPM) (rev -up) and then allow engine to run at idle speed for 2 minutes.

Checking idle speed

z

Continue running engine at idle speed.

z

Change to display group 56 as follows:

z

Press -C- button.

700 to 750

RPM

(2)

range

-

-

-

Significance, see

CHECKING IDLE

SPEED

(1)

Engine idling at normal operating temperature for manual transmission

(2)

Engine idling at normal operating temperature for automatic transmission

Significance when display = 1
1 2 3 4 5 6 7 8

Significance



            1

Engine Coolant Temperature (ECT) above 80 °C



          1

Speed below 2000 RPM



        1

Throttle valve closed



      1

Oxygen sensor control OK.



    1

Idling switch closed



  1

Air conditioner compressor switched off

  1

Three Way Catalytic Converter (TWC) temperature over 350 °C

1

No DTCs recognized by On Board Diagnostic (OBD)

NOTE:

z

Idling speed cannot be adjusted.

z

Idling speed is tested during the basic setting of the engine.

z

In the "System in basic setting" function the EVAP canister purge
regulator valve -N80- is closed and the air conditioner compressor
switched off.

WARNING:

The electric coolant fan must not be running.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Press buttons -0-, -5- and -6- for "Display group number 56" and confirm entry with -Q- button.

Indicated on display (1 to 4 - Display zones)

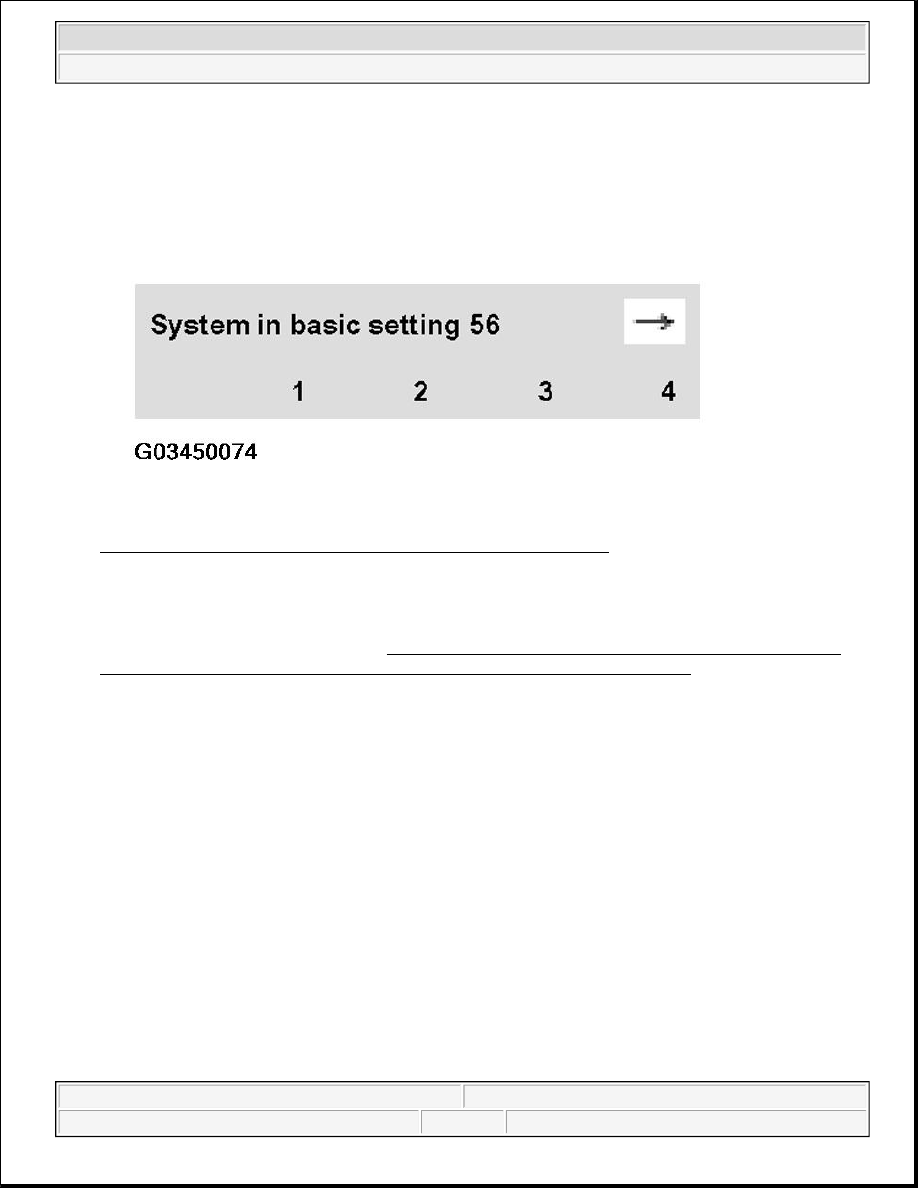

Fig. 99: Identifying Scan Tool Display - System In Basic Setting 56
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check operating mode in display zone 4.

Specification: 0x000 (Significance, see OXYGEN SENSOR AND OXYGEN SENSOR CONTROL
BEFORE THREE WAY CATALYTIC CONVERTER (TWC), CHECKING
 )

z

Check specified idle speed in display zone 2.

Specification:

Manual transmission 760 RPM

Automatic transmission 700 RPM

z

Check actual idle speed in display zone 1.

Specification:

Manual transmission 760 to 810 RPM

1

 )



Automatic transmission 700 to 750 RPM

1

 )



1

 ) Engine idling at normal operating temperature





2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



DISPLAY GROUP 56: IDLING TEST - ENGINE IDLING AT NORMAL OPERATING
TEMPERATURE


Significance of 5 digit number block

SIGNIFICANCE OF 5 DIGIT NUMBER BLOCK SPECIFICATION

NOTE:

During idling check the EVAP canister purge regulator valve and the air
conditioner are switched off and the oxygen sensor control learning
procedure is initiated.



Display zones

1

2

3

4

Display group 56: Idling test - Engine idling at normal operating temperature
Display

xxxx RPM

xxxx RPM

xxx.x %

xxxxx

Indicated

Actual engine speed

(in steps of 10)

Specified engine speed

(in steps of 10)

Idling

regulator

Operating conditions

Working
range

0 to 6800 RPM

-

-5.0 to
12.0%

-

Specification 760 to 810 RPM

(1)



700 to 750 RPM

(2)

760 RPM

(1)

700 RPM

(2)

-5.0 to
12.0%

0x000

If the specifications are not obtained,

see OXYGEN SENSOR AND

OXYGEN SENSOR CONTROL

BEFORE THREE WAY

CATALYTIC CONVERTER

(TWC), CHECKING , Continuation

-

Significance, see OXYGEN

SENSOR AND OXYGEN

SENSOR CONTROL BEFORE

THREE WAY CATALYTIC

CONVERTER (TWC),

CHECKING

(1)

For manual transmission

(2)

For automatic transmission

NOTE:

z

The value shown in display zone 1 is the actual engine speed.

z

The value shown in display zone 2 (specified engine speed) is a
theoretical value calculated by the Motronic Engine Control Module
(ECM) -J220-.

z

When the engine is idling the Motronic Engine Control Module (ECM)
-J220- tries constantly to adjust the actual engine speed so that it
adapts the specified value.

z

This means that the actual engine speed when idling should be
approximately the same as the specified engine speed.

Significance when display = 1
1

2

3

4

5

Significance









1

Air conditioner compressor switched on



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



If the specification is obtained:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

Continuation

If the idle speed is not obtained:

z

Adapt ECM to Throttle Valve Control Module - J338-, see MOTRONIC ENGINE CONTROL
MODULE (ECM) - J220- TO THROTTLE VALVE CONTROL MODULE - J338-, ADAPTING
 .

z

Road test vehicle.

Observe the valid safety precautions when road testing, see SAFETY PRECAUTIONS .

z

Again check control module DTC memory.

z

Repeat idle check.

If the specifications are not obtained again:

z

Check Throttle Valve Control Module -J338-, see THROTTLE VALVE CONTROL MODULE -
J338-, CHECKING
 .

z

Check operating condition of engine, see ENGINE OPERATING MODE, CHECKING .

z

Check intake air system for unmetered air, see INTAKE AIR SYSTEM (UNMETERED AIR),
CHECKING FOR LEAKS


z

Check signals from/to air conditioner, see SIGNAL FROM/TO AIR CONDITIONING,
CHECKING
 .

Oxygen Sensor and oxygen sensor control before Three Way Catalytic Converter (TWC), checking







1



Driving range (gear) selected





1





Air conditioning system switched on



1







Rear mirror defogger on

1









Power assisted steering pressure switch on

NOTE:

z

Raise vehicle to reach oxygen sensor connector.

z

The Oxygen Sensor (O2S) before Three Way Catalytic Converter (TWC)
has constant regulation and can be distinguished by a 6 -pin connector
from the Oxygen Sensor (O2S) behind the Three Way Catalytic Converter
(TWC).

z

Only gold terminals may be used for servicing the terminals in the
connector for the oxygen sensor.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
