Volkswagen New Beetle. Manual - part 1626





Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1594 adapter set

z

Electrical Wiring Diagram

Test conditions

z

All fuses must be OK. Fuse holder located behind access panel at far left end of dash.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

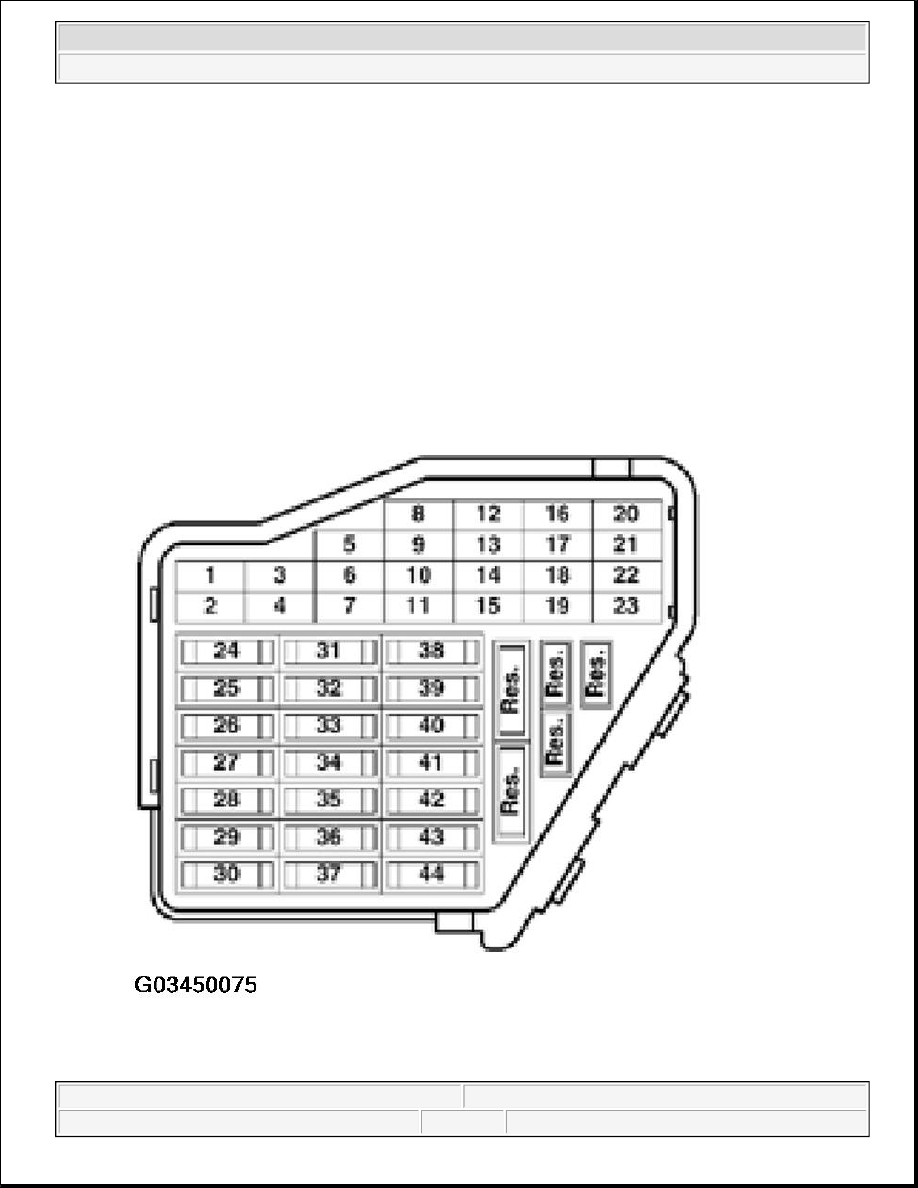

Fig. 100: Locating Fuses
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Battery voltage must be at least 11.5 V

z

Exhaust system between Three Way Catalytic Converter (TWC) and cylinder head must be free of leaks

z

Engine Coolant Temperature (ECT) must be at least 80 °C display group 04, display zone 3

Functional check

z

Connect VAG 1551 scan tool ((VAG 1552). Start engine and select "Address word" 01 of Motronic
Engine Control Module (ECM) -J220-. Engine must be running at idle speed. Connecting scan tool and
selecting Motronic Engine Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND
SELECTING MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-
 .

Indicated on display

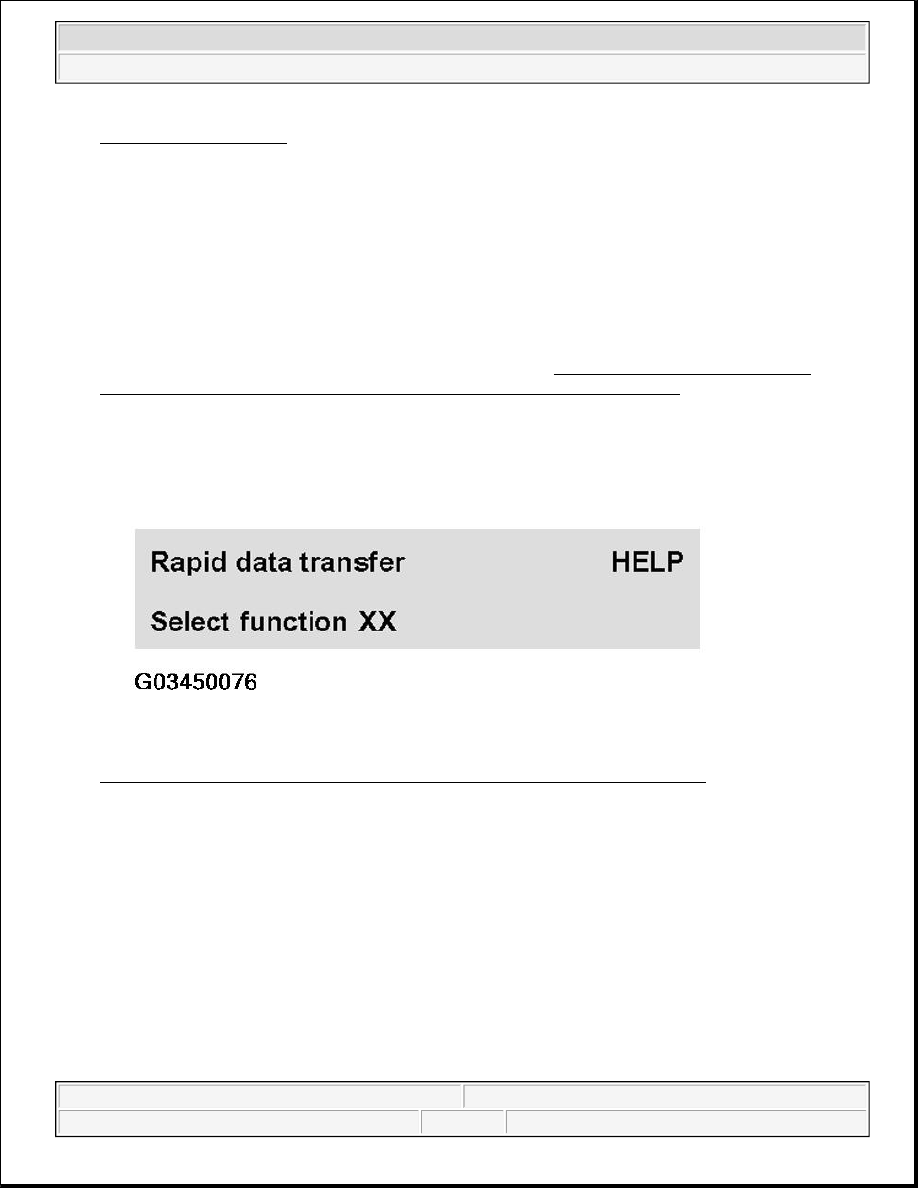

Fig. 101: Identifying Scan Tool Display - Checking HO2S Before TWC (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- for function "Read measuring value block" and confirm entry with -Q- button.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

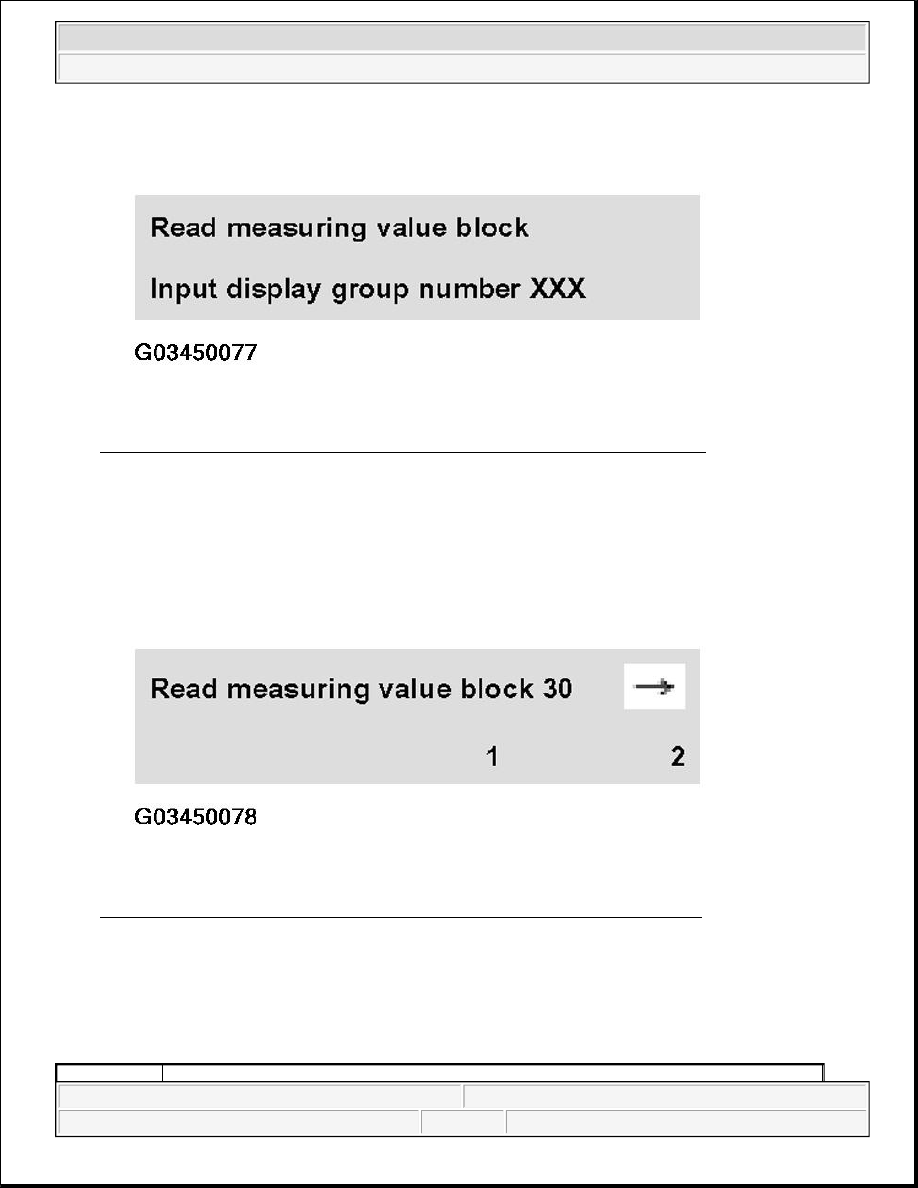

Fig. 102: Identifying Scan Tool Display - Checking HO2S Before TWC (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -3- and -0- for "Display group number 30" and confirm entry with -Q- button.

Indicated on display (1 to 2 - Display zones)

Fig. 103: Identifying Scan Tool Display - Checking HO2S Before TWC(3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check status of the oxygen sensor control before Three Way Catalytic Converter (TWC) (display zone 1):

Specification: 1 1 1

DISPLAY GROUP 30: OXYGEN SENSOR CONTROL



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Significance of 3 digit number block in display zone 1

SIGNIFICANCE OF 3 DIGIT NUMBER BLOCK IN DISPLAY ZONE 1 SPECIFICATION

If the specification is obtained:

z

Change to display group 32 as follows:

z

Press -C- button.

z

Press buttons -0-, -3- and -2- for "Display group number 32" and confirm entry with -Q- button.

Indicated on display (1 to 2 -- Display zones)



Display zones

1

2

3 4

Display group 30: oxygen sensor control
Display

xxx

xxx

- -

Indicated

Status of oxygen sensor control before Three Way

Catalytic Converter (TWC)

Status of oxygen sensor

control after Three Way

Catalytic Converter (TWC)

- -

Working
range

-

-

- -

Specification

111

110

- -



Significance, see CHECKING OXYGEN SENSOR

WIRING FOR OXYGEN SENSOR 1

-

- -



If the specification is not obtained, see Heated Oxygen

Sensor (HO2S) for oxygen sensor before Three Way

Catalytic Converter (TWC), checking

-

- -

NOTE:

For display zone 1:

z

The first figure in the 3 figure number block periodically changes between
0 and 1 (Heated Oxygen Sensor (HO2S) on and off).

z

The numbers in the 3 figure number block can alternate from 0 and 1 in the
display depending on the status of the oxygen sensor control.

Significance if display = 1
1

2

3

Significance





1

Oxygen sensor control active



1



Oxygen sensor operationally ready

1





Heated Oxygen Sensor (HO2S) on



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
