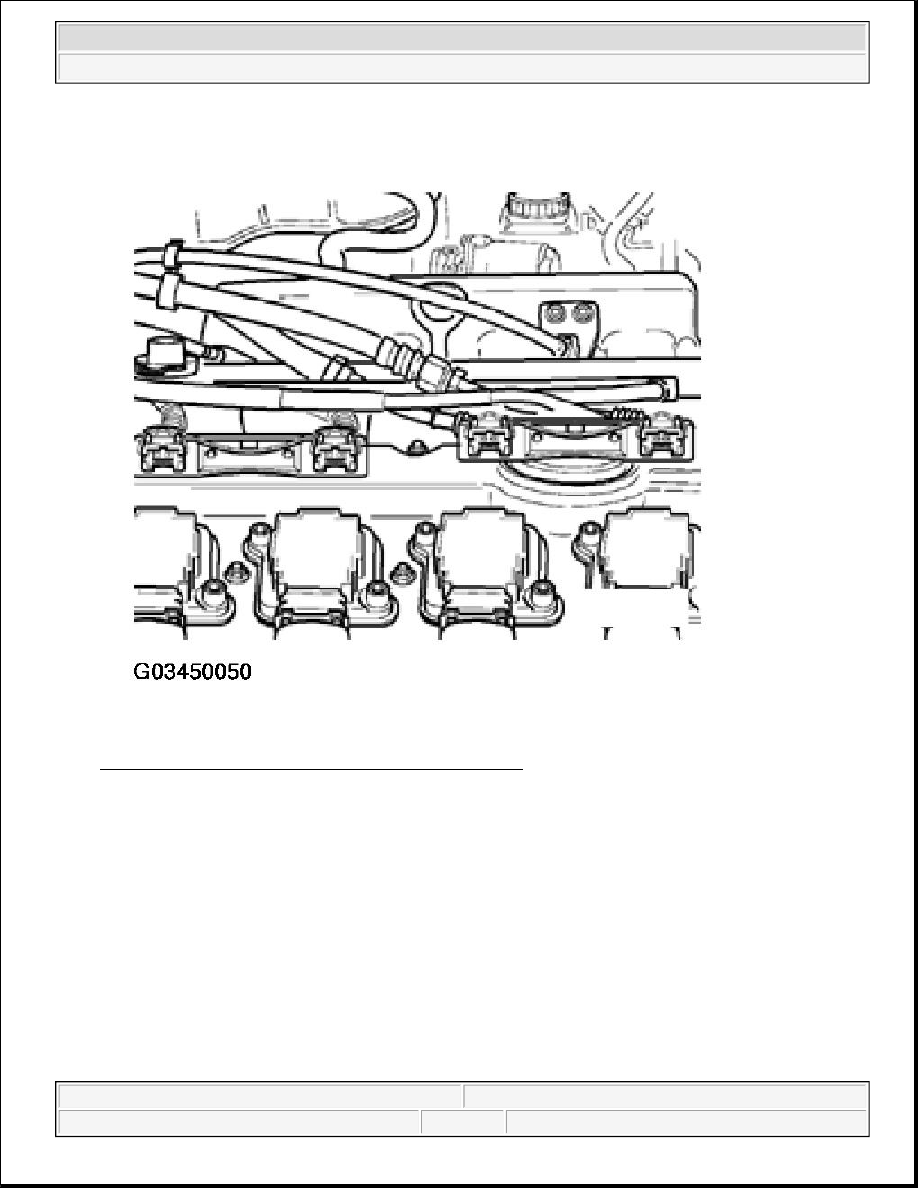

Fig. 72: Connecting VAG 1598/31 Test Box To Control Module Wiring Harness z Check wiring for open circuit between test box and 3 -pin connector using Electrical Wiring Diagram. z terminal 1 + socket 108 z terminal 2 + socket 90 z terminal 3 + socket 82 Wire resistance: Max. 1.5 Fig. 73: Identifying Engine Speed (RPM) Sensor Harness Connector Terminals z Additionally check wires for short to one another.
2003 Volkswagen New Beetle GLS 1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
|
