Volkswagen New Beetle. Manual - part 1615





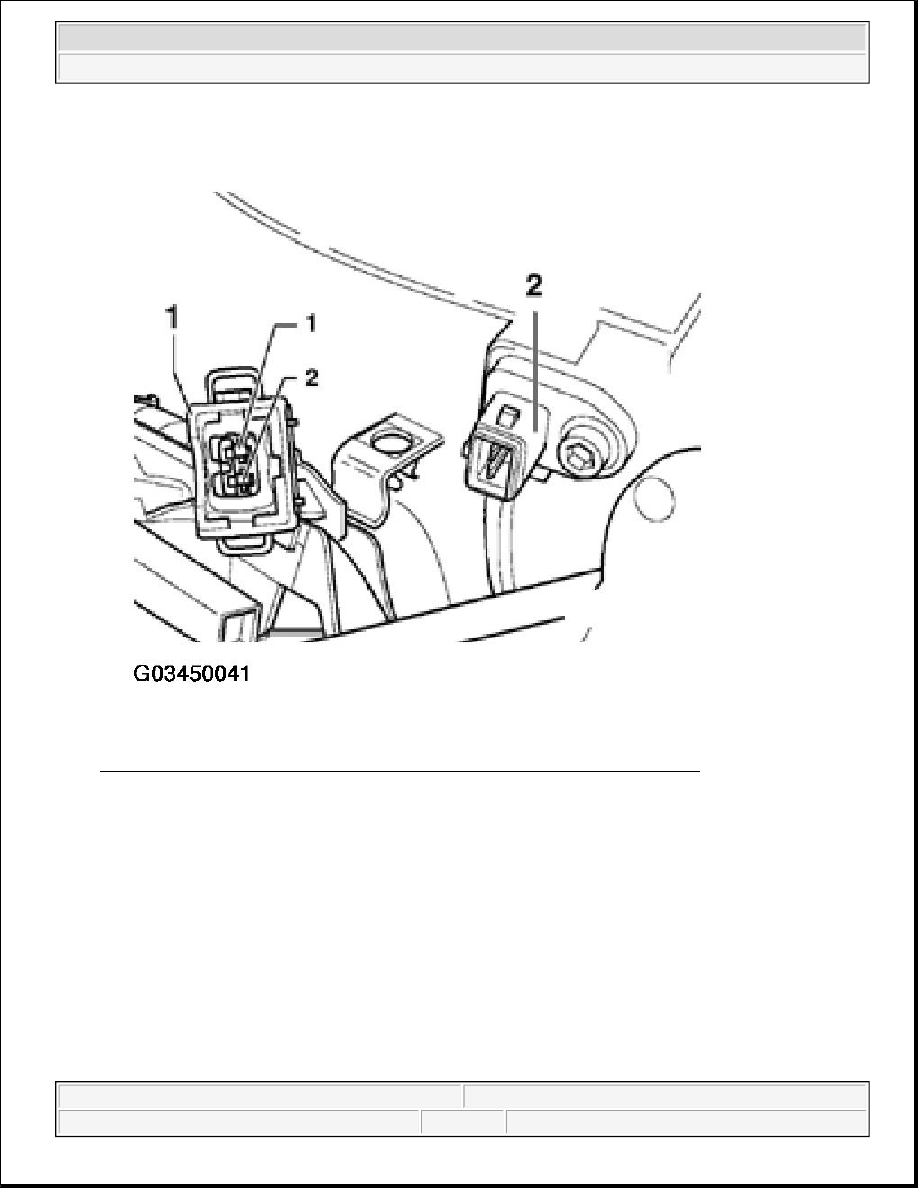

Fig. 66: Disconnecting Connector From Intake Air Temperature (IAT) Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring between test box and 2 -pin connector -1- for open circuit according to Electrical Wiring
Diagram.

z

Terminal 1 + Socket 85

z

Terminal 2 + Socket 108



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



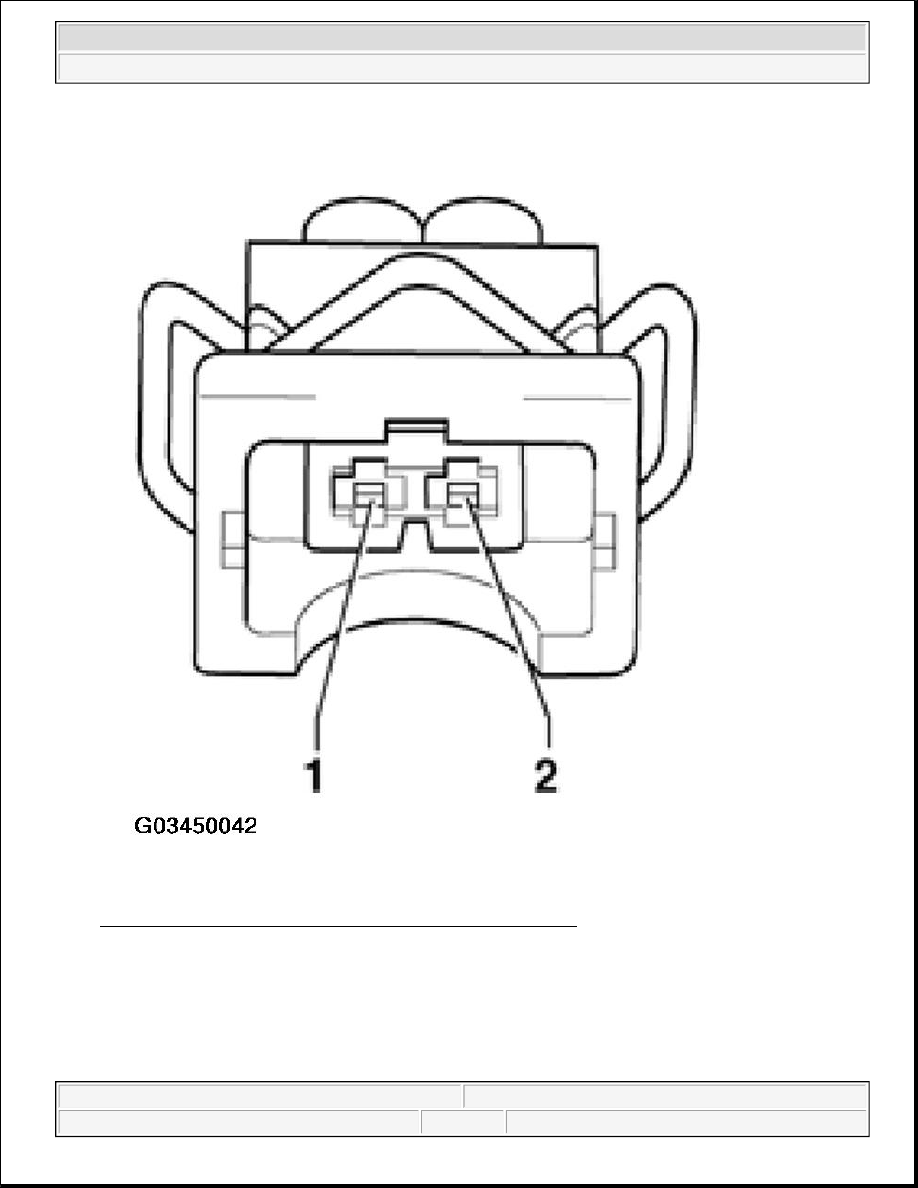

Fig. 67: Identifying IAT Sensor Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Wire resistance: max. 1.5

z

Additionally check both wires for short to battery positive.

Specification: INFINITY ohm



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



If no wiring malfunctions are detected:

z

Perform resistance measurement on Intake Air Temperature (IAT) sensor -G42- terminals 1 (signal) and 2
(ground).

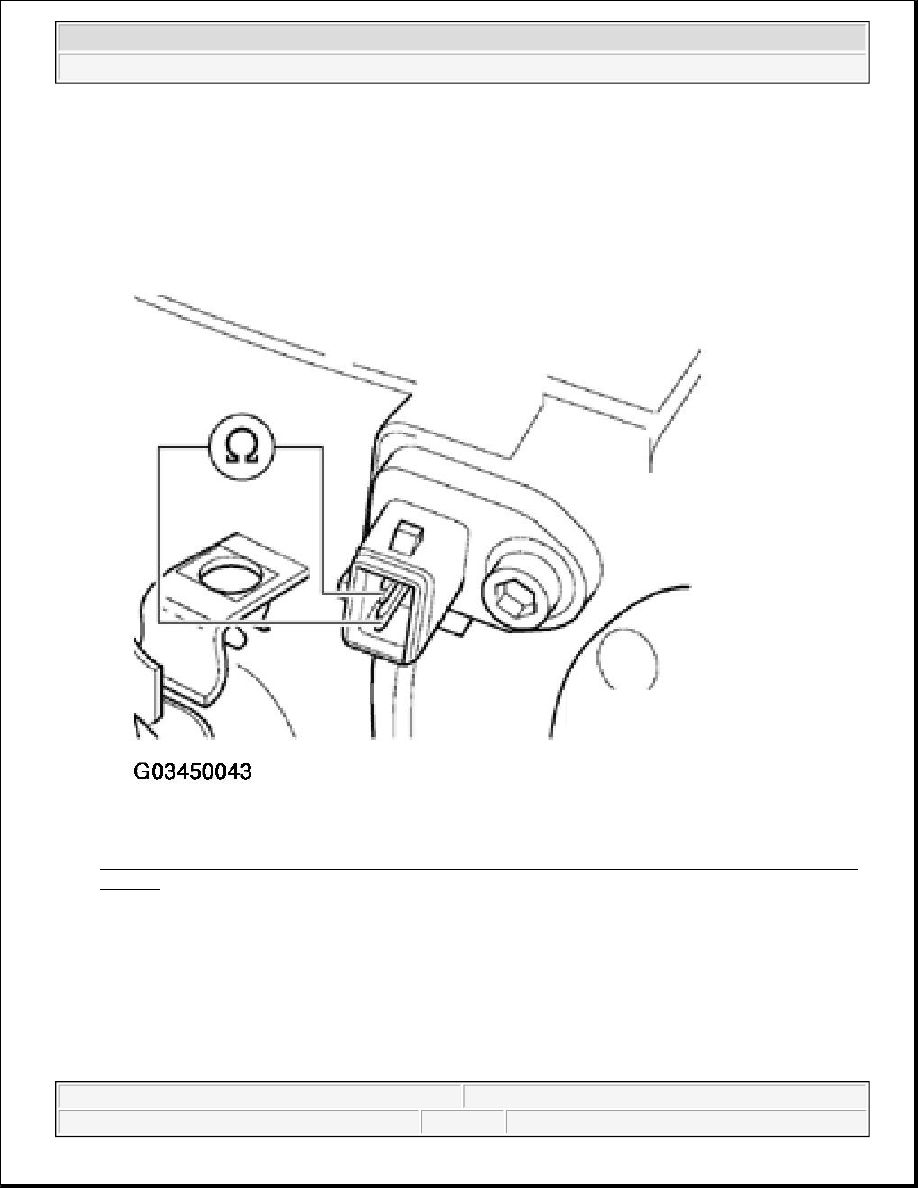

Fig. 68: Performing Resistance Measurement On Intake Air Temperature (IAT) Sensor Terminal1
(Signal)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Scale A shows resistance values for temperature range 0 to 50 °C and scale B the values for temperature range
50 to 100 °C.

Examples:

z

30 °C is in range A and corresponds to a resistance of 1.5 to 2.0 kohm

z

80 °C is in range B and corresponds to a resistance of 275 to 375 ohm



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



If the specification is not obtained:

z

Replace Intake Air Temperature (IAT) sensor -G42-, see item 26 .

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

If there is no malfunction in the wiring and the resistance measurement values are OK:

z

Replace Motronic Engine Control Module (ECM) -J220-, see MOTRONIC ENGINE CONTROL
MODULE (ECM) - J220-, REPLACING
 .

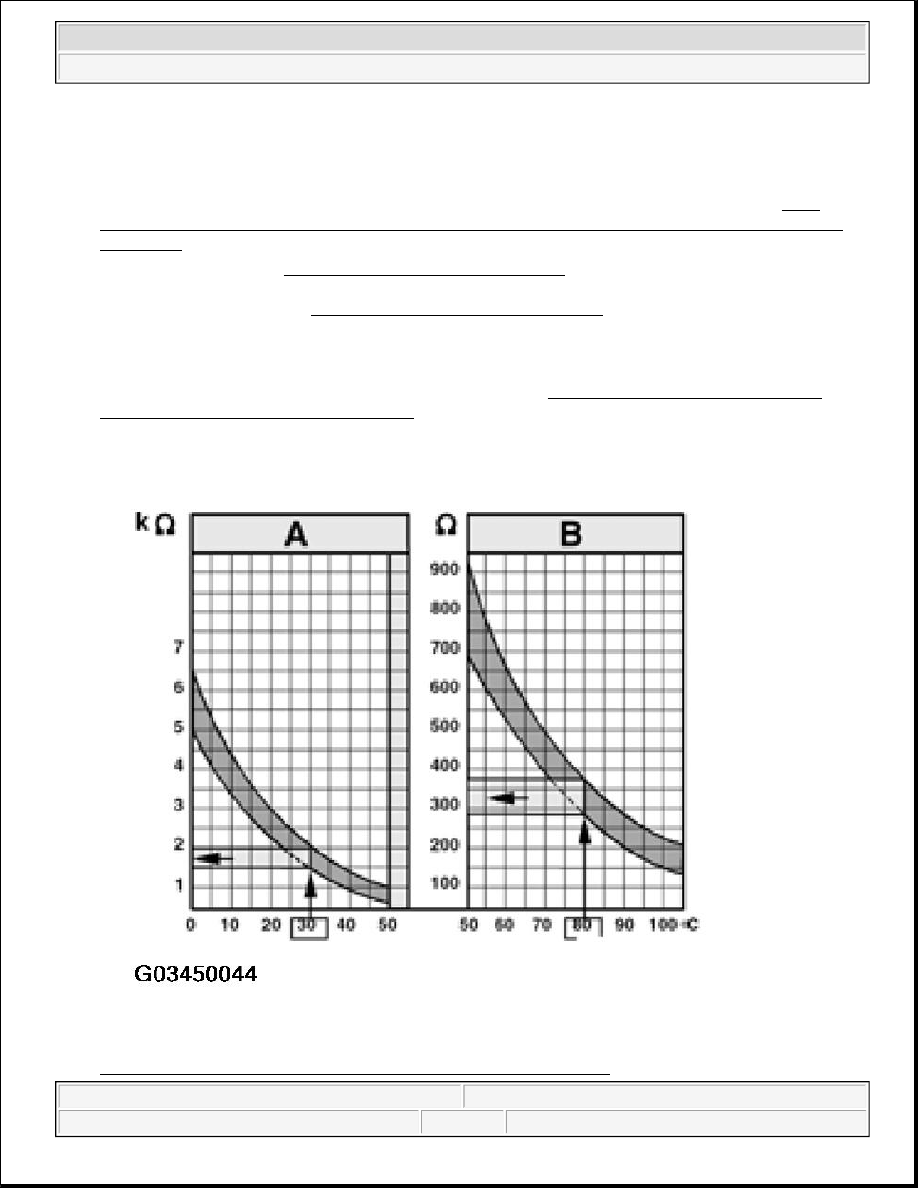

Fig. 69: IAT Sensor Resistance Versus Temperature Range Graph



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
