Volkswagen New Beetle. Manual - part 1618





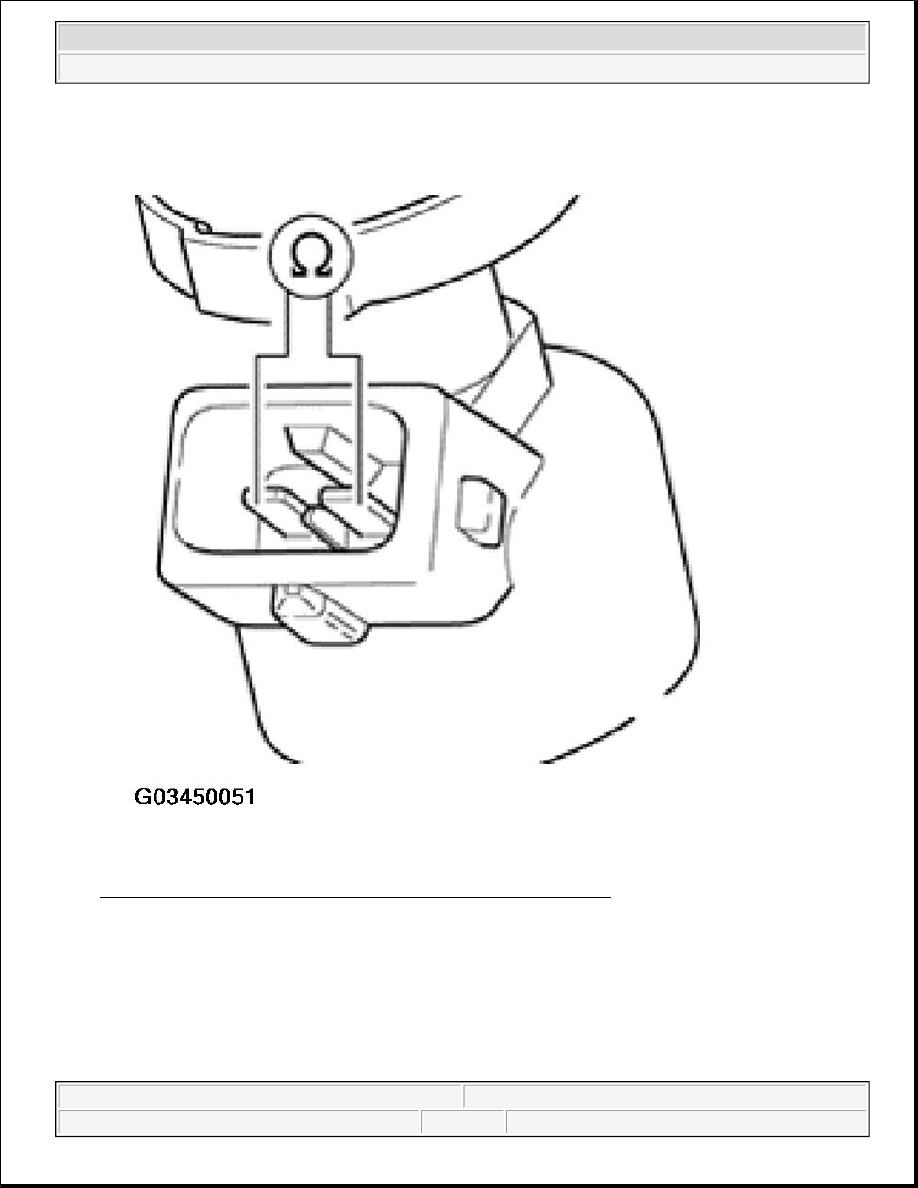

Fig. 76: Checking Resistance Of Fuel Injectors Between Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Specification: 12.0 to 17.0

If the specification is not obtained:

NOTE:

The resistance figures are valid for approx. 20°C. At higher temperature the
resistance figures will increase.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Replace malfunctioning fuel injector, see item 10 .

Pay attention to the following when installing the fuel injector:

z

Replace O -rings on all fuel injectors and lightly moisten with clean engine oil.

z

Insert fuel injectors vertically and in the correct position into the fuel rail and secure with retaining clips.

z

Install fuel rail with secured fuel injectors onto intake manifold and press in evenly.

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

Checking voltage supply

z

Disconnect connectors from fuel injectors.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



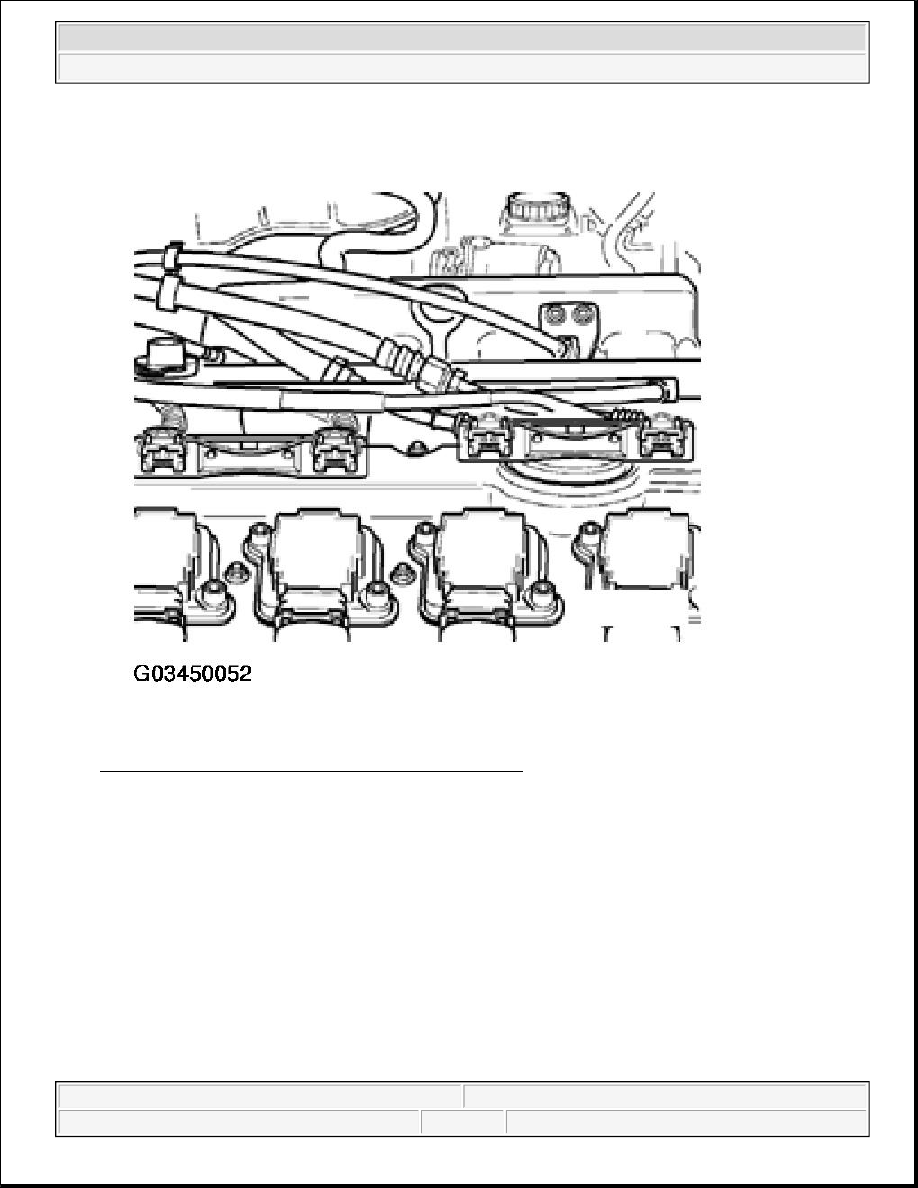

Fig. 77: Disconnecting Connectors From Fuel Injectors
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Connect LED test light to terminal 1 and Ground (GND) of relevant fuel injector connector.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

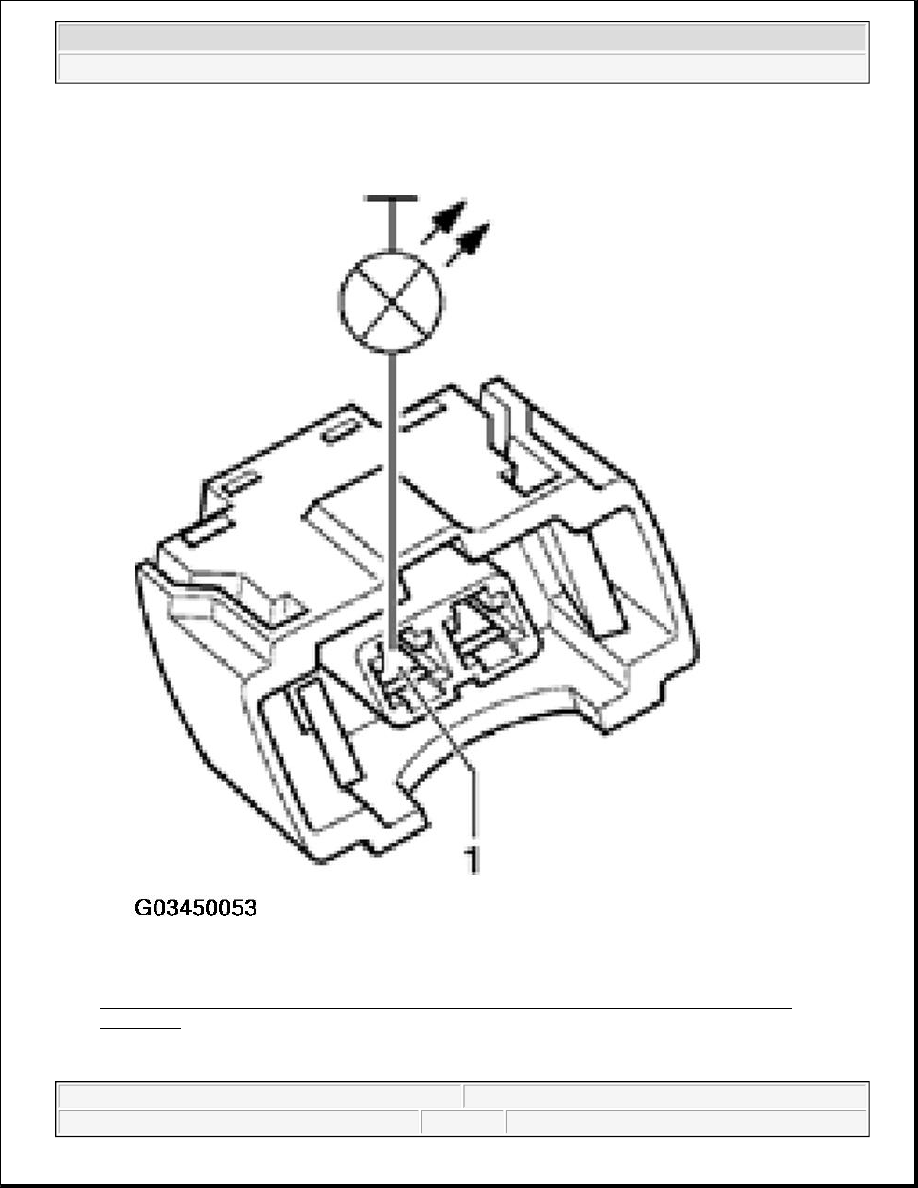

Fig. 78: Connecting LED Test Light To Terminal 1 And Ground Of Fuel Injector Harness
Connector

Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
