Volkswagen New Beetle. Manual - part 1604

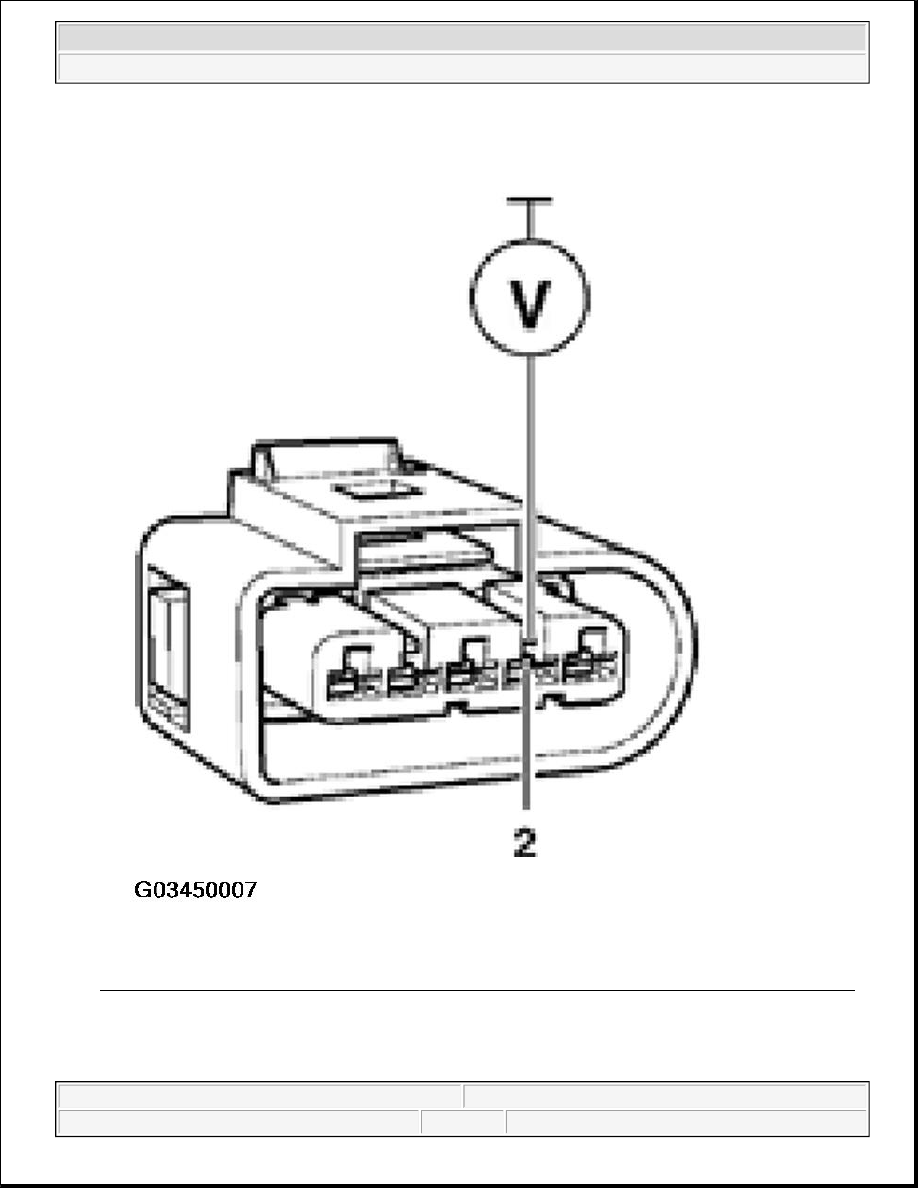

Fig. 32: Measuring Voltage Between Terminal 2 And Ground On MAF Sensor Harness Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Start engine and run at idle speed.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Specification: 11.0 to 15.0 V

If no voltage is present:

z

Switch off ignition.

z

Check wire between 5 -pin connector terminal 2 and Fuel Pump (FP) Relay -J17- for open circuit using
Electrical Wiring Diagram.

Wire resistance: max. 1.5

If the voltage supply and wiring is OK:

z

Connect multimeter to measure voltage on connector terminal 4 and engine Ground (GND).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

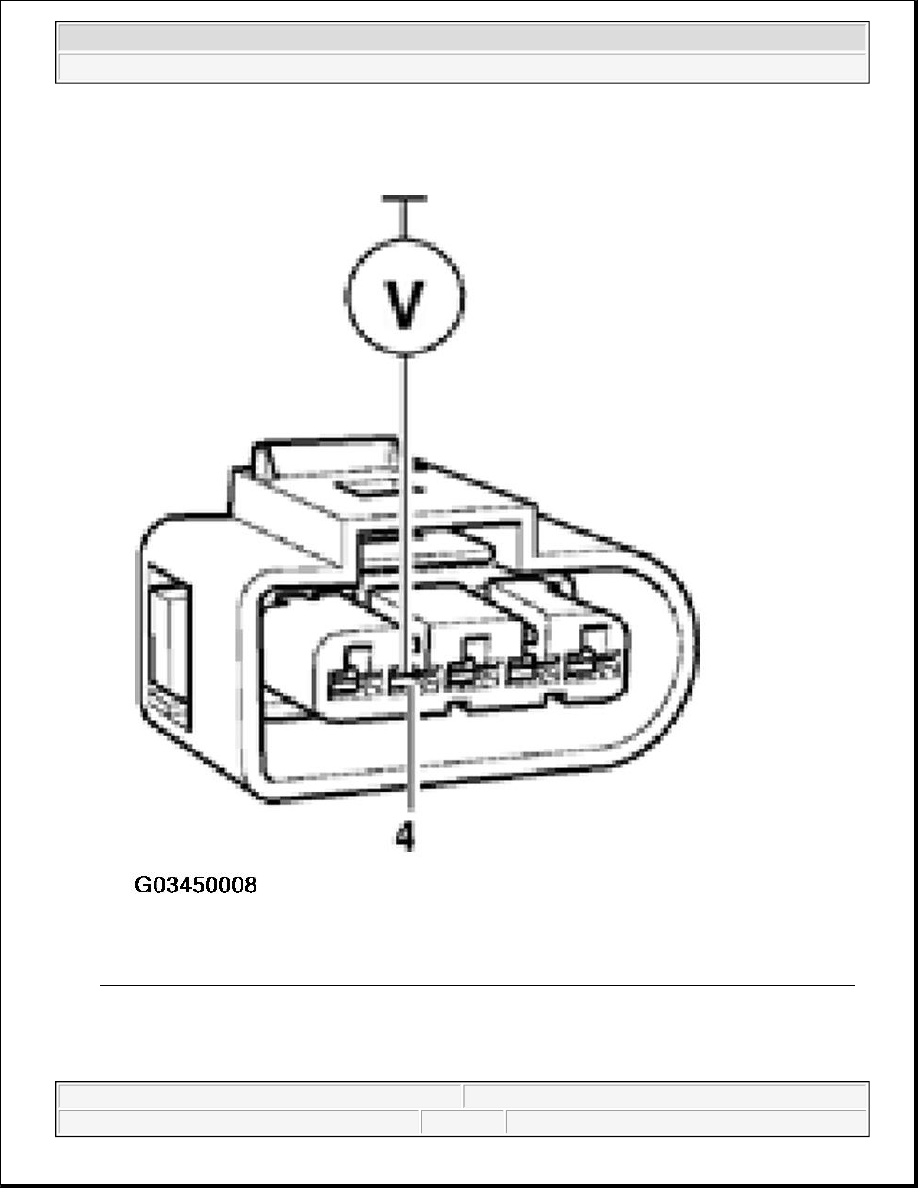

Fig. 33: Measuring Voltage Between Terminal 4 And Ground On MAF Sensor Harness Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Switch on ignition.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Specification: 4.5 to 5.5 V

If no voltage is present:

z

Switch off ignition.

z

Check signal and Ground (GND) wires, see TESTING SIGNAL AND GROUND (GND) WIRES FOR
MASS AIR FLOW (MAF) SENSOR -G70-
 .

Testing signal and Ground (GND) wires for Mass Air Flow (MAF) sensor -G70-

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect VAG 1598/31 test box to control module wiring harness. Motronic Engine Control Module
(ECM) -J220- is not connected by this action.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
