Volkswagen New Beetle. Manual - part 1602





Display: Htg.aC.ON:

z

Specification: 11.0 to 14.5 V

Display: Htg. aC.ON/Htg.aC.OFF (alternating):

z

Specification: Between 0.0 to 12.0 V fluctuating

If no voltage is present:

z

Switch off ignition.

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect VAG 1598/31 test box to control module wiring harness. Motronic Engine Control Module
(ECM) -J220- is not connected by this action.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Fig. 25: Connecting VAG 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between test box and 4 -pin connector according to Electrical Wiring
Diagram.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



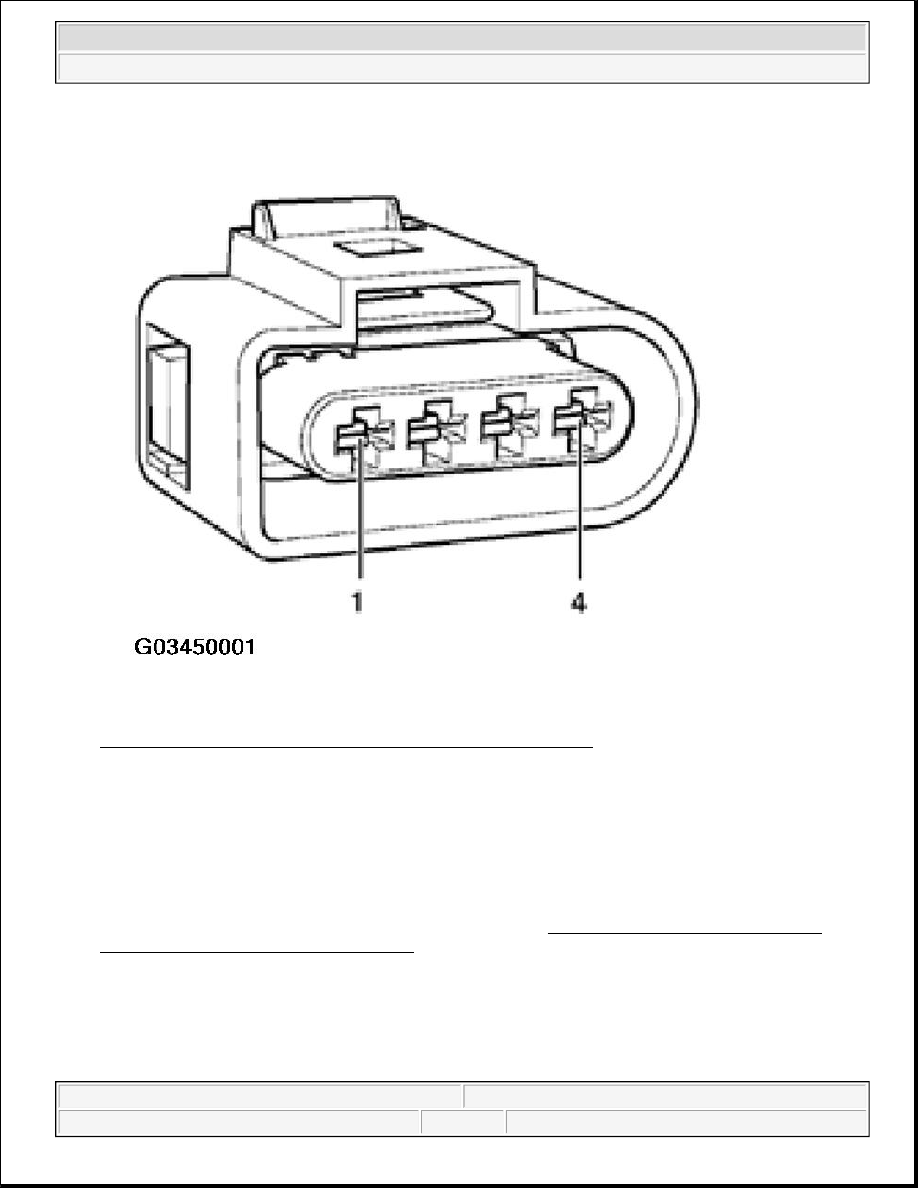

Fig. 26: Identifying HO2S -G130- Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

terminal 2 + socket 63:

z

Wire resistance: Max. 1.5

If no wiring malfunction is found:

z

Replace Motronic Engine Control Module (ECM) -J220-, see MOTRONIC ENGINE CONTROL
MODULE (ECM) - J220-, REPLACING
 .

Mass Air Flow (MAF) sensor, checking

NOTE:

Only gold-plated terminals can be used to repair terminals in the connector for
the Mass Air Flow (MAF) sensor.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1594 adapter set

z

Electrical Wiring Diagram

Test conditions

z

All fuses must be OK

z

Battery voltage must be at least 11.5 V

z

Fuel pump relay must be OK. Fuse holder is located behind access panel at far left end of dash.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
