z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING

If oxygen sensor heating has continuity:

Checking voltage supply

z

Set multimeter to measure voltage and connect to terminal 1 (connector to Motronic Engine Control
Module (ECM) -J220-) and Ground (GND).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

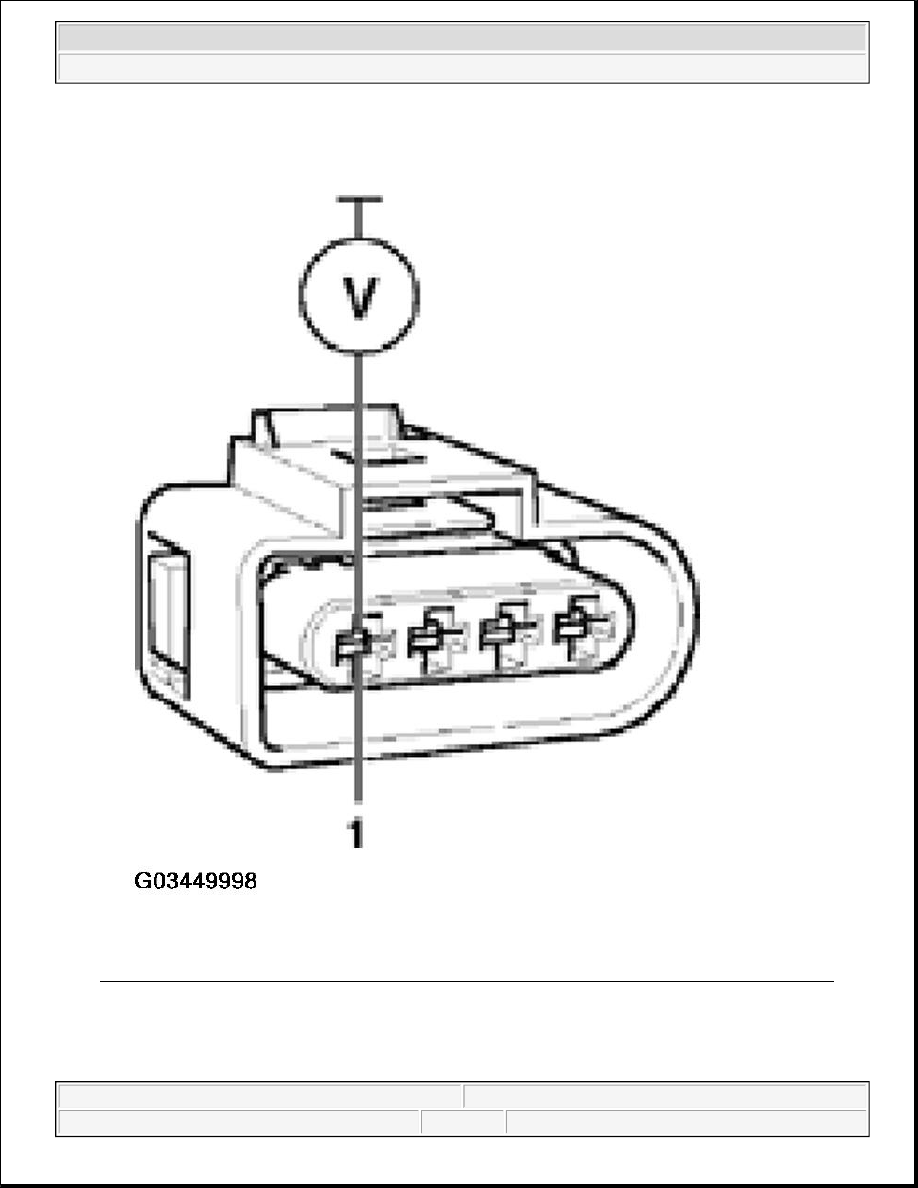

Fig. 23: Measuring Voltage Between HO2S -G130- Harness Connector Terminal 1 And Ground
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Start engine and run at idling speed.

z

Check voltage supply:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Specification: 11.0 to 14.5 V

If no voltage is present:

z

Check wiring from terminal 1 to Fuel Pump (FP) Relay -J17- according to Electrical Wiring Diagram.

If the specification is obtained:

z

Connect multimeter using auxiliary cables from VAG 1594 to measure voltage at terminals 1 + 2
(connector to Motronic Engine Control Module (ECM) -J220-).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

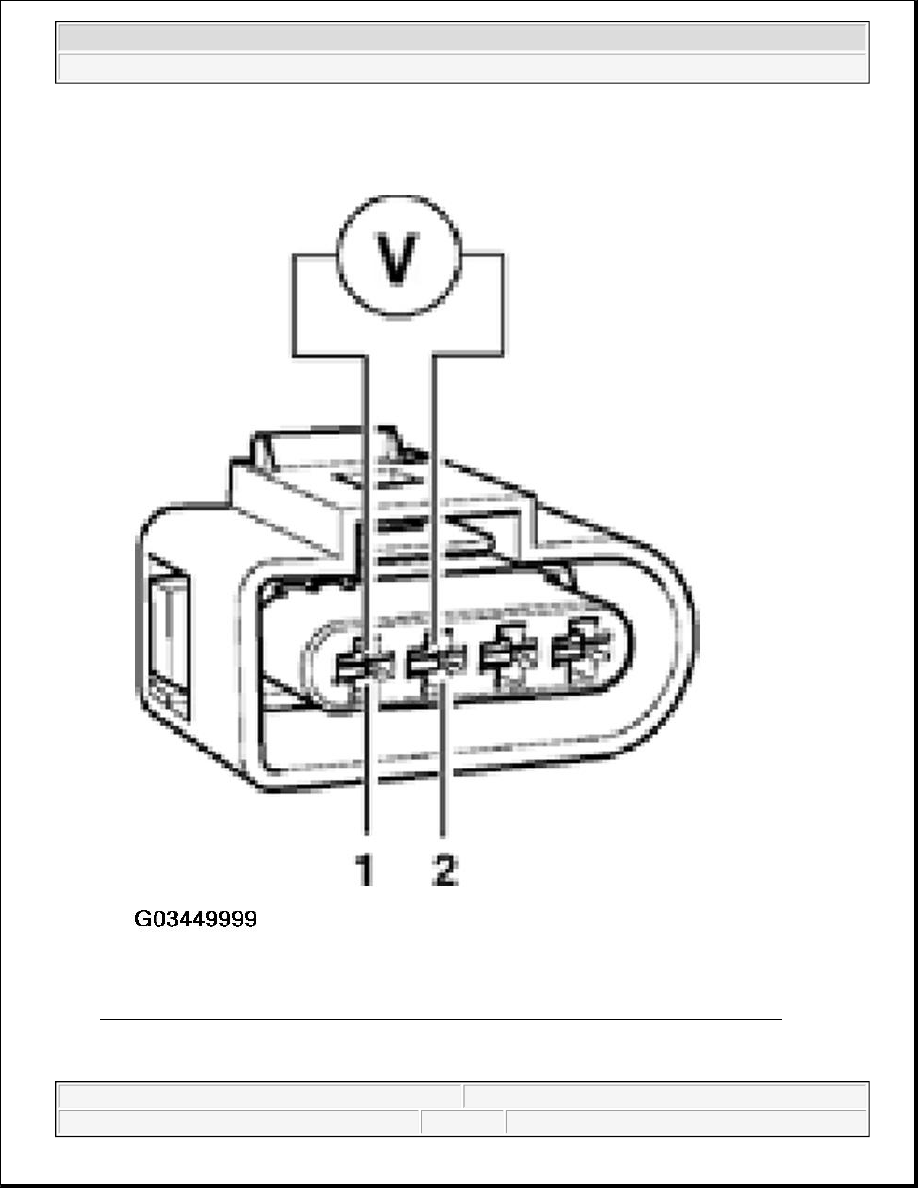

Fig. 24: Measuring Voltage Between HO2S -G130- Harness Connector Terminal 1 And 2
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Measure voltage supply and observe display group 41, display zone 4.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
