Volkswagen New Beetle. Manual - part 1605





Fig. 34: Connecting VAG 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between test box and 5 -pin connector using Electrical Wiring Diagram.

{

terminal 5 + socket 29

{

terminal 4 + socket 53

{

terminal 3 + socket 27

Wire resistance: Max. 1.5



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

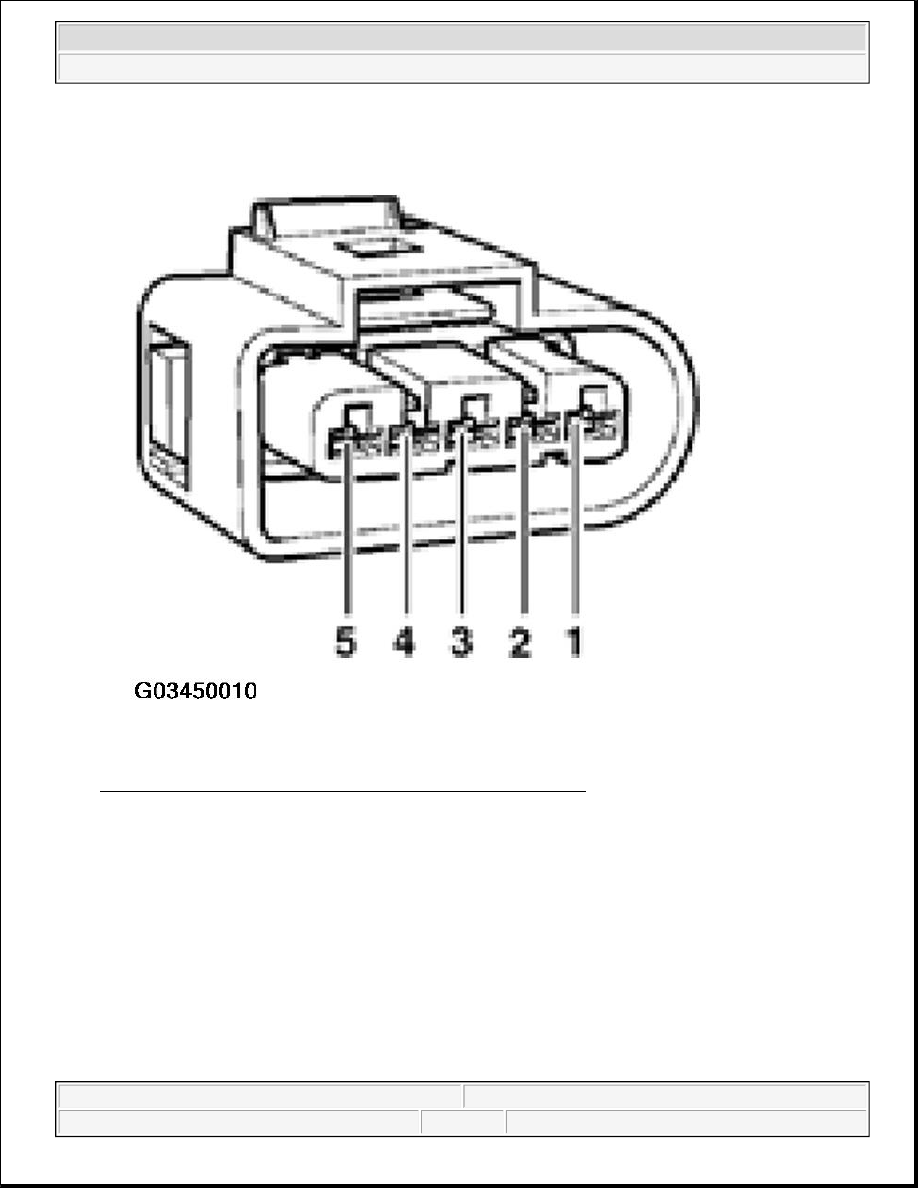

Fig. 35: Identifying MAF Sensor Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Additionally check wires all for short to one another.

Specification:

z

Check wiring additionally for short circuit to battery positive/Ground (GND).

If no wiring malfunction is found:

z

Replace Mass Air Flow (MAF) sensor -G70-, see item 2 .

NOTE:

Socket 1 in Mass Air Flow (MAF) sensor and connector is not occupied.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

Throttle Valve Control Module -J338-, checking

Components of Throttle Valve Control Module - J338-: Throttle valve drive -G186-, Angle sensor 1 for throttle
valve drive -G187- and Angle sensor 2 for throttle valve drive -G188-.

See DIAGNOSIS - 01M

Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1594 adapter set

z

Electrical Wiring Diagram

Test conditions

z

Engine not running, ignition switch on

z

Throttle valve not damaged or dirty

z

On vehicles with automatic transmission selector lever in "P" or "N" position

z

Engine Coolant Temperature (ECT) must be at least 80 °C display group 04, display zone 3

z

Connect VAG 1551 scan tool (or VAG 1552). Switch ignition on and select Motronic Engine Control
Module (ECM) -J220- with "Address word" 01. Connecting scan tool and selecting Motronic Engine
Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND SELECTING MOTRONIC
ENGINE CONTROL MODULE (ECM) -J220-

NOTE:

z

If the Throttle Valve Control Module -J338- is replaced, the new control
module must be adapted to the Motronic Engine Control Module (ECM) -
J220-, see MOTRONIC ENGINE CONTROL MODULE (ECM) - J220- TO
THROTTLE VALVE CONTROL MODULE - J338-, ADAPTING .

z

On vehicles with an automatic transmission, the transmission control
module must also be adapted:

NOTE:

Only gold-plated terminals can be used to repair the terminals in the connector
for the Throttle Valve Control Module -J338-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Indicated on display

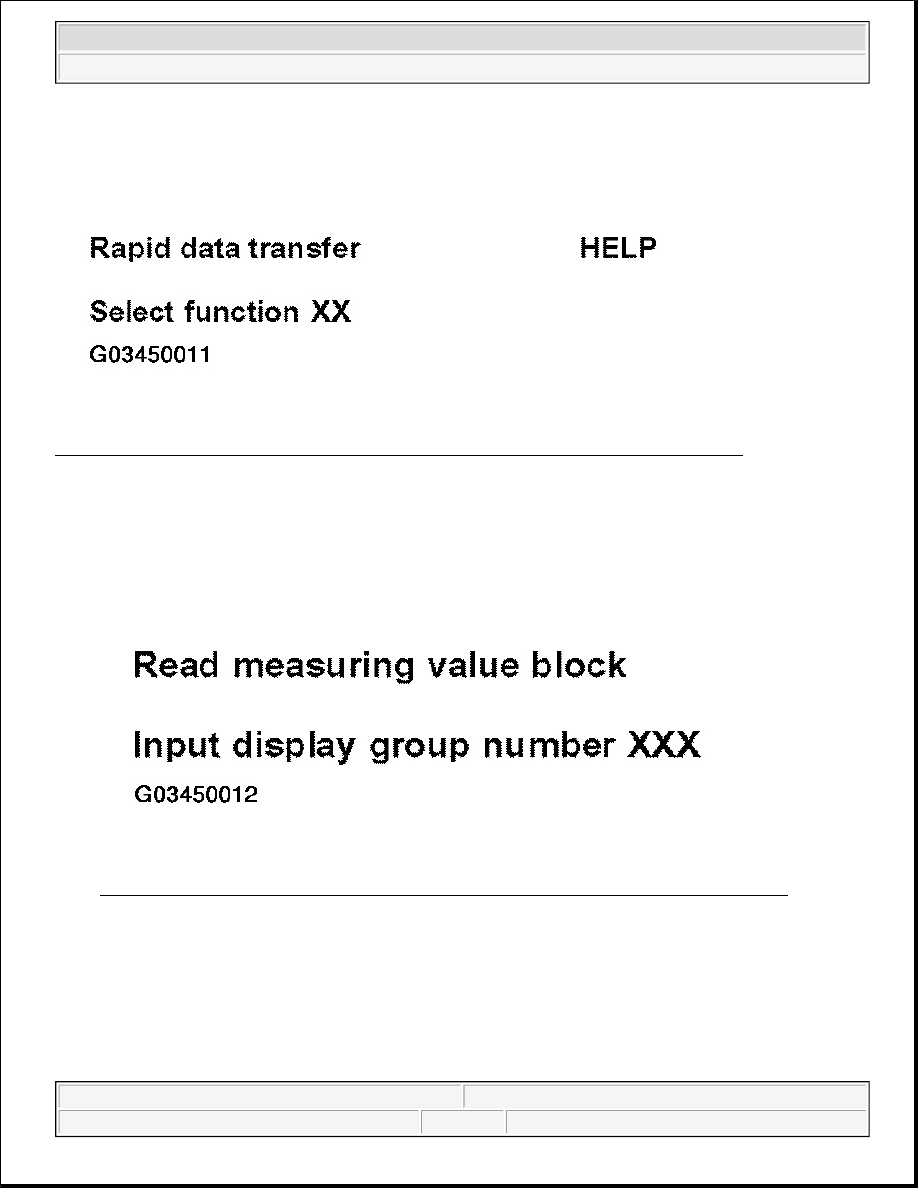

Fig. 36: Identifying Scan Tool Display - Checking Throttle Valve Control Module (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- for function "Read measuring value block" and confirm entry with -Q- button.

Indicated on display

Fig. 37: Identifying Scan Tool Display - Checking Throttle Valve Control Module (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -6- and -2- for "Display group number 62" and confirm entry with -Q- button.

Indicated on display (1 to 4 Display zones)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
