Volkswagen New Beetle. Manual - part 1598





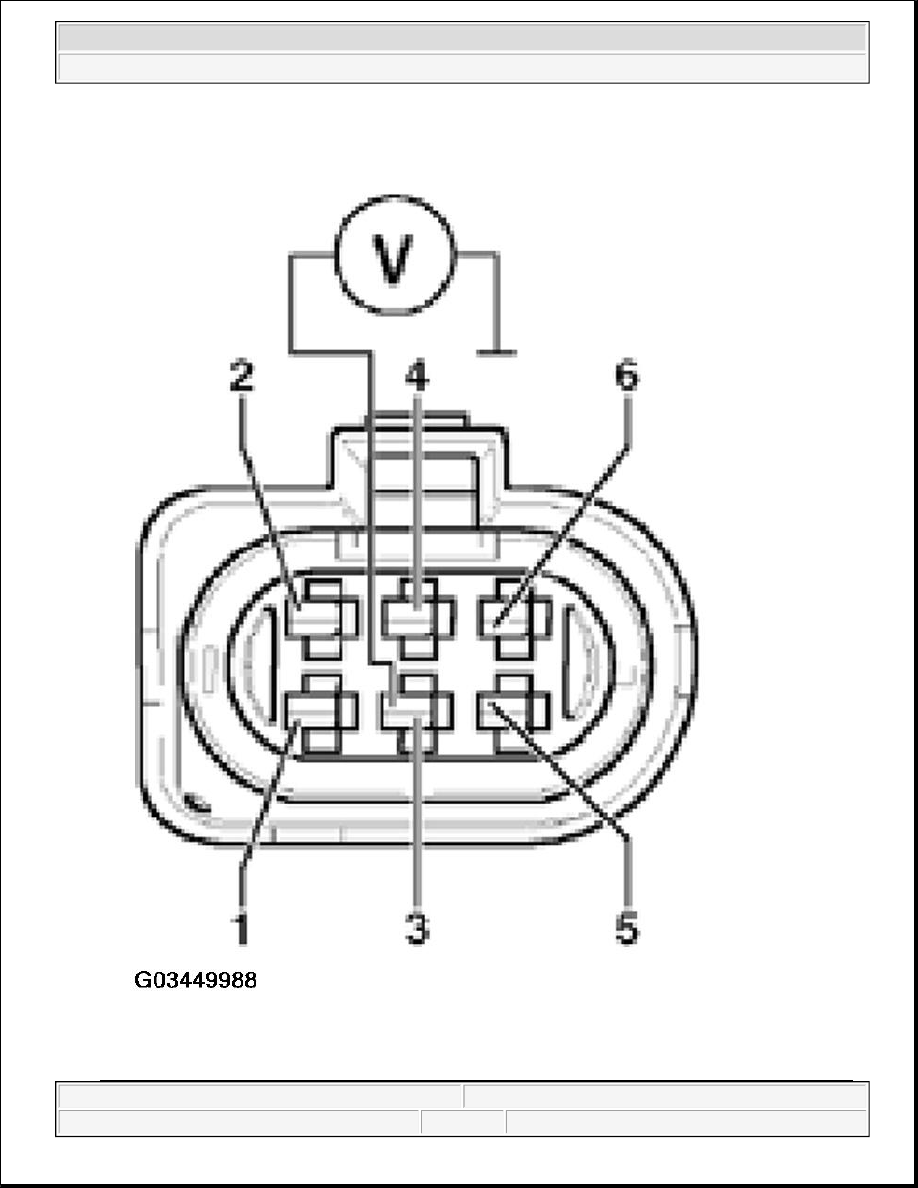

Fig. 13: Measuring Voltage Between Terminal 3 And Ground On HO2S -G39- Harness Connector



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Start engine and run at idling speed.

z

Measure voltage supply:

Specification: 11.0 to 14.5 V

If the specification is not obtained:

z

Check wiring from terminal 3 to Fuel Pump (FP) Relay -J17- using Electrical Wiring Diagram.

If the specification is obtained:

z

Connect multimeter using aux. cables from VAG 1594 to measure voltage at terminals 3 and 4 (connector
to Motronic Engine Control Module (ECM) -J220-).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

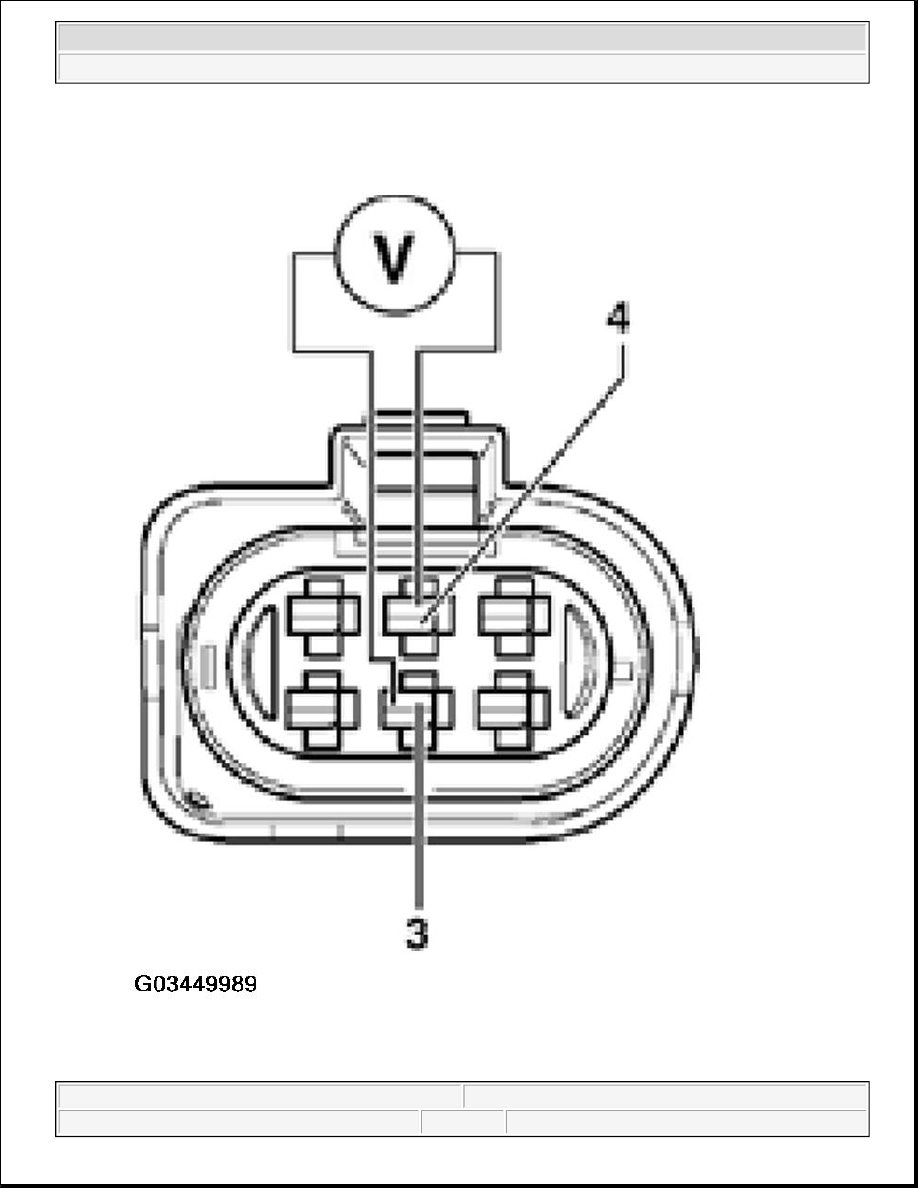

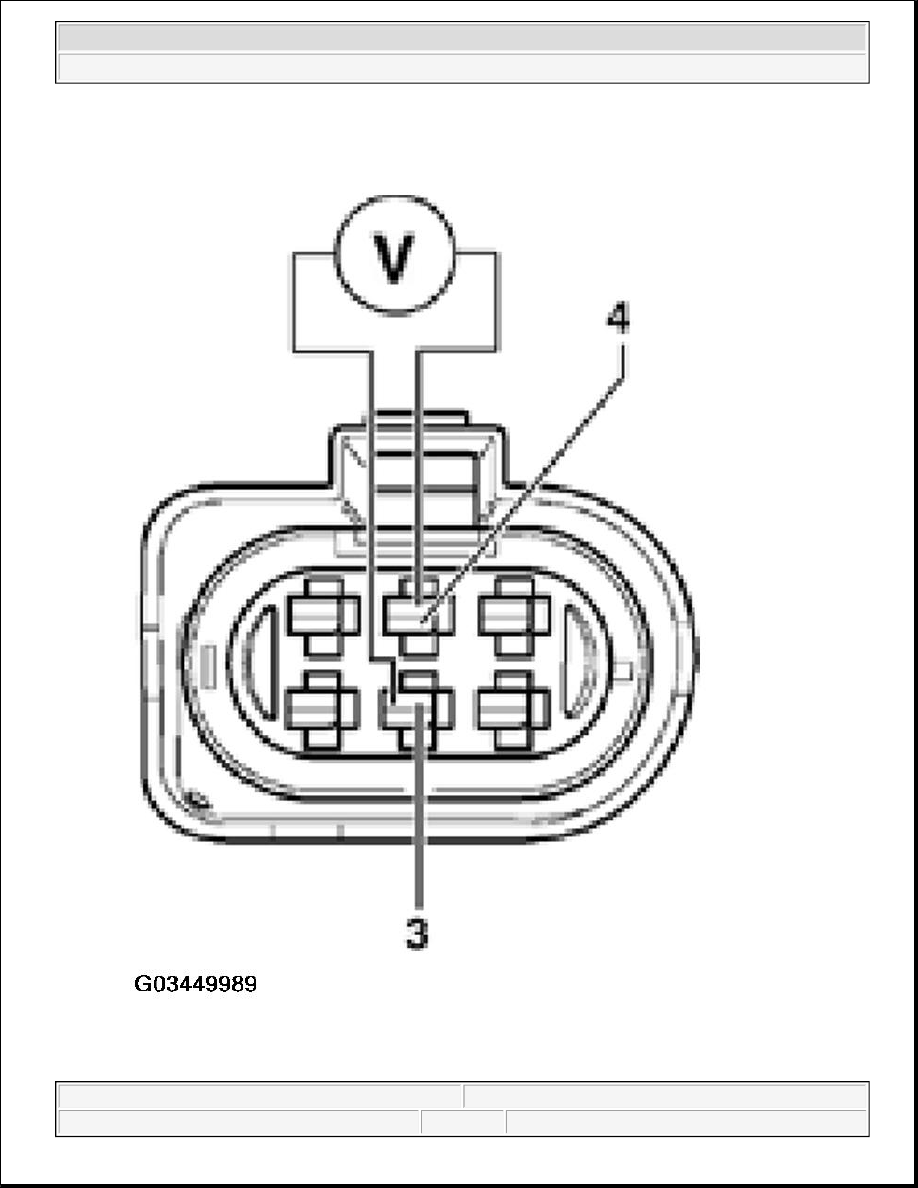

Fig. 14: Measuring Voltage Between Terminal 3 And 4 On HO2S -G39- Harness Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Measure voltage supply and note display group 41, display zone 2.

Display: Htg.bC.ON:

z

Specification: 11.0 to 14.5 V

Display: Htg. bC.ON/Htg.bC.OFF (alternating):

z

Specification: Between 0.0 to 12.0 V fluctuating

z

Switch off ignition.

If no voltage is present:

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect VAG 1598/31 test box to control module wiring harness. Motronic Engine Control Module
(ECM) -J220- is not connected by this action.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
