If the specification is obtained:

z

Press button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

Continuation

If the specifications are not obtained:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

z

Remove protective cover -arrows- and separate 6-pin connector (black) -1- to Heated Oxygen Sensor
(HO2S) before Three Way Catalytic Converter (TWC) -G39-.

NOTE:

The Heated Oxygen Sensor (HO2S) may be switched ON or OFF depending on
the operating conditions of the engine, therefore the display in display zone 2
may show "Htg.bC.ON" or alternating from "Htg.bC.ON" to "Htg.bC.OFF."



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

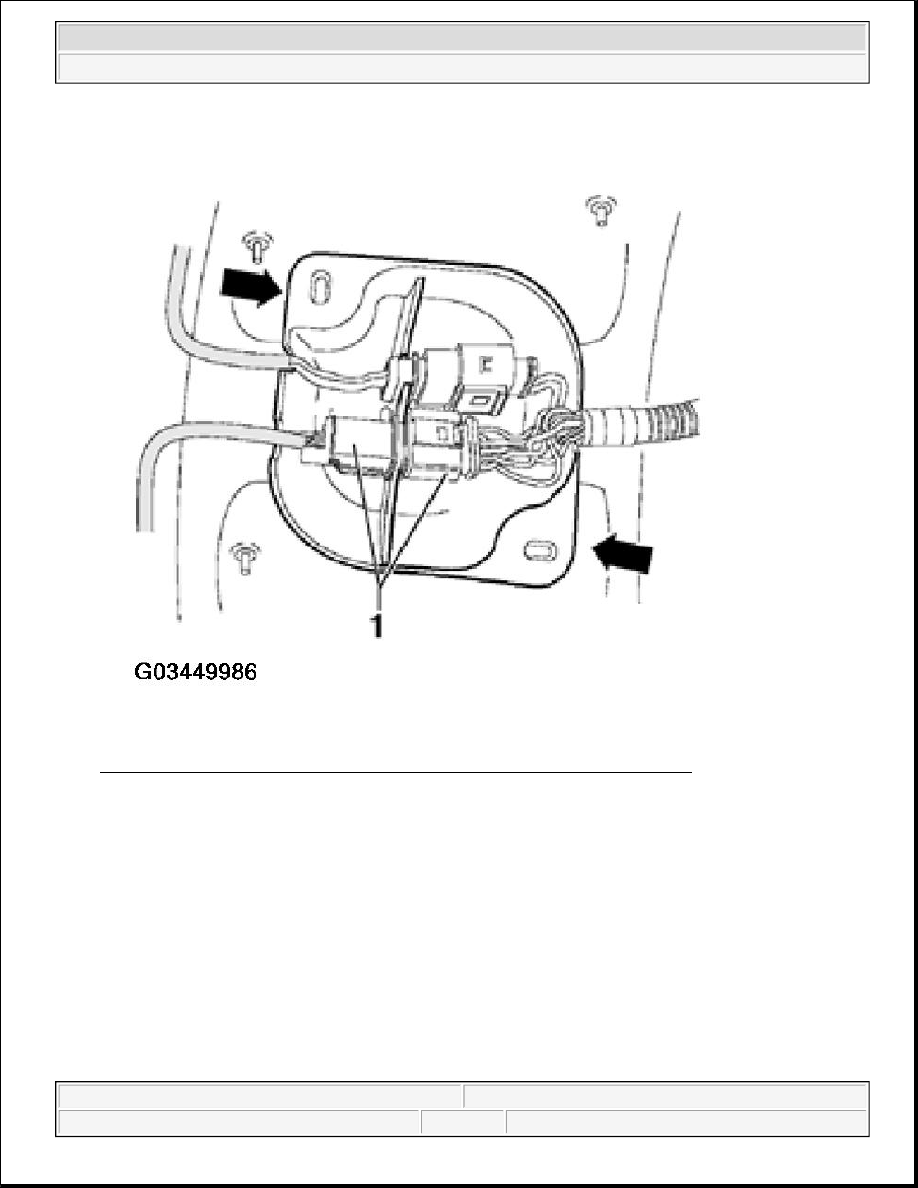

Fig. 11: Separating 6-Pin Connector (Black) -1- To HO2S -G39- Before TWC
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Set multimeter to measure resistance and connect it to terminals 3 + 4 of connector to oxygen sensor.
Check oxygen sensor heating for closed circuit.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

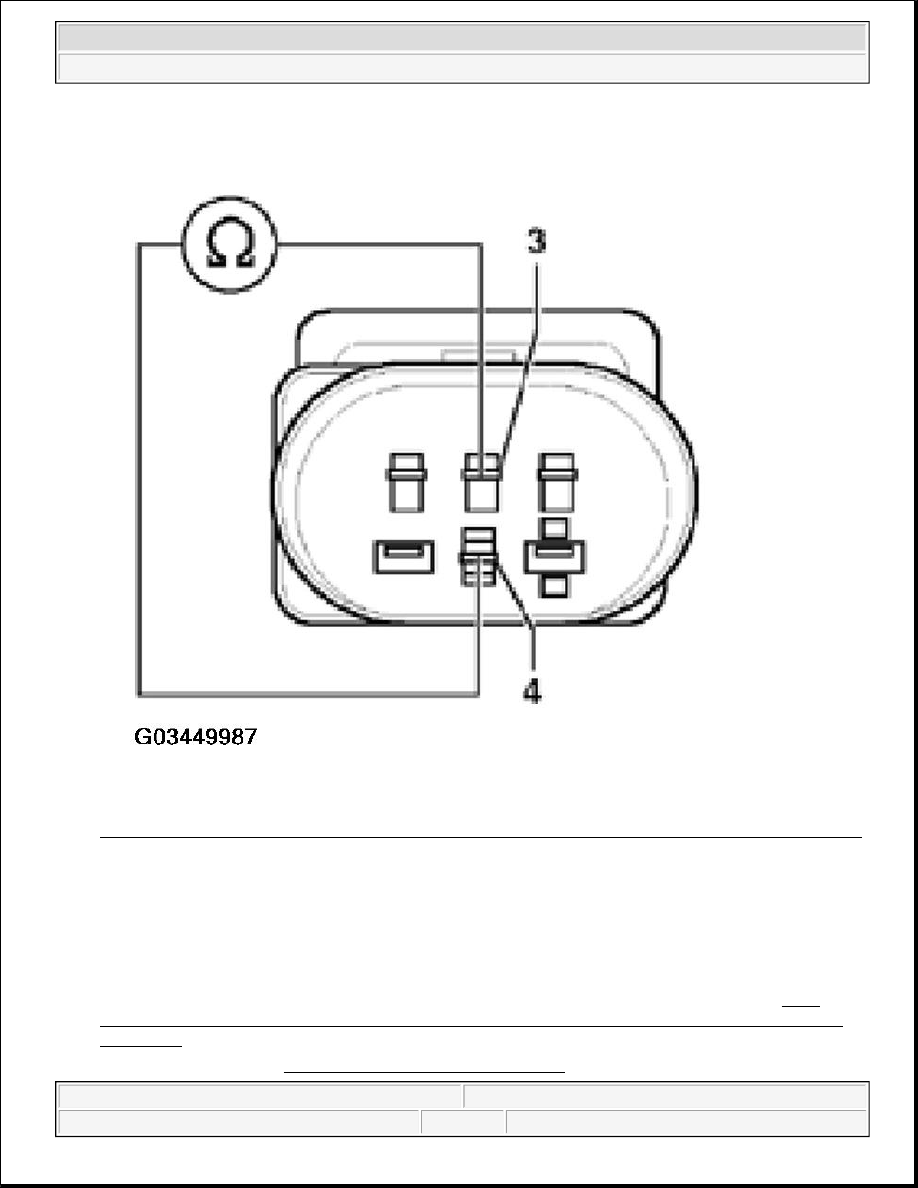

Fig. 12: Measuring Resistance Between Terminals 3 And 4 Of HO2S -G39- Before TWC Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.


Specification: 2.5...10 (at room temperature)

If it is determined that oxygen sensor heating has an open circuit:

z

Replace Heated Oxygen Sensor (HO2S) -G39-.

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

If oxygen sensor heating has continuity:

Checking voltage supply

z

Set multimeter to measure voltage and connect to terminal 3 (connector to Motronic Engine Control
Module (ECM) -J220-) and Ground (GND).
