See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect test box V.A.G 1598/31 to control module wiring harness. Engine control module remains
disconnected.

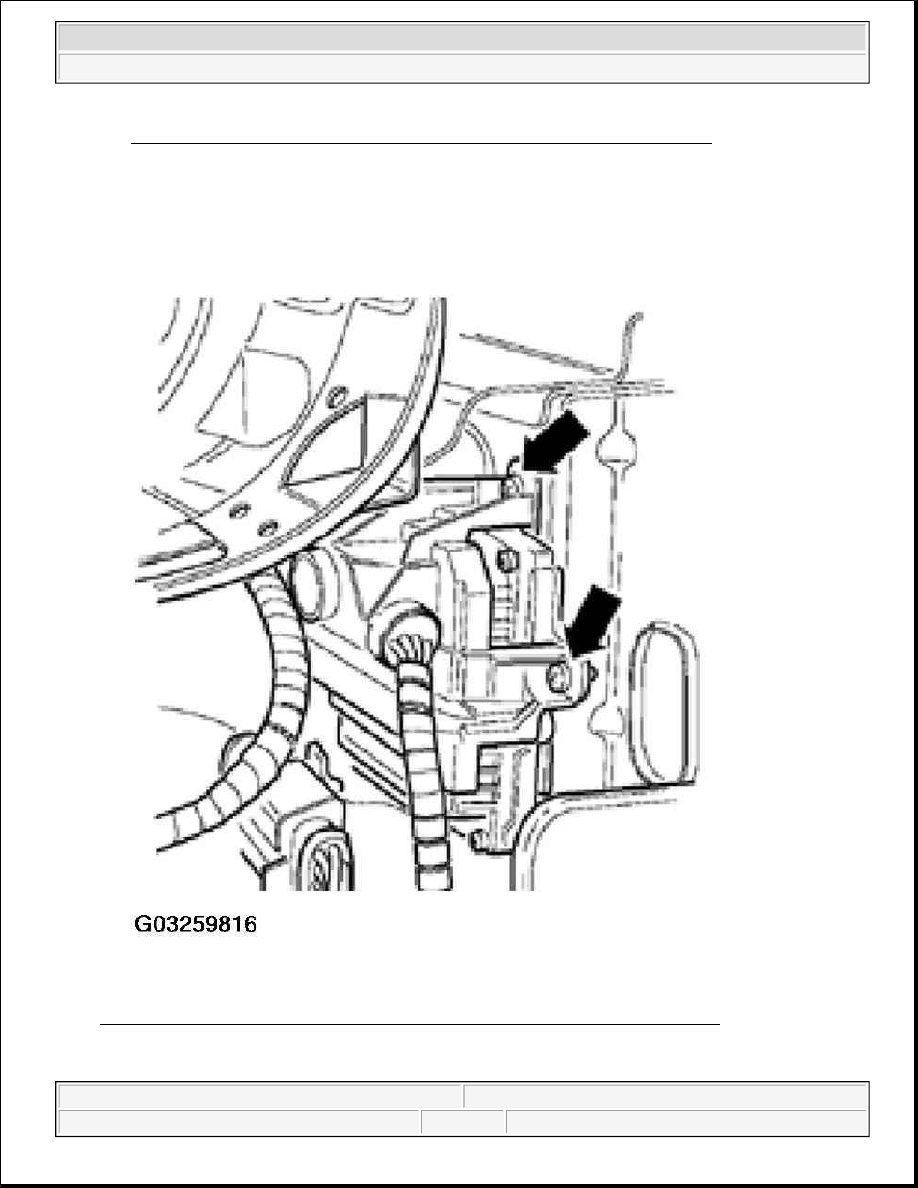

Fig. 32: Connecting Test Box V.A.G 1598/31 To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Multiport Fuel Injection (MFI) - New Beetle, 2.0L (AEG, AVH, AZG, BDC, BEV & BGD)



z

Remove intake manifold upper part. See INTAKE MANIFOLD UPPER PART, REMOVING AND
INSTALLING
 .

z

Disconnect connectors from all injectors.

z

Remove securing bolts on fuel rail.

Engine codes AVH, AZG, BDC

z

Pull vacuum hose off fuel pressure regulator.

z

Pull hose off air pipe for air shrouded injectors (See Fig. 15 , item -5-).

Continuation for all models

z

Lift fuel rail along with injectors off intake manifold and support.

z

Bridge test box sockets 1 and 65 using adapter cable from adapter set V.A.G 1594.

z

Switch on ignition.

Checking for leaks

z

Check injector for leaks (visual check).

z

Only 1 to 2 drops per minute must emit from each injector when fuel pump is running.

If the fuel loss is greater:

z

Switch off ignition and replace leaky injector.

z

Erase fault memory to return learned values to a neutral (default) position. See ENGINE CONTROL
MODULE FAULT MEMORY, INTERROGATING AND ERASING
 .

Checking quantity injected

Requirements

z

Test box V.A.G 1598/31 still connected and test box sockets 1 and 65 are still bridged using adapter
cables from adapter set V.A.G 1594.

z

Insert injector to be checked in a measuring glass of calibration tester V.A.G 1602.

z

Connect one contact of injector to be tested to engine Ground using adapter cables from V.A.G 1594.

NOTE:

This work sequence allows the fuel pump to run when the engine is not
running.

NOTE:

Always replace O-rings on all injectors after first moistening the new O-ring
with clean engine oil.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Multiport Fuel Injection (MFI) - New Beetle, 2.0L (AEG, AVH, AZG, BDC, BEV & BGD)



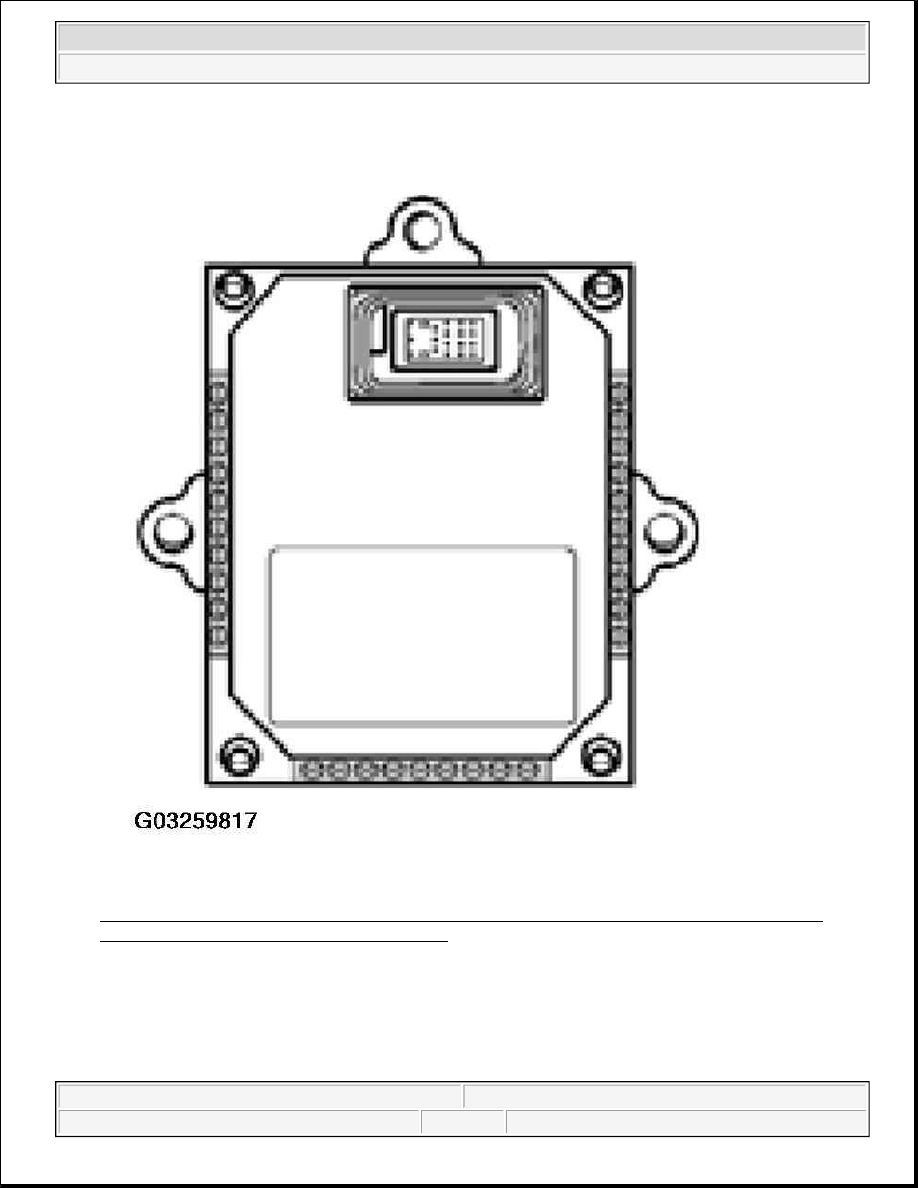

Fig. 33: Using Adapter Cables Connecting Second Injector Contact To Remote Control V.A.G
1348/3A With Adapter Cable V.A.G 1348/3-2

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Using adapter cables connect second injector contact to remote control V.A.G 1348/3 with adapter cable
V.A.G 1348/3-2.

z

Connect alligator clip to Battery positive (+).

z

Switch on ignition, fuel pump must run.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Multiport Fuel Injection (MFI) - New Beetle, 2.0L (AEG, AVH, AZG, BDC, BEV & BGD)



z

Operate remote control V.A.G 1348/3 for 30 seconds.

z

Repeat check on other injectors. Use another (clean and dry) measuring beaker for this.

z

After all injectors have been activated, place measuring glasses on a horizontal surface and compare
quantity injected.

z

Specification: 85...105 ml per injector

z

Replace faulty injector.

z

Erase fault memory to return learned values to a neutral (default) position. See ENGINE CONTROL
MODULE FAULT MEMORY, INTERROGATING AND ERASING
 .

Perform installation of injectors in reverse order. Note the following:

z

Replace O-rings on all injectors and moisten them lightly with clean engine oil.

z

Insert injectors vertically and in the correct position into the fuel rail and secure with retaining clips.

z

Set fuel rail with secured injectors on intake manifold and press in evenly.

FUEL PRESSURE REGULATOR AND HOLDING PRESSURE, CHECKING

Engine code AEG, AVH, AZG

z

Engine code BDC. See ENGINE CODE BDC

z

Engine codes BEV, BGD. See ENGINE CODES BEV, BGD

The fuel pressure regulator regulates the fuel pressure depending on intake manifold pressure.

Special tools, test equipment and auxiliary items

z

V.A.G1318 Pressure gauge

z

1318/10 Adapter

z

1318/11 Adapter

z

1318/16 Adapter

z

V.A.G 1921 hose clamp pliers

NOTE:

If the measured values of one or more injectors are above or below the
prescribed specifications:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Multiport Fuel Injection (MFI) - New Beetle, 2.0L (AEG, AVH, AZG, BDC, BEV & BGD)
