Volkswagen New Beetle. Manual - part 1572





z

On replacement, control module must be matched to the electronic immobilizer. See
COMPONENTS AND FUNCTIONS, ADAPTING

z

Replacing. See ENGINE CONTROL MODULE

3. 28-pin harness connector

z

Only disconnect or connect with ignition switched OFF

z

Release to disconnect

4. 52-pin connector

z

Only disconnect or connect with ignition switched OFF

z

Release to disconnect

5. 2-pin harness connector

z

For Secondary Air Injection (AIR) solenoid valve -N112-

6. Air filter

z

Disassembling and assembling. See AIR CLEANER, DISASSEMBLING AND ASSEMBLING

7. 10 N.m

8. To Secondary Air Injection (AIR) pump -V101-

9. Mass Air Flow (MAF) sensor -G70-

10. Air duct

z

In wheelhousing

11. 4-pin harness connector

z

Blue

z

for Engine Coolant Temperature (ECT) sensor -G62-

12. Engine Coolant Temperature (ECT) sensor -G62-

z

Blue

z

For Engine Control Module

z

With Engine Coolant Temperature sensor -G2-

z

If necessary, release pressure in cooling system before removing

13. Retaining clip

z

Ensure it is securely seated

14. pin harness connector

z

Gray

z

For Engine Speed sensor

15. Engine Speed (RPM) sensor -G28-

z

In transmission housing above starter ring gear

16. O-ring

z

Replace if damaged

17. Spacer

18. Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC)-G130-



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Multiport Fuel Injection (MFI) - New Beetle, 2.0L (AEG, AVH, AZG, BDC, BEV & BGD)



z

50 N.m

z

Location: in rear of catalyst

z

When replacing erase fault memory. See ENGINE CONTROL MODULE FAULT MEMORY,
INTERROGATING AND ERASING


19. 4-pin harness connector

z

Brown

z

ForO2S Behind TWC -G130- and O2S heater 1 -Z29-, cylinder bank 1

z

Right underside of vehicle

20. Heated Oxygen Sensor (HO2S) -G39-

z

50 N.m

z

In front exhaust pipe

z

Grease only threads with hot bolt paste G 052 112 A3. Grease must not get into slots on sensor
body

z

Sensor heater Voltage supply via Fuel pump (FP) relay -J17-

z

When replacing erase fault memory. See ENGINE CONTROL MODULE FAULT MEMORY,
INTERROGATING AND ERASING


21. 4-pin harness connector

z

Black

z

For HO2S -G39- and O2S heater -Z19-, cylinder bank 2

z

Right underside of vehicle

22. Intake rail, lower section

z

Disassembling and assembling lower section. See INTAKE MANIFOLD LOWER PART,
DISASSEMBLING AND ASSEMBLING


23. Fuel rail with injectors

z

Disassembling and assembling lower section. See INTAKE MANIFOLD LOWER PART,
DISASSEMBLING AND ASSEMBLING


24. Return line

z

Blue

z

Secure with spring clips

z

Ensure it is securely seated

z

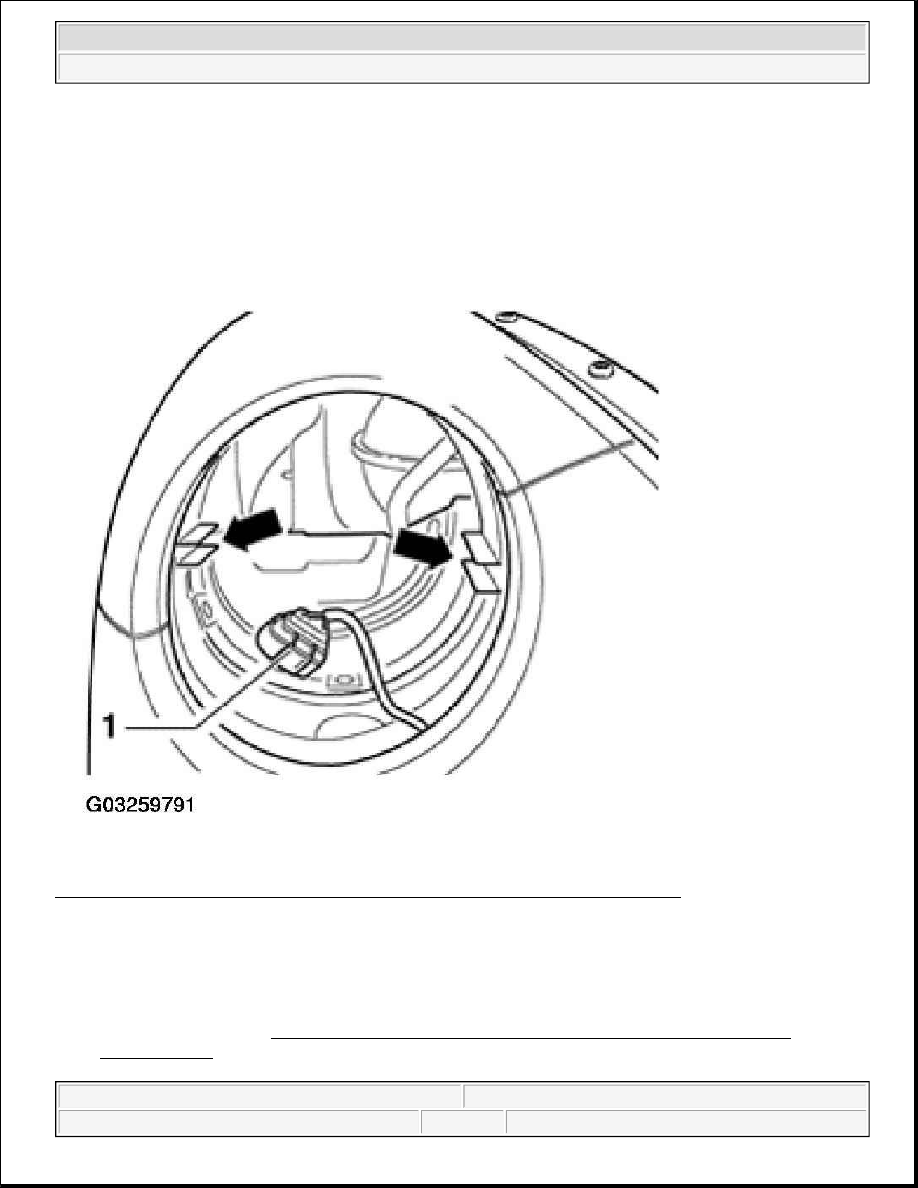

To fuel delivery unit in fuel tank

25. Supply line/hose

z

Black

z

From fuel filter

26. 2-pin harness connector

z

Black

z

For injectors -N30- to -N33-

27. Gasket



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Multiport Fuel Injection (MFI) - New Beetle, 2.0L (AEG, AVH, AZG, BDC, BEV & BGD)



z

Replace if damaged

28. 20 N.m (15 ft lb)

29. To Positive Crankcase Ventilation valve

30. Intake hose

Fig. 7: Exploded View Of Fuel Injection System Components (Engine Code AEG)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

INTAKE MANIFOLD UPPER PART, DISASSEMBLING AND ASSEMBLING

Engine codes AVH, AZG, BEV

z

Engine code AEG. See FUEL INJECTION SYSTEM COMPONENTS, REMOVING AND
INSTALLING
 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Multiport Fuel Injection (MFI) - New Beetle, 2.0L (AEG, AVH, AZG, BDC, BEV & BGD)



z

Engine codes BDC, BGD. See ENGINE CODES BDC, BGD

1. Intake manifold upper part

z

Removing and installing. See INTAKE MANIFOLD UPPER PART, REMOVING AND
INSTALLING


2. 6 N.m

3. Rubber bushing

z

For engine cover

4. To fuel pressure regulator

z

Only engine codes AVH, AZG

5. From Leak Detection Pump (LDP) -V144-

z

EVAP system. See EVAP SYSTEM COMPONENTS, SERVICING .

6. From EVAP canister purge regulator valve -N80-

z

Assembly overview of EVAP system. See EVAPORATIVE EMISSIONS (EVAP) SYSTEM,
ASSEMBLY
 .

7. 10 N.m

8. Connecting pipe

9. To brake servo vacuum line

10. Seal

z

Replace

11. To intake hose

12. Unions for coolant hoses

13. Throttle valve control module -J338-

z

When replacing, adapt (match) engine control module to throttle valve control module. See
COMPONENTS AND FUNCTIONS, ADAPTING

z

6-pin connector

z

Gold plated contacts

14. Seal

z

Replace

15. Connecting union

z

From Model Year 2002

z

To shaped hose for cylinder head cover or intake hose

NOTE:

The following list refers to items in Fig. 8 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Multiport Fuel Injection (MFI) - New Beetle, 2.0L (AEG, AVH, AZG, BDC, BEV & BGD)
