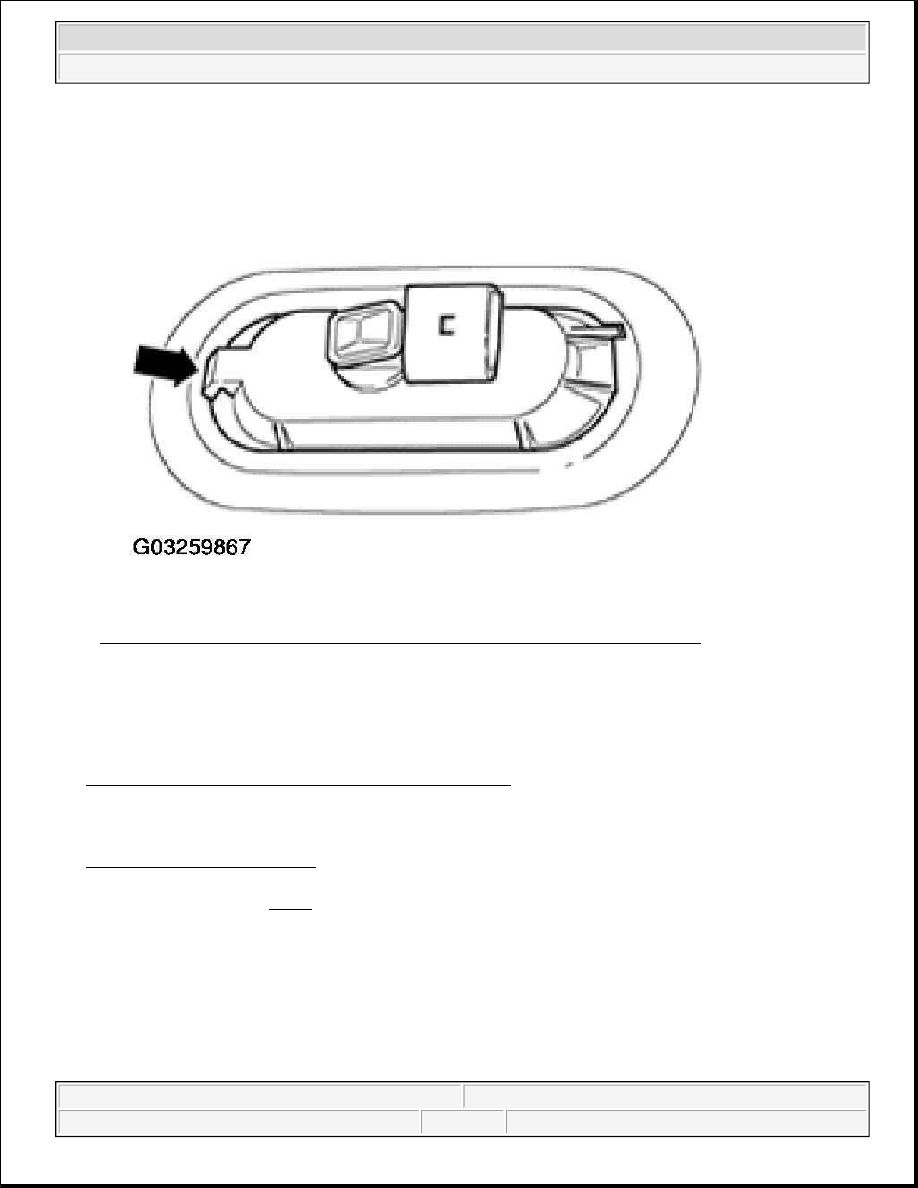

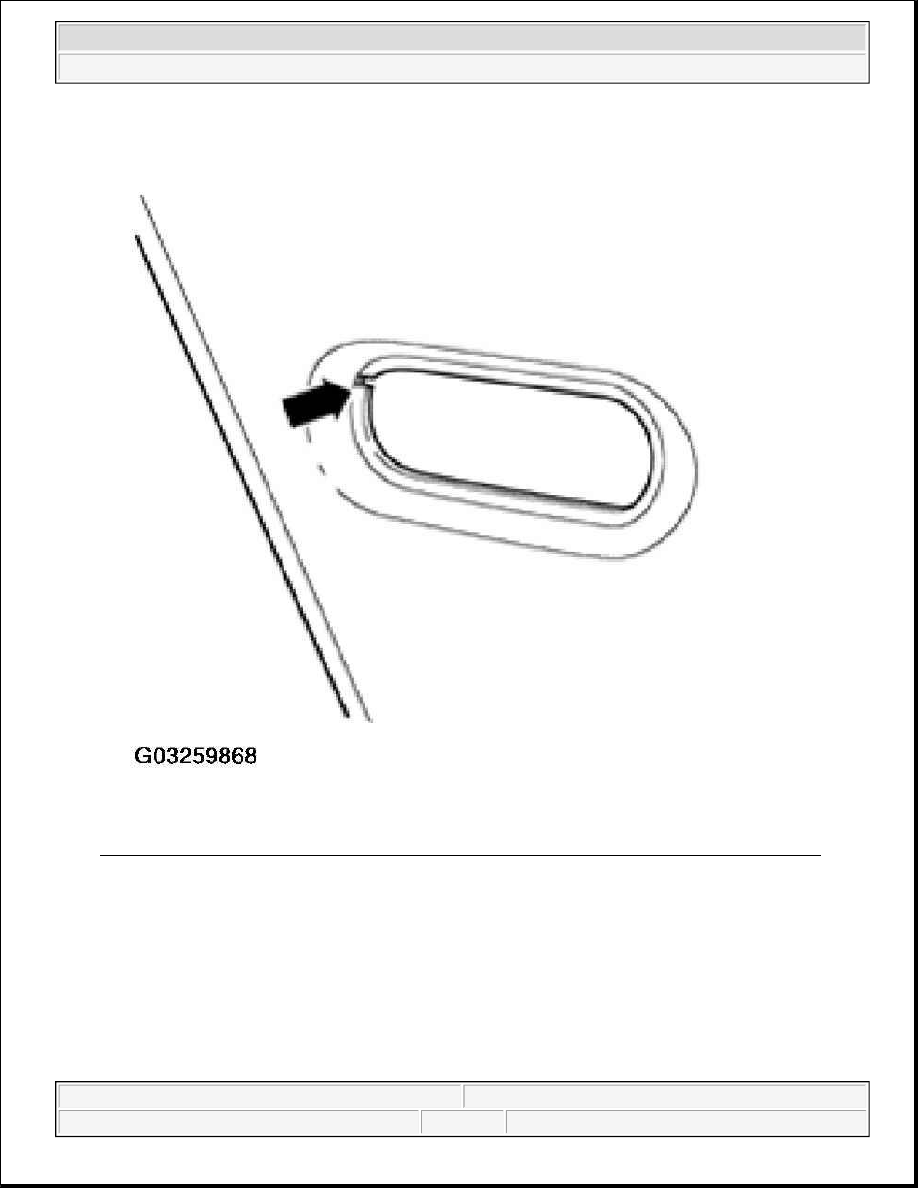

3. Snap ring z for Ignition Coil 1 with Power Output Stage -N70-, Ignition Coil 2 with Power Output Stage - z Replace if damaged 4. Spark plug, 30 Nm z remove and install with 3122 B z Type and spark plug gap, see TEST DATA, SPARK PLUGS 5. Connector z black, 3-pin z Terminals of sensor and connector are gold-plated 6. 10 Nm 7. Camshaft Position (CMP) Sensor -G40-* z Checking, see CHECK CAMSHAFT POSITION (CMP) SENSOR 8. 25 Nm 9. Washer z Conical 10. Face plate z For Camshaft Position (CMP) Sensor -G40- z note position when installing 11. 20 Nm z Tightening torque affects function of Knock Sensor (KS) 12. Knock Sensor (KS) 1 -G61-* z Terminals of sensor and connector are gold-plated z Component location: Cylinder block, intake side z Checking, see CHECK KNOCK SENSORS 13. Knock Sensor (KS) 2 -G66-* z Terminals of sensor and connector are gold-plated z Component location: Cylinder block, intake side z Checking, see CHECK KNOCK SENSORS 14. Connector z 2-pin z Terminals are gold-plated z Black for Knock Sensor (KS) 1 -G61- z Black for Knock Sensor (KS) 2 -G66- z Mark connector before removing 15. Ground (GND) wire z Do not loosen or tighten unless ignition is switched off.
2003 Volkswagen New Beetle GLS 1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L Generic Scan Tool - New Beetle
|
