If the specifications are obtained:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch ignition off.

If the specifications are not attained:

z

Press buttons -0- and -8- for "Read Measuring Value Block" function and confirm entry with Q button.

Indicated on display

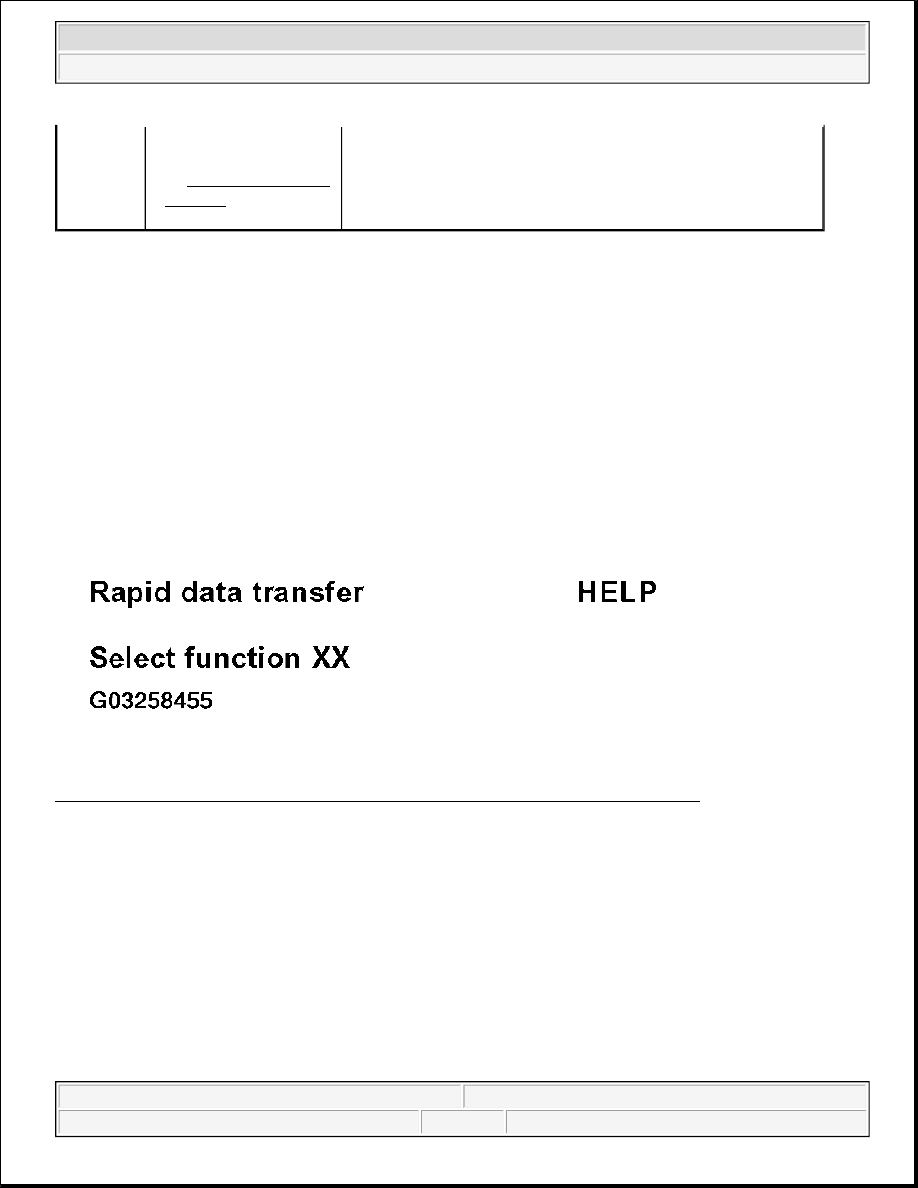

Fig. 56: V.A.G 1551 Scan Tool Display - Checking EVAP System For Leak (9 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -7- and -0- for "Display group number 70" and confirm entry with -Q- button.

Indicated on display: (1-4 = Display zones)

value

If a malfunction message

is indicated:

See CHECKING FOR

LEAKS checking for

leaks

If the specifications are not obtained: Check DTC memory,
See Diagnostic Trouble Code (DTC) Memory, Checking
And Erasing



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - New Beetle, 1.8L (APH, AWV & AWP)



Fig. 57: V.A.G 1551 Scan Tool Display - Checking EVAP System For Leak (10 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press button -4- for "Basic setting" function ("Tank venting valve diagnosis" will be initiated).

Indicated on display: (1-4 = Display zones)

NOTE:

The engine must not be loaded during this diagnosis because the diagnosis will
be interrupted and will not be started again until the engine is revved-up.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - New Beetle, 1.8L (APH, AWV & AWP)



Fig. 58: V.A.G 1551 Scan Tool Display - Checking EVAP System For Leak (11 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

When the diagnosis is initiated by the Engine Control Module, the display in display zone 4 jumps from "Test
OFF" to "Test ON."

z

Run engine at idling speed until specification "EVAP OK" is displayed in display zone 4.

DISPLAY IN DISPLAY ZONE CHECK

NOTE:

If the display jumps from "Test ON" to "Test OFF" during the test, rev up briefly
and the test will be repeated.

-

Display zones

1

2

3

4

Display group 70: Evaporative Emission (EVAP) system diagnosis (tank venting system)

Display

xxx.x %

xxx.x %

xxx %

Test OFF/Test ON

EVAP

(1)

 OK

EVAP not OK

Indicated

Opening of EVAP canister

purge regulator valve

during diagnostic

oxygen sensor

control value

Bank 1

Condition of EVAP

canister purge regulator

valve

(relative EVAP -

specification)

Diagnostic

condition and

Diagnostic result

Working

0.0-100.0%

-100.0-100.0%

0-199%

-



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - New Beetle, 1.8L (APH, AWV & AWP)



If "EVAP n. OK" appears in display zone 4:

z

Initiate output diagnostic test mode and activate EVAP Canister Purge Regulator Valve -N80-:

See Output Diagnostic Test Mode (DTM), Initiating

z

Read readiness code.

See Readiness Code, Displaying

If DTC memory has been erased or Engine Control Module separated from permanent (battery) positive,
readiness code must be generated again.

See Diagnostic Trouble Code (DTC) Memory, Checking And Erasing

If the specification "EVAP OK" is obtained:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch ignition off.

Checking for leaks

If a small or large leak is detected during the check of the Evaporative Emission (EVAP) system, proceed as
follows.

z

Switch ignition off.

z

Check whether sealing cap of fuel tank is completely closed or whether sealing ring is leaking, replace if
necessary.

z

Repeat functional check.

Is the malfunction still present:

z

Fold rear seat bench forward.

z

Remove cover under seat bench.

z

Check whether locking ring for fuel delivery unit is tight. It can be found under luggage compartment
floor trim. Replace seal if it is malfunctioning.

z

Tighten locking ring with special tool 3217.

range
Specified
value

-

-

-

EVAP OK.

(1)

TEV means EVAP canister purge regulator valve
