Volkswagen New Beetle. Manual - part 1466





z

Installation position: arrow points in direction of flow

11. Intake pipe before turbocharger

12. Fuel pressure regulator

13. Fuel rail with injectors

14. Intake manifold upper part

15. Throttle valve control module -J338-

16. Fuel filter

z

Installation position: Arrow points in throughflow direction

17. EVAP canister purge regulator valve -N80- */**

z

In engine compartment at right about wheel housing

z

Checking activation:

See Output Diagnostic Test Mode (DTM), Initiating

z

Checking function. See EVAP CANISTER PURGE REGULATOR VALVE -N80-,
CHECKING


18. Test connection

19. Gravity/overflow valve

Fig. 37: Overview Of Evaporative Emission System
Courtesy of VOLKSWAGEN OF AMERICA, INC.

EVAP CANISTER PURGE REGULATOR VALVE -N80-, CHECKING

In a no-current situation the valve is closed.

Checking activation, Output Diagnostic Test Mode (DTM):

See Output Diagnostic Test Mode (DTM), Initiating



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - New Beetle, 1.8L (APH, AWV & AWP)



Special tools and equipment

z

VAG 1551 Scan Tool

Fig. 38: Identifying VAG 1551 Scan Tool
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

VAG 1551/3 Cable

Fig. 39: Identifying VAG 1551/3 Cable
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Test conditions

z

Fuse No. 43 must be OK

NOTE:

The VAG 1552 vehicle system tester can be used instead of the VAG 1551
Scan Tool, however a print-out is not possible.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - New Beetle, 1.8L (APH, AWV & AWP)



Fig. 40: Identifying Location Of Fuse No. 43
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Coolant temperature must be at least 85°C. See display group 04, display zone 3

Functional check

z

Connect VAG 1551 Scan Tool (VAG 1552). Start engine and select Engine Control Module with
"Address word" 01. Connecting scan tool and selecting Engine Control Module:

See V.A.G 1551 Scan Tool, Connecting And Selecting Engine Control Module

Indicated on display

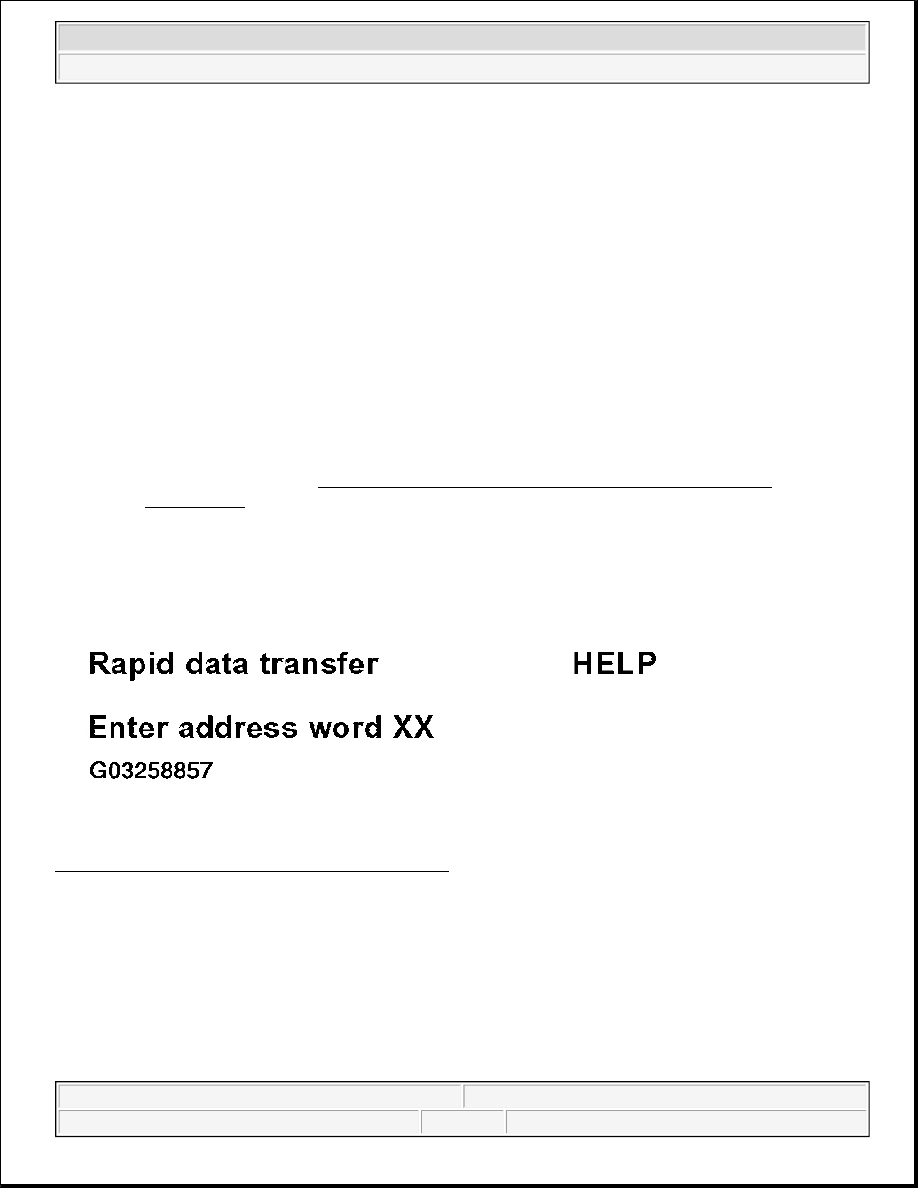

Fig. 41: V.A.G 1551 Scan Tool Display - Checking EVAP Canister Purge Regulator Valve (1 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Fuse box is located behind access panel at far left end of dash.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - New Beetle, 1.8L (APH, AWV & AWP)



z

Press buttons -0- and -8- for "Read measured value block" function and confirm entry with -Q-button.

Indicated on display

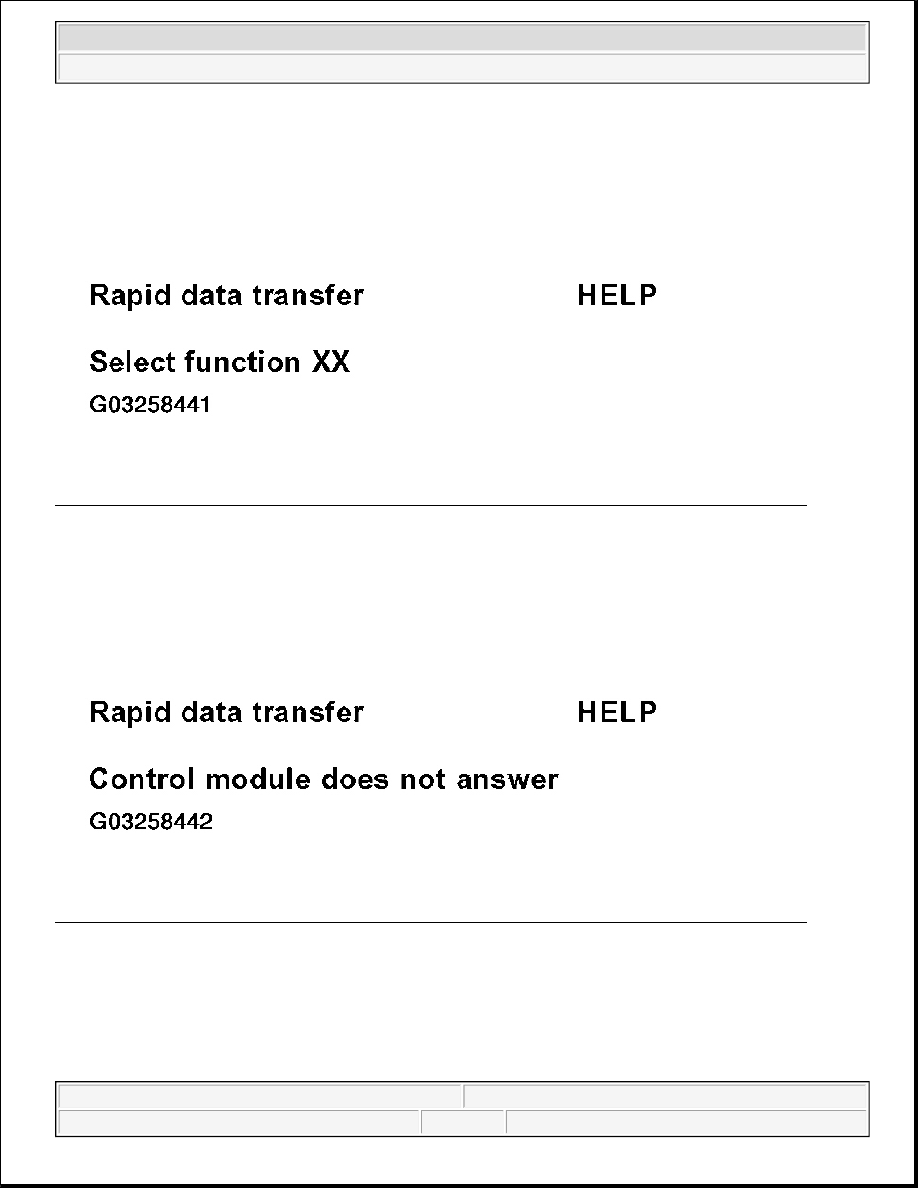

Fig. 42: V.A.G 1551 Scan Tool Display - Checking EVAP Canister Purge Regulator Valve (2 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -7- and -0- for "Display group number 70" and confirm entry with -Q- button.

Indicated on display: (1-4 = Display zones)

Fig. 43: V.A.G 1551 Scan Tool Display - Checking EVAP Canister Purge Regulator Valve (3 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press button -4- for "Basic setting" function ("Tank venting valve diagnosis" will be initiated)

NOTE:

The engine must not be loaded during this diagnosis because the diagnosis will
be interrupted and will not be started again until the engine is revved-up.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - New Beetle, 1.8L (APH, AWV & AWP)
