Fig. 31: Identifying Location Of Fuses
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Test sequence

z

Connect VAG 1551 Scan Tool (or VAG 1552 Scan Tool) and with ignition switched on select engine
electronics with "Address word" 01:

See V.A.G 1551 Scan Tool, Connecting And Selecting Engine Control Module .

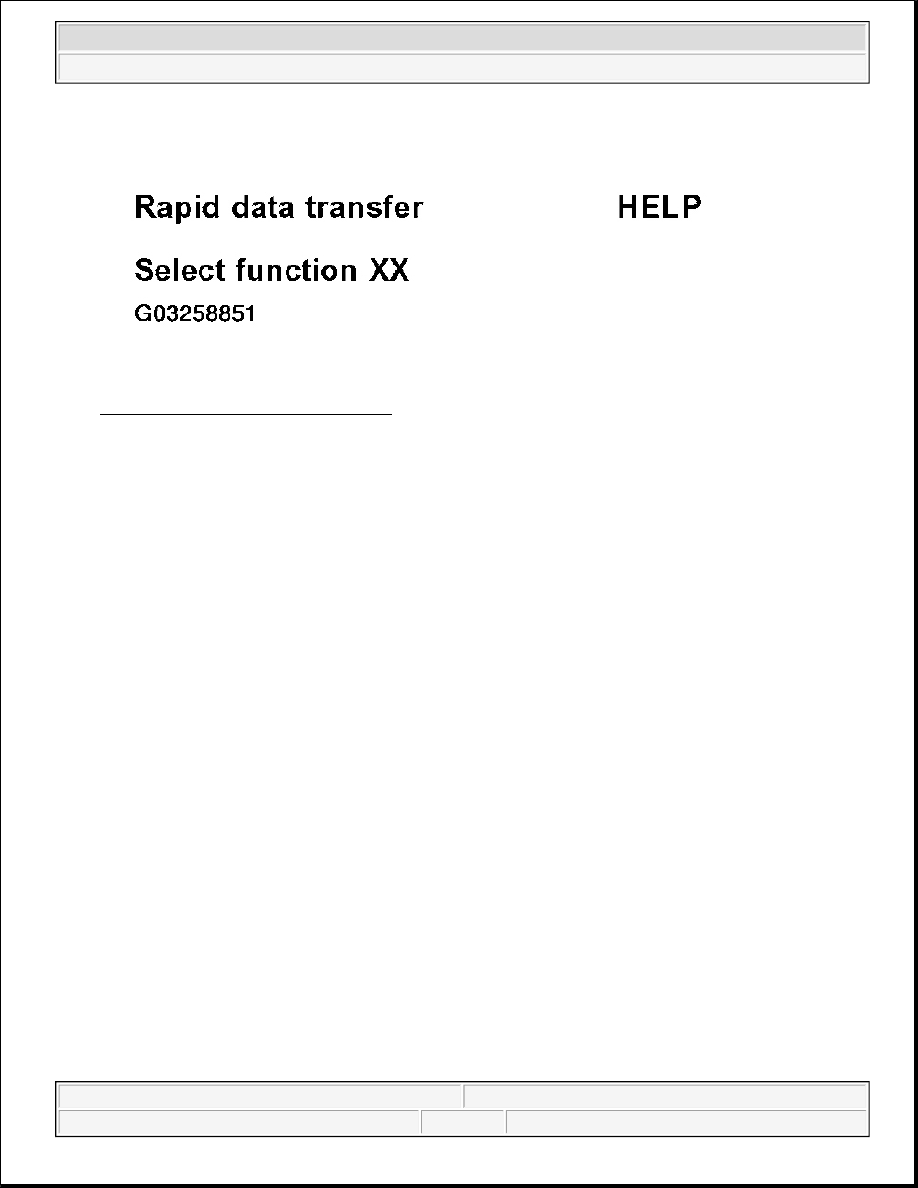

Indicated on display

z

Press buttons -0- and -8- for function "Read Measured Value Block" and confirm entry with -Q- button.

Indicated on display

z

Press buttons -0-, -6- and -2- for "Display group number 62" and confirm entry with -Q- button.

Indicated on display: (1...4 = Display zones)

NOTE:

Fuse box is located behind access panel at far left end of dash.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - New Beetle, 1.8L (APH, AWV & AWP)



Fig. 32: V.A.G 1551 Scan Tool Display - Checking Throttle Position Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check specification of TP sensor -G79- at idling stop in display zone 3.

Specification: 6 to 96%

z

Check specification of Throttle Position (TP) sensor -G185- at idling stop in display zone 4.

Specification: 3 to 48%

z

Operate accelerator pedal slowly until Wide Open Throttle and observe the angle indication in display
fields 3 and 4:

The percent indication in display field 3 must rise evenly. Specified range of 6 to 96% will not be used in
it's entirety.

The percent figures in display zone 4 must rise evenly. The tolerance range of 3 to 48% is not covered
completely.

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch ignition off.

If the display does not indicate as described:

NOTE:

The Engine Control Module (ECM) calculates the voltage value of the angle
sensor in percent relative to 5 volts and displays this value (5 volts supply
voltage represents 100%).

NOTE:

The indicated value in display field 3 must always be approximately twice
as large as the value in display field 4.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - New Beetle, 1.8L (APH, AWV & AWP)



z

Check voltage supply and wiring connections of Throttle Position (TP) sensor -G185- and -G79-. See
CHECKING VOLTAGE SUPPLY AND WIRING TO CONTROL MODULE .

Checking voltage supply and wiring to control module

z

Remove driver side storage compartment

See GLOVE BOX, REMOVING AND INSTALLING

z

Disconnect 6-pin connector for Throttle Position (TP) sensors -G79- and -G185-.

z

Switch ignition on.

z

Connect multimeter for voltage measurement at following terminals of connector using adapter cables
from VAG 1594 A.

Fig. 33: Connecting Multimeter For Voltage Measurement Terminals Of Connector Using Adapter
Cables From VAG 1594 A

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Contact 1 + Ground (GND)

z

Terminal 1 + 5

z

Terminal 2 + Ground (GND)

z

Terminal 2 + 3

z

Specified value at least 4.5 V

z

Switch ignition off.

If the specifications are not obtained:

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - New Beetle, 1.8L (APH, AWV & AWP)



z

Connect test box VAG 1598/31 to control module wiring harness. Engine Control Module is not
connected by this action.

Fig. 34: Connecting Test Box VAG 1598/31 To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring between test box and connector for open circuit according to wiring diagram.

Fig. 35: Identifying Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Contact 1 + socket 72

z

Contact 2 + socket 73

z

Contact 3 + socket 36

z

Contact 4 + socket 35

z

Contact 6 + socket 34

Vehicles with automatic transmission:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - New Beetle, 1.8L (APH, AWV & AWP)
