Fig. 119: Scan Tool Display - Mass Air Flow Sensor (2 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -8- buttons to select Function 08: "Read measuring value block".

z

Press -Q- button to enter input.

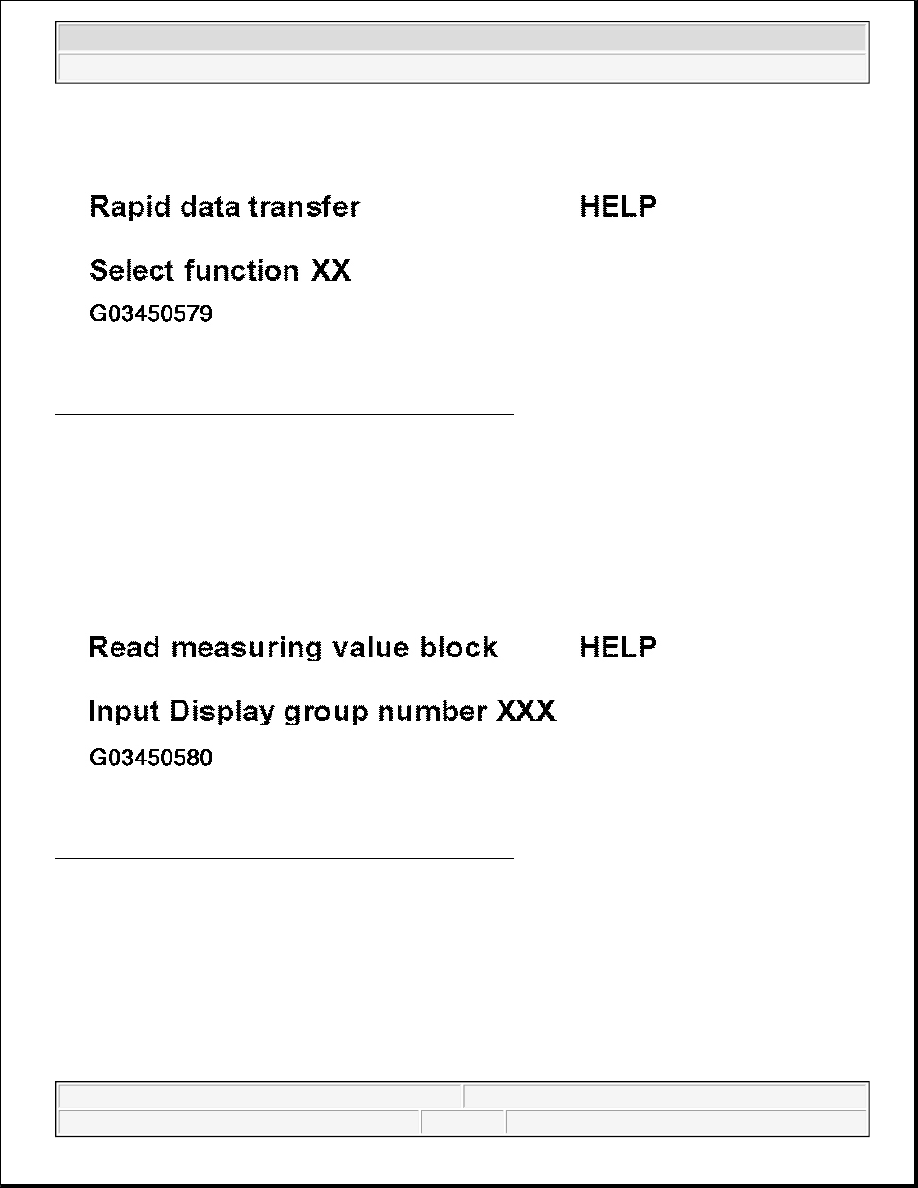

Display will appear as shown:

Fig. 120: Scan Tool Display - Mass Air Flow Sensor (3 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0-, -1- and -0- buttons to select "Display group 10".

z

Observe display in Display zone 1.

z

Specified Value: 200 to 450 mg/H



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 121: Scan Tool Display - Mass Air Flow Sensor (4 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If specification not obtained:

z

Check Exhaust Gas Recirculation system

See EXHAUST GAS RECIRCULATION (EGR), CHECKING .

If specification obtained:

z

Accelerate vehicle in 3rd gear from about 1500 RPM under Wide Open Throttle (WOT).

z

Press PRINT button on VAG1551 at approx. 3000 RPM.

z

Specification in Display zone 4: 100% (Throttle position)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 122: Scan Tool Display - Mass Air Flow Sensor (5 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If specification not obtained:

z

Repeat test and accelerate vehicle under Wide Open Throttle.

z

Specification in Display zone 1: above 800 mg/H



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 123: Scan Tool Display - Mass Air Flow Sensor (6 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If specification not obtained:

z

Replace Mass Air Flow Sensor -G70-.

z

Display the Readiness code. See READINESS CODE, DISPLAYING .

If DTC memory was erased:

z

Set the readiness code. See READINESS CODE, SETTING .

If 550 mg/H is constantly displayed in zone 1.

z

Press --> button.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
