Volkswagen New Beetle. Manual - part 1391





Fig. 108: Identifying 10-Pin Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Up to MY 1999

z

Terminal 9 + socket 79

z

Terminal 10 + sockets 2 + 28

From MY 2000

z

Terminal 9 + socket 114

z

Terminal 10 + sockets 1 + 2

z

Wire resistance: 1.5ohm maximum



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



z

Check wires for shorting to: one another, Ground and Battery +

z

Specification: INFINITY ohm

If wiring OK

z

Replace Engine Control Module -J248-. See Engine Control Module (ECM), replacing .

z

Display the Readiness code. See READINESS CODE, DISPLAYING .

If DTC memory was erased:

z

Set the readiness code. See READINESS CODE, SETTING .

Boost pressure control, checking

Special tools

z

VAG1551/1552 Scan Tool using VAG1551/3 Adapter cable

z

VAG1598/22 Test Box (MY 1999)

z

VAG1598/31 Test Box (from MY 2000)

z

Fluke 83 multimeter

z

VW 1594 Adapter kit

z

Wiring diagram

See CHARGE AIR PRESSURE SYSTEM, CHECKING .

Test requirements

z

Fuse 34 OK

Test sequence

z

Boost pressure using VAG1551/1552 Scan Tool during a test drive.

z

Make sure Wastegate Bypass Regulator valve - N75- harness connector is connected.

z

Connect VAG1551/1552 Scan Tool. See VAG1551/1552 SCAN TOOL, CONNECTING .

z

Start engine and let idle.

NOTE:

To check Boost pressure control it is essential to first know the actual Boost
pressure value independent of the Boost pressure control limits.

WARNING:

For safe operation, use a second technician to operate test equipment
and take readings from back seat, during test drive.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



z

Press -0- and -1- buttons to select Address word 01: "Engine electronics"

Display will appear as shown (example only):



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 109: Scan Tool Display - Boost Pressure Control (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Press --> button.

Display will appear as shown:

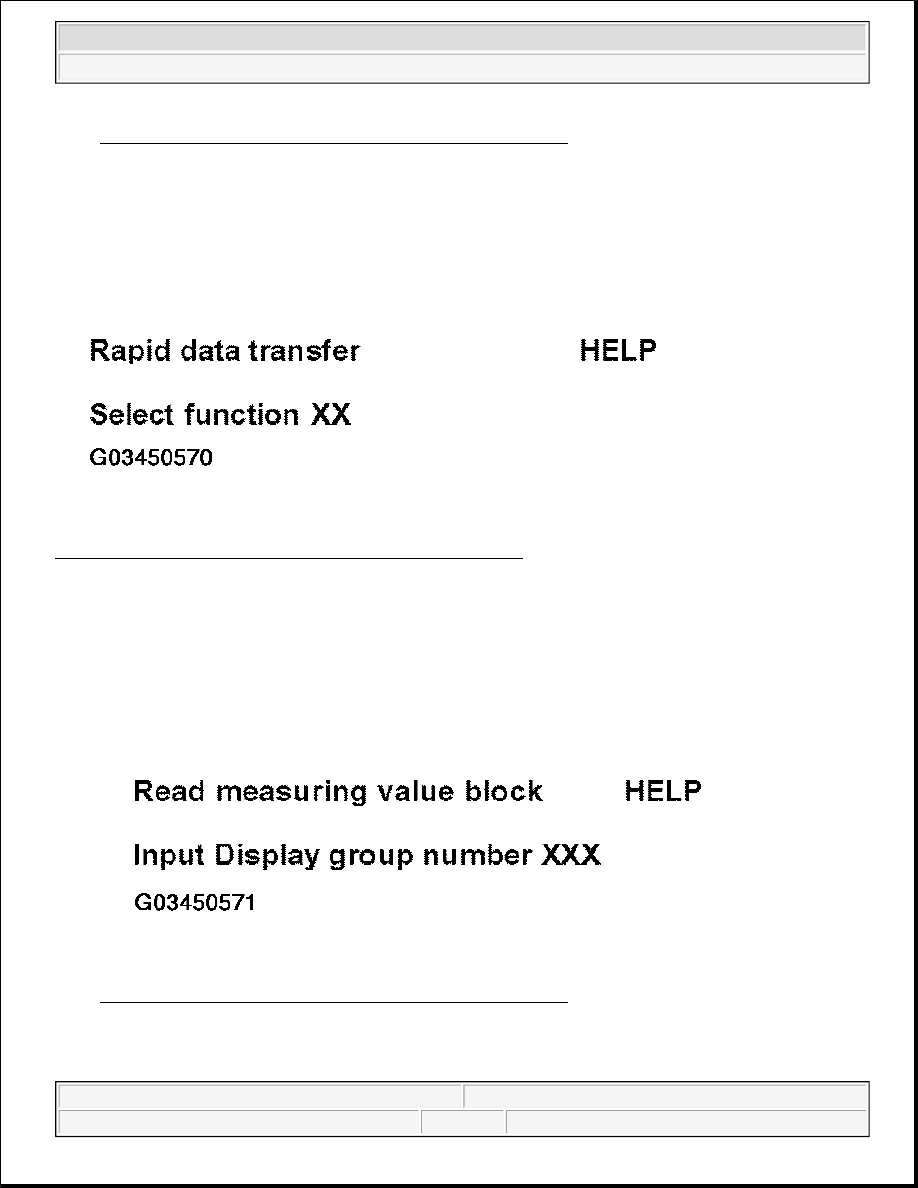

Fig. 110: Scan Tool Display - Boost Pressure Control (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -8- buttons to select Function 08: "Read measuring value block".

z

Press -Q- button to enter input.

Display will appear as shown:

Fig. 111: Scan Tool Display - Boost Pressure Control (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0-, -1- and -1- buttons to select "Display group 11"



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
