Volkswagen New Beetle. Manual - part 1390

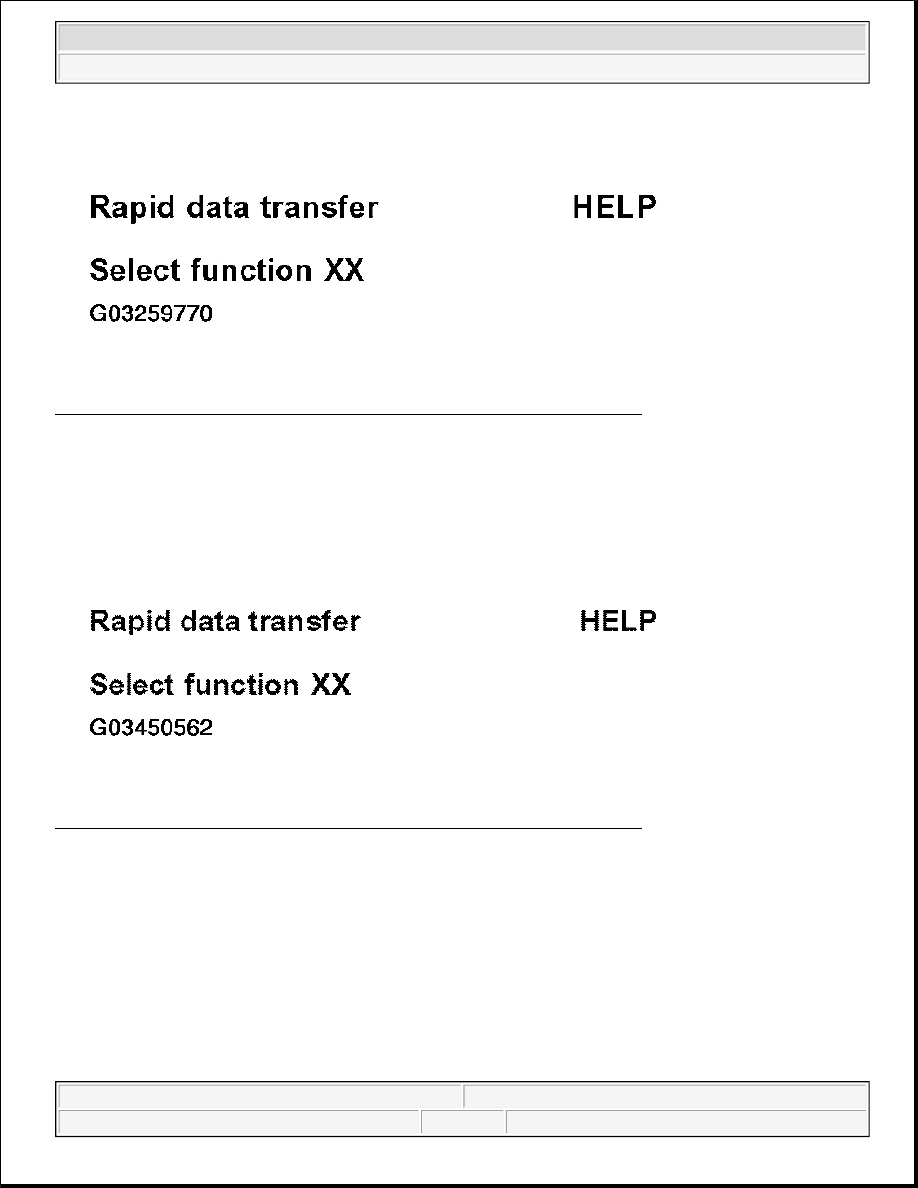

Fig. 101: Scan Tool Display - Diesel Injection Timing Control Range (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Display will appear as shown:

Fig. 102: Scan Tool Display - Diesel Injection Timing Control Range (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -4- buttons to select Function 04: "Basic setting".

z

Press -Q- button to enter input.

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 103: Scan Tool Display - Diesel Injection Timing Control Range (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -0- and -4- to select "Display group 4".

Display will appear as shown:

Fig. 104: Scan Tool Display - Diesel Injection Timing Control Range (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Specification (Display zone 3): 7.0 to 9.0° BTDC

After approx. 10 seconds, the Diesel injection adjuster is moved into the retarded position.

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 105: Scan Tool Display - Diesel Injection Timing Control Range (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Specification (Display zone 3): 3.0 to 5.0° BTDC

If specifications not obtained:

z

Check Cold Start injector as follows:

z

Press --> button.

z

Press -0- and -6- buttons to select Function 06: "End output".

z

Press -Q- button to enter input.

z

Switch OFF ignition.

z

Disconnect harness connector from Diesel injection pump. See DIESEL INJECTION SYSTEM,
COMPONENT LOCATIONS OVERVIEW
 .

z

Measure resistance between connector terminals 9 + 10.

z

Specification: 12 to 20 ohm

Fig. 106: Identifying 10-Pin Connector Terminals



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

If specification not obtained:

z

Replace Cold Start injector -N108-. See INTAKE MANIFOLD CHANGE-OVER VALVE,
SERVICING
 .

z

Display the Readiness code. See READINESS CODE, DISPLAYING .

If DTC memory was erased:

z

Set the readiness code. See READINESS CODE, SETTING .

If specification obtained:

z

Connect VAG1598/22 (or 1598/31) Test Box to ECM wiring harness.

Fig. 107: Connecting VAG1598/22 (Or 1598/31) Test Box To ECM Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between Test Box and 10-pin harness connector using Wiring diagram.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
