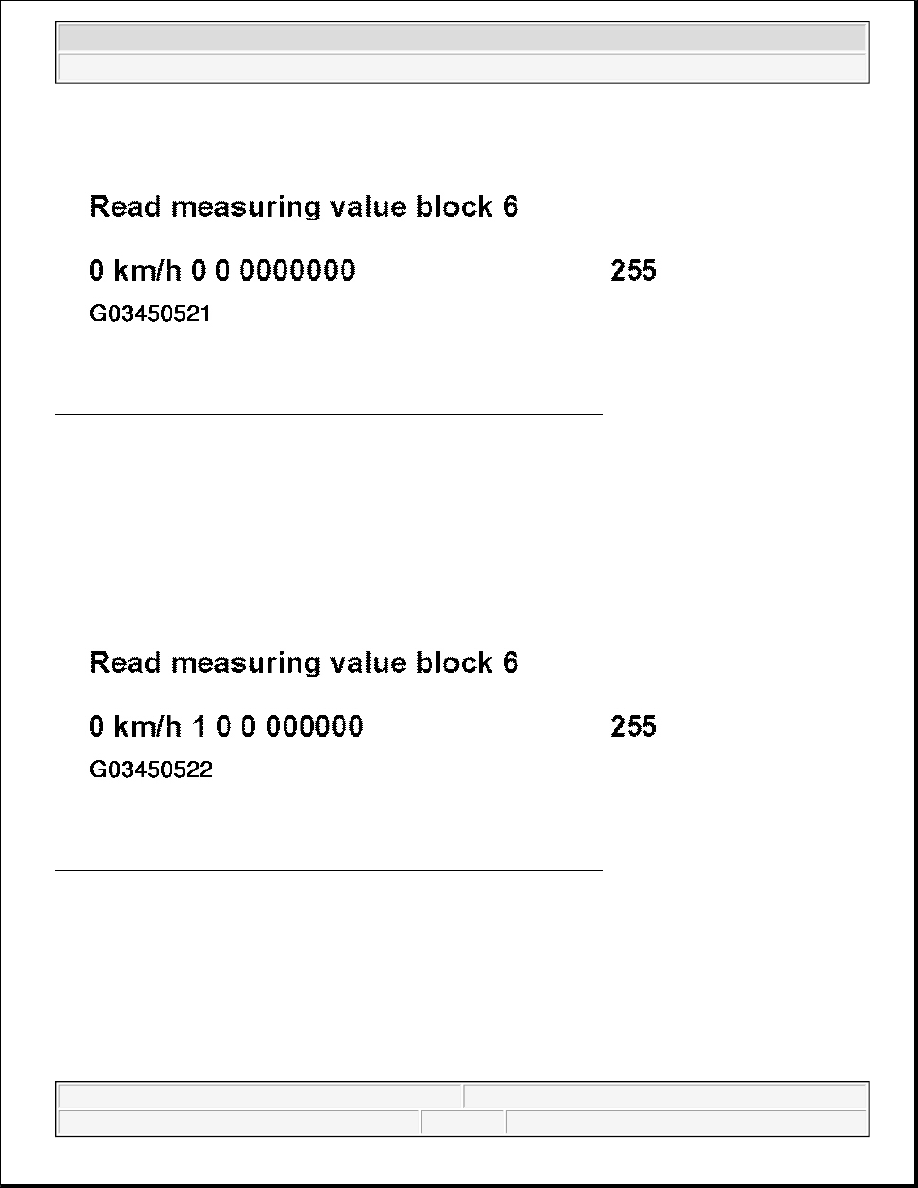

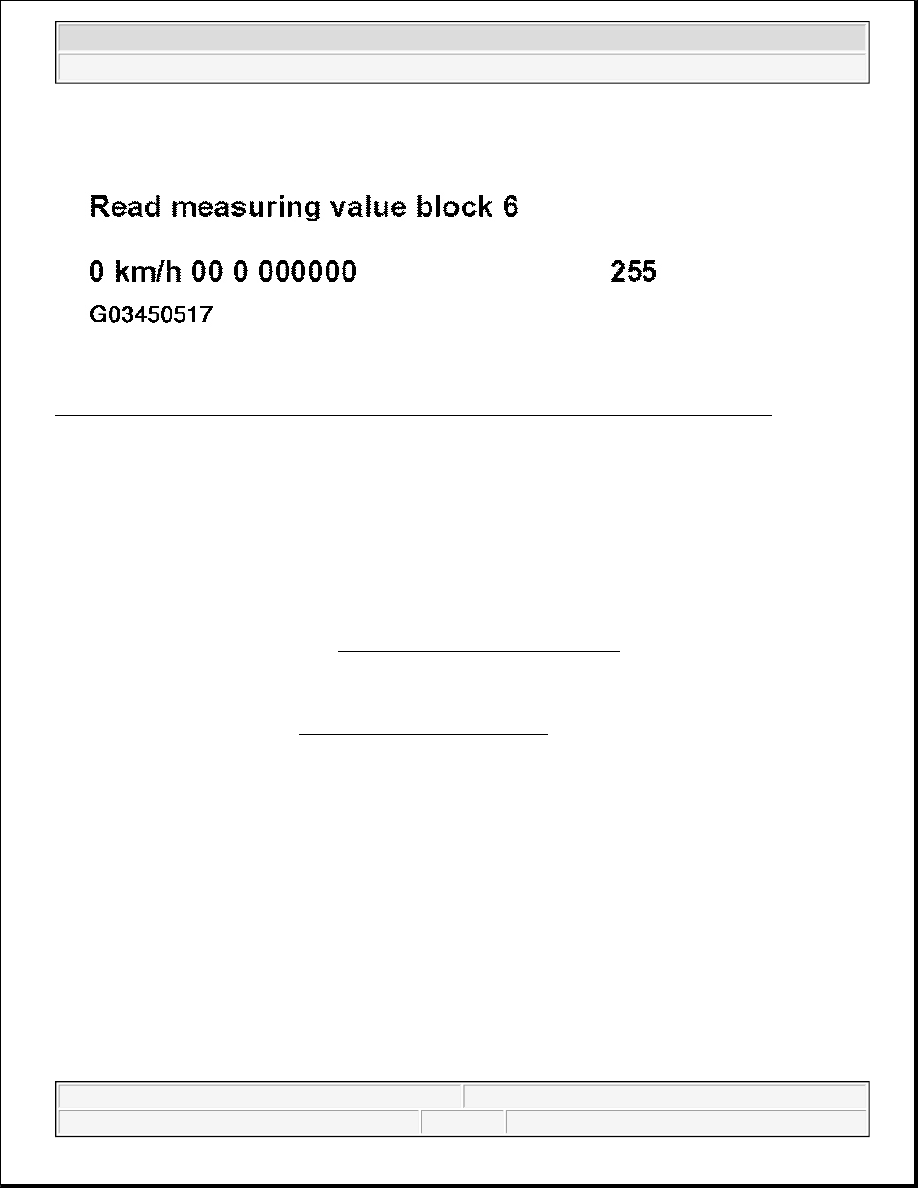

Fig. 57: Scan Tool Display - Brake Light Switch & Brake Vacuum Vent Valve Switch (6 Of 6) If one or both displays do not change: z Adjust switch point for -F47- by turning switch. z Adjust switch point for -F- by moving plunger. z Check switches or wiring to the switches: See appropriate System Wiring Diagram article. z Display the Readiness code. See READINESS CODE, DISPLAYING . If DTC memory was erased: z Set the readiness code. See READINESS CODE, SETTING . Clutch Vacuum Vent Valve Switch -F36-, checking Clutch Vacuum Vent Valve Switch -F36- informs the ECM when the clutch is being engaged or disengaged. Special tools z VAG1551/1552 Scan Tool using VAG1551/3 Adapter cable z VAG1598/22 Test Box (MY 1999) z VAG1598/31 Test Box (from MY 2000) z Fluke 83 multimeter z VW 1594 Adapter kit z Wiring diagram
2003 Volkswagen New Beetle GLS 1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
|
