Fig. 63: Scan Tool Display - Clutch Vacuum Vent Valve Switch (6 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -6- buttons to select Function 06: "End output".

z

Press -Q- button to enter input.

z

Switch OFF ignition.

z

Disconnect Clutch Vacuum Vent Valve Switch -F36- harness connector. See DIESEL INJECTION
SYSTEM, COMPONENT LOCATIONS OVERVIEW
 .

z

Switch Fluke 83 multimeter to resistance range.

z

Measure resistance at switch terminals.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 64: Measuring Resistance At Clutch Vacuum Vent Valve Switch Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Specification:

z

Clutch not depressed: maximum 10 ohm

z

Clutch depressed: INFINITY ohm

If specifications not obtained:

z

Replace Clutch Vacuum Vent Valve Switch -F36-.

z

Display the Readiness code. See READINESS CODE, DISPLAYING .

If DTC memory has been erased:

z

Set the Readiness code again. See READINESS CODE, SETTING .

If specifications obtained:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



z

Connect VAG1598/22 (or 1598/31) Test Box to ECM wiring harness.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



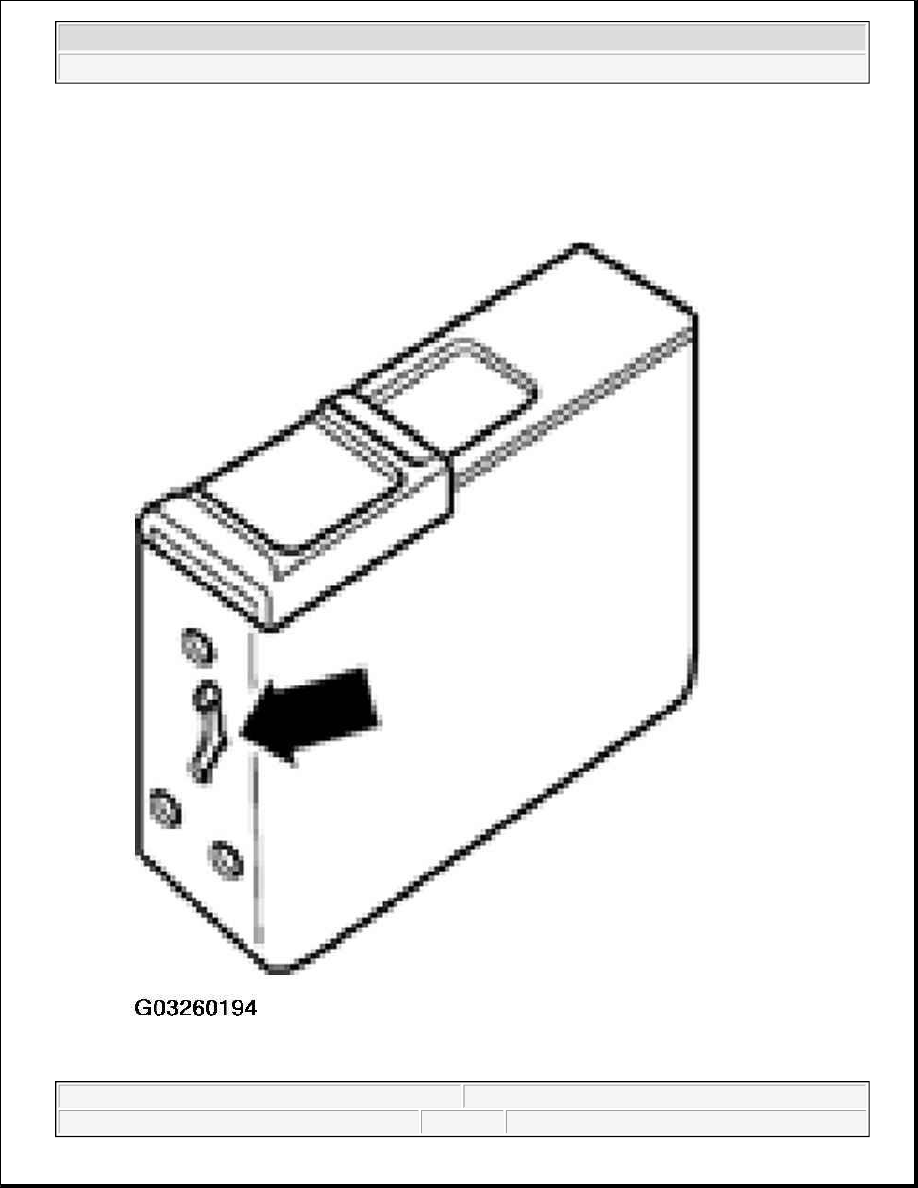

Fig. 65: Connecting VAG1598/22 (Or 1598/31) Test Box To ECM Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between Test Box and harness connector using Wiring diagram.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
