Volkswagen New Beetle. Manual - part 1365





z

Install adjustment screw into rocker lever until a considerable resistance can be felt (injector element is
onto limit stop).

z

Turn adjustment screw back from top around 225°.

z

Hold adjustment screw in this position and tighten lock nut to 30 N.m.

Fig. 16: Holding Adjustment Screw In Position And Tightening Lock Nut
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Position injector unit connector and install cylinder head cover and toothed belt guard, upper part. See
CYLINDER HEAD, REMOVING AND INSTALLING .

ENGINE CONTROL MODULE

ENGINE CONTROL MODULE, REMOVING AND INSTALLING

z

Before removing engine control module check control module identification and thereby previous control
module coding, See ENGINE CONTROL MODULE (DTC) MEMORY, READING AND
ERASING
 .

Removing

z

Switch ignition off.

z

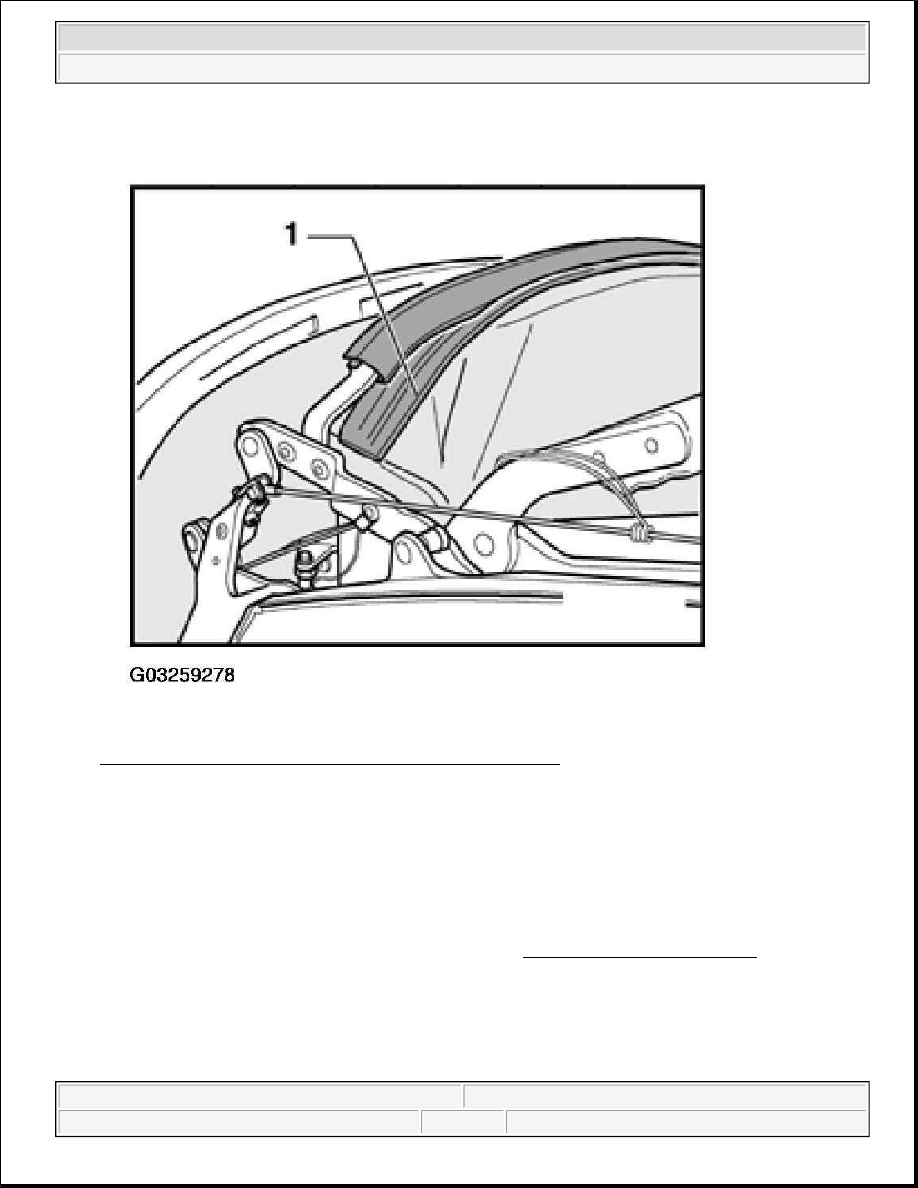

Remove inner cover on left hand side of plenum chamber.

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING .

z

Carefully press off retaining tab (arrow).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Fuel Injection - New Beetle, 1.9L 4-Cyl. - BEW



Fig. 17: Pressing Off Engine Control Module Retaining Tab
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Unlock engine control module connector and remove.

Installing

z

Install new control module and press to left.

z

Connect connector and lock in position.

z

Check previous coding and code new control module, See COMPONENTS, ADAPTING .

ENGINE CONTROL MODULE (DTC) MEMORY, READING AND ERASING

Special tools and equipment

z

VAS 5051 Vehicle Diagnosis, Testing and Information System



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Fuel Injection - New Beetle, 1.9L 4-Cyl. - BEW



z

Diagnostic cable VAS 5051/1 or VAS 5051/3

Fig. 18: Identifying VAS 5051 Vehicle Diagnosis, Testing And Information System
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Work sequence

Connect Vehicle Diagnosis, Testing and Information System VAS 5051 as follows:

z

Connect connector of diagnosis cable VAS 5051/1 or VAS 5051/3 to diagnosis connection.

Fig. 19: Connecting Connector Of Diagnosis Cable VAS 5051/1 Or VAS 5051/3 To Diagnosis
Connection

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Start engine and run at idling speed.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Fuel Injection - New Beetle, 1.9L 4-Cyl. - BEW



z

Switch ignition on.

Select operating mode

z

Press button on screen for "Vehicle self-diagnosis".

Select vehicle system

z

Press button "01 - Engine electronics" on screen.

The control module identification and engine control module coding are shown on the screen.

Select diagnostic function

z

Press button "02 - Interrogating fault memory" on screen.

"No fault detected" appears on screen if no DTCs are stored in the engine control module.

If DTCs are stored in the engine control module they will appear on the screen listed one below the other.

z

Press <-- button.

z

Press button "05 - Erase fault memory" on screen.

z

Press function 06-"End output".

COMPONENTS, ADAPTING

Special tools and equipment

z

VAS 5051 Vehicle Diagnosis, Testing and Information System

z

Diagnostic cable VAS 5051/1 or VAS 5051/3

NOTE:

Only when engine does not start:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Fuel Injection - New Beetle, 1.9L 4-Cyl. - BEW
